1. Check Window Lock Switch

  1. Check that operation of the door glasses except the driver side door glass and the roof glass is disabled when the window lock switch of the power window master switch is pressed.
  2. Check that the door glasses and the roof glass can be operated when the window lock switch is pressed again.

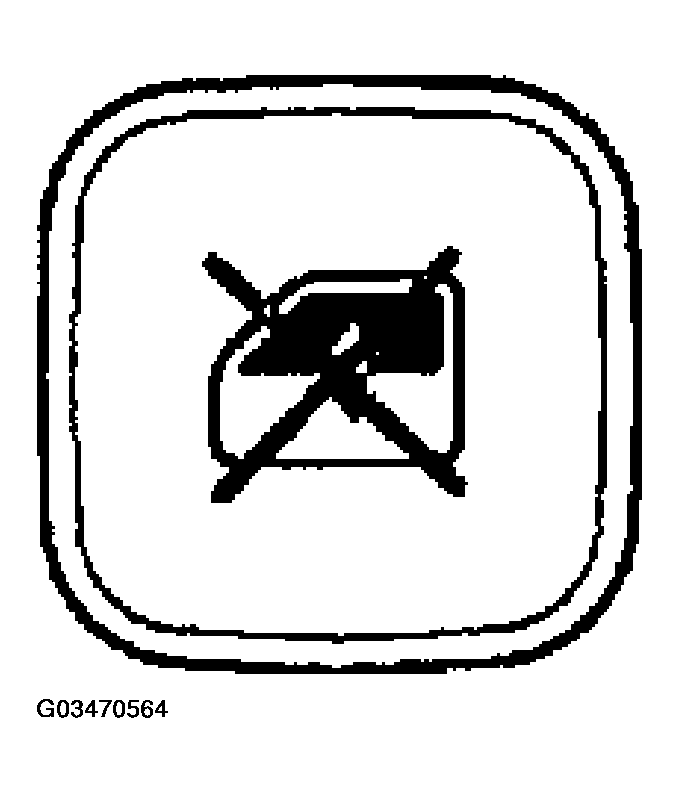

Fig 1: Checking Window Lock Switch
G03470564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
