Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Component Location |
|---|---|
| A/C Thermistor | Behind right center of dash. |
| Antenna Amplifier | Behind center of dash. |
| Data Link Connector No. 3 | Below left side of dash. See Figure. |
| Diode (Back-Up Light) | Behind right side of dash. |
| Fuel Pump Resistor | On left side of engine compartment. |
| Horn (High) | At left front of engine compartment, on radiator support. |
| Horn (Low) | At left front of engine compartment, on radiator support. |
| Noise Filter (Condenser Fan) | At right front of engine compartment. |
| Noise Filter (Ignition No. 1) | On top of engine. |
| Noise Filter (Ignition No. 2) | On upper left side of engine. |

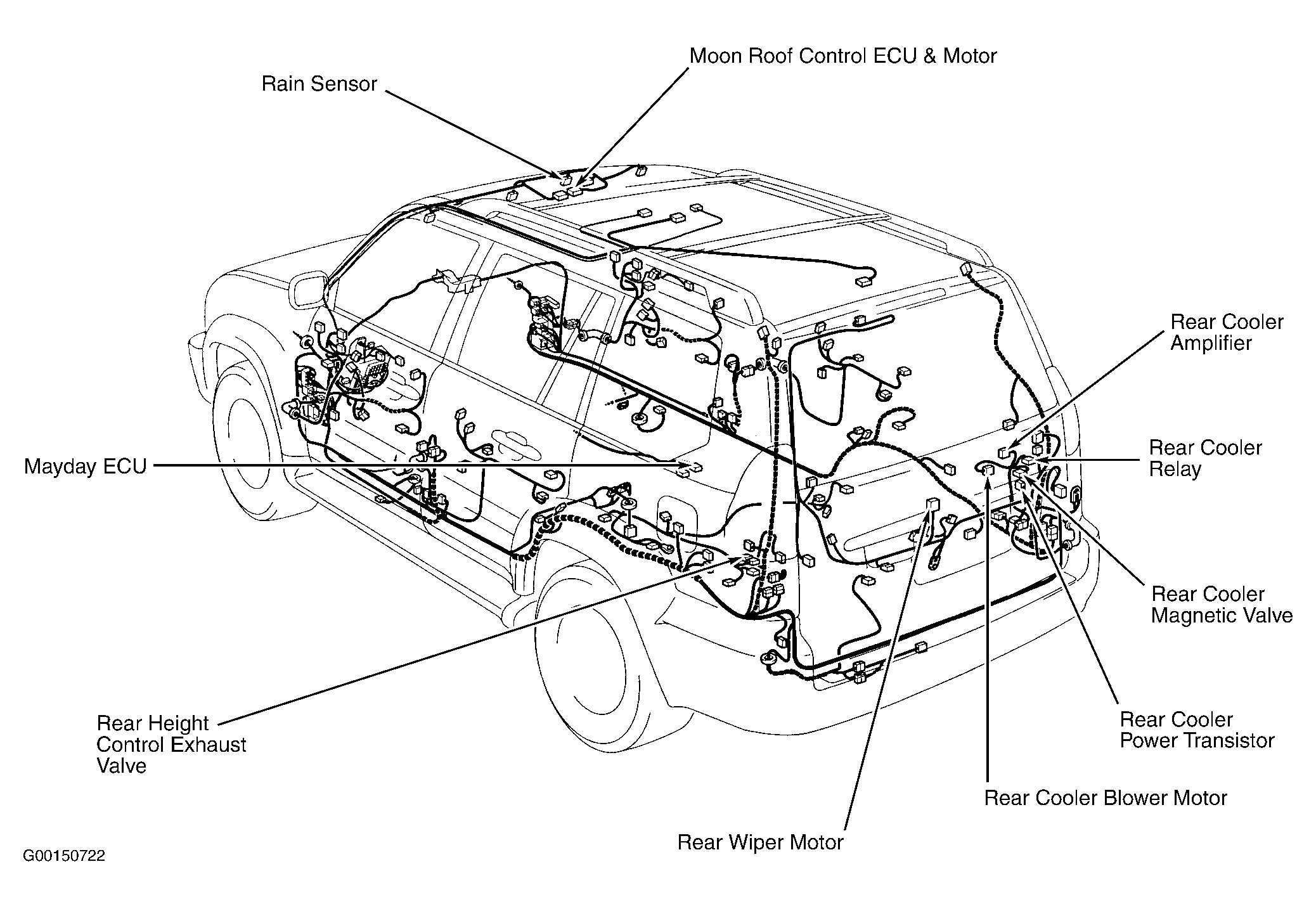

| Rear Cooler Amplifier | At base of right "D" pillar. See Figure. |
| Rear Cooler Power Transistor | At right "D" pillar. See Figure. |
| Rear Cooler Thermistor | At right "D" pillar. |
| Stereo Component Amplifier | Under driver's seat. See Figure. |
| Theft Deterrent Horn | At right side of engine compartment. See Figure. |
| Transponder Key Amplifier | In right side of steering column. See Figure. |
| Turn Signal Flasher | At left end of dash. |
| Voltage Inverter | On right side of cargo area. |
| Wireless Door Lock Buzzer | At left rear of engine compartment. |
