Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Component Location |
|---|---|

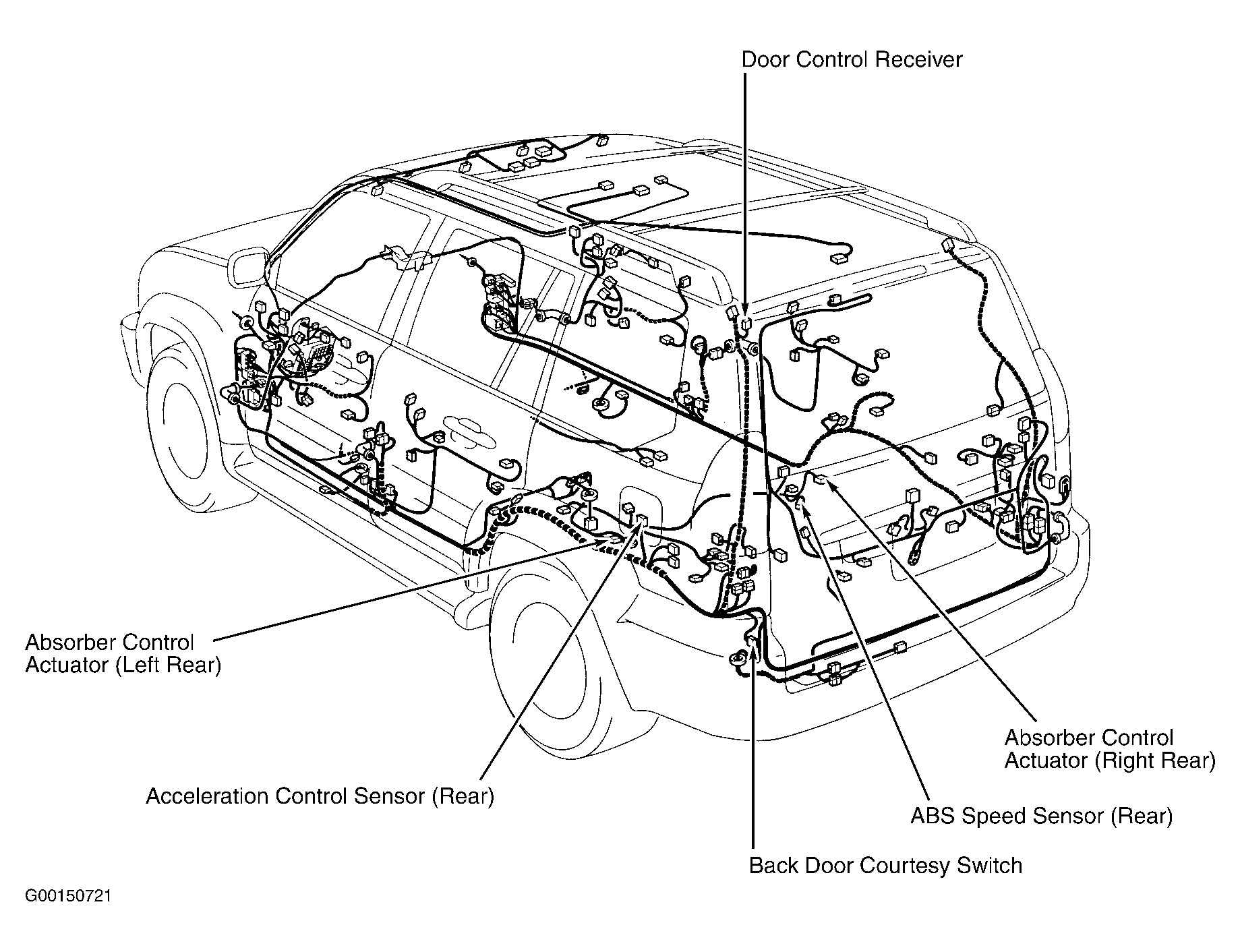

| Back Door Courtesy Switch | At left rear of vehicle, below taillight. See Figure. |

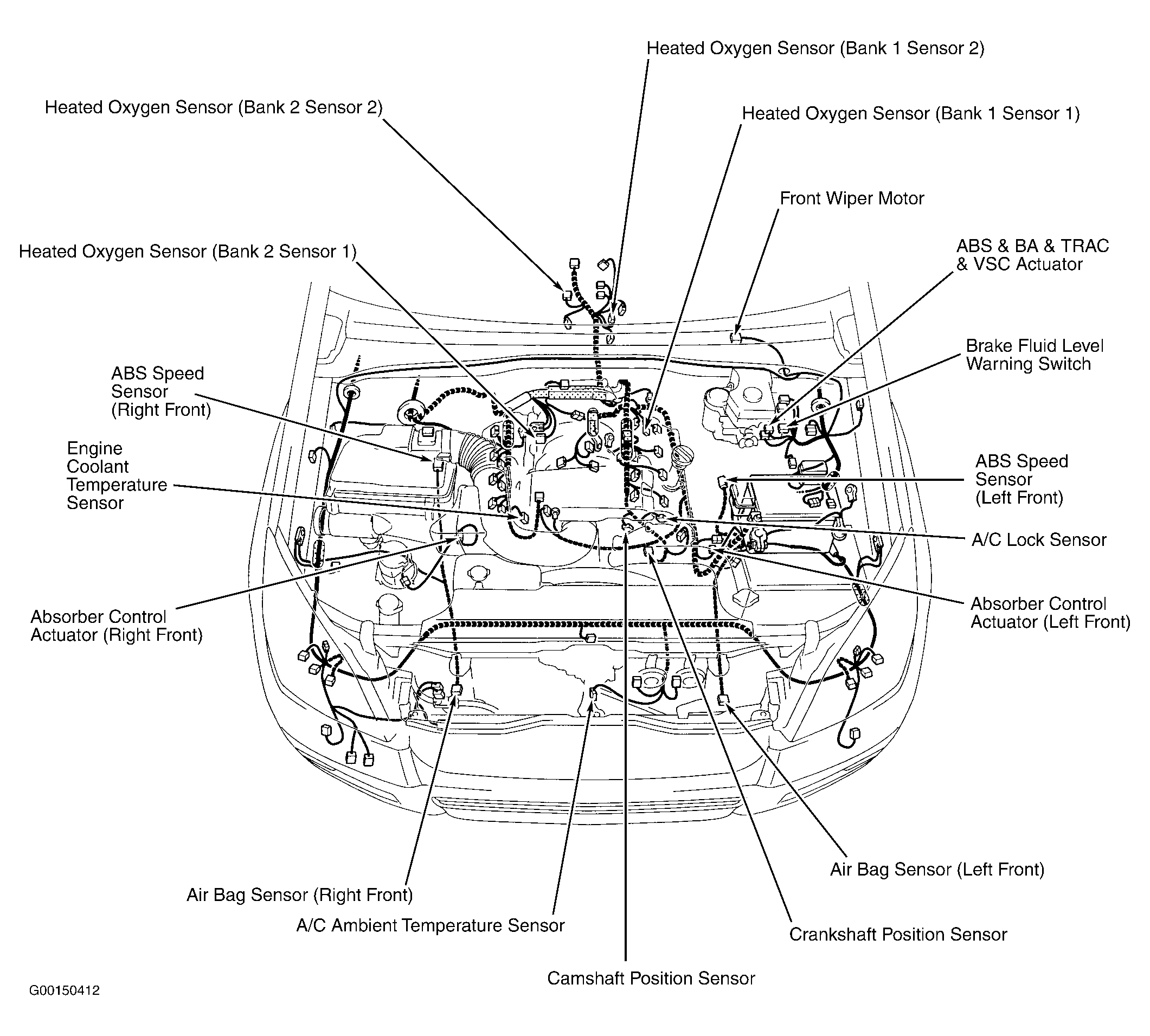

| Brake Fluid Level Warning Switch | On brake master cylinder. See Figure. |
| Buckle Switch (Left/Right) | On respective seat belt buckle. |
| Detection Switch | On transmission housing. |
| Engine Hood Courtesy Switch | At center front of engine compartment, near hood latch. |

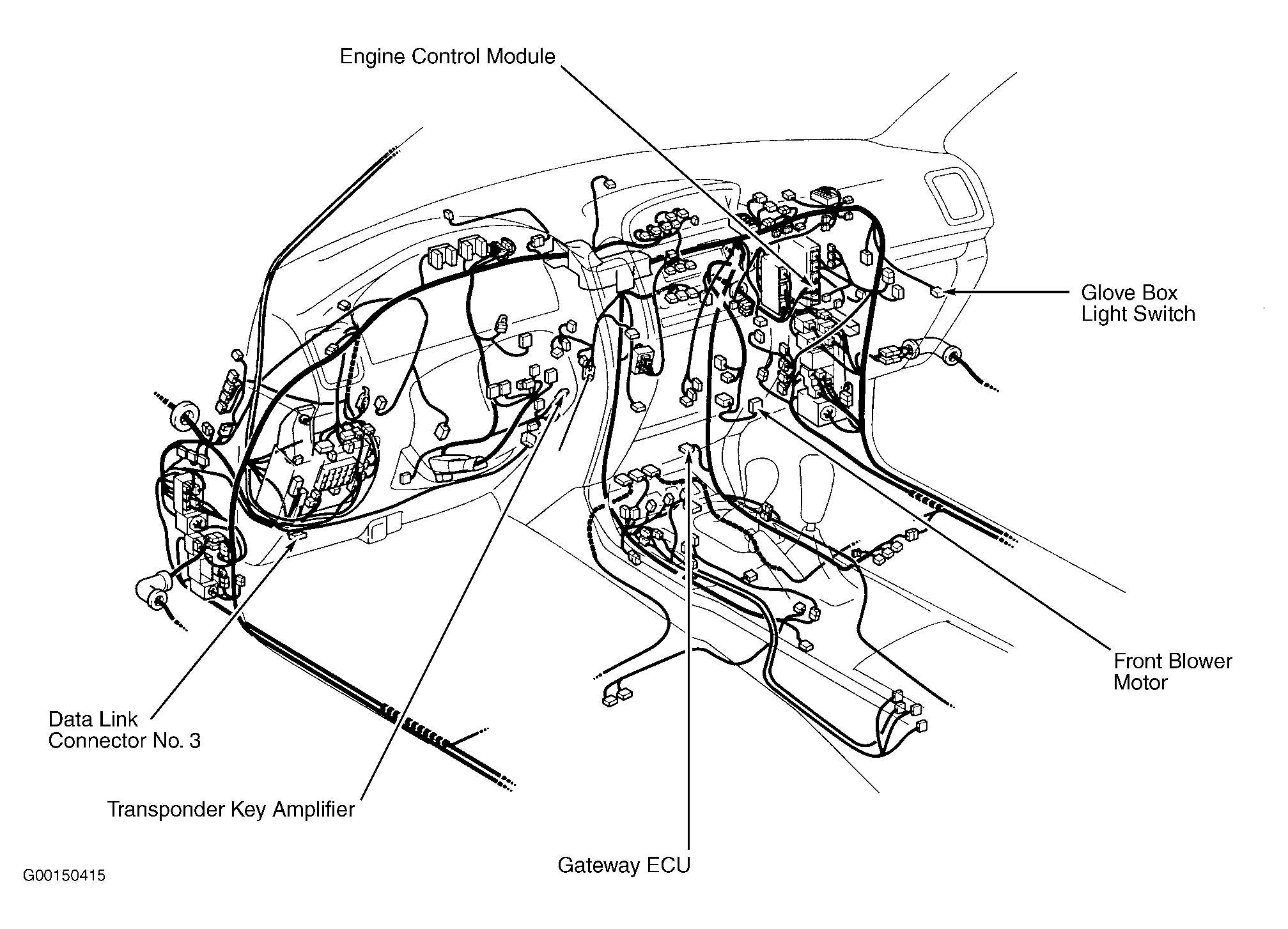

| Glove Box Light Switch | At right side of glove box. See Figure. |
| Master Cylinder Pressure Switch | On master cylinder. |

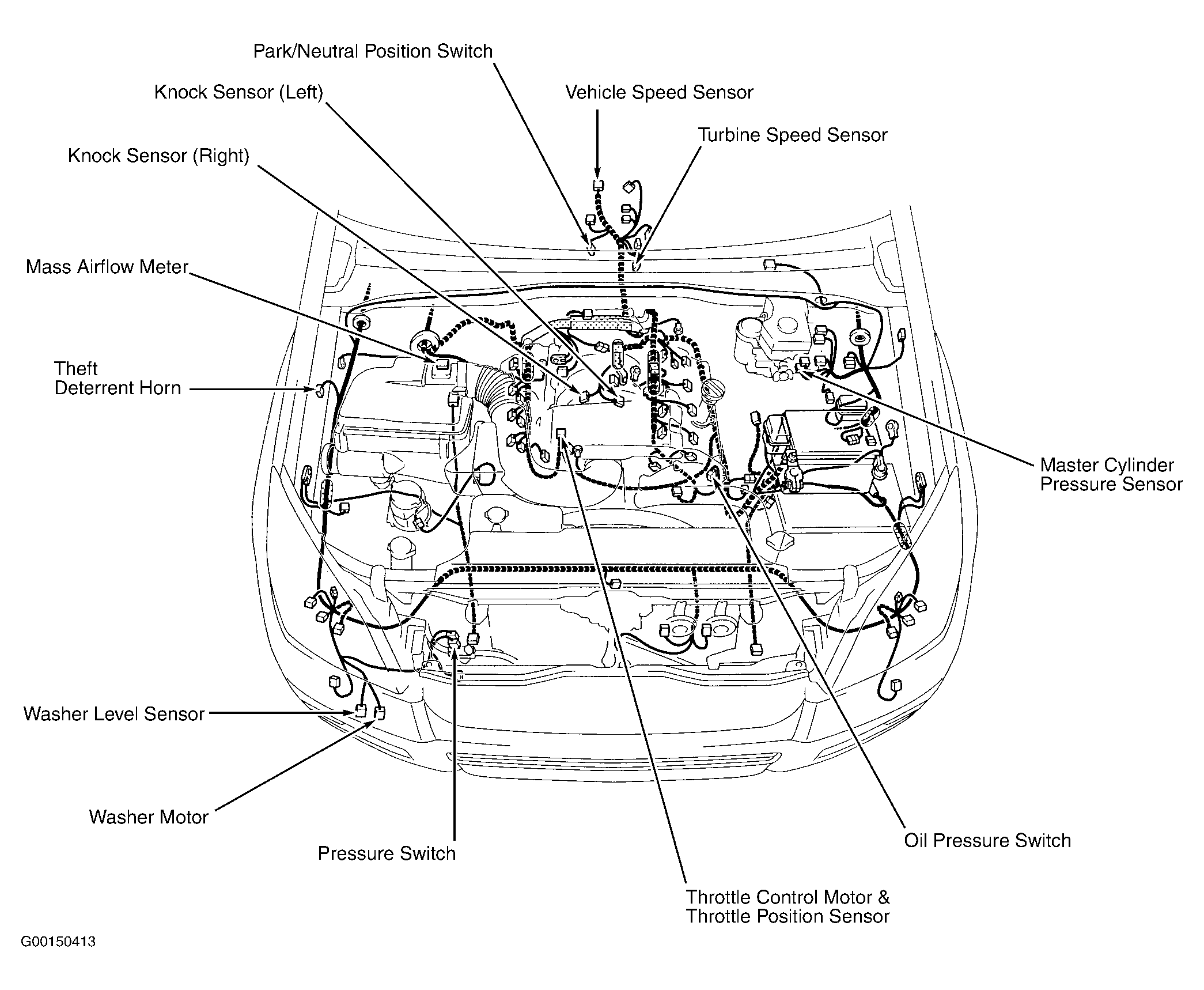

| Oil Pressure Switch | On left front of engine. See Figure. |
| Parking Brake Switch | At base of brake lever assembly. |
| Park/Neutral Position Switch | On right side of transmission. See Figure. |
| Pressure Switch | On right front of engine compartment. See Figure. |
