Air Inlet Line

Disconnect air inlet line hose from charcoal canister. See Fig 1. Check that air inlet line is clear. Reconnect air inlet line hose to charcoal canister.

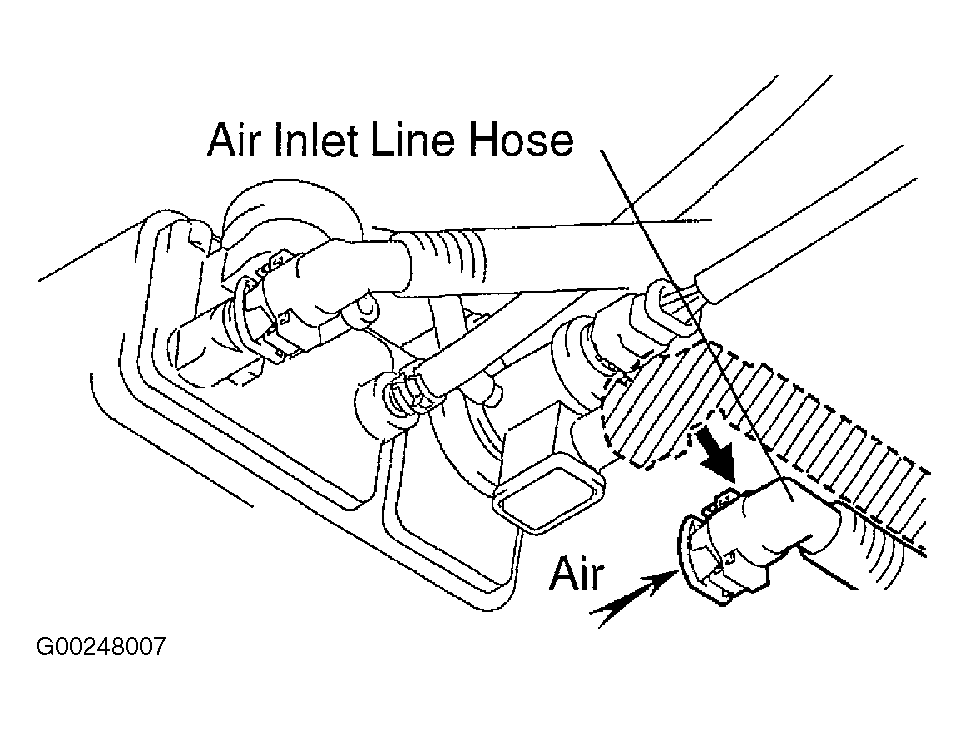

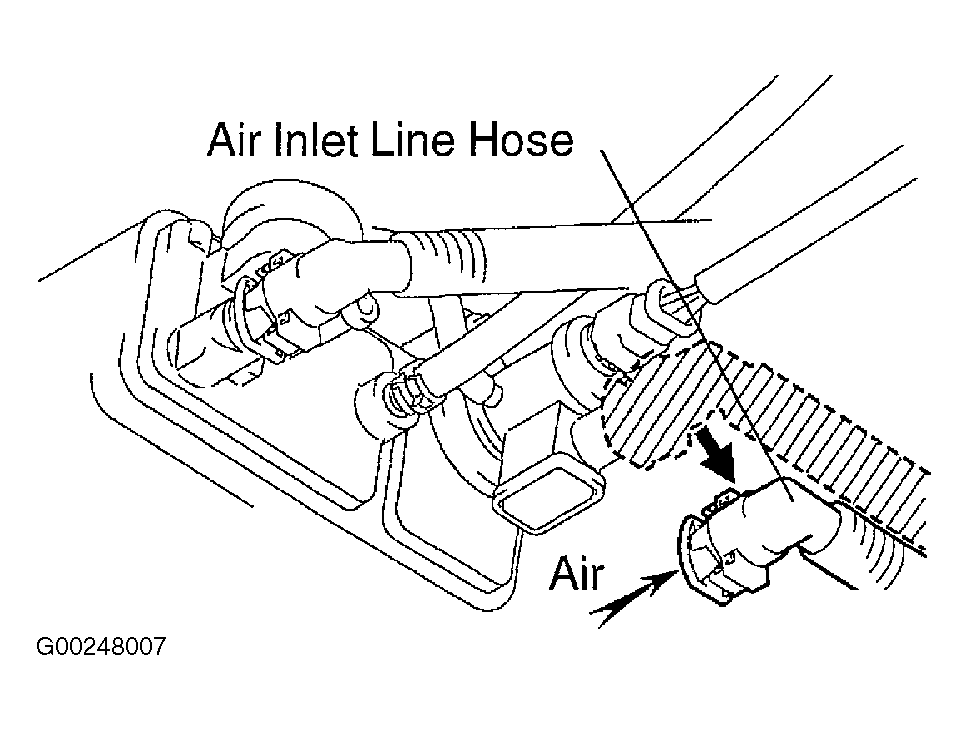

Fig 1: Checking Air Inlet Line

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
