Fuel Pump Resistance & Operation
CAUTION:
When testing fuel pump operation, DO NOT apply battery voltage to fuel pump for more than 10 seconds or fuel pump may be damaged. When testing fuel pump operation, keep fuel pump away from battery as far as possible.

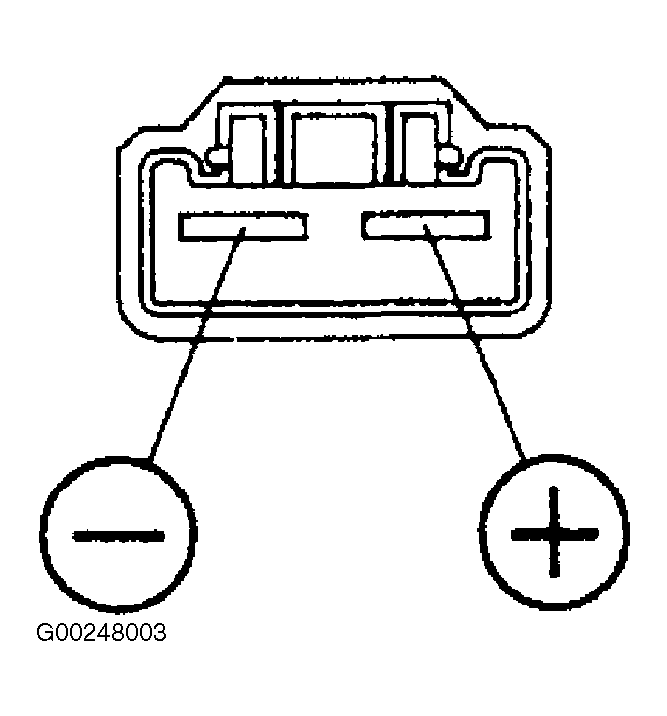

- To test fuel pump resistance, use ohmmeter to check resistance between terminals. See Fig 1. Replace fuel pump and/or lead wire if resistance is not .2-3.0 ohms at 68°F (20°C).
- To test fuel pump operation, apply battery voltage to both terminals. DO NOT apply battery voltage to fuel pump for more than 10 seconds. Replace fuel pump if fuel pump does not operate.
