Diagnosis & Repair (With OBD II Scan Tool)

For wiring diagram, see Figure. For wire color identification, see WIRE COLOR IDENTIFICATION  table under COMPUTERIZED ENGINE CONTROLS. For diagnosis and repair, see Fig 1-Fig 5 .

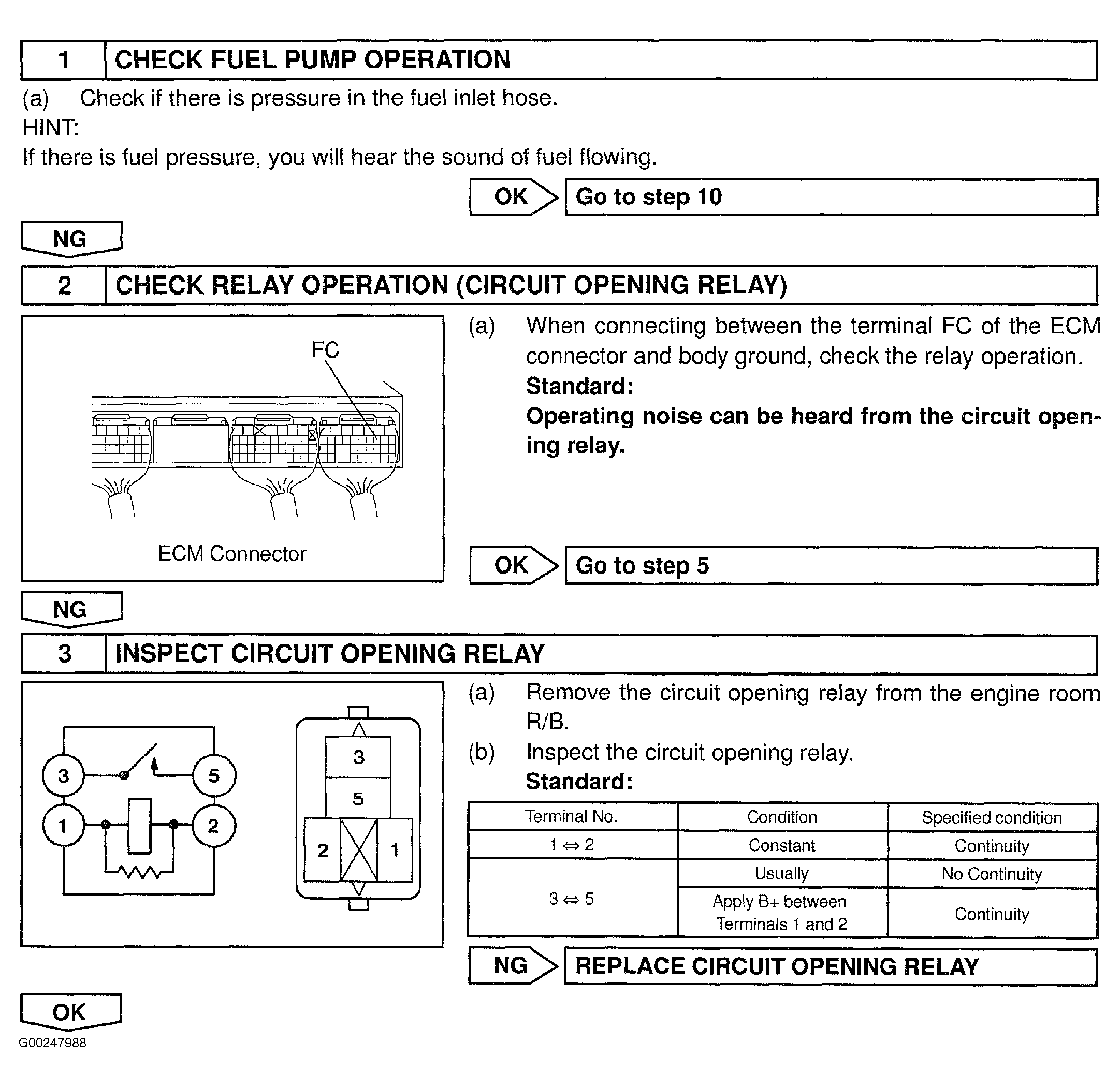

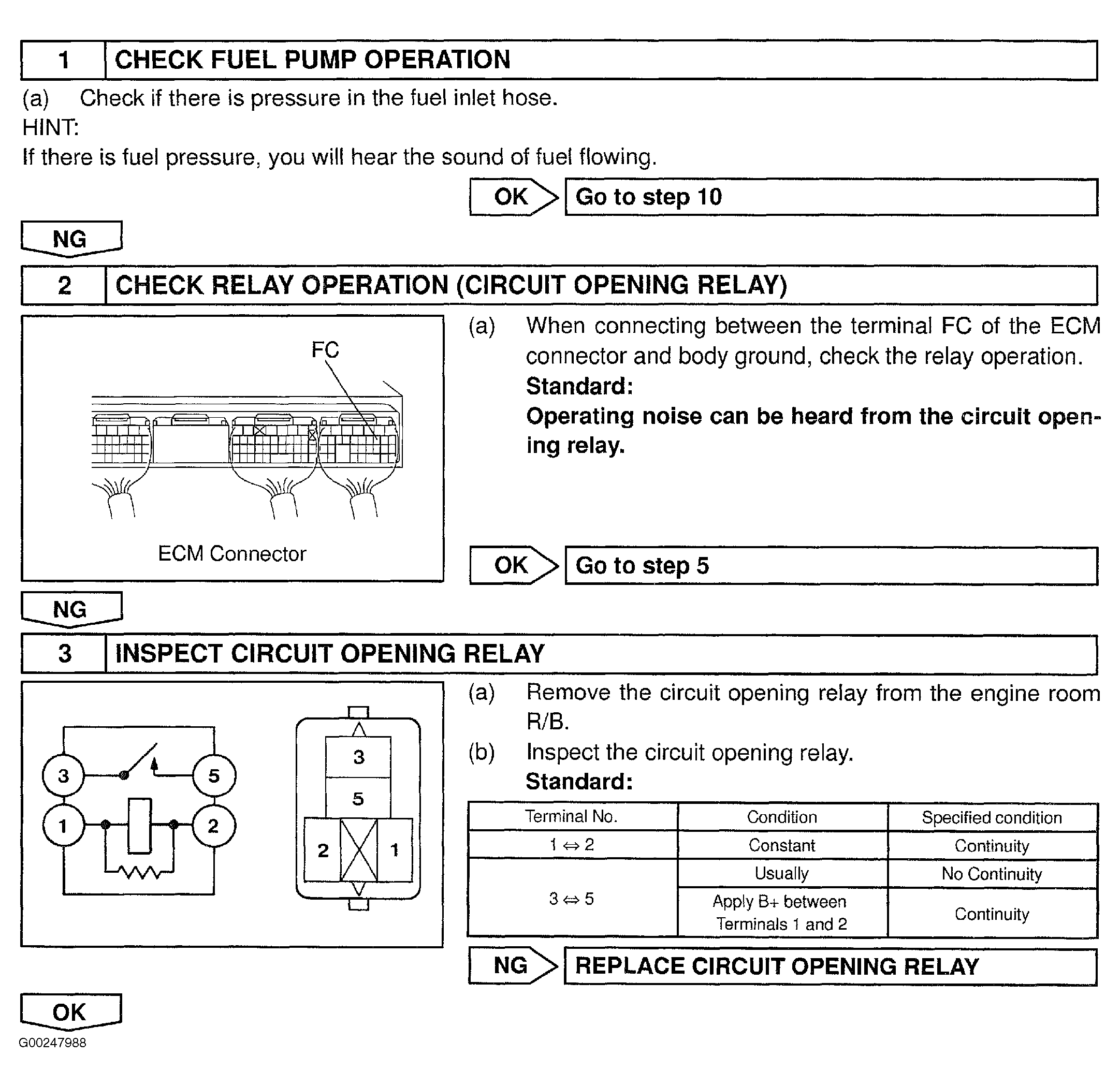

Fig 1: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 1-3)
G00247988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

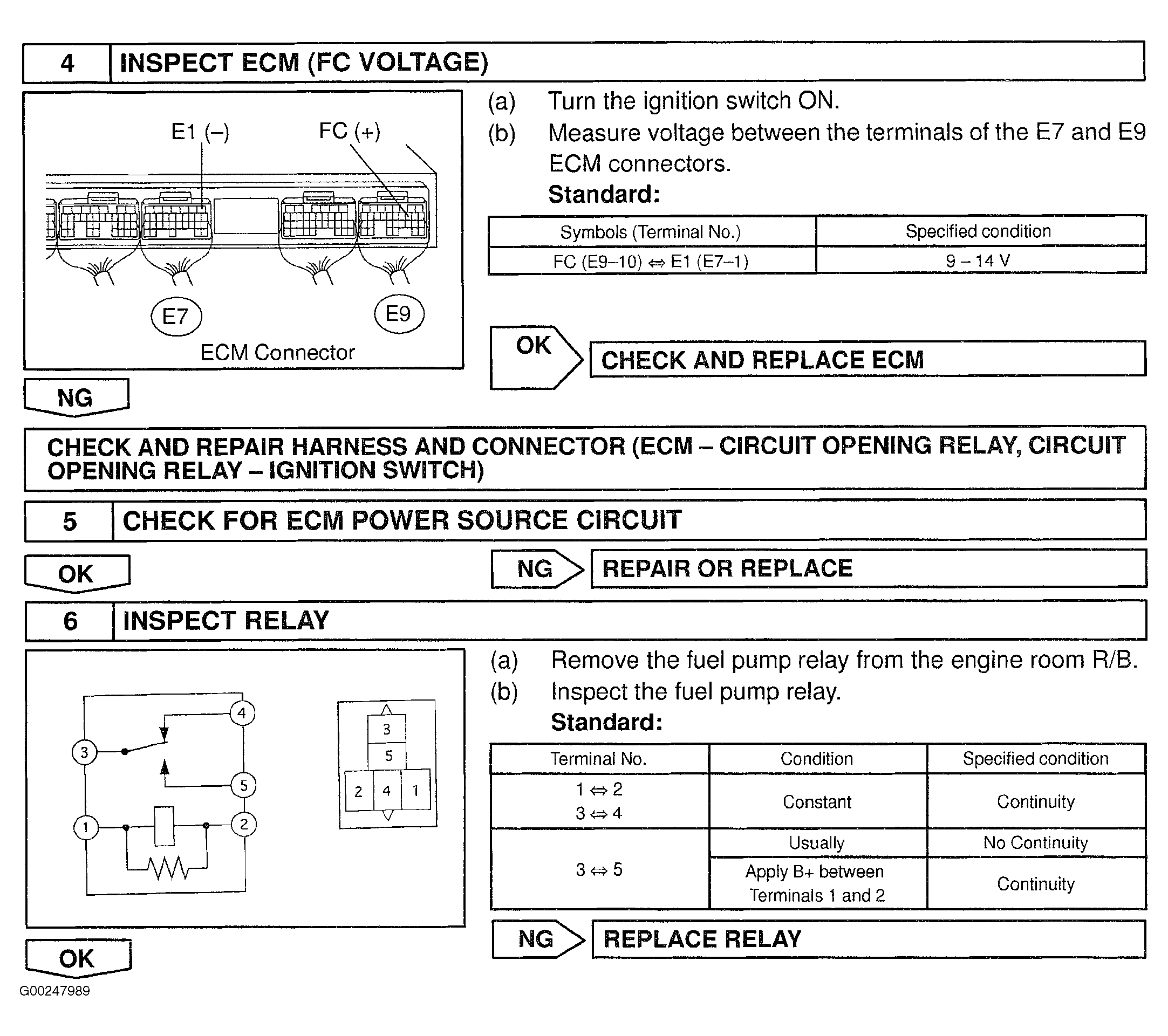

Fig 2: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 4-6)
G00247989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

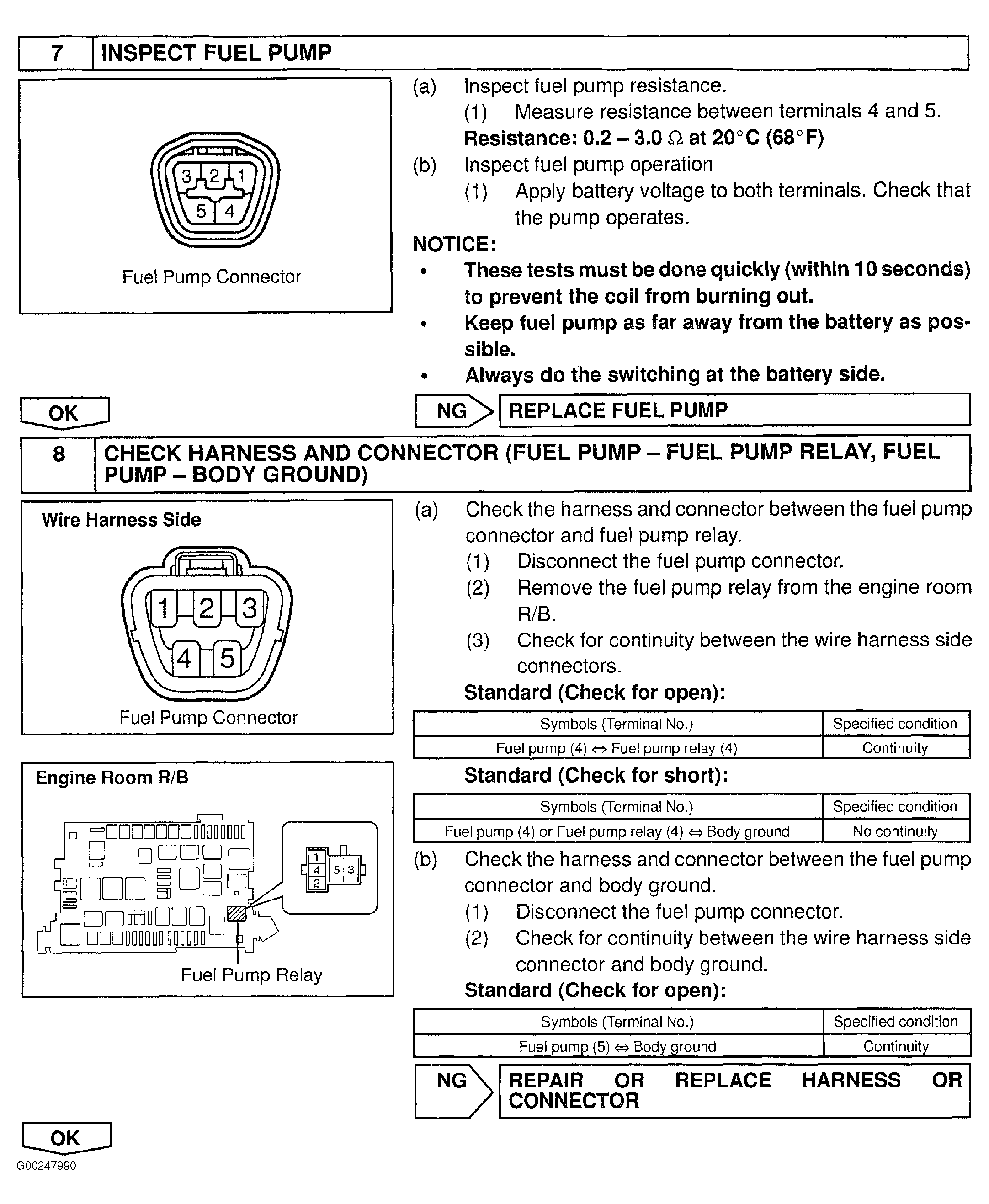

Fig 3: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 7-8)
G00247990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

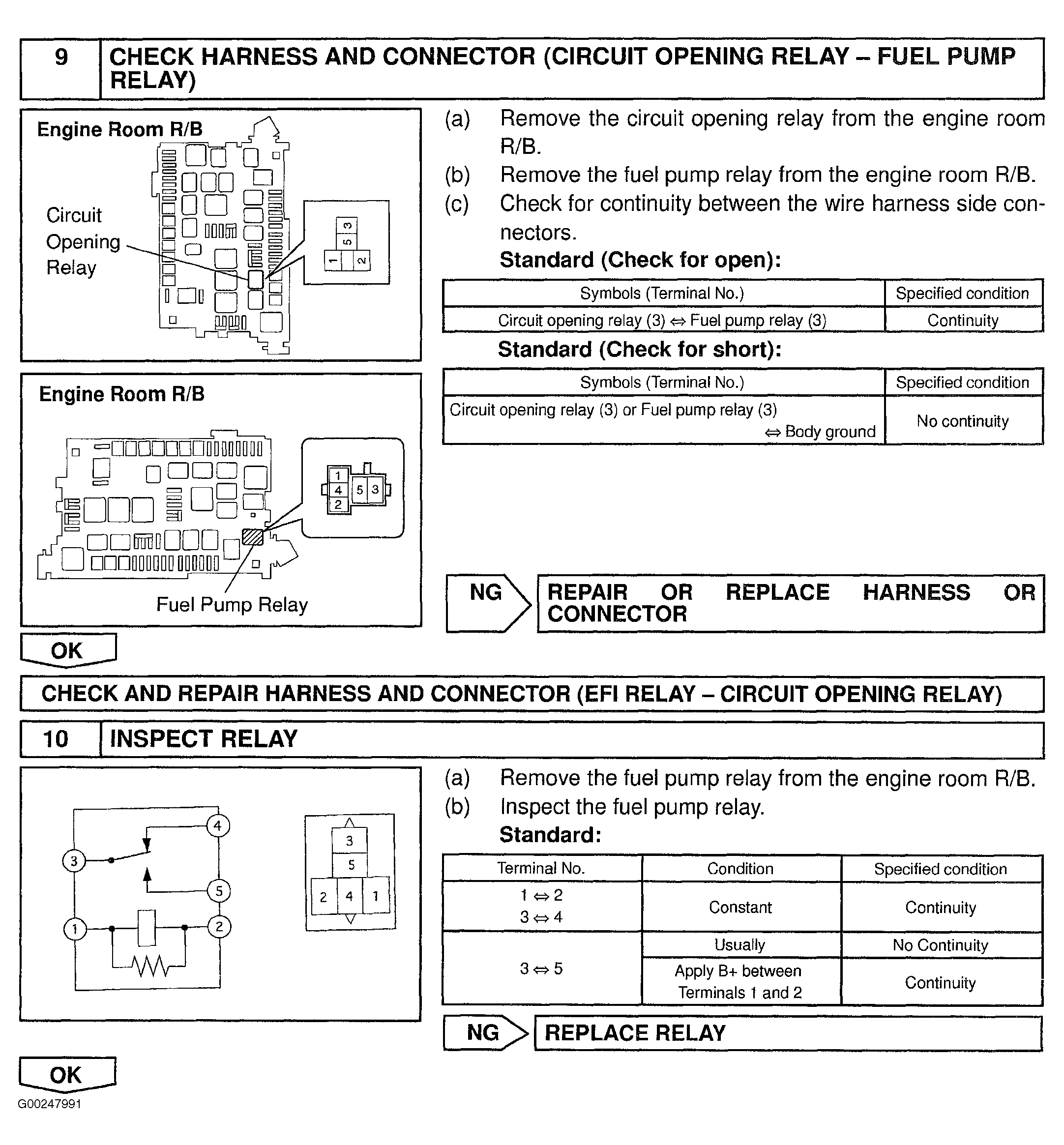

Fig 4: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 9-10)
G00247991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

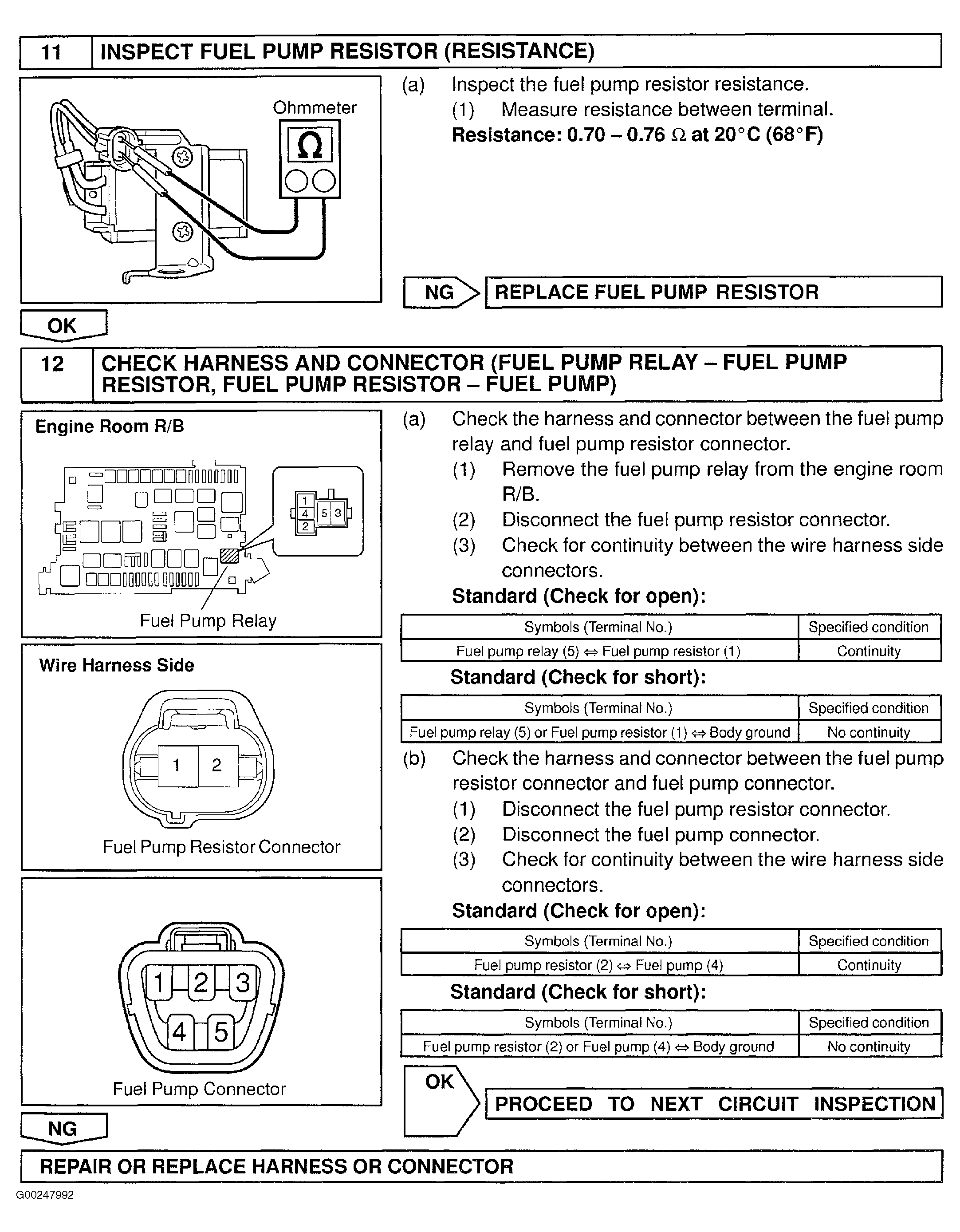

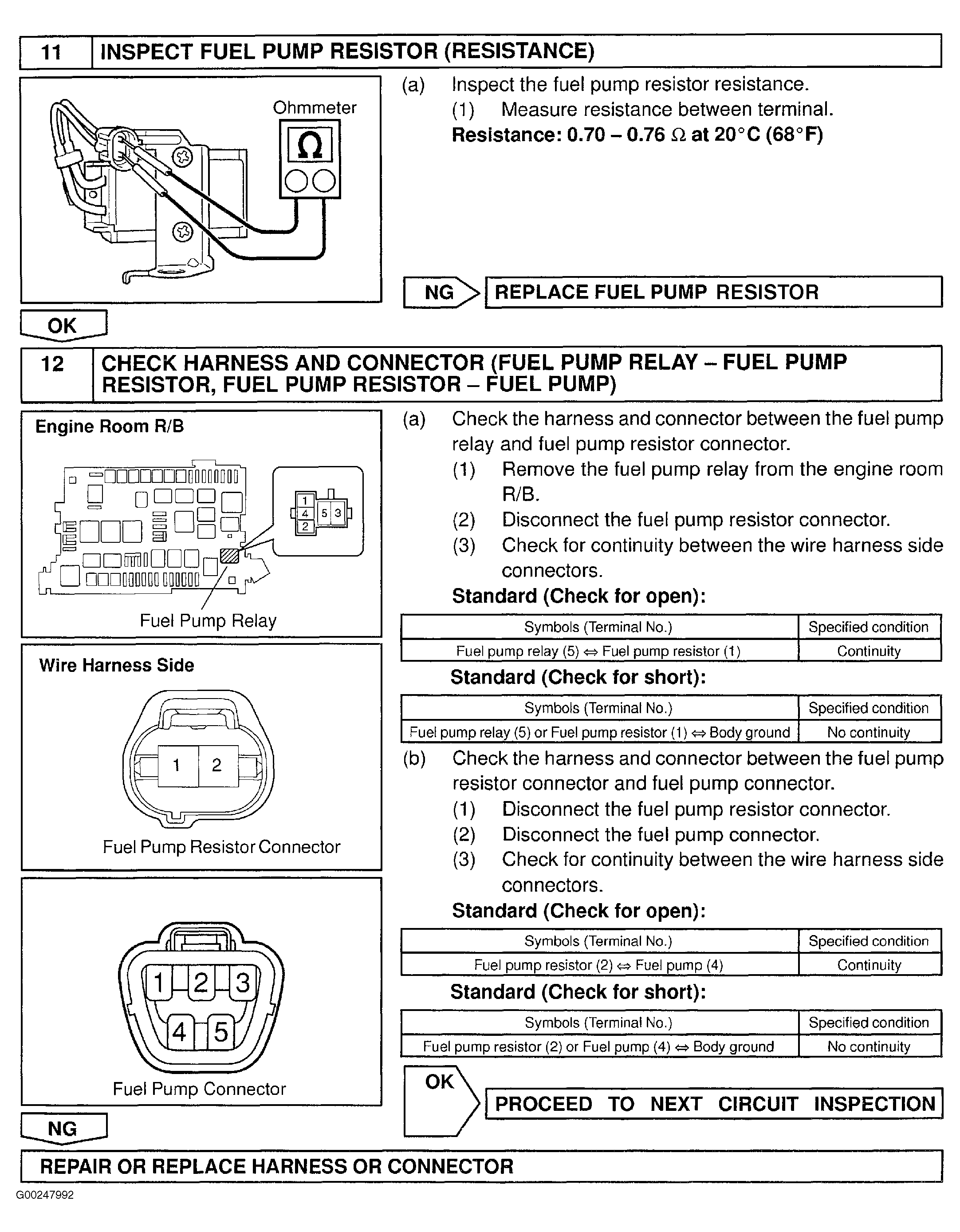

Fig 5: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 11-12)
G00247992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
