LEXUS Link System Error Detected (EL010-03)

Publication date: 2003-08-25
Reference number: EL010-03

LEXUS LINK SYSTEM ERROR DETECTED

LEXUS LINK SYSTEM ERROR DETECTED

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL010-03, Date of Issue:  August 25, 2003
LEXUS: 2003 GX 470
SECTION: ELECTRICAL
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

If an owner pauses while turning the ignition key and the ignition switch is between the ACC position and the ON position (IG1 is ON and IG2 is OFF), the Lexus Link ECU will start up but the SRS system will not have power. The Lexus Link system receives its start-up signal from IG1 and the SRS system receives its power supply from IG2. The Lexus Link ECU will assume that there is a fault in the connection between the Lexus Link ECU and the SRS system and the Lexus Link ECU will announce: "A Lexus Link system error has been detected." Also, an automatic emergency call or service call may be made to the Lexus Link call center. To address this issue, an additional wiring harness has been developed.

Applicable Vehicles

2003  model year GX 470  vehicles produced BEFORE  the Production Change Effective VIN shown below.

PRODUCTION CHANGE INFORMATION

PRODUCTION CHANGE INFORMATION

MODEL PRODUCTION CHANGE EFFECTIVE VIN
GX 470 JTJBT20X#30015683

Parts Information

PARTS INFORMATION

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME QTY
N/A 82989-60010 Wire, Connecting Repair 1

WARRANTY INFORMATION

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
EL3001 Lexus Link Wire Installation 0.8 86710-0W050 72 99
NOTE: Applicable Warranty*:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

HINT: For details about removal of each part, refer to the Technical Information System (TIS): 2003 GX 470 Repair Manual: Instrument Panel/meter: Instrument Panel Safety Pad Sub-assy: Replacement.

  1. How to Check if the Lexus Link System Is Functioning
    1. Performing the check when the ignition switch is turned ON (Reference):
      1. Turn the ignition switch OFF and turn it ON again. Start the engine. Three possible audio messages can be output from the vehicle depending on the status of the Lexus Link system.
        1. If the customer has a current Lexus Link subscription (Active Mode), an English message will play:

          "The Lexus Link system is active."

        2. If the customer has an expired Lexus Link subscription (Dealer Mode), an English message will play:

          "The Lexus Link system is not active. To activate your Lexus Link system, press the Service button now."

        3. If the Lexus Link system is initial mode* (Factory Mode), a Japanese message (with a female voice) will play:

          (You will hear a Japanese message with a female voice.)

        *Mode has not been switched yet.

      2. Wait for 30 seconds. Listen for error messages.
    2. Performing the diagnosis check (check before and after servicing the Lexus Link system).
      1. Turn the ignition switch OFF.
      2. Press and hold the "play" button or the "volume up" button. With the button pressed, turn the ignition switch ON, OFF, ON, OFF and then ON within 15 seconds.
        • If the voice message, "System OK," is confirmed, there is no problem with the Lexus Link system.
        • If an error message is heard, refer to the service manuals.
    3. Turn the ignition switch to LOCK.
      CAUTION: CAUTION BEFORE DISCONNECTING THE NEGATIVE BATTERY TERMINAL: Turn the ignition switch to the LOCK position and wait for approximately 30 seconds. Then, disconnect the negative (-) terminal cable from the battery and wait for 90 seconds. Then you may start working on the vehicle. Disconnecting the negative (-) terminal cable within 10 seconds after the ignition switch is turned to the LOCK position will activate the Lexus Link system using the back-up battery and cause the system to make an emergency call. Working on the vehicle within 90 seconds after the negative (-) terminal cable is disconnected may deploy the SRS using the SRS's back-up power source.
    4. Disconnect the negative (-) terminal cable from the battery.
  2. Remove Front Door Scuff Plate LH

    Using a screwdriver, disengage the 6 claws and remove the scuff plate.

    HINT: Tape the screwdriver tip before use.

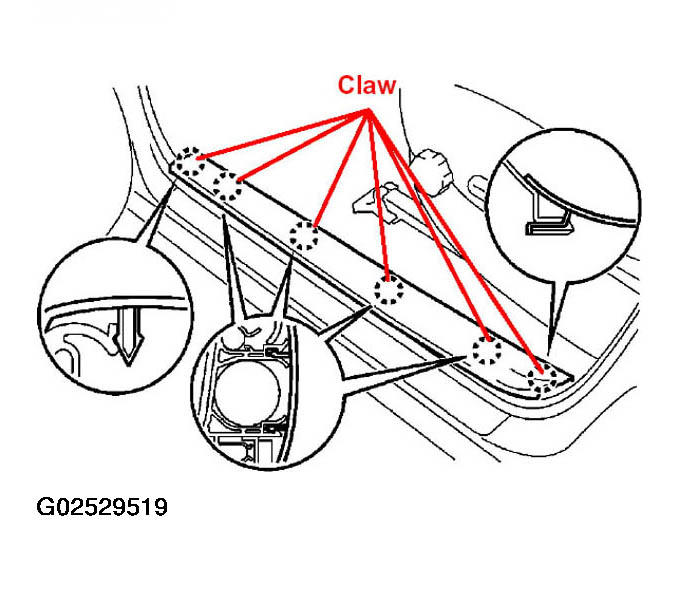

    Fig 1: Locating Front Door Scuff Plate LH
    G02529519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove Front Floor Footrest LH
    1. Using the taped screwdriver, disengage the 2 clips and remove the footrest.
    2. Disengage the clips from the floor panel, and then remove the 2 clips from the footrest.

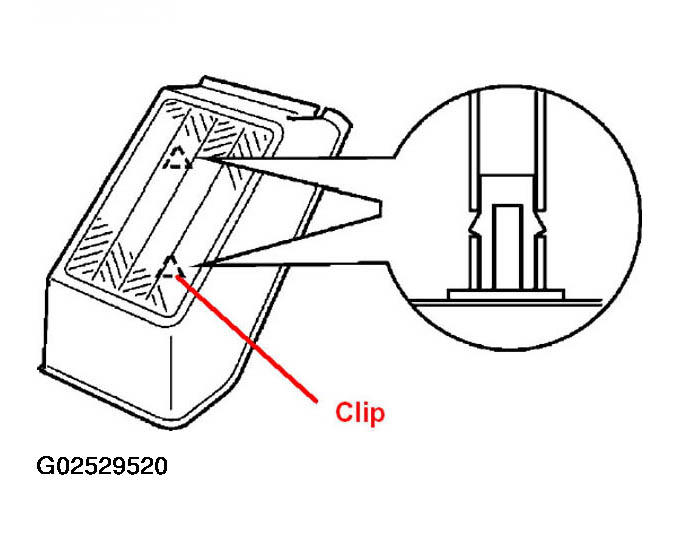

    Fig 2: Locating Front Floor Footrest Clip
    G02529520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Remove Cowl Side Trim Board LH
    1. Remove the cap nut.
    2. Using the taped screwdriver, disengage the 2 claws and remove the trim board.

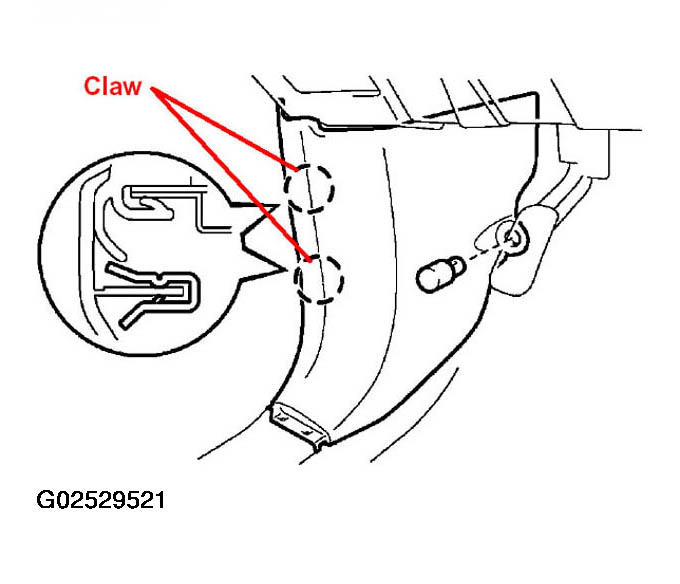

    Fig 3: Removing Cowl Side Trim Board
    G02529521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Remove Instrument Panel Under Cover Sub-Assembly No. 1
    1. Remove the screw.
    2. Disengage the 2 clips and the claw, and then remove the instrument panel under cover sub-assembly No. 1.

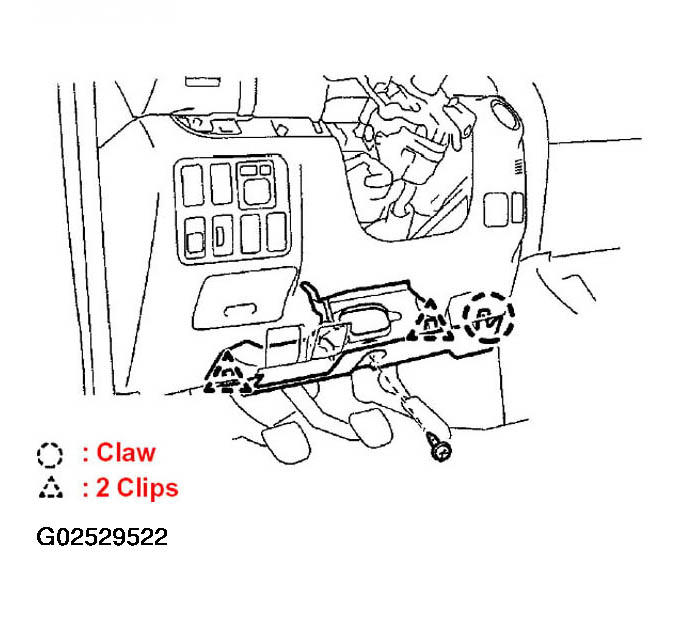

    Fig 4: Removing Instrument Panel Under Cover
    G02529522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Remove Instrument Cluster Finish Panel Ornament
    1. Disengage the 2 clips and remove the instrument cluster finish panel ornament.

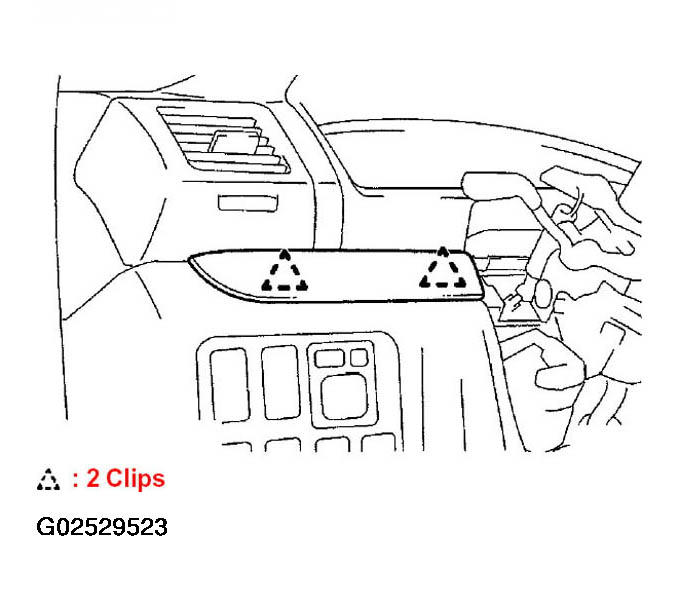

    Fig 5: Locating Instrument Cluster Finish Panel Ornament Clip
    G02529523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Remove Instrument Panel Finish Plate
    1. Remove the instrument panel finish plate.

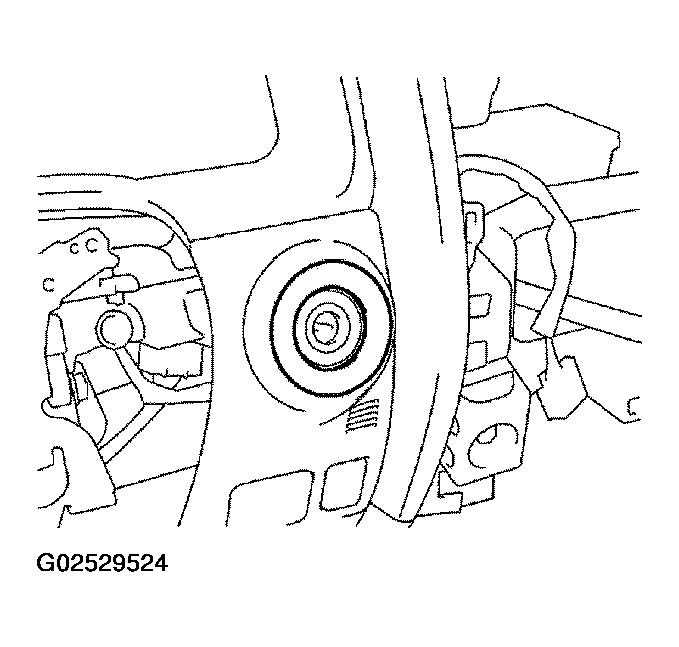

    Fig 6: Instrument Panel Finish Plate
    G02529524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Remove Instrument Panel Finish Lower Panel
    1. Remove the 3 bolts.
    2. Disconnect the hood lock control cable and the fuel lid lock control cable.
    3. Disengage the 4 clips.
    4. Disconnect the connectors and remove the instrument panel finish lower panel.

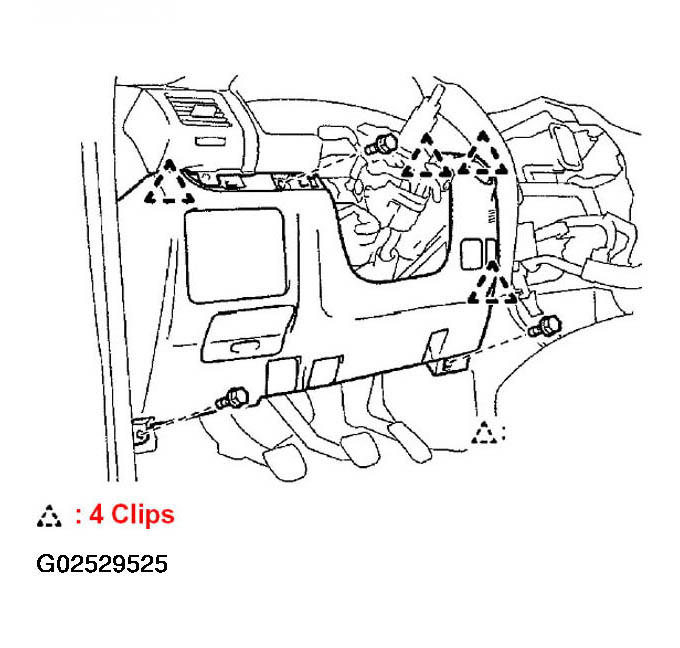

    Fig 7: Removing Instrument Panel Finish Lower Panel
    G02529525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Remove Console Upper Panel Garnish No. 2
    1. Using the screwdriver, dise the 3 clips and remove the console upper panel garnish.

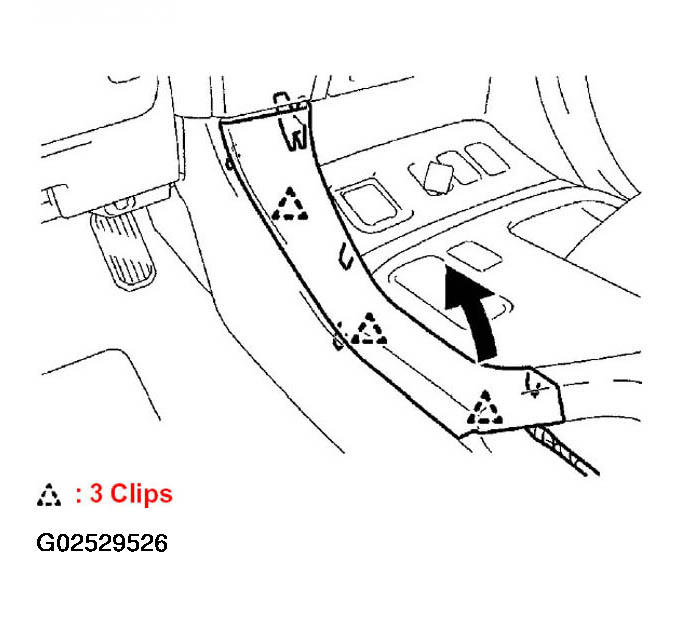

    Fig 8: Locating Console Upper Panel Garnish Clip
    G02529526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. Remove Console Upper Panel Garnish No. 1
    1. Remove the shift lever knob and selector knob.
    2. Using the taped screwdriver, disengage the 4 clips and remove the console upper panel garnish.

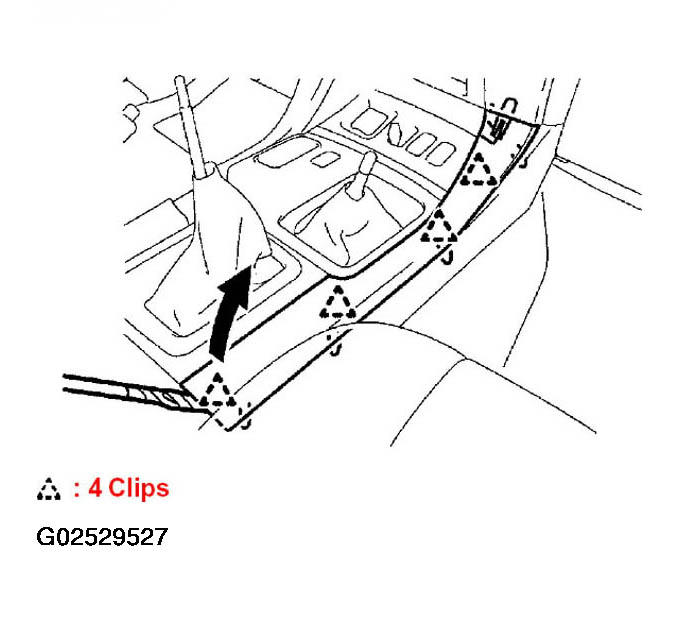

    Fig 9: Removing Console Upper Panel Garnish
    G02529527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Remove Console Panel Upper Assembly
    1. Disengage the 11 clips and remove the console panel upper assembly, then disconnect the connectors.

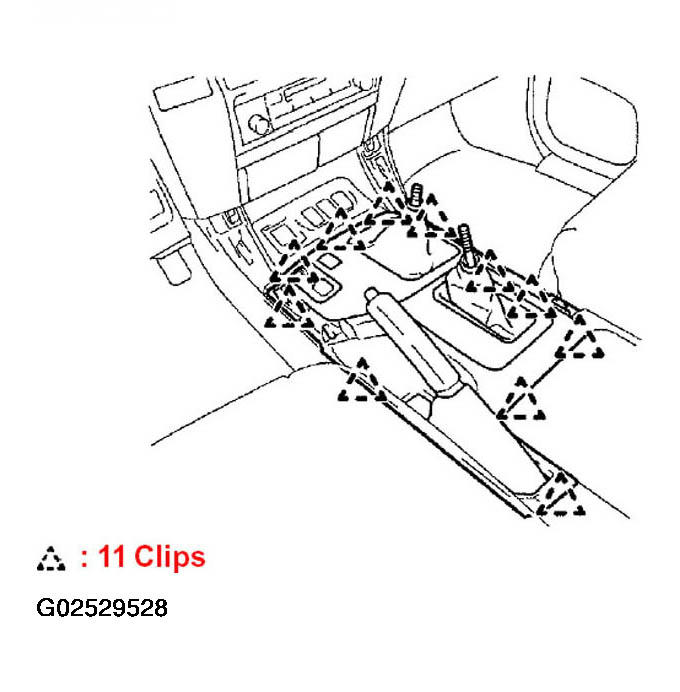

    Fig 10: Locating Console Panel Upper Assembly Clip
    G02529528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. Move Rear Console Box Assembly
    1. Remove the 2 bolts and 2 screws.
    2. Move the rear console box rearward approximately 100 mm so that the bolts of the console box lower can be removed.

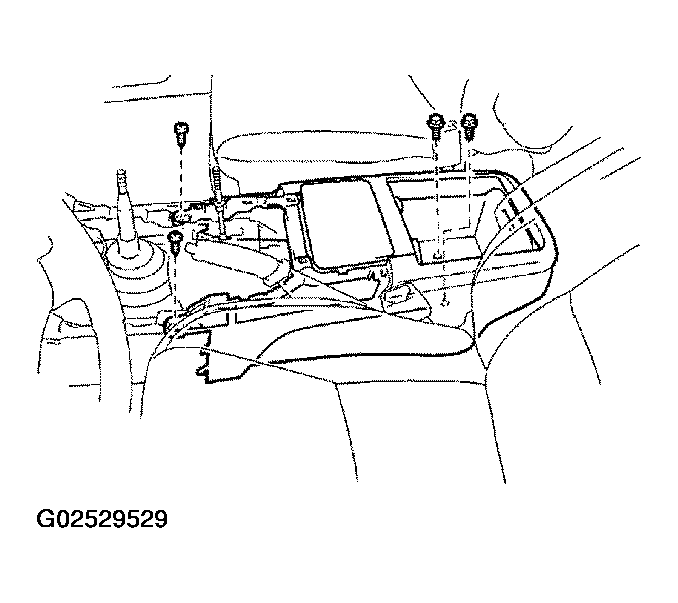

    Fig 11: Removing Rear Console Box Assembly
    G02529529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. Remove Console Upper Panel Garnish Front
    1. Disengage the 5 clips and remove the console upper panel garnish front, then disconnect the connectors.

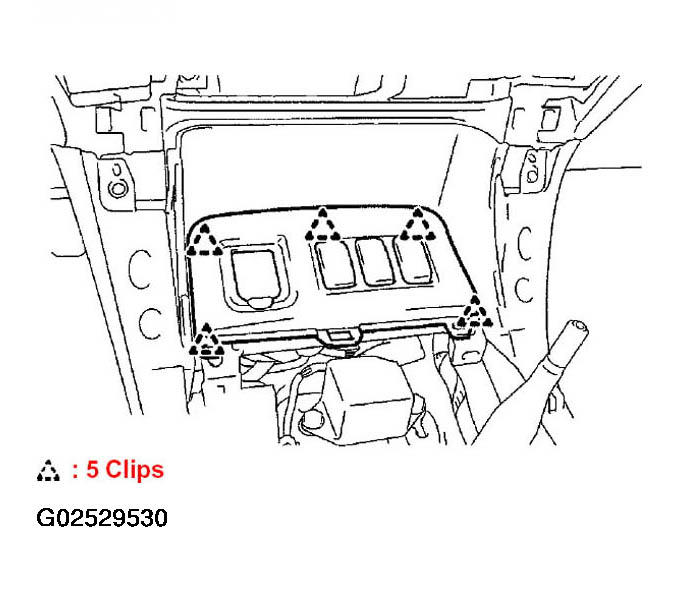

    Fig 12: Locating Console Upper Panel Garnish Front Clip
    G02529530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. Remove Console Box Lower
    1. Remove the 2 bolts.
    2. Remove the 2 screws and the console box lower.

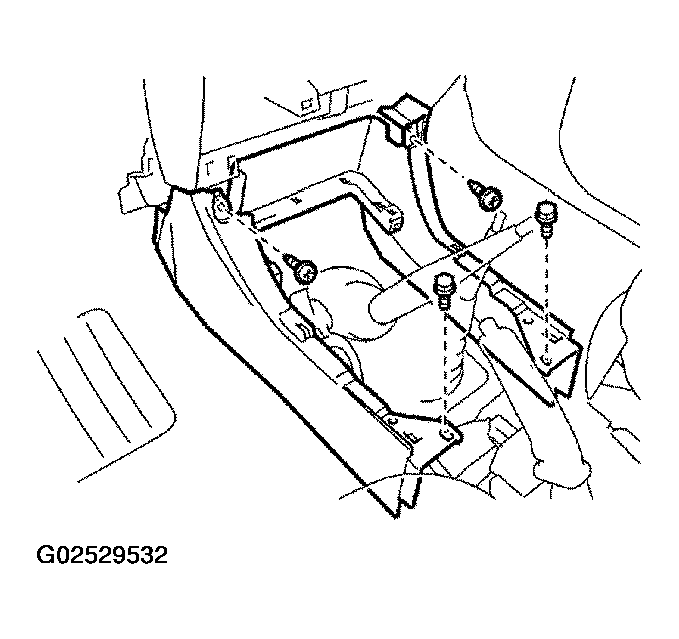

    Fig 13: Removing Console Box Lower
    G02529532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. Remove Instrument Panel Junction Block
    1. Remove the 2 nuts and bolts.
    2. Pull the instrument panel Junction Block so that the repair wire can pass behind the instrument panel Junction Block.

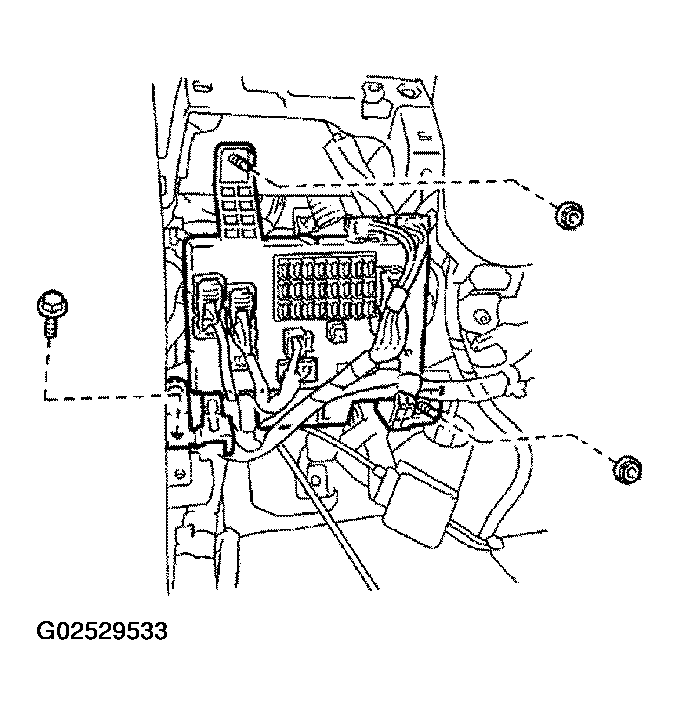

    Fig 14: Removing Instrument Panel Junction Block
    G02529533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. Set Repair Wire To Instrument Panel
    1. Set the repair wire to the instrument panel as shown in Fig 15.
    NOTE: Be careful not to damage the repair wire.

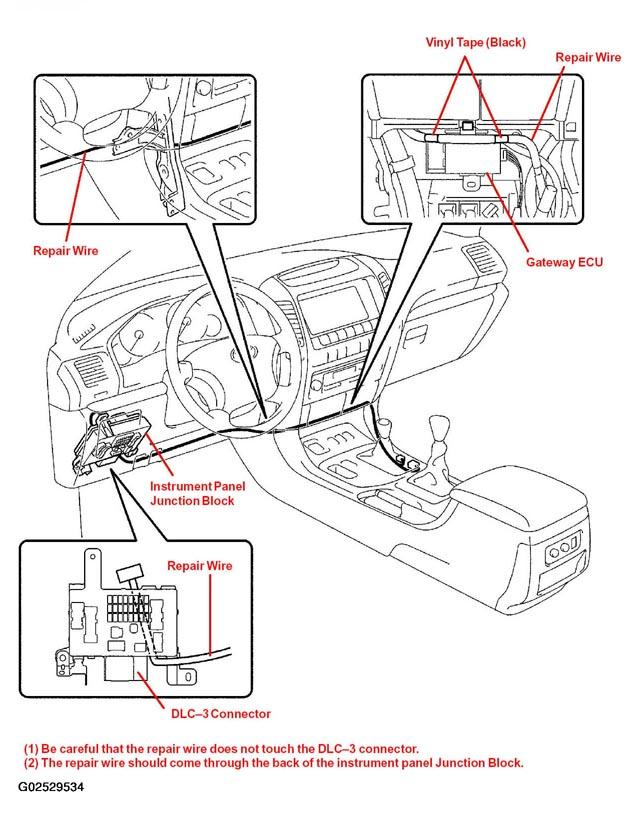

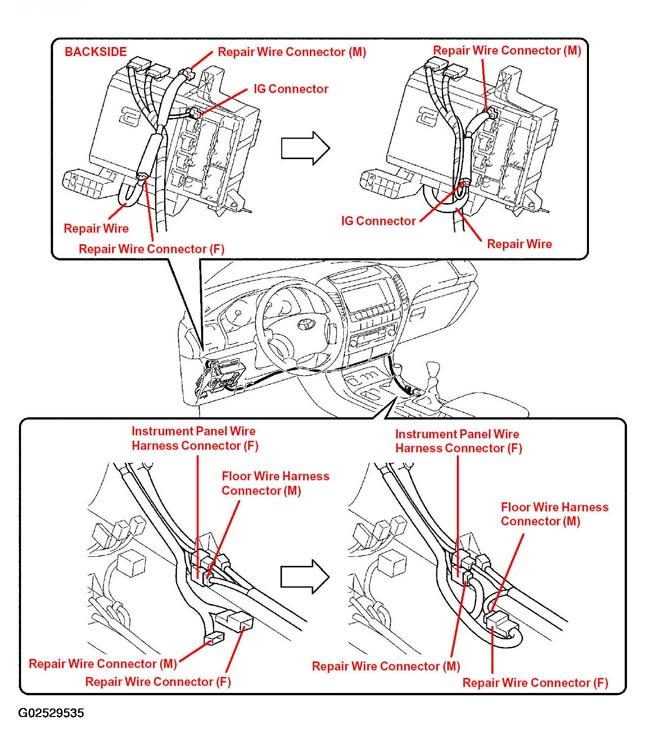

    Fig 15: Setting Repair Wire To Instrument Panel
    G02529534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. Connect Connectors
    1. Disconnect the IG connector (male) from the back of the instrument panel Junction Block and connect it to the repair wire connector (female).
    2. Connect the repair wire connector (male) to the instrument panel Junction Block.
    3. Disconnect the floor wire harness connector (male) from the instrument panel wire harness and connect it to the repair wire connector (female).
    4. Connect the repair wire connector (male) to the instrument panel wire harness connector (female).
    Fig 16: Connect Connectors
    G02529535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. Fasten Repair Wire
    1. Fasten the repair wire to the instrument panel with a cable tie and vinyl tape as shown in Fig 17. Attach the cable ties to the white tape and black tape parts of the repair wire.

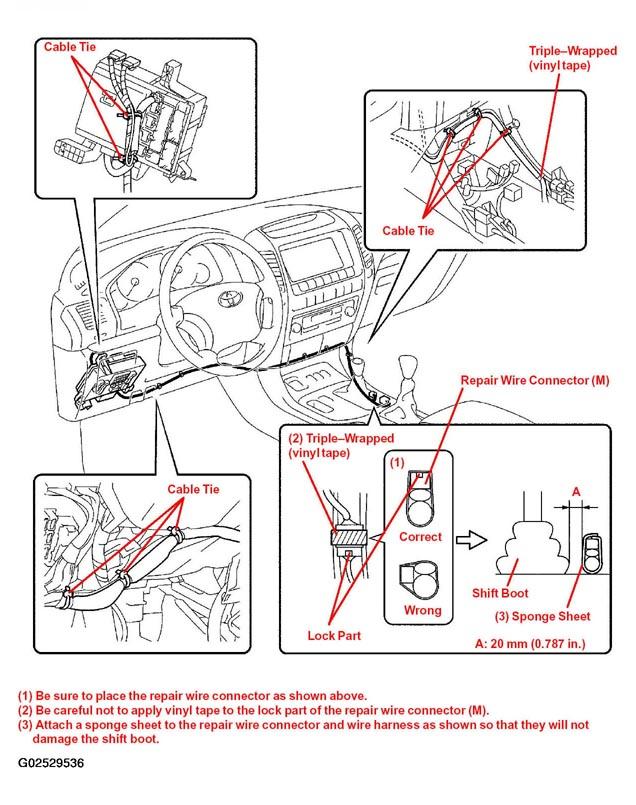

    Fig 17: Fasten Repair Wire
    G02529536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. Cut Cable Tie
    1. Cut off the cable tie, as shown in Fig 18
  20. Check SRS Diagnosis

    About 6 seconds after turning the Ignition switch ON, check that the SRS warning light in the combination meter turns off.

    If the SRS warning light flashes or stays ON, the connector could be disconnected or a wire in the wire harness could be broken or short circuited Check the applicable circuit for the DTC reading (refer to Repair Manual).

  21. Check Lexus Link System

    Check the Lexus Link system (see  1).

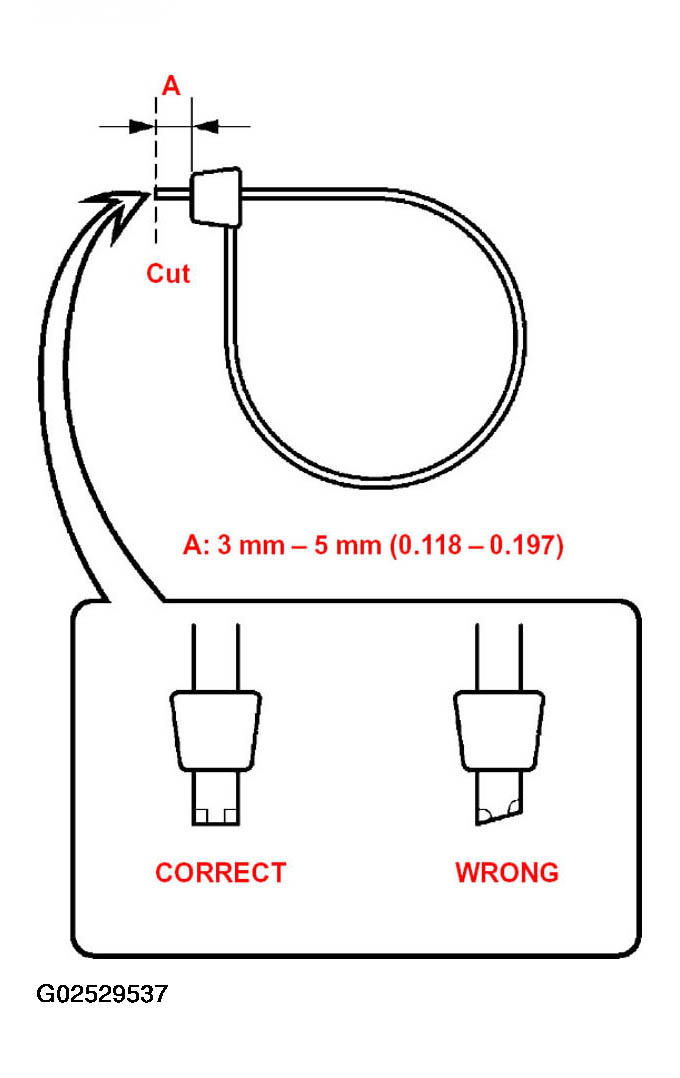

    Fig 18: Cut Cable Tie
    G02529537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. Install Instrument Panel Junction Block
  23. Install Console Box Lower
  24. Install Console Upper Panel Garnish Front
  25. Install Rear Console Box Assembly
  26. Install Console Panel Upper Assembly
  27. Install Console Upper Panel Garnish No. 1
  28. Install Console Upper Panel Garnish No. 2
  29. Install Instrument Panel Finish Lower Panel
  30. Install Instrument Panel Finish Plate
  31. Install Instrument Cluster Finish Panel Ornament
  32. Install Instrument Panel Under Cover Sub-Assembly No. 1
  33. Install Cowl Side Trim Board LH
  34. Install Front Floor Footrest LH
  35. Install Front Door Scuff Plate LH
  36. Initialize Body System

    When disconnecting the negative (-) battery terminal, initialize all the systems after the terminal is reconnected. (refer to the Technical Information System [TIS], 2004 Lexus GX 470 Repair Manual.)
