Park/Neutral Position Switch: Removal

  1. Disconnect negative battery terminal.
  2. Disconnect PNP switch connector.
  3. Remove PNP switch using the following steps:

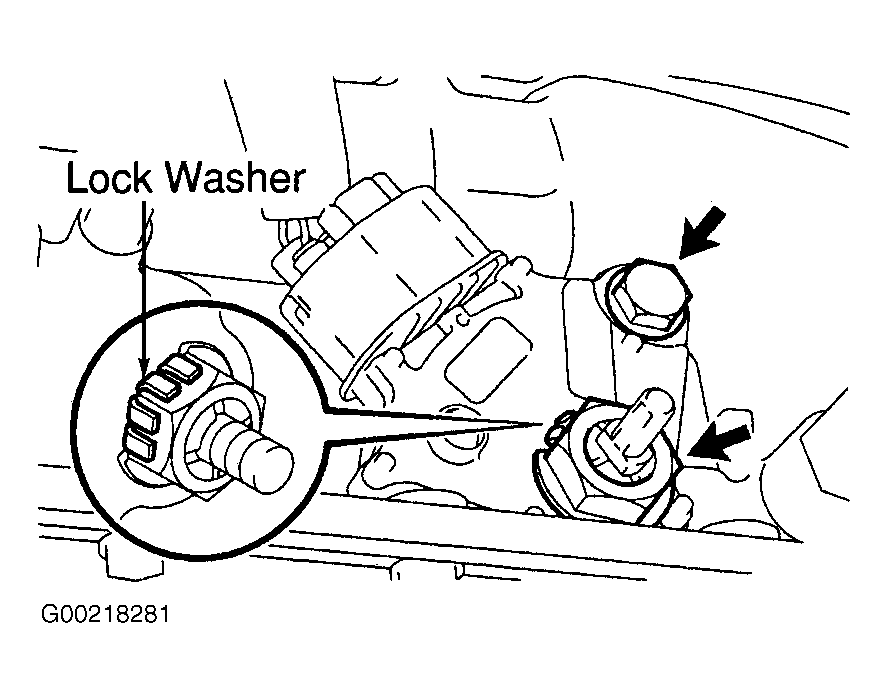

    1. Pry off lock washer. See Figure.
    2. Remove nut, lock washer and grommet. See Figure.
    3. Remove bolt and PNP switch.
