Shift Cable: Installation

Install shift cable using the following steps:
1. Connect shift cable with nut and clip to transmission. See Fig 6.
2. Pull in shift cable to body.
3. Connect shift cable with nut and clip to gearshift lever assembly. See Fig 7.
4. Install shift cable with 4 nuts. See Fig 8.
Connect connectors and install console upper panel engaging 11 clips. See Fig 5.
Install console upper panel garnish No. 1 with 4 clips. See Fig 4.
Install console upper panel garnish No. 2 with 3 clips. See Fig 3.
Install gearshift lever knob. See Fig 2.
Install transfer shift lever knob. See Fig 1.
Connect negative battery terminal.
Adjust and inspect shift lever position. See SHIFT LEVER under ADJUSTMENTS.

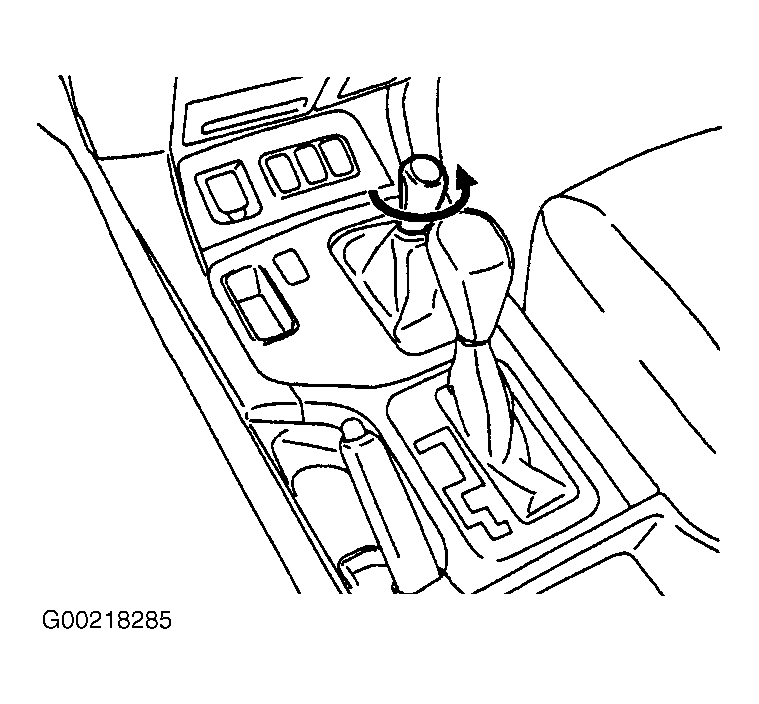

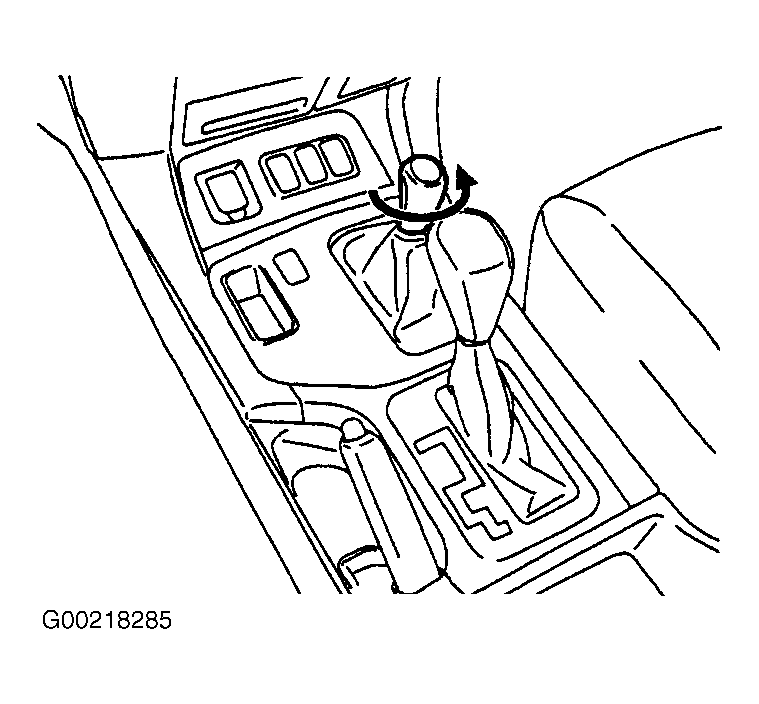

Fig 1: Removing & Installing Transfer Shift Lever Knob

G00218285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

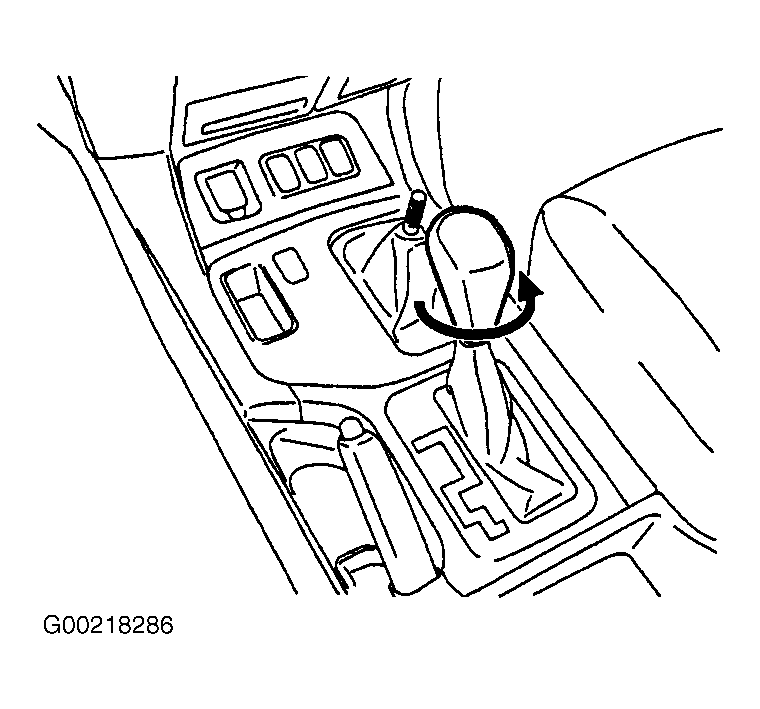

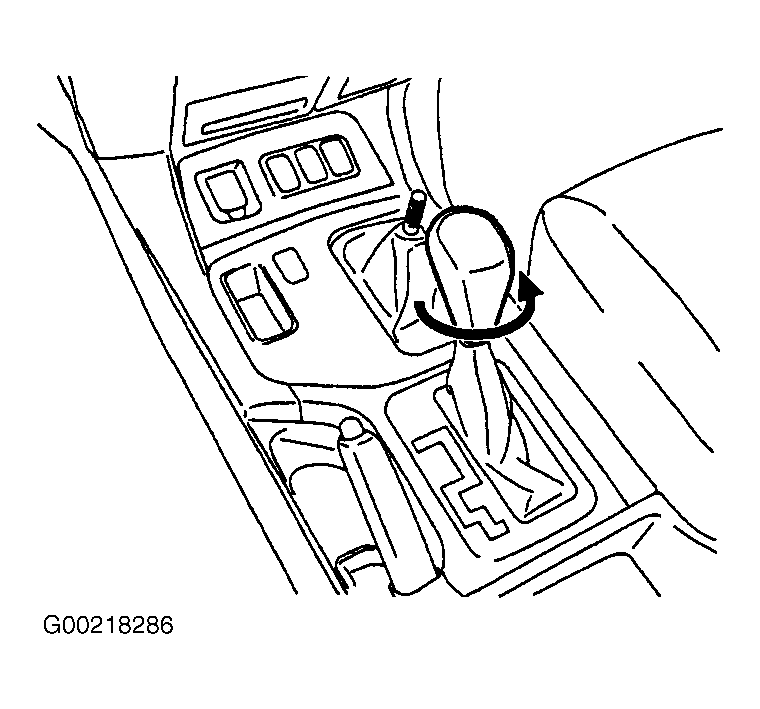

Fig 2: Removing & Installing Gearshift Knob

G00218286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

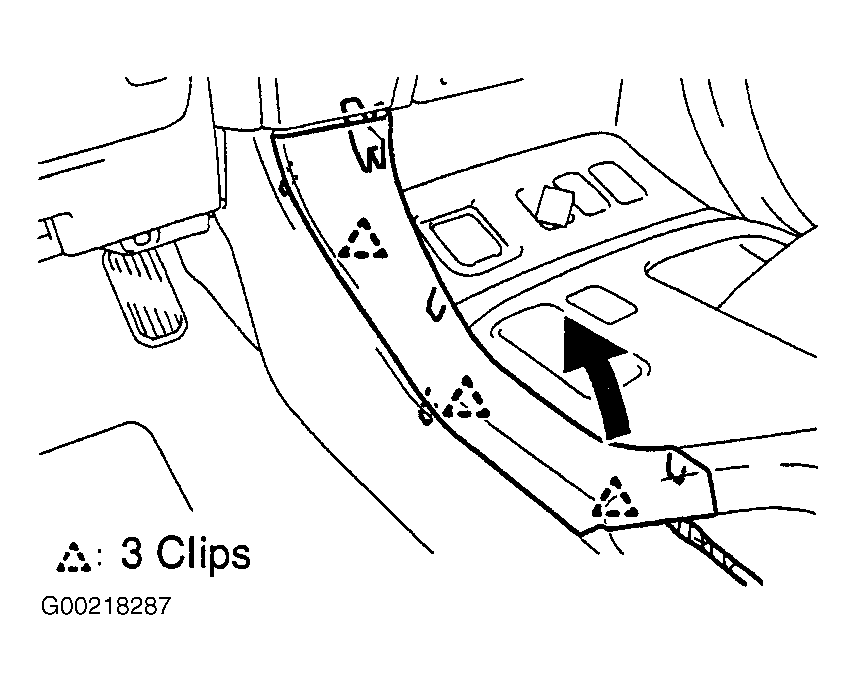

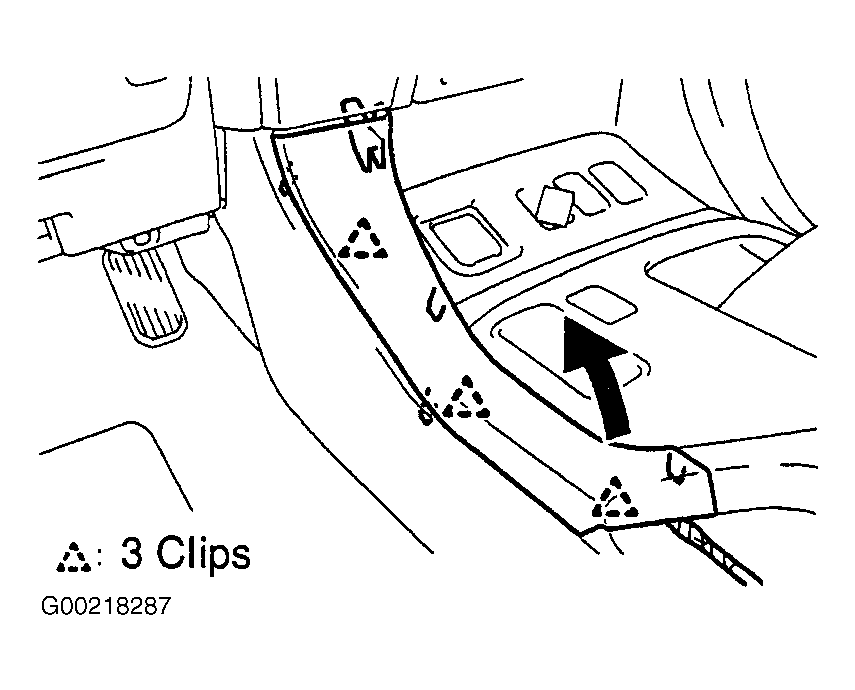

Fig 3: Removing & Installing Upper Panel Garnish No. 2

G00218287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

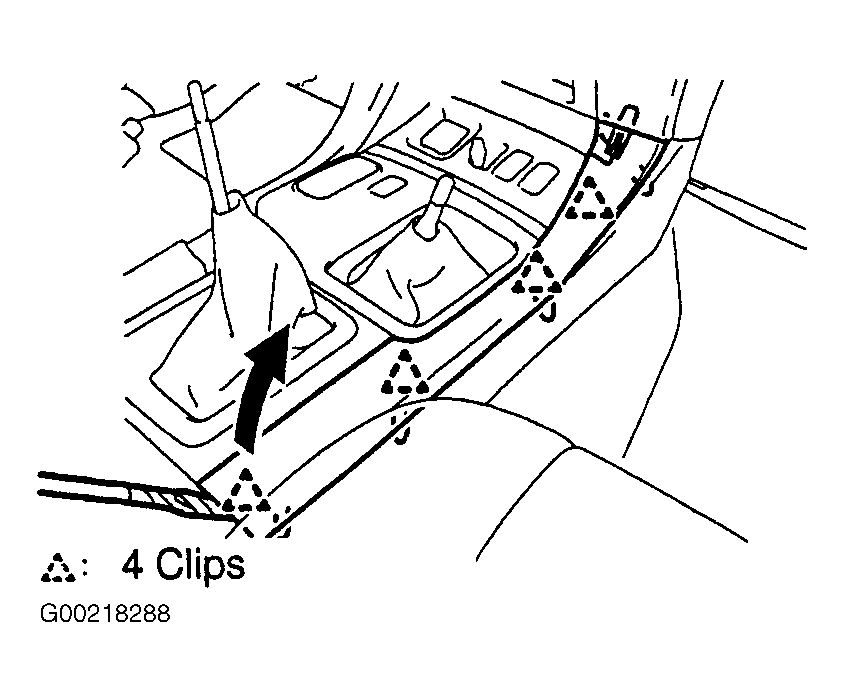

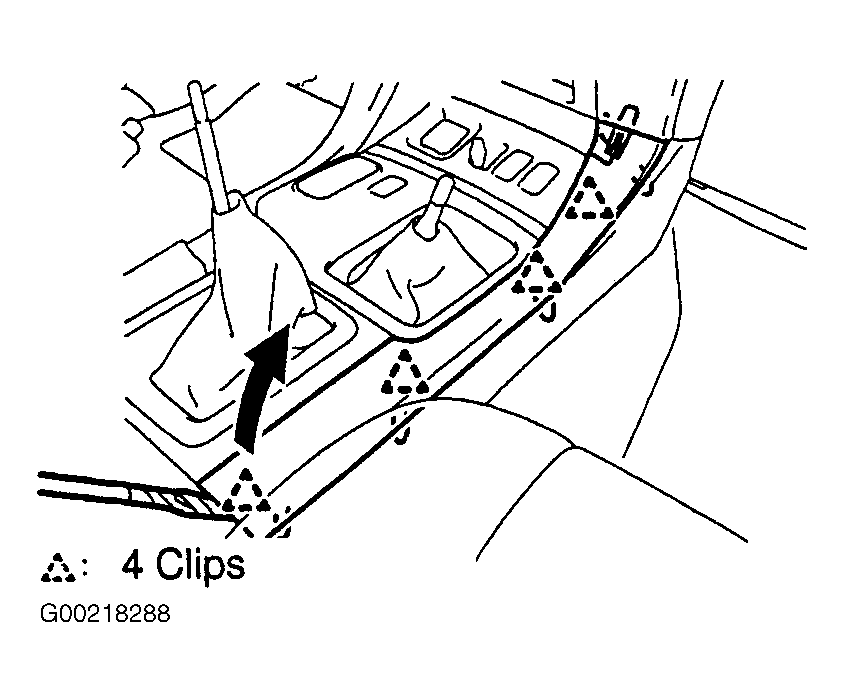

Fig 4: Removing & Installing Upper Panel Garnish No. 1

G00218288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

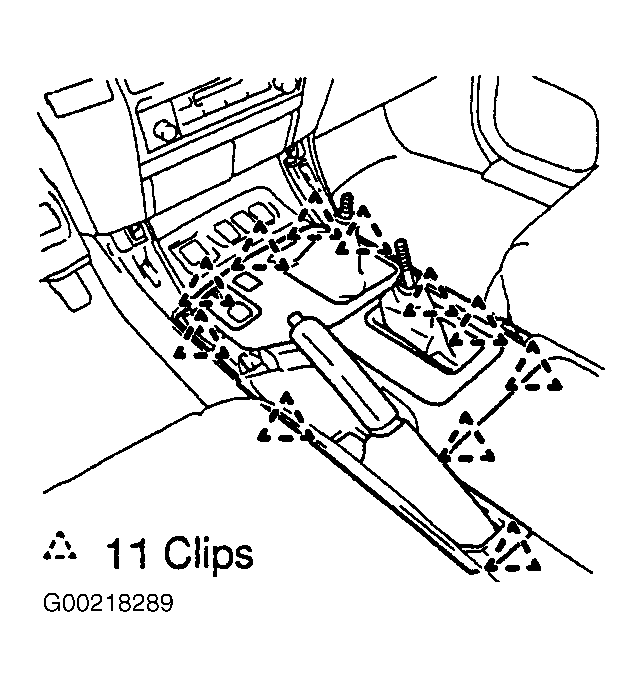

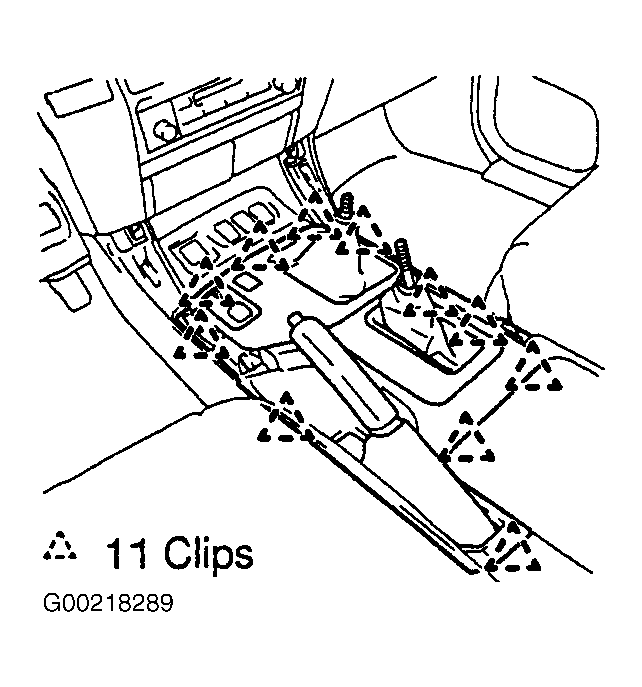

Fig 5: Removing & Installing Console Upper Panel Assembly

G00218289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

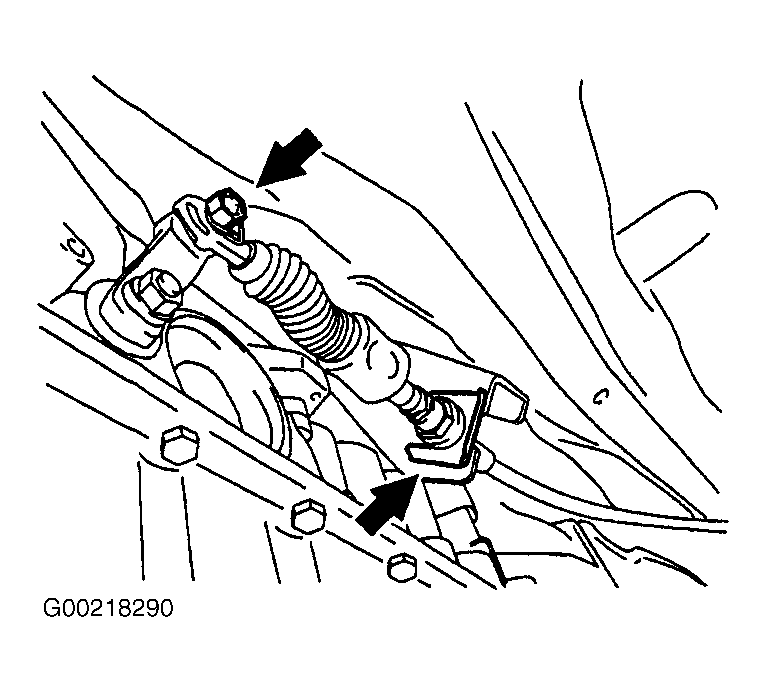

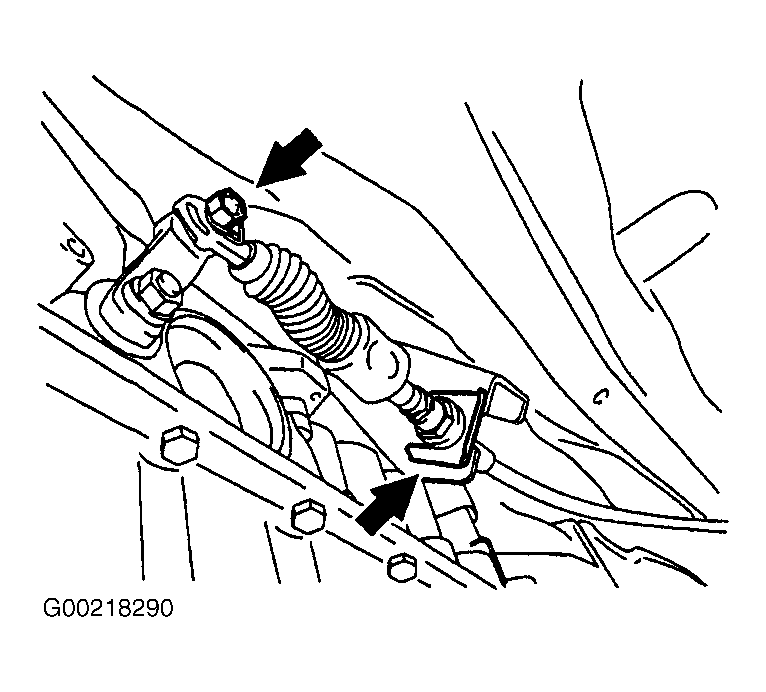

Fig 6: Removing & Installing Shift Cable From Transmission

G00218290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

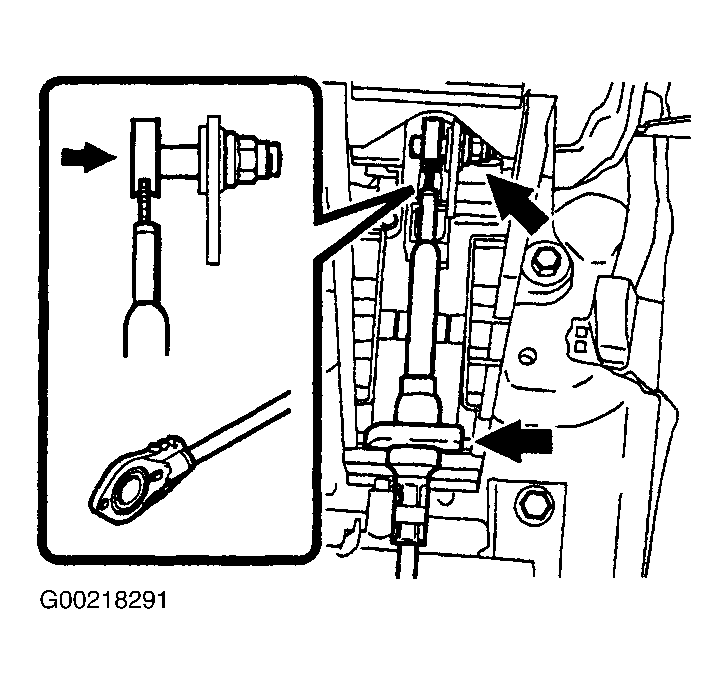

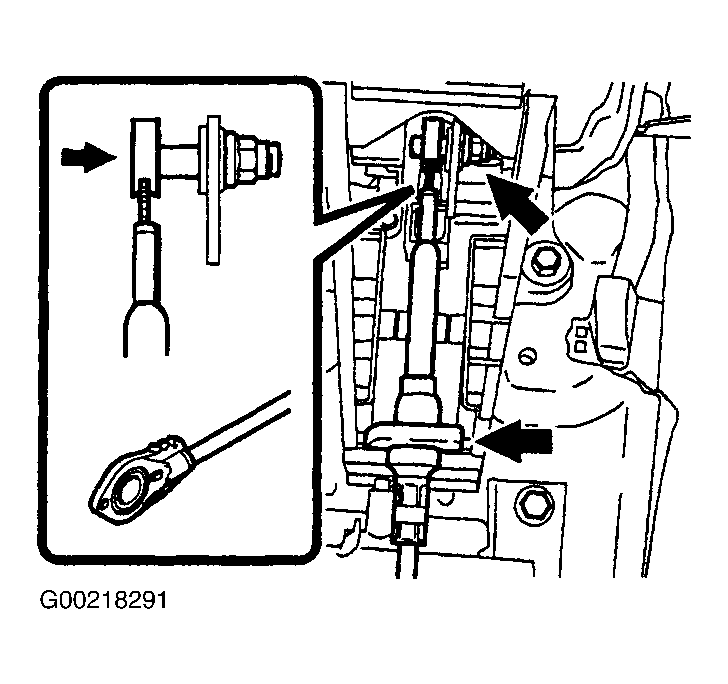

Fig 7: Removing & Installing Shift Cable From Gearshift Assembly

G00218291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

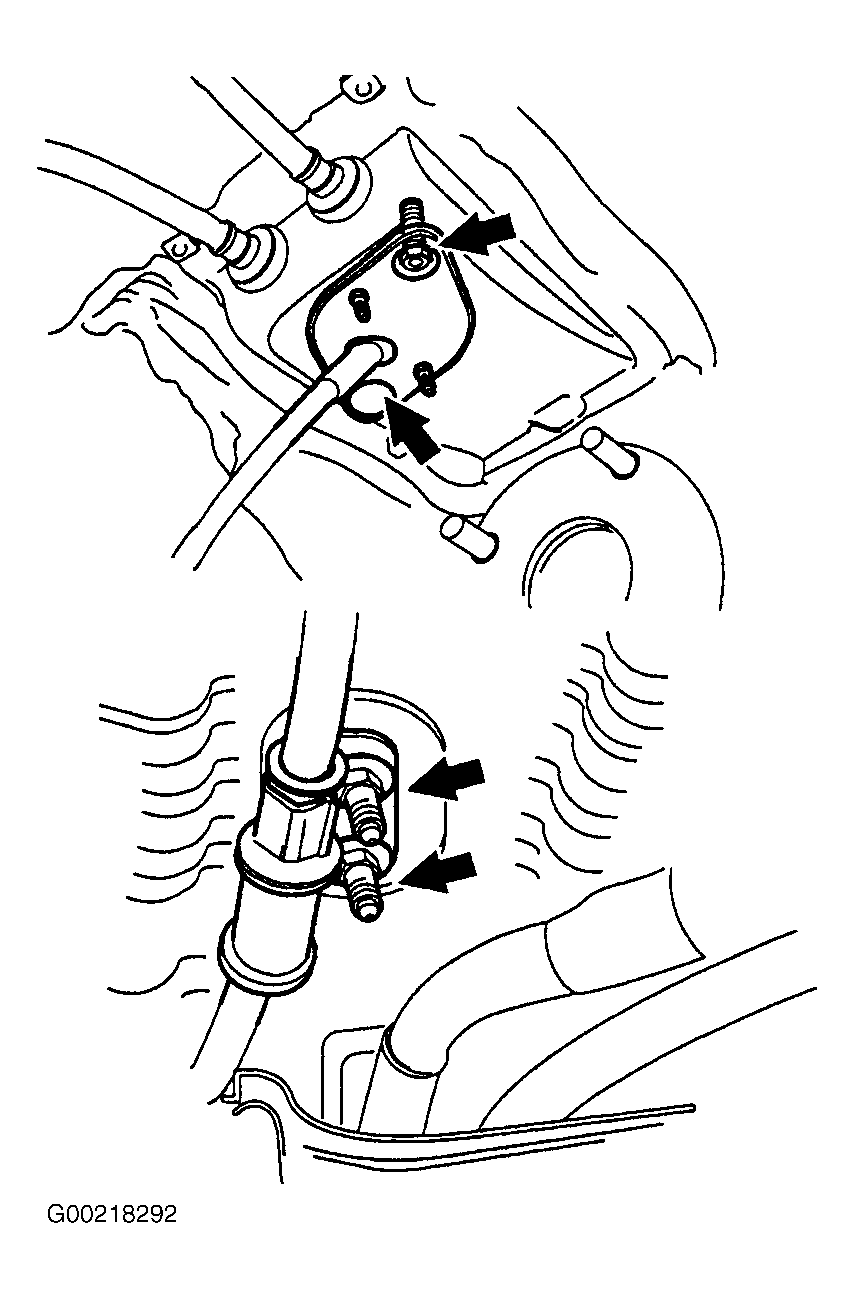

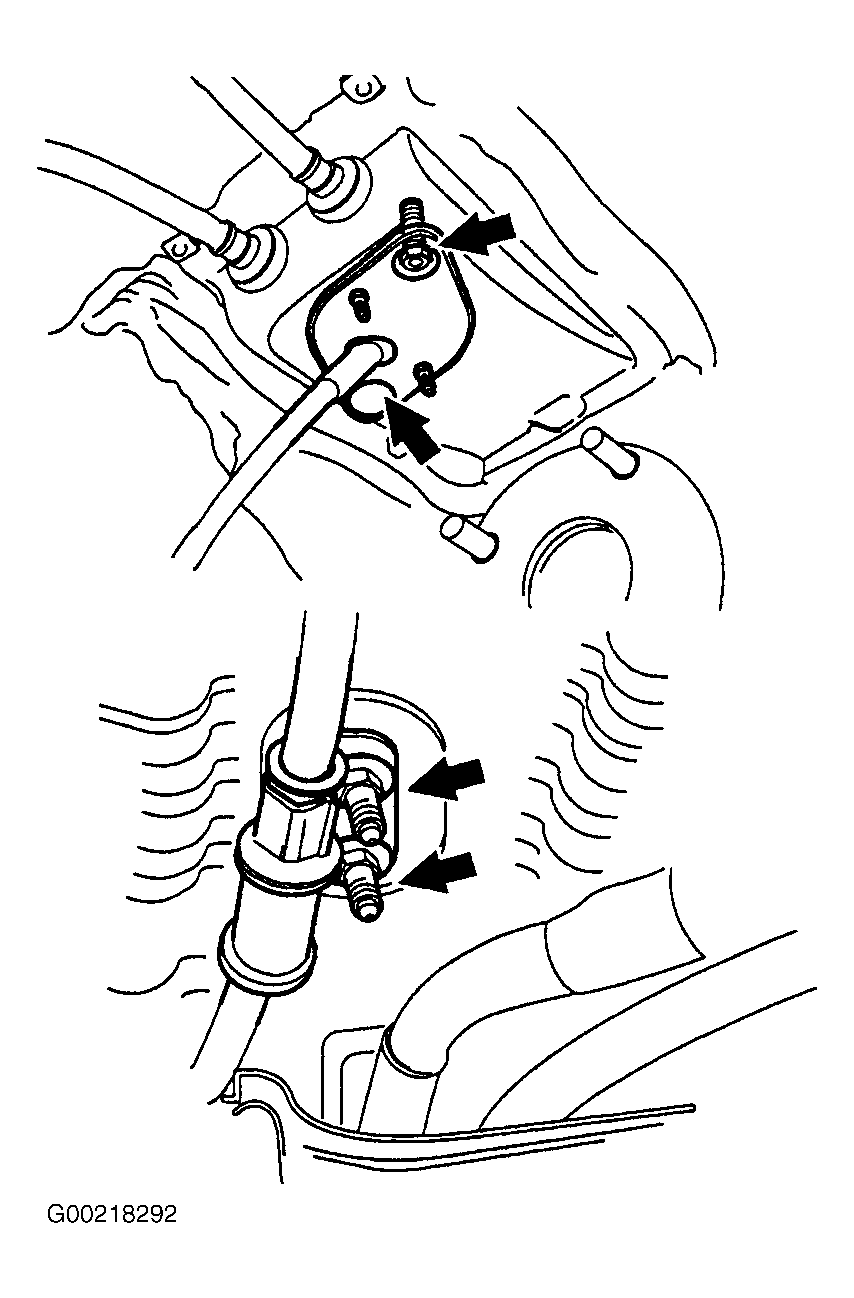

Fig 8: Removing & Installing Shift Cable

G00218292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
