Hood Lock Control: Removal

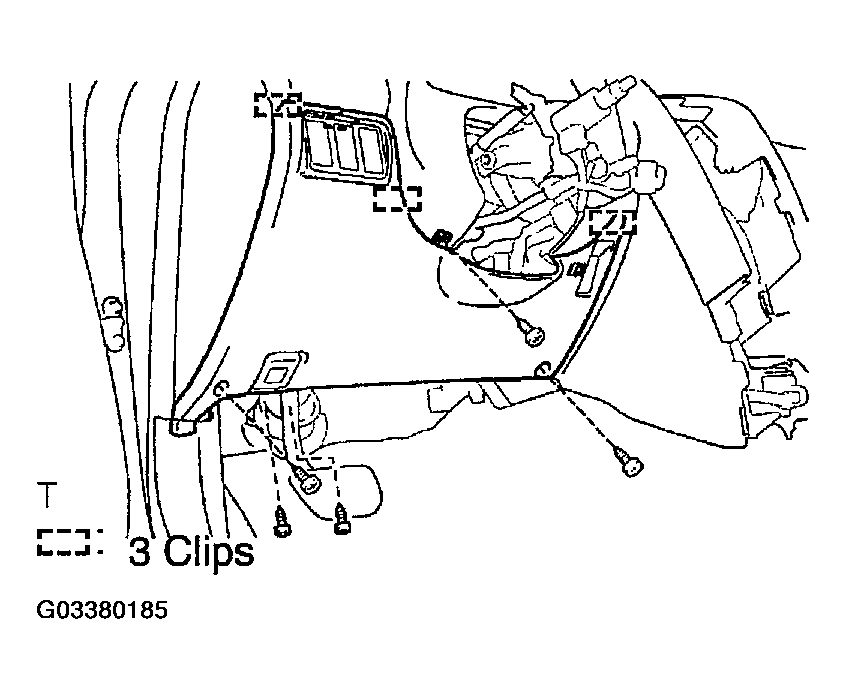

1. Remove the 3 screws and lower finish panel.
2. Disconnect the connectors and hood lock control cable.

Remove the screw, 2 clips and radiator grille.

Remove the bolt and hood lock control cable cover.

1. Using a screwdriver, remove the hood lock bolt cap.

   HINT:

   Tape the screwdriver tip before use.

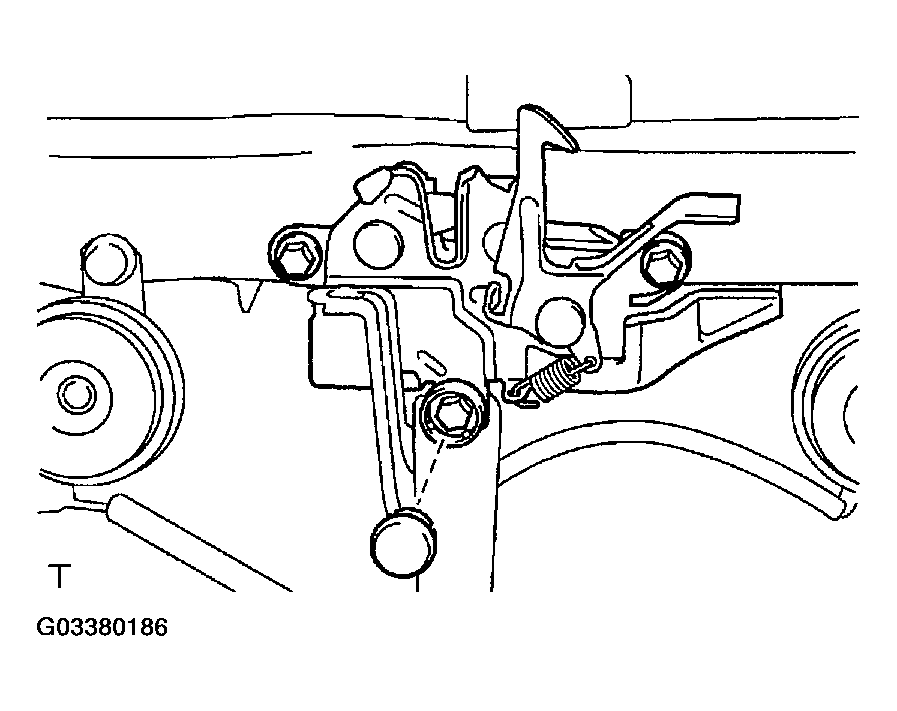

2. Remove the 3 bolts and hood lock.
Fig 2: Removing Bolts And Hood Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

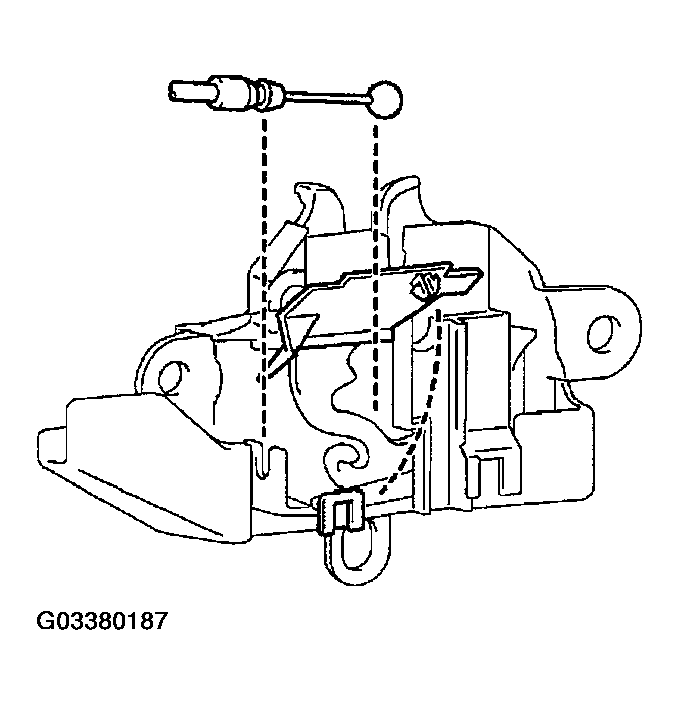

3. Using a screwdriver, open the cover, then disconnect the hood lock control cable.

   HINT:

   Tape the screwdriver tip before use.

Fig 3: Disconnecting Hood Lock Control Cable Using A Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

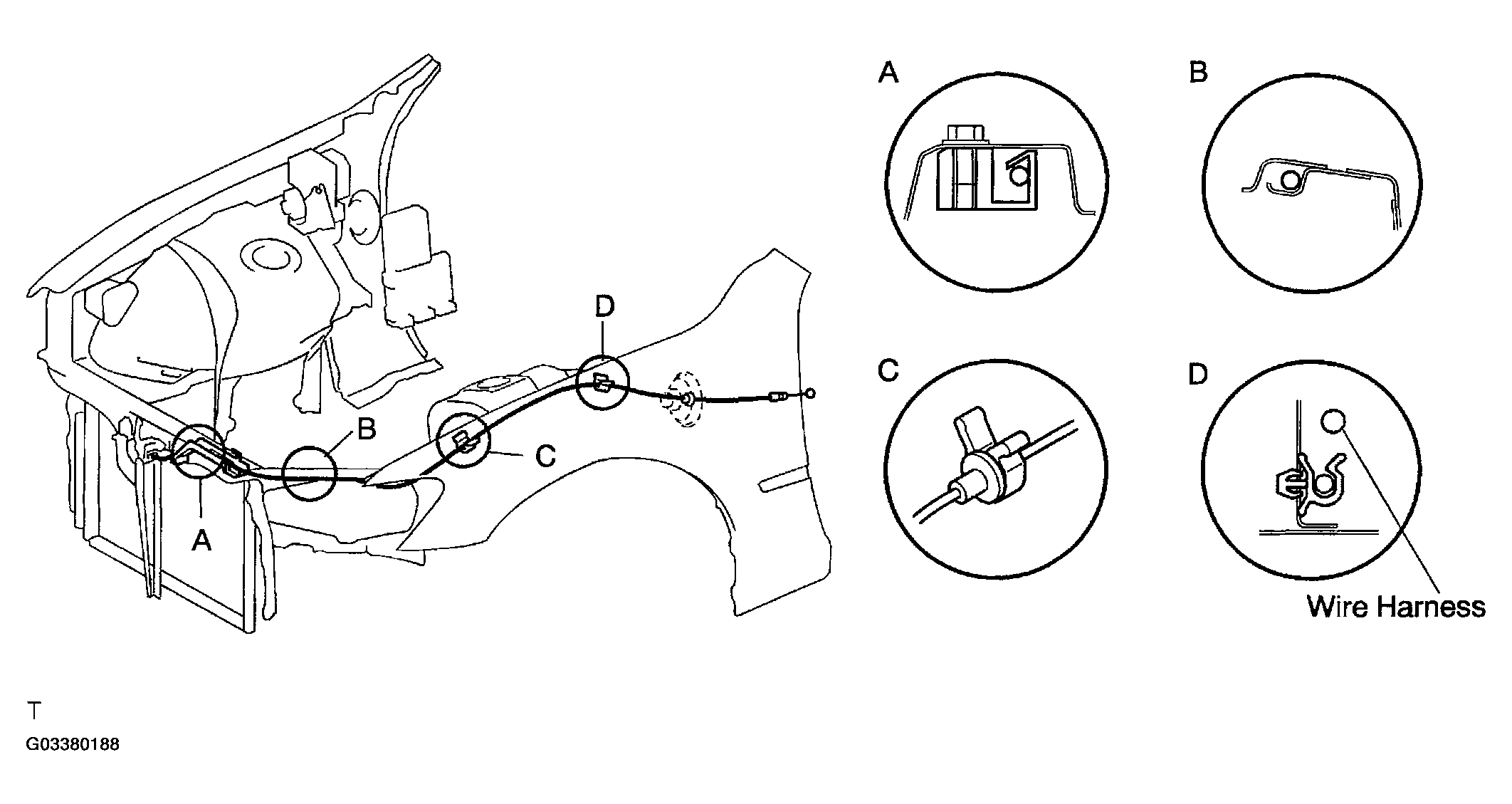

1. Using a screwdriver, disconnect the cable from the clamps.

   HINT:

   Tape the screwdriver tip before use.

Fig 4: Disconnecting Cable From Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

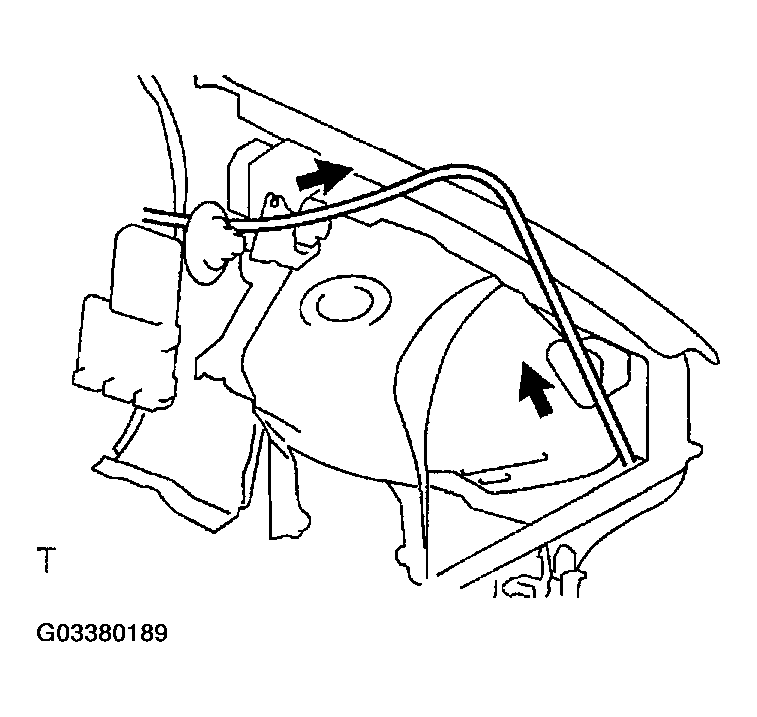

2. Pull the cable from the engine room to remove it.
Fig 5: Pulling Cable From Engine Room
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
