Lexus
>>
2003
>>
IS 300 Base, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock/Vehicle Skid Control
>>
Pin Voltage Test
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pin Voltage Test
For pin voltages of ECU see
Fig 1
-
Fig 3
.

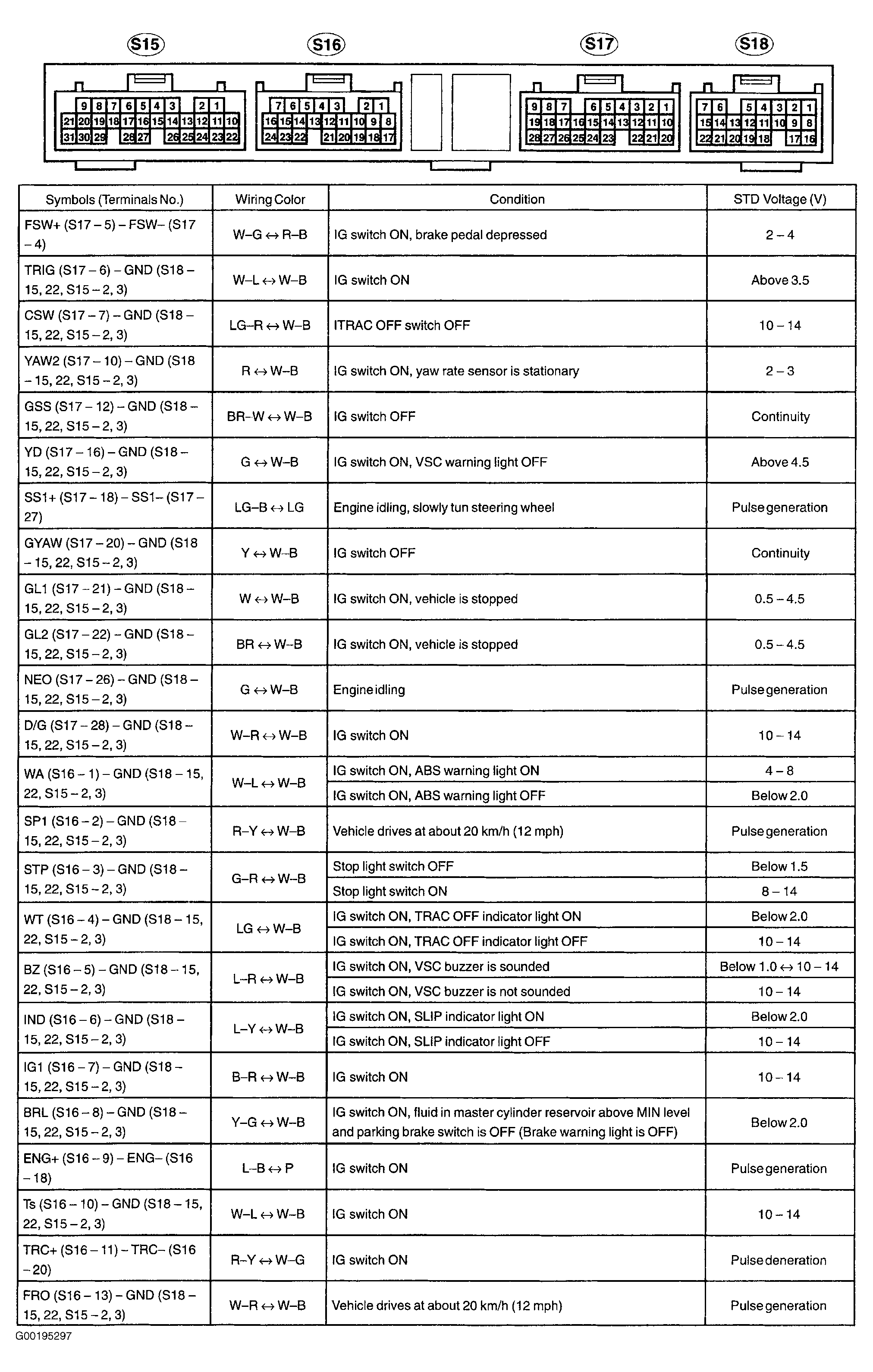

Fig 1: Identifying Pin Voltages Of ECU (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

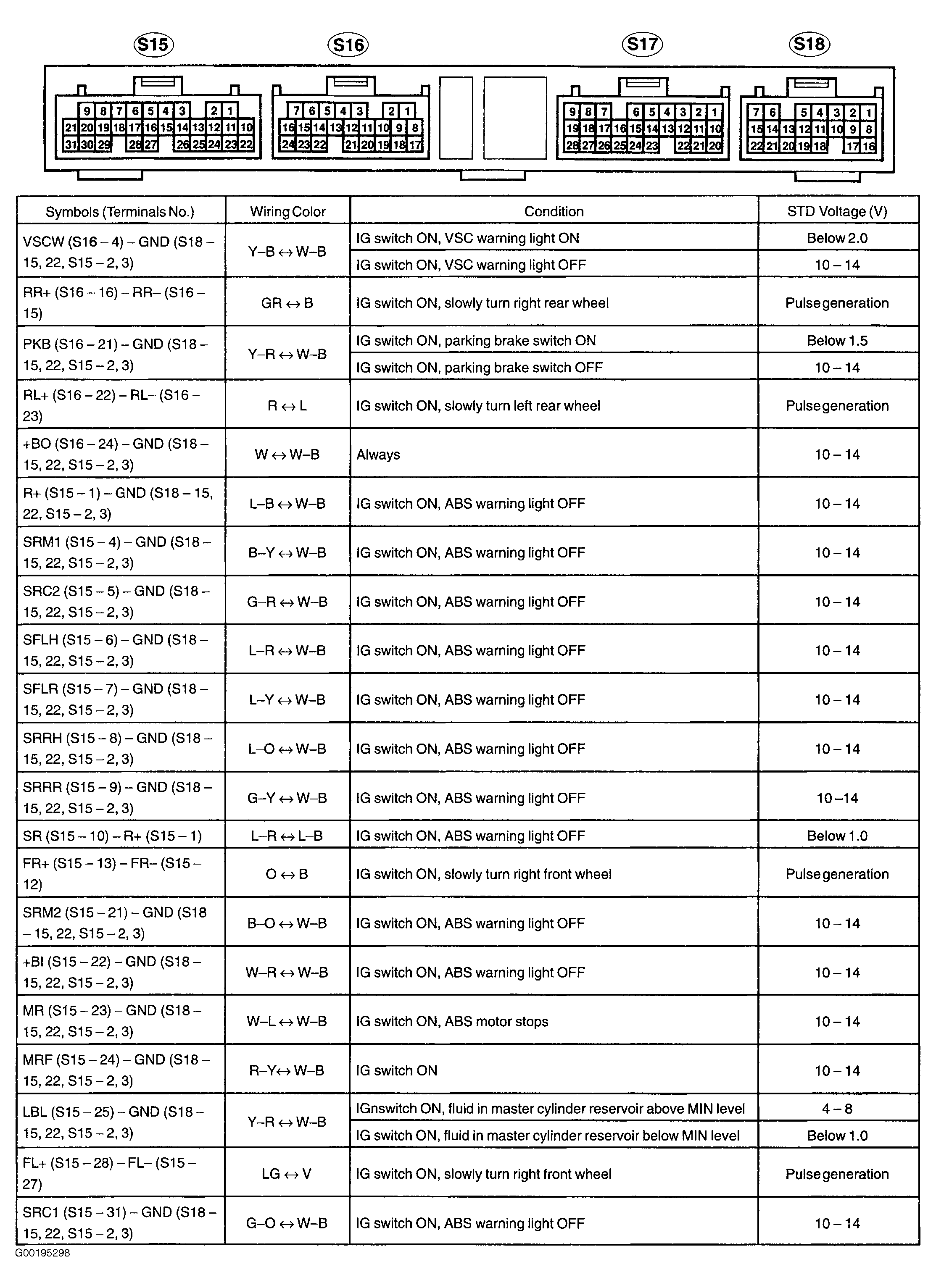

Fig 2: Identifying Pin Voltages Of ECU (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

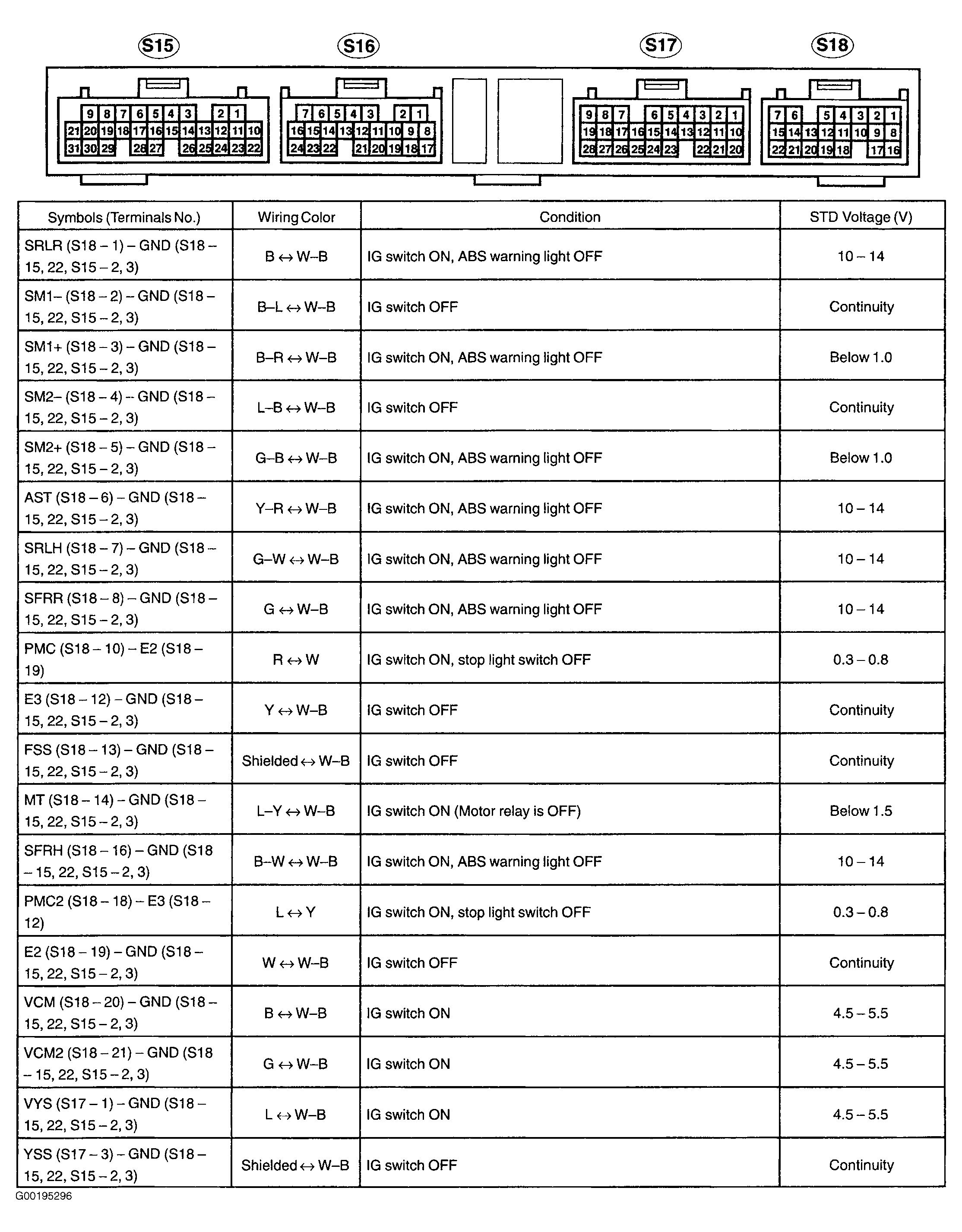

Fig 3: Identifying Pin Voltages Of ECU (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
