Component Locations
IDENTIFYING COMPONENT LOCATIONS
| Component | Location |
|---|---|

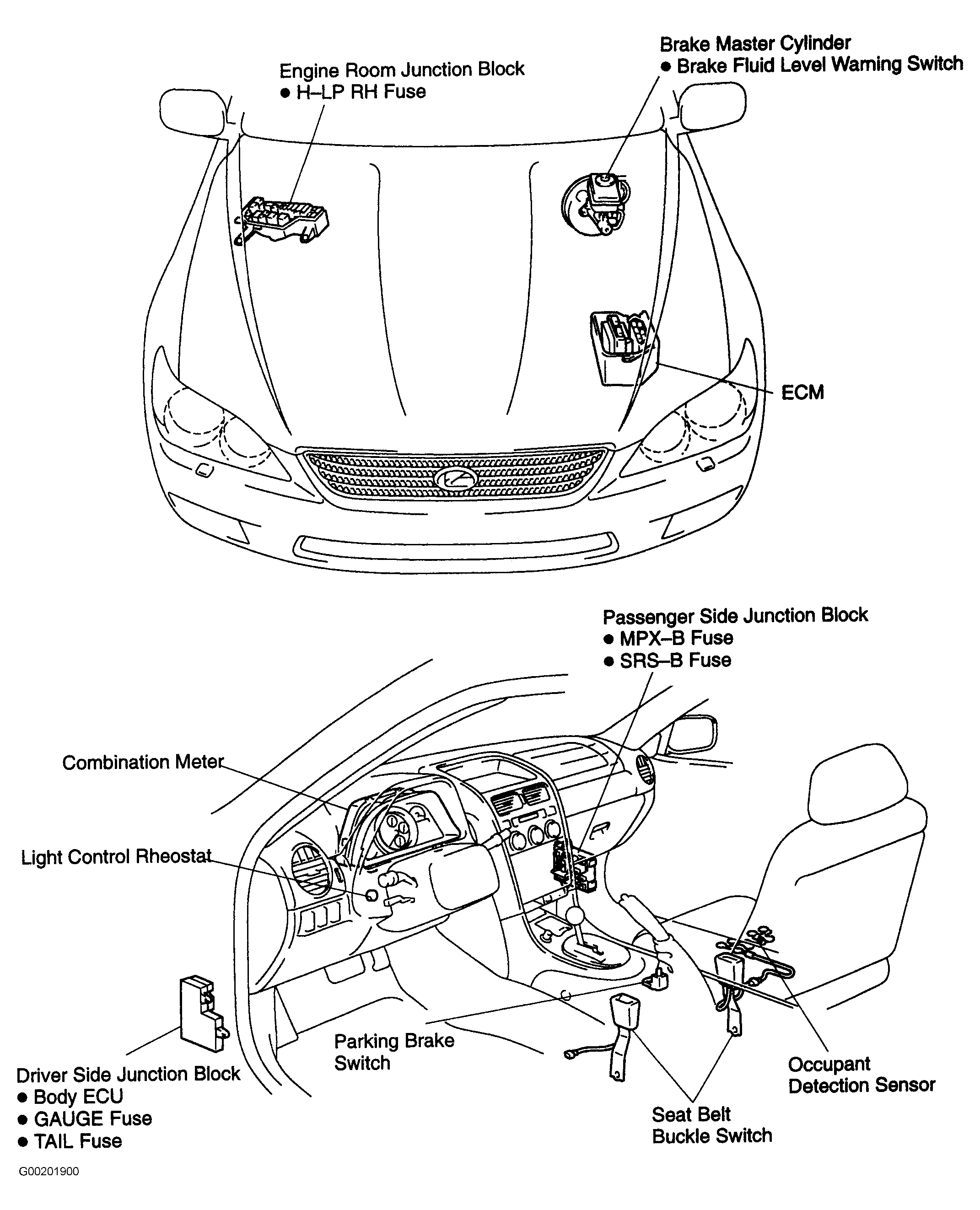

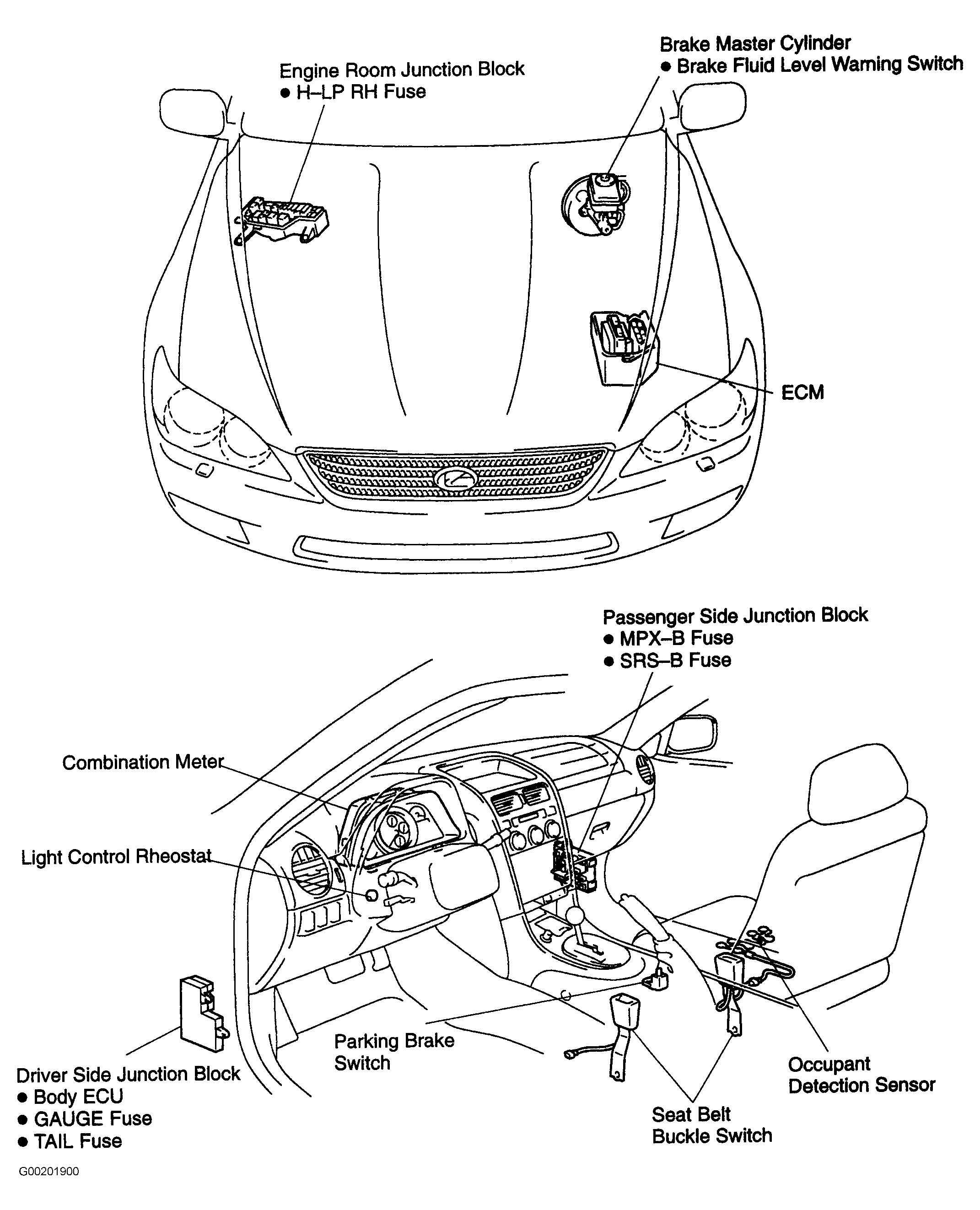

| Back Up Light Switch | Fig 3 |
| Body ECU (Driver Side J/B) | Fig 1 |
| Brake Fluid Level Warning Switch | Fig 1 |
| Combination Meter | Fig 1 |
| ECM | Fig 1 |
| GAUGE Fuse (Driver Side J/B) | Fig 1 |
| H-LP RH Fuse (Engine Room J/B) | Fig 1 |
| Light Control Rheostat | Fig 1 |

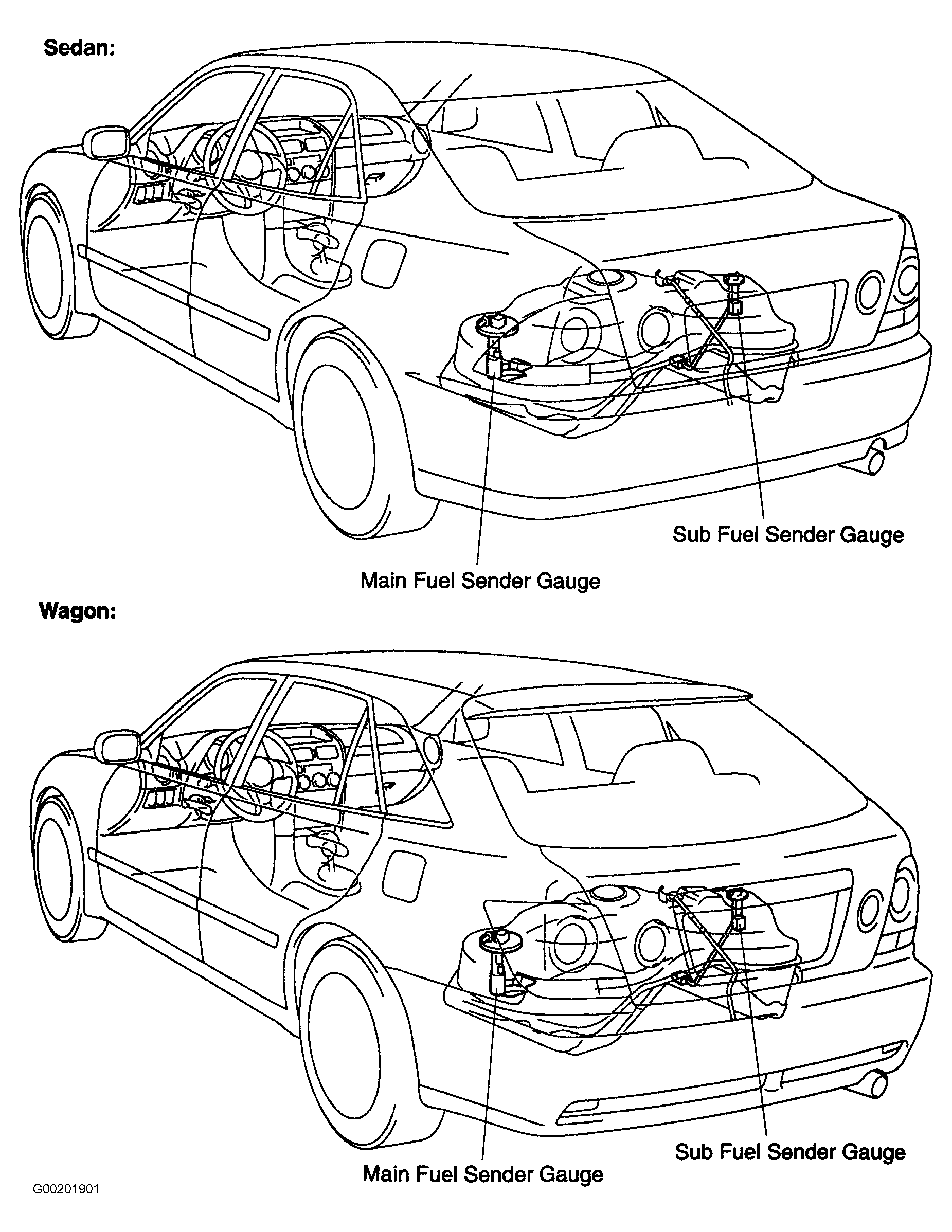

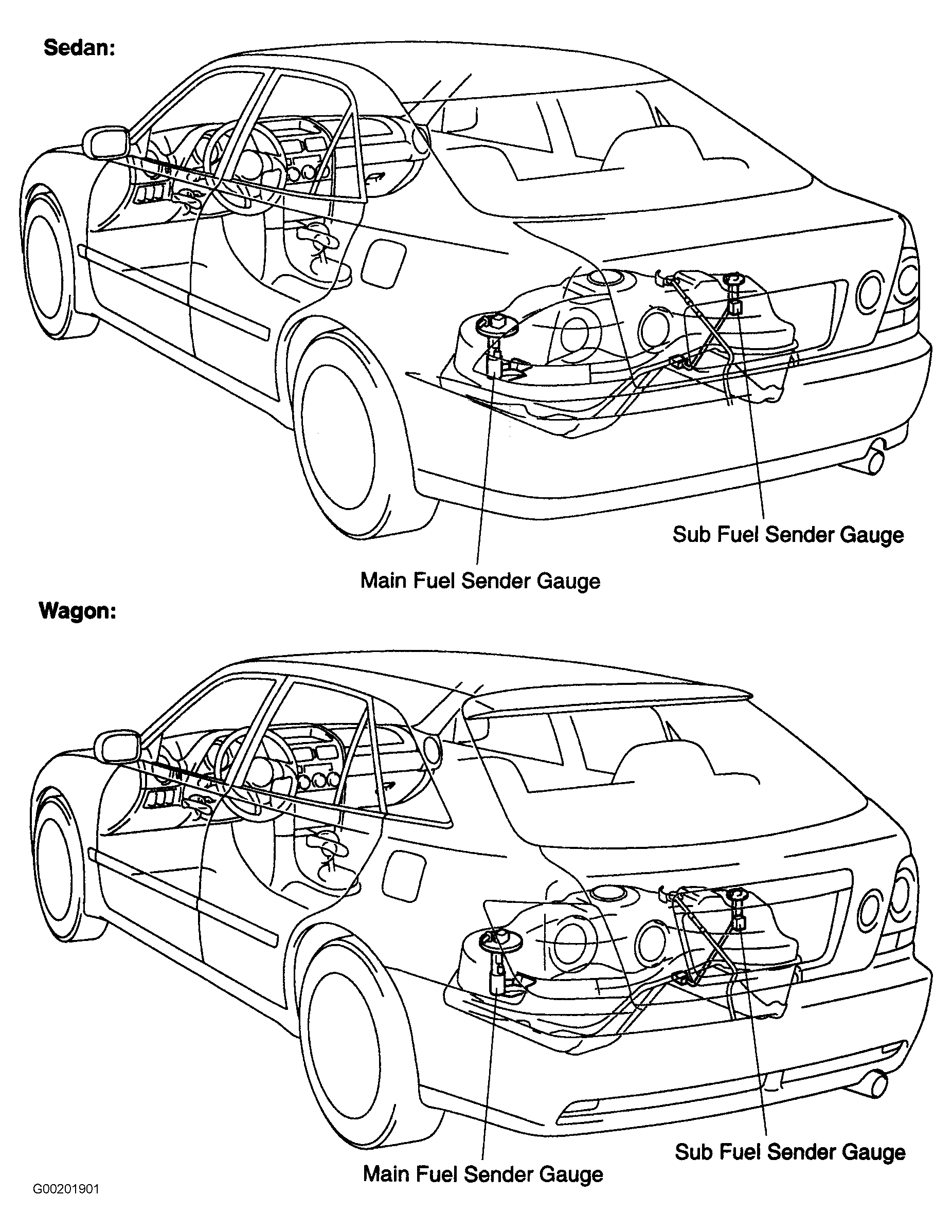

| Main Fuel Sender Gauge | Fig 2 |
| MPX-B Fuse (Passenger Side J/B) | Fig 1 |

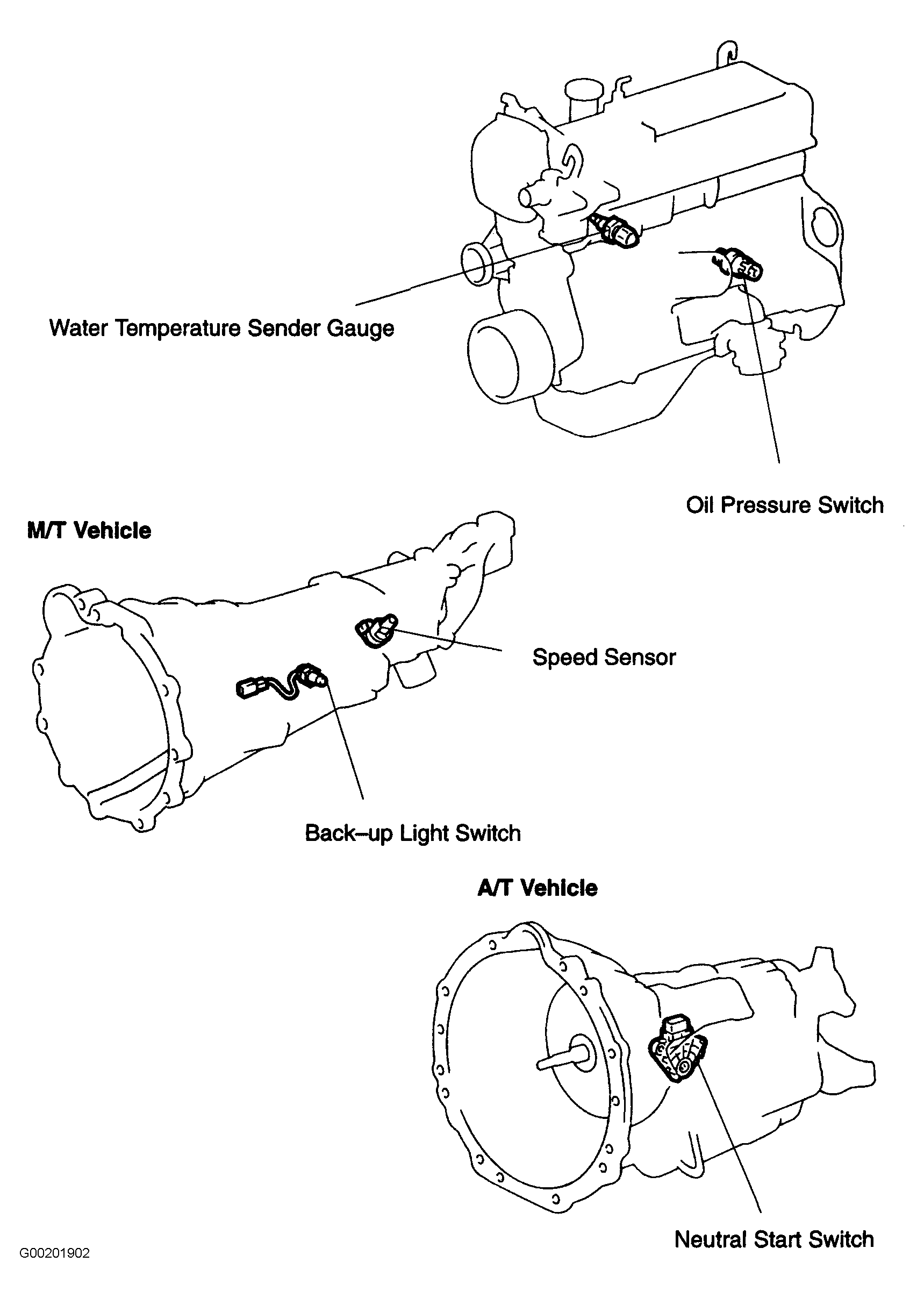

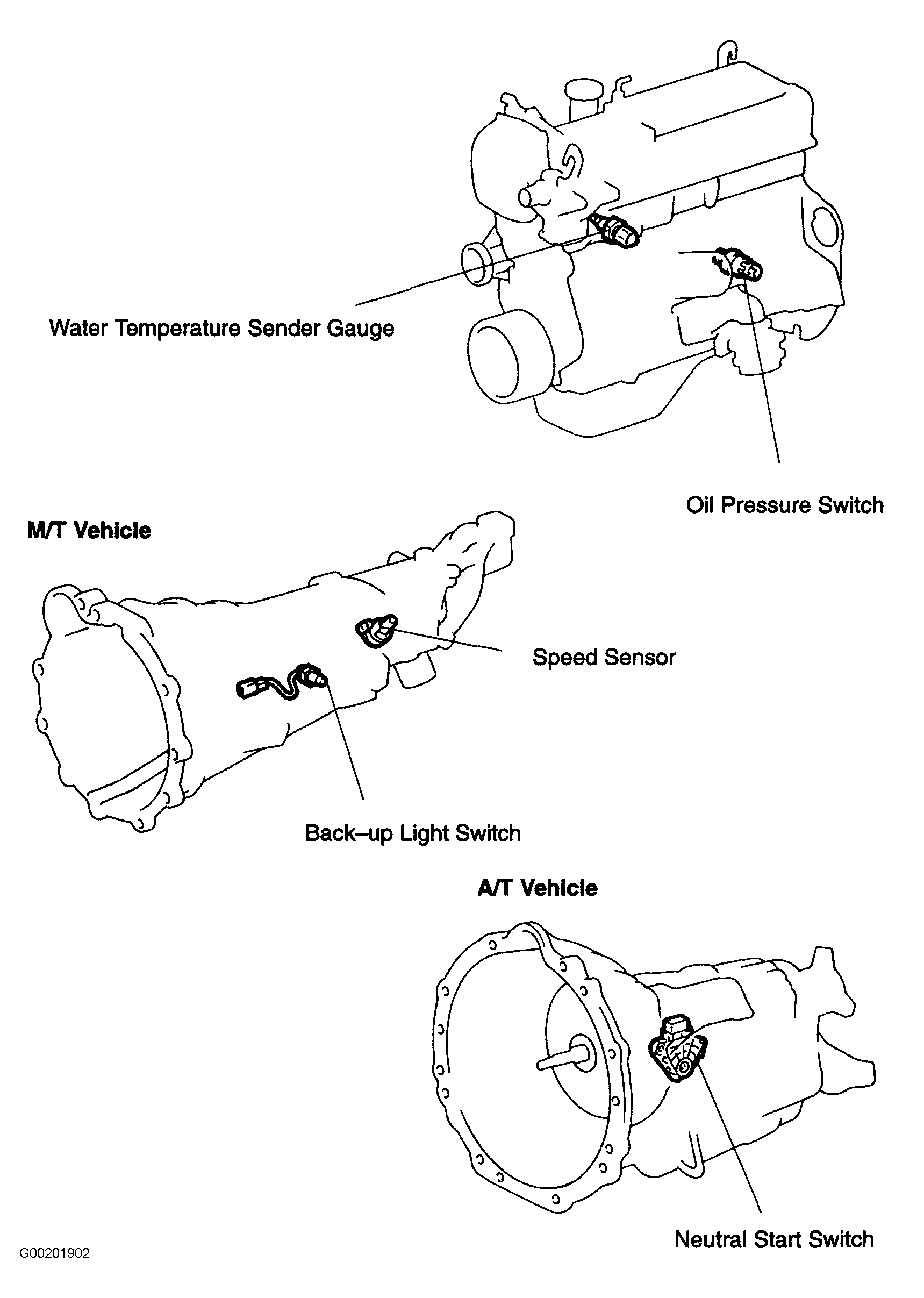

| Neutral Start Switch | Fig 3 |
| Occupant Detection Sensor | Fig 1 |
| Oil Pressure Switch | Fig 3 |
| Parking Brake Switch | Fig 1 |
| Seat Belt Buckle Switch | Fig 1 |
| Speed Sensor | Fig 3 |
| SRS-B Fuse (Passenger Side J/B) | Fig 1 |
| Sub Fuel Sender Gauge | Fig 2 |
| TAIL Fuse (Driver Side J/B) | Fig 1 |
| Water/Engine Coolant Temperature Sender Gauge | Fig 3 |
