Oil Pump: Disassembly

REMOVE RELIEF VALVE
1. Carefully mount the pump body in a soft jaw vise.
2. Remove the plug, gasket, compression spring and relief valve.
NOTE: Be careful not to damage the pump body.

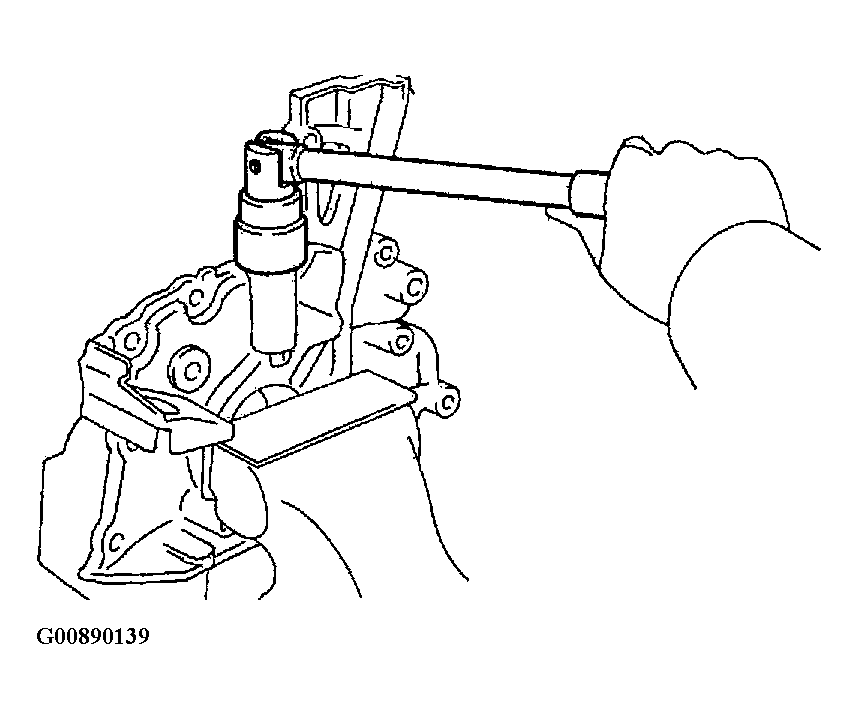

Fig 1: Removing Relief Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DRIVE AND DRIVEN ROTORS
Remove the 10 screws, pump body cover, the drive and driven rotors.

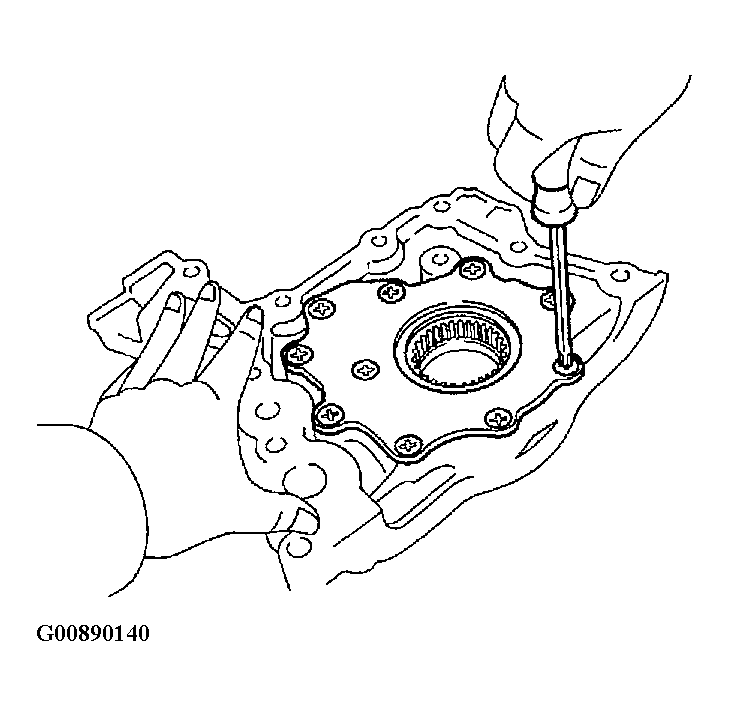

Fig 2: Removing Drive And Driven Rotors
