Power Steering Gear: Inspection
- INSPECT STEERING RACK

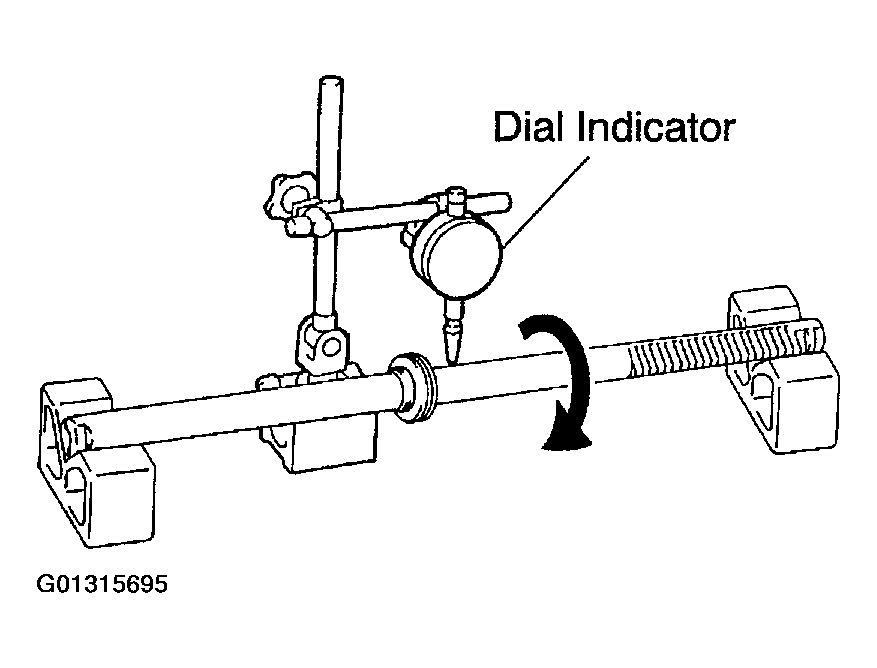

- Using a dial indicator, check the steering rack for runout and for teeth wear and damage.
Maximum runout: 0.15 mm (0.0059 in.)
- Check the back surface for wear and damage.
- Using a dial indicator, check the steering rack for runout and for teeth wear and damage.
- INSPECT BEARING

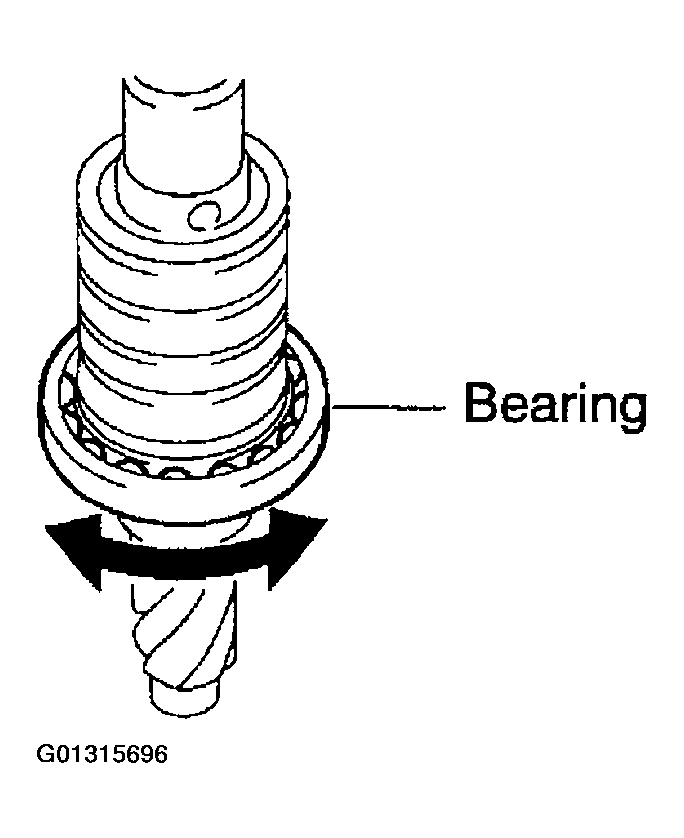

- Check the bearing rotation condition and check for abnormal noise.
If the bearing is worn or damaged, replace the control valve assembly.
- Coat the bearing with molybdenum disulfide lithium base grease.
- Check the bearing rotation condition and check for abnormal noise.
