Pin Voltage Test
For pin voltages of ECU see
Fig 1
-
Fig 3
.

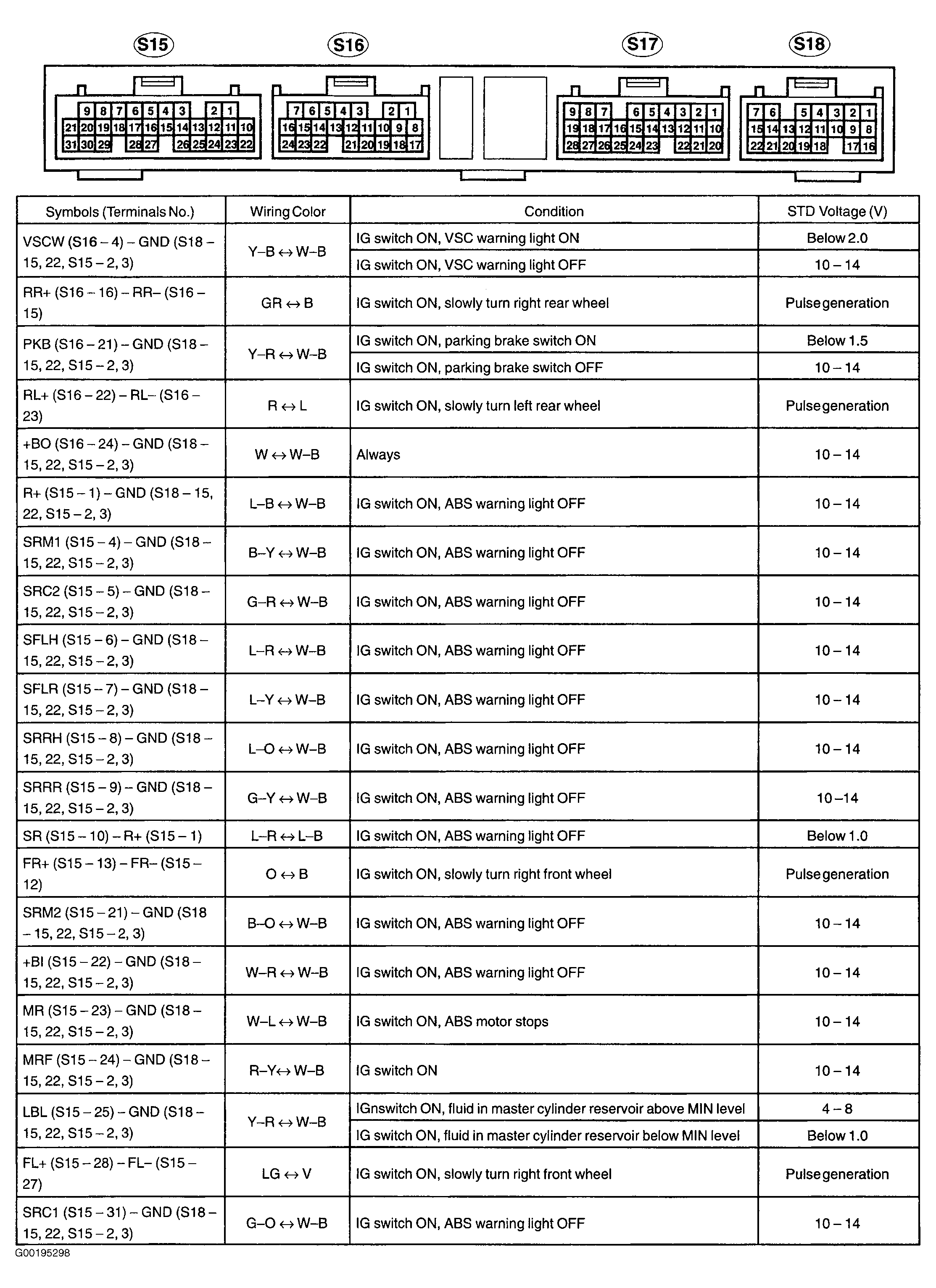

Fig 1: Identifying Pin Voltages Of ECU (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

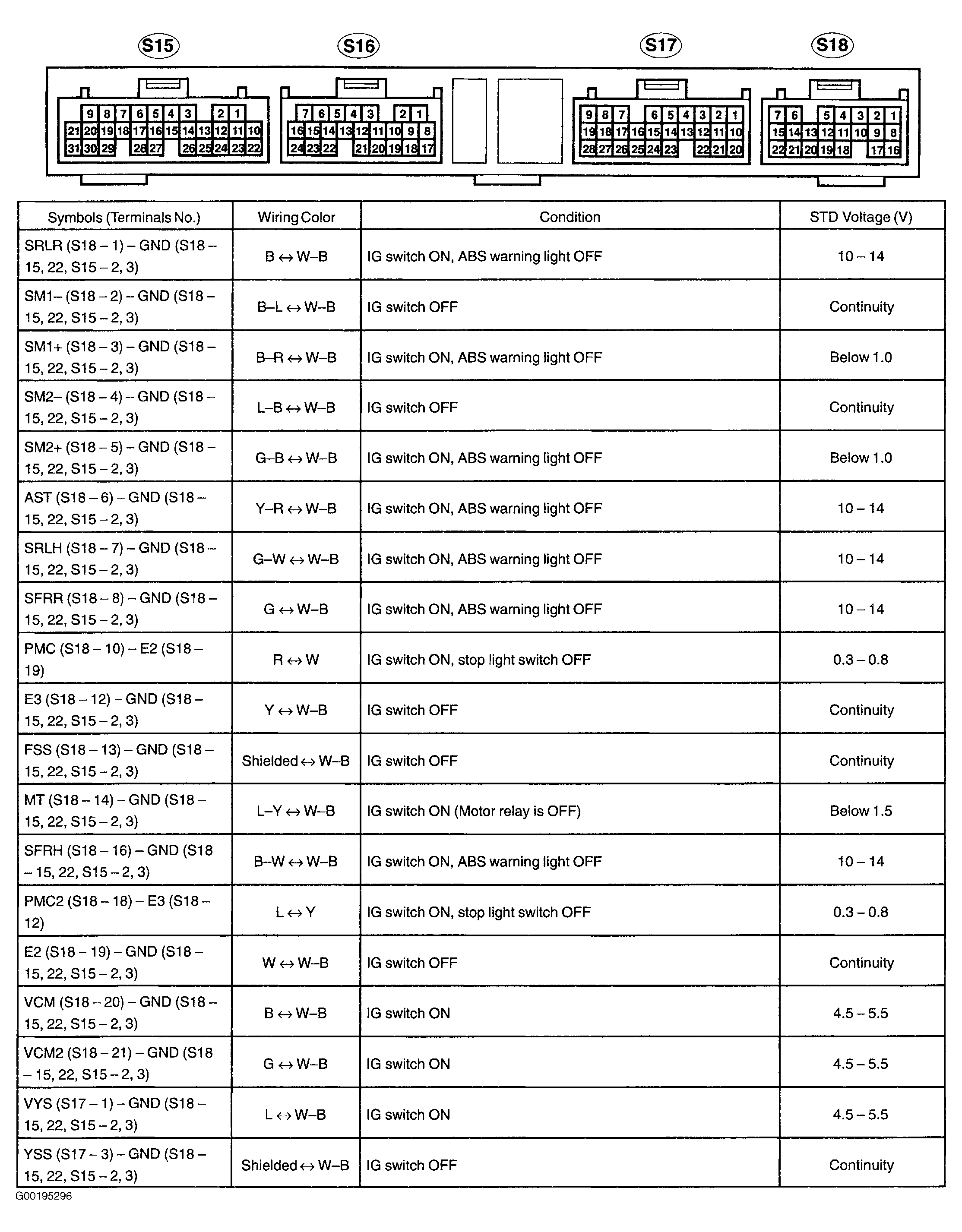

Fig 2: Identifying Pin Voltages Of ECU (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Pin Voltages Of ECU (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
