Power Steering Vane Pump: Installation

INSTALL PS VANE PUMP ASSEMBLY
Install the PS vane pump assembly with the 2 bolts.

Torque: 58 N.m (590 kgf.cm, 43 ft.lbf)
CONNECT PRESSURE FEED TUBE
1. Install a new gasket to the pressure feed tube.

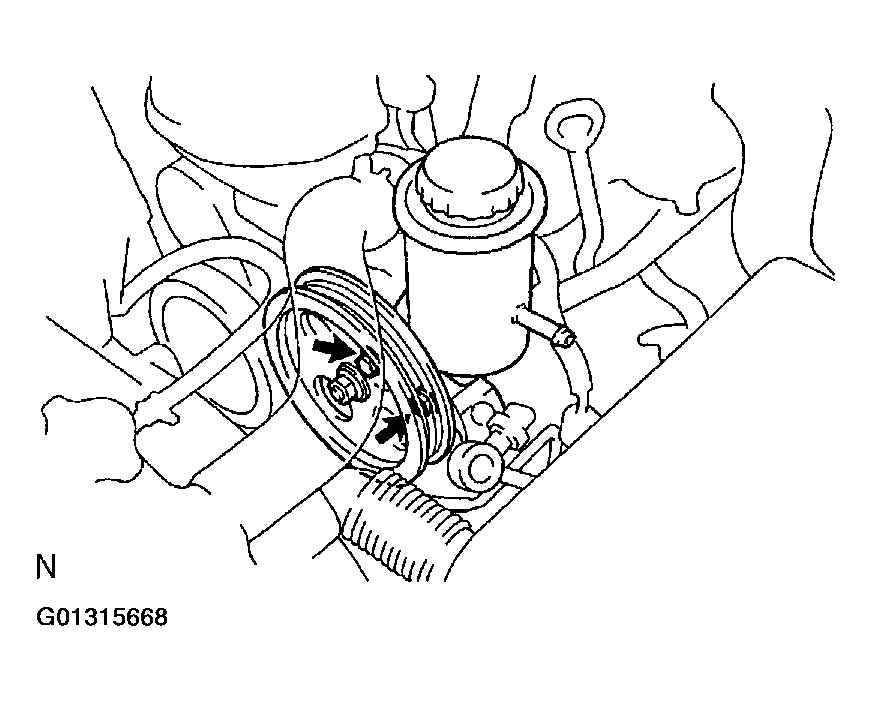

  Fig 1: Installing PS Vane Pump Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the pressure feed tube with the union bolt.

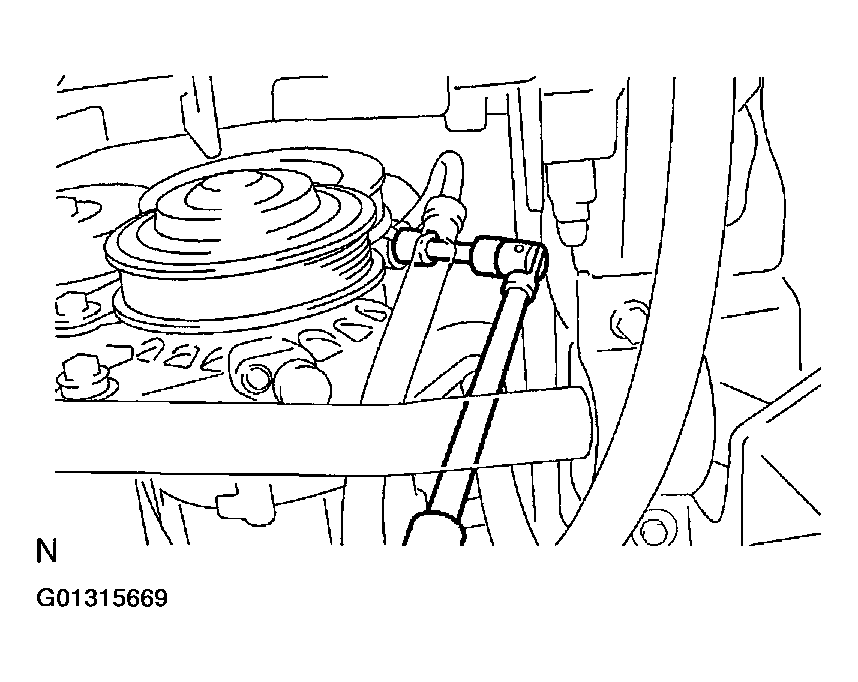

  Fig 2: Connecting Pressure Feed Tube With Union Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:

Make sure the stopper of the pressure feed tube touches the PS vane pump body as shown in the illustration, then install the union bolt.

Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
CONNECT RETURN HOSE
Connect the return hose with the clip.
CONNECT OIL PRESSURE SWITCH CONNECTOR

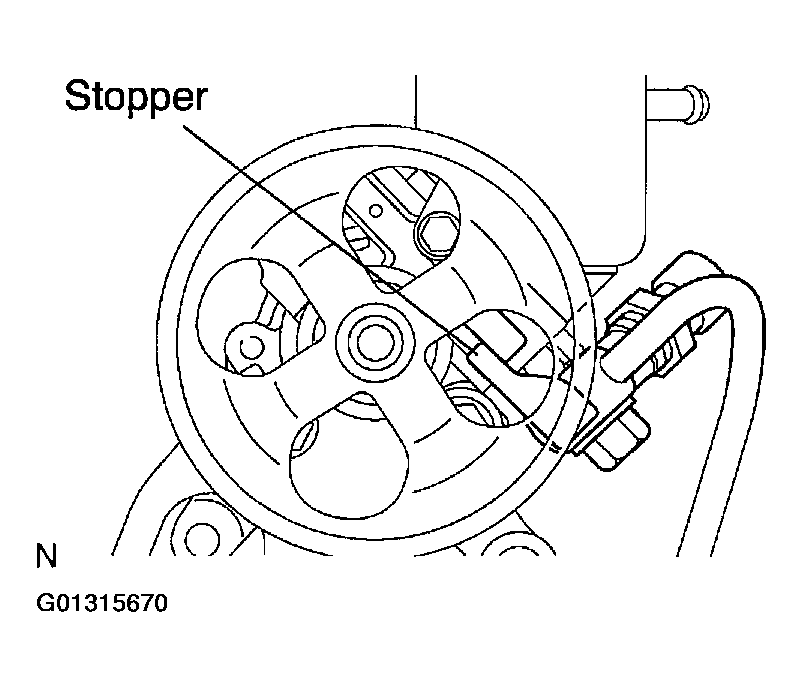

Fig 3: Identifying Stopper Of Pressure Feed Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DRIVE BELT
Using SST, loosen the drive belt tension by tuning the drive belt tensioner clockwise from the bottom side, and install the drive belt.

SST 09216-00041
INSTALL NO. 1 ENGINE UNDER COVER
Install the No. 1 engine under cover with the 16 screws and clip.
BLEED POWER STEERING SYSTEM (See POWER STEERING FLUID )

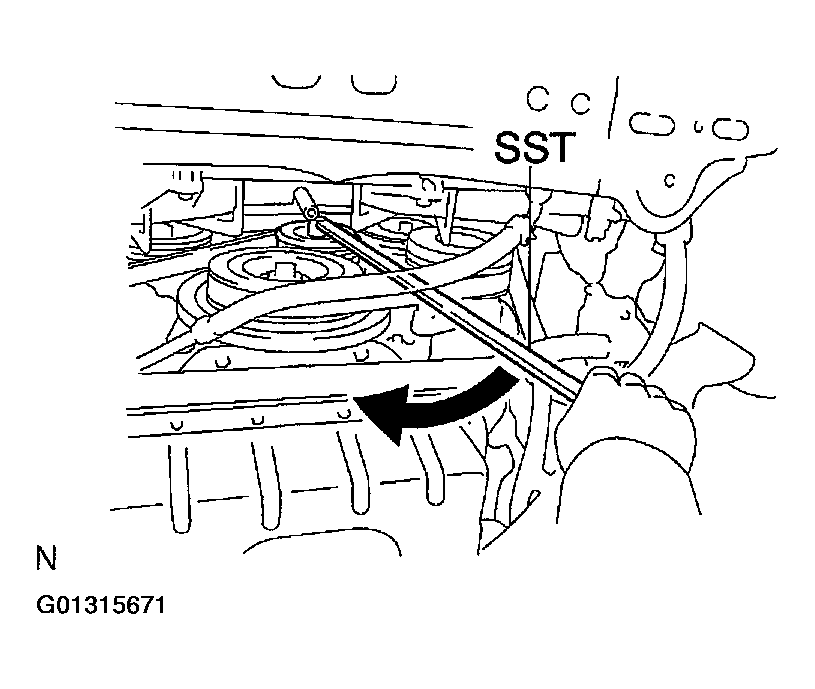

Fig 4: Installing Drive Belt
