Engine Control Module: Locations

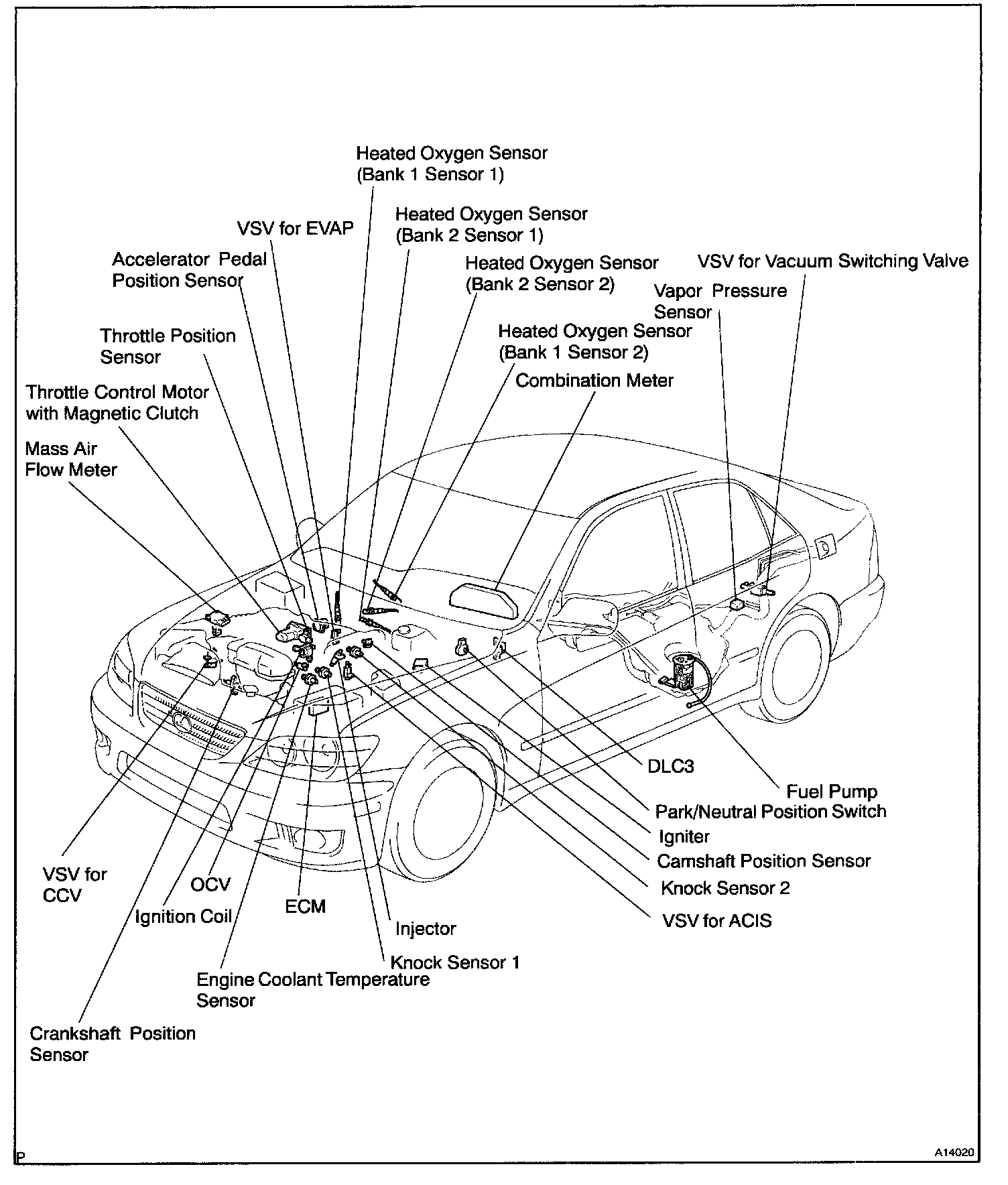

Engine:

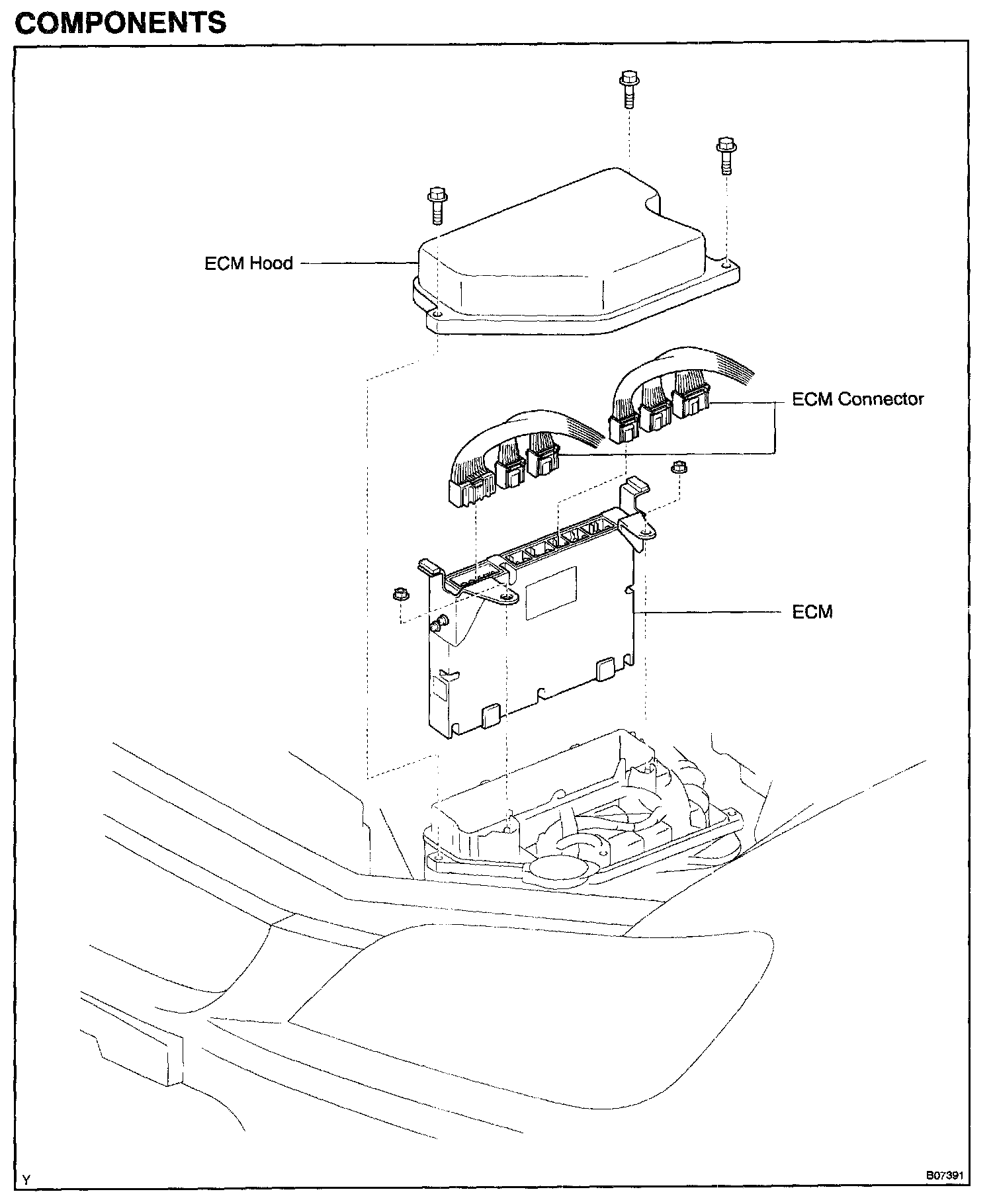

Engine Control Module (ECM):

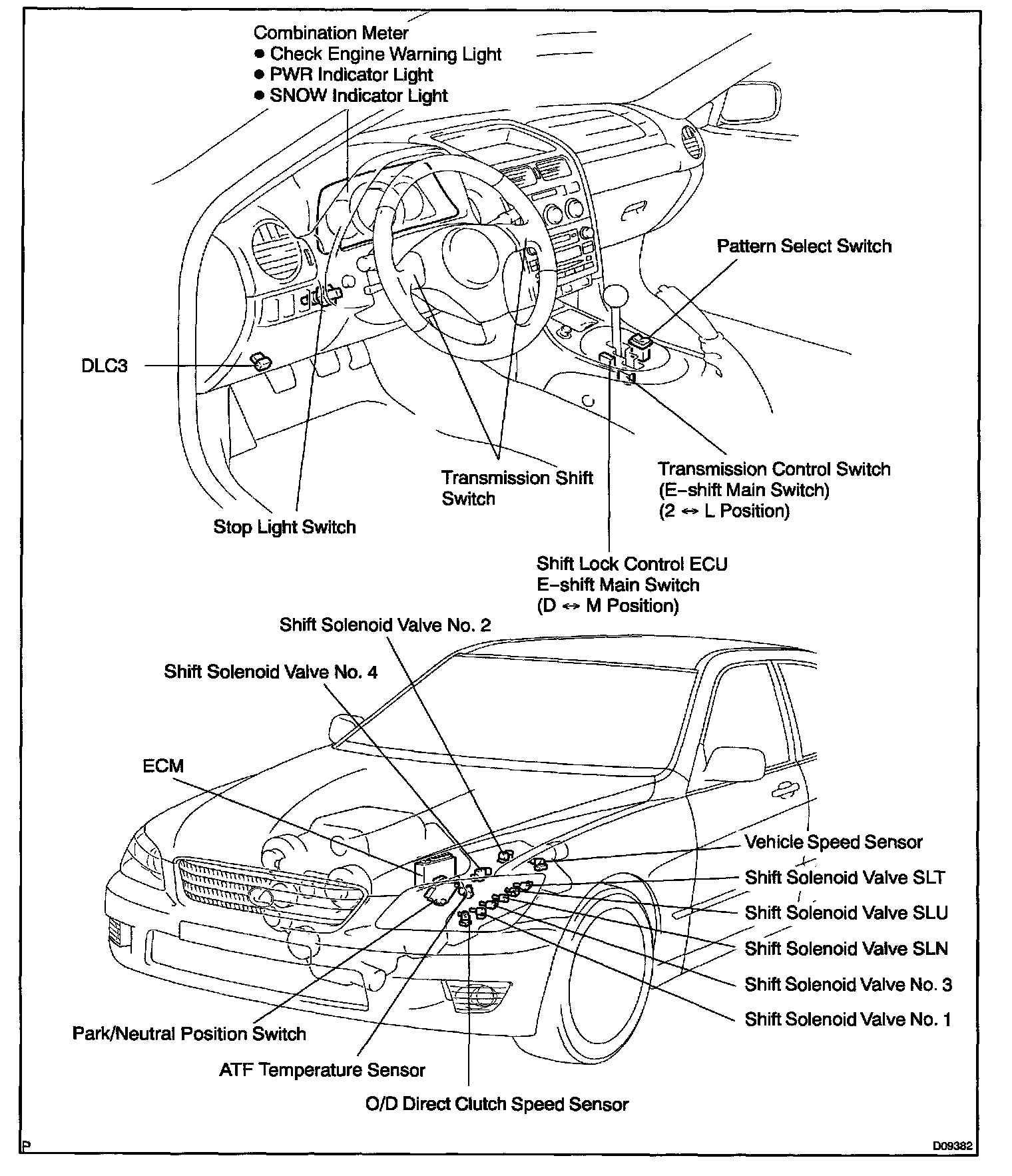

Automatic Transmission System:

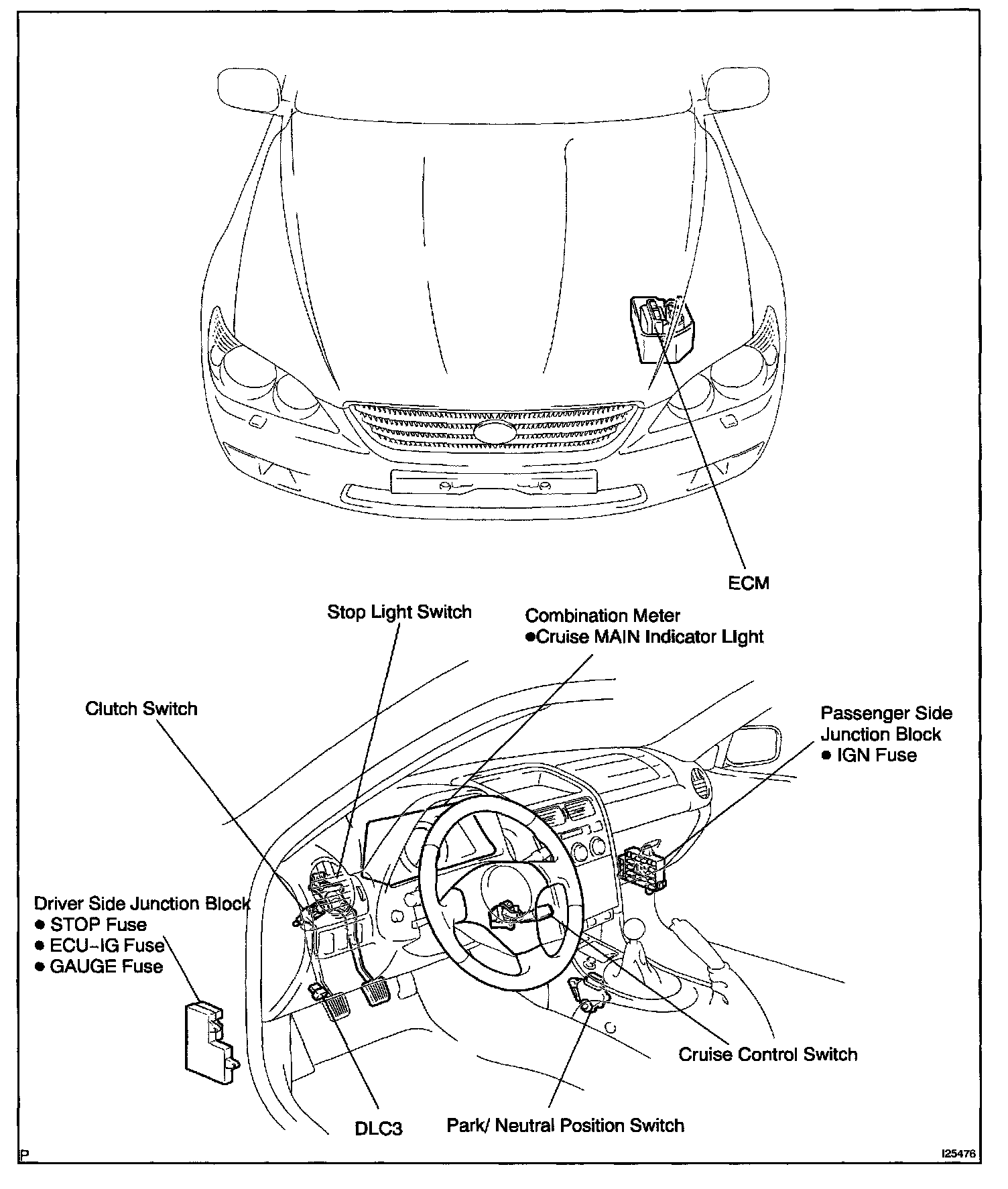

Cruise Control System:

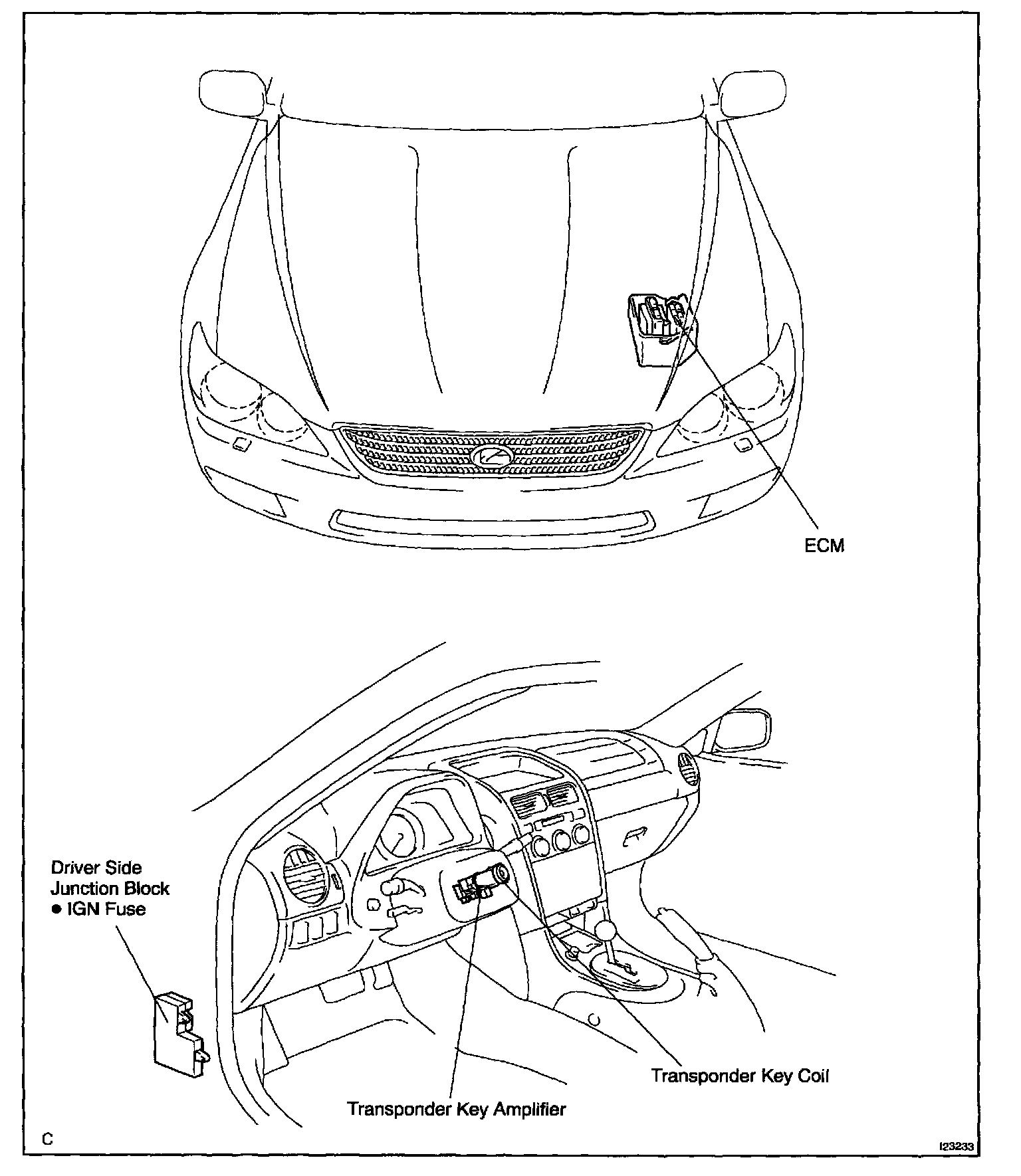

Engine Immobiliser System:

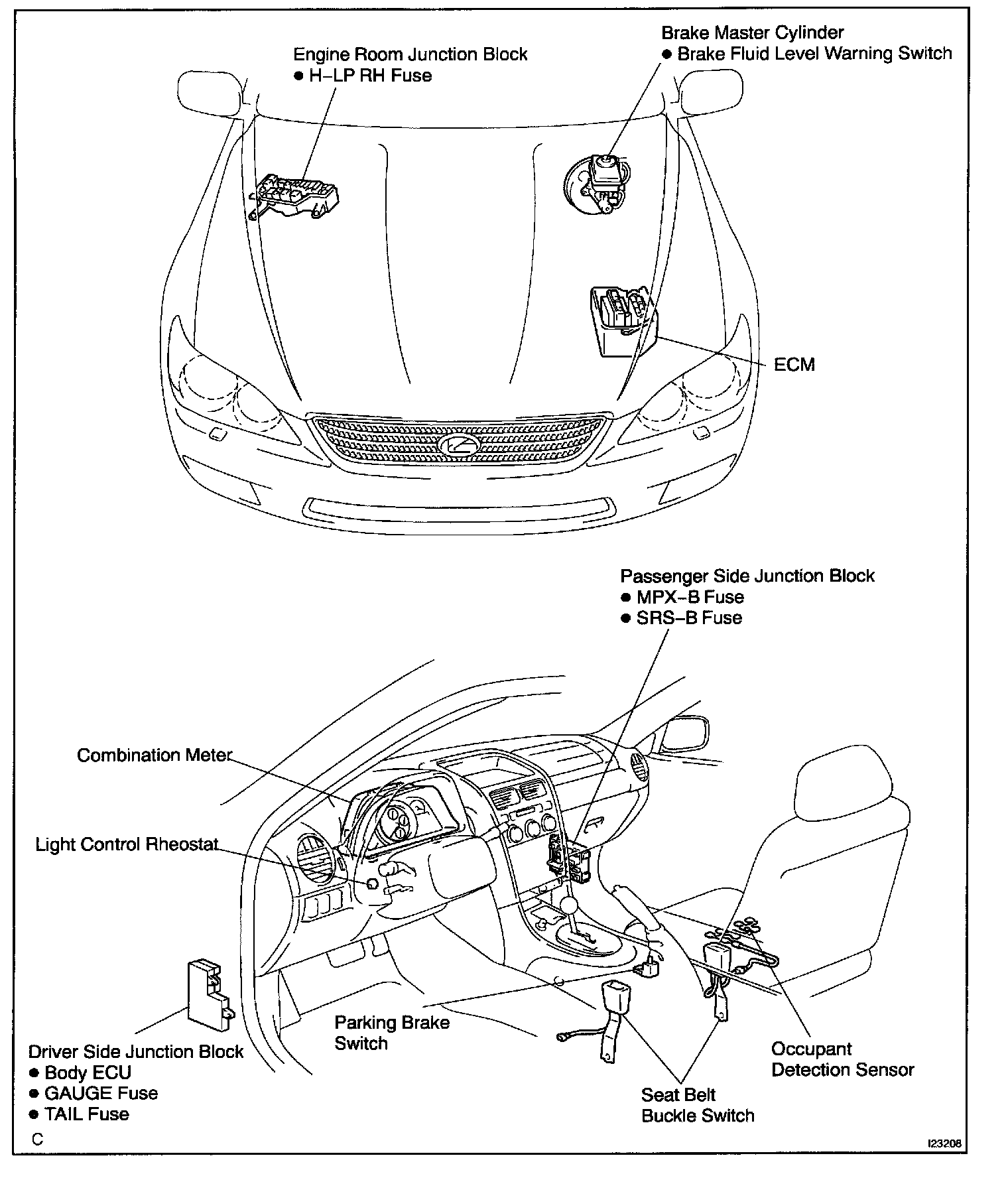

Combination Meter System:

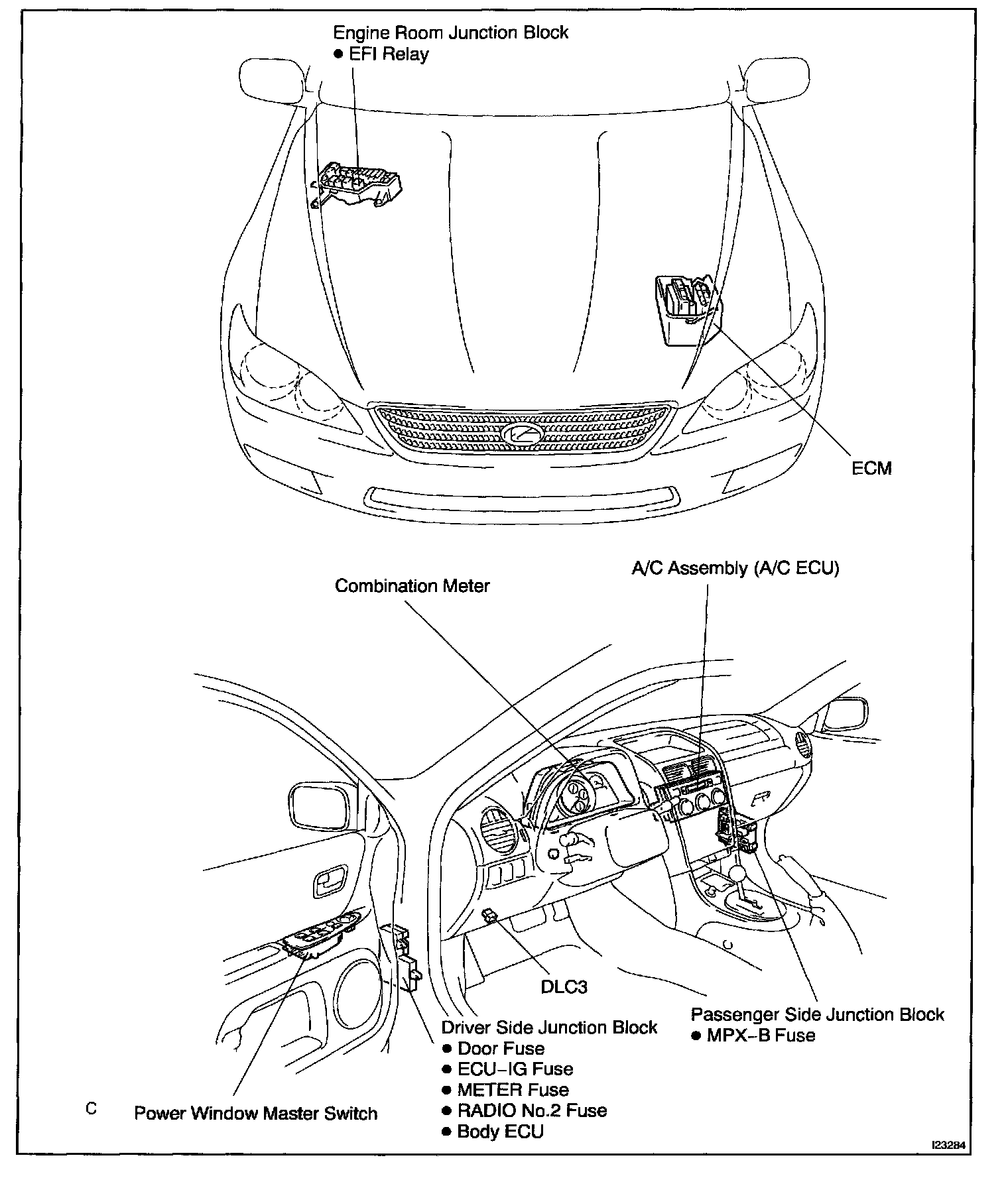

Multiplex Communication System:
