A/T Torque Data

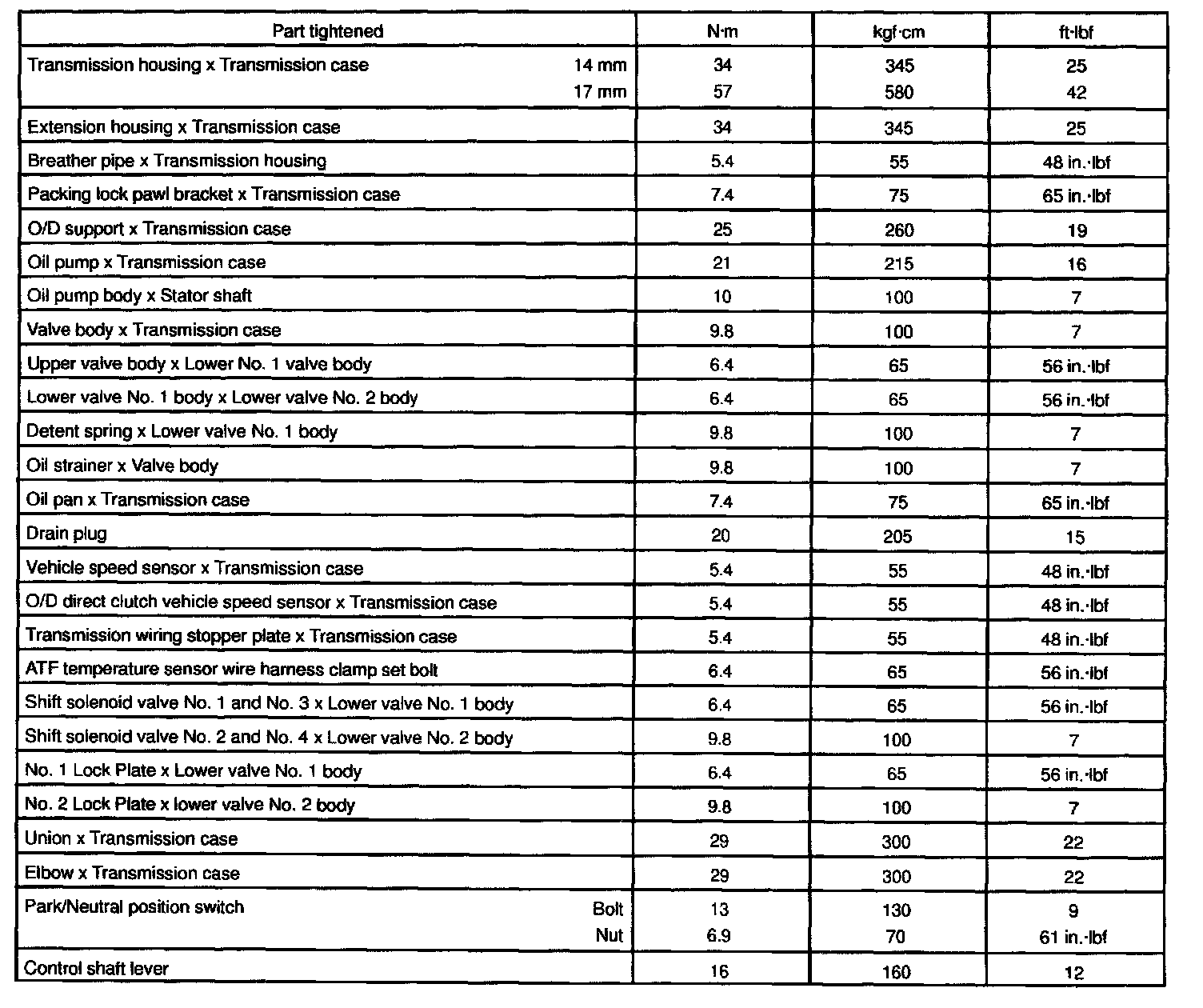

Torque Specifications:

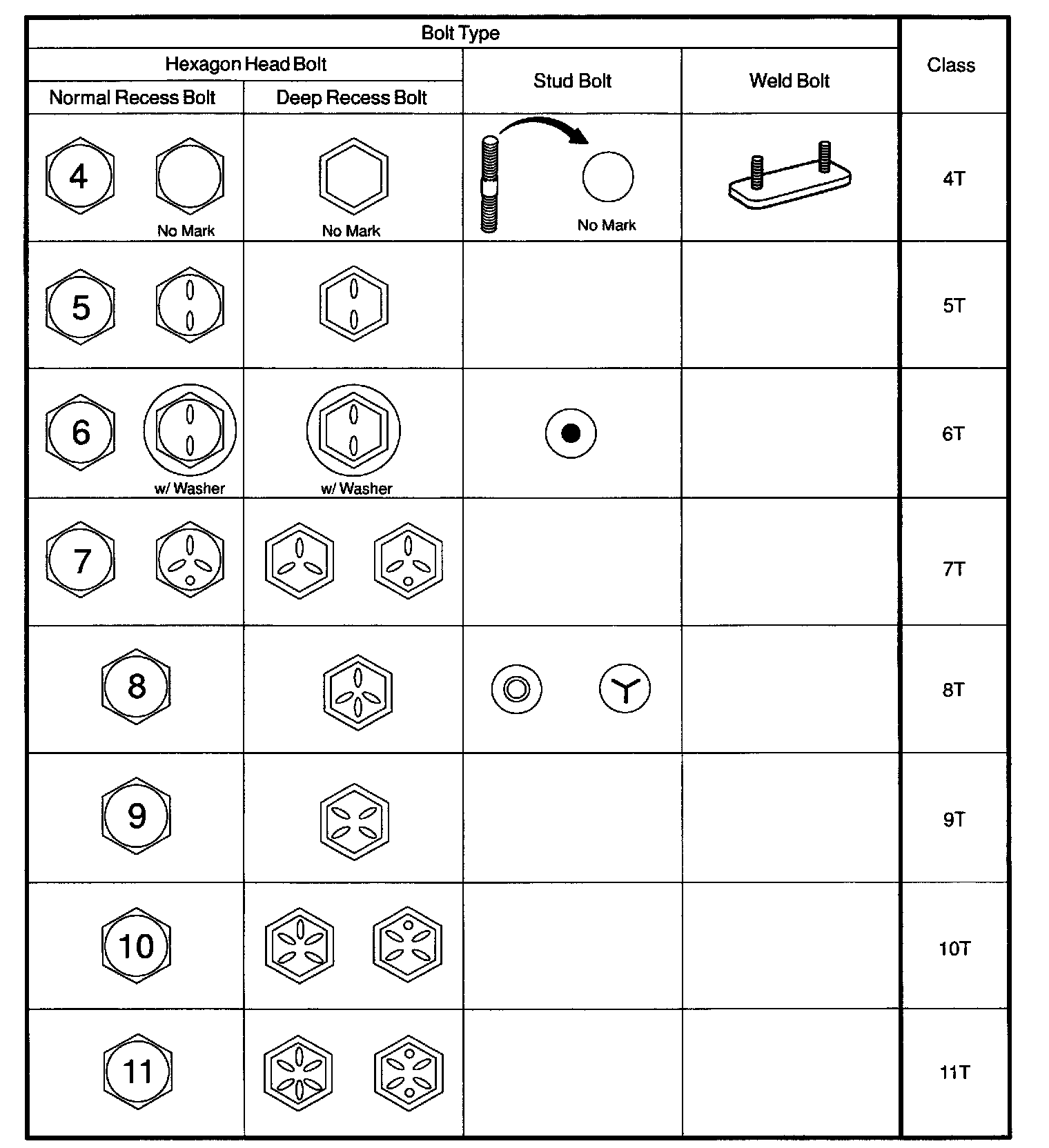

How To Determine Bolt Strength (Standard Bolt):

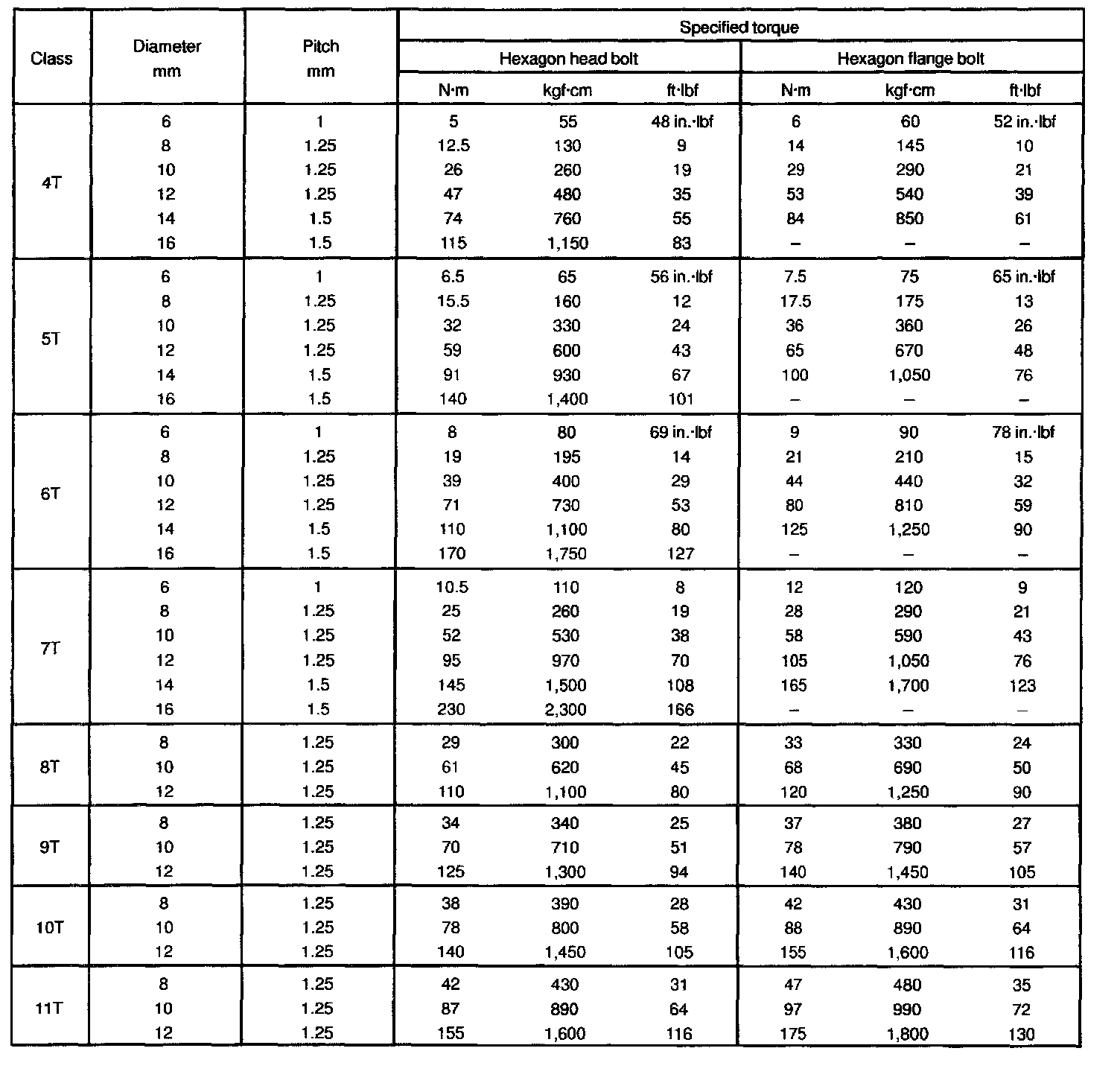

Specified Torque For Standard Bolts:

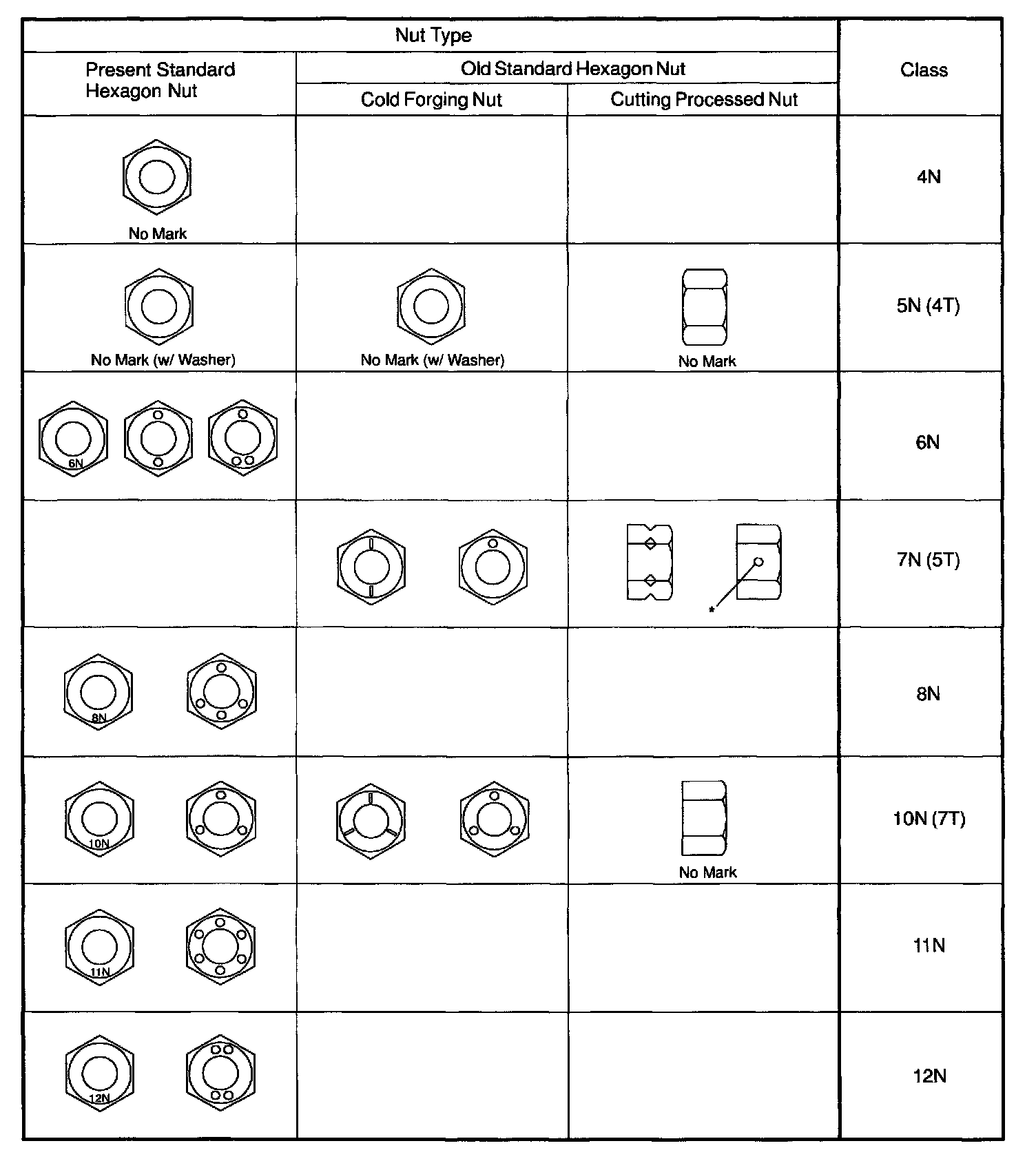

How To Determine Nut Strength:

*: Nut with 1 or more marks on one side surface of the nut.

HINT: Use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.

Example: Bolt = 4T
Nut = 4N or more
