Navigation Module: Testing and Inspection

TERMINALS OF ECU

Terminals Of ECU/Pinouts Part 1:

Terminals Of ECU/Pinouts Part 2:

Oscilloscope Waveform:

1. MULTI DISPLAY

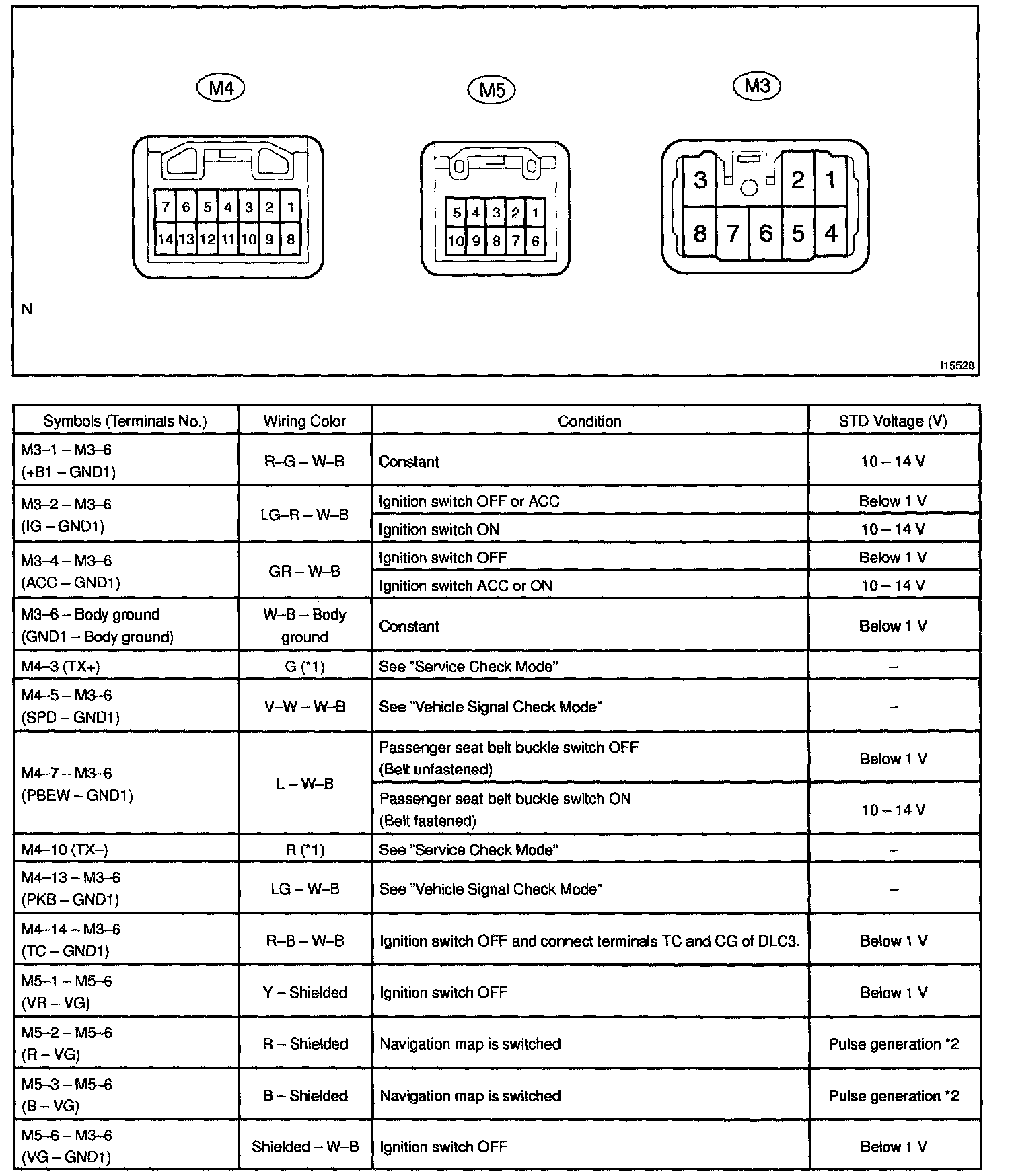

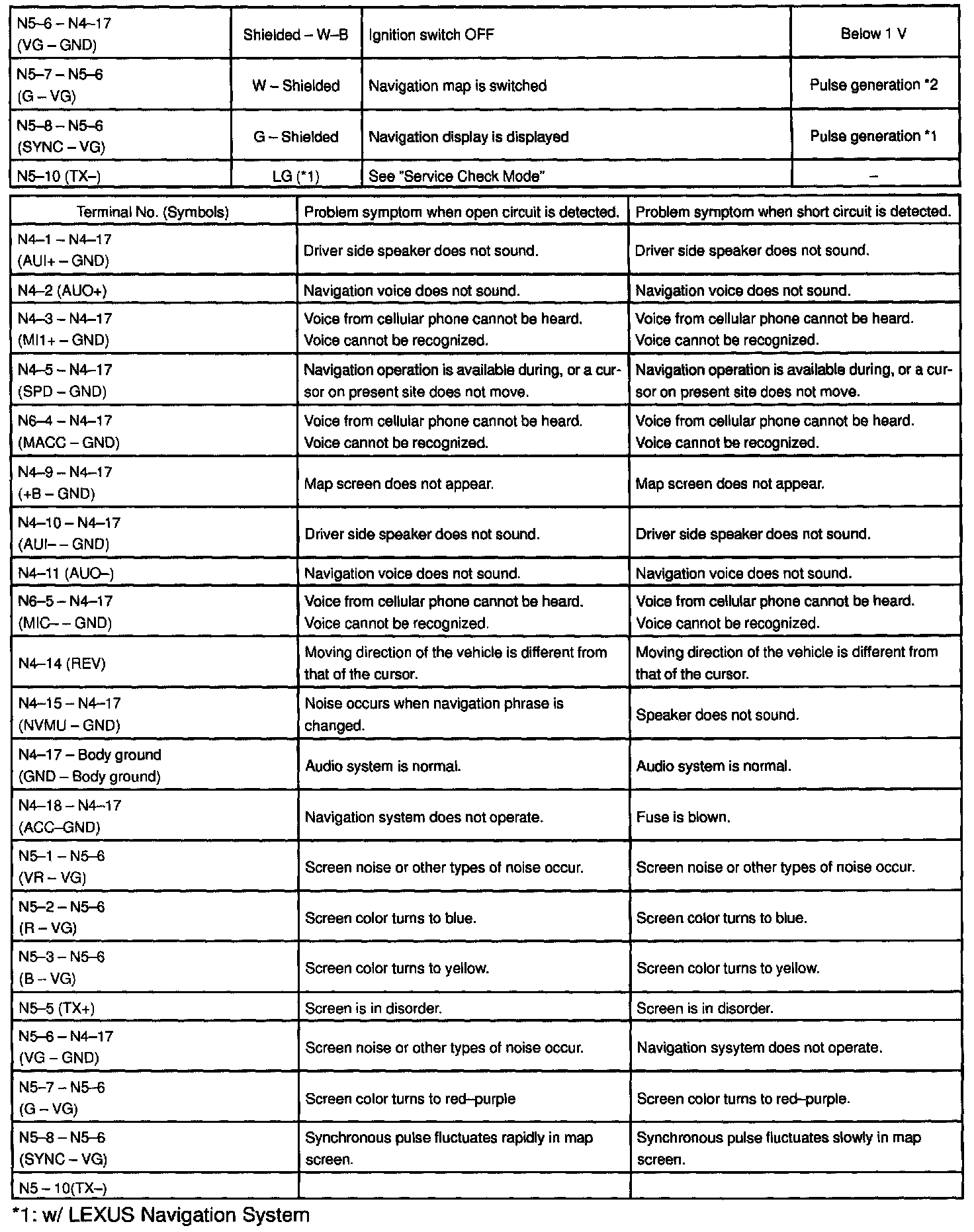

Terminals Of ECU/Pinouts Part 1:

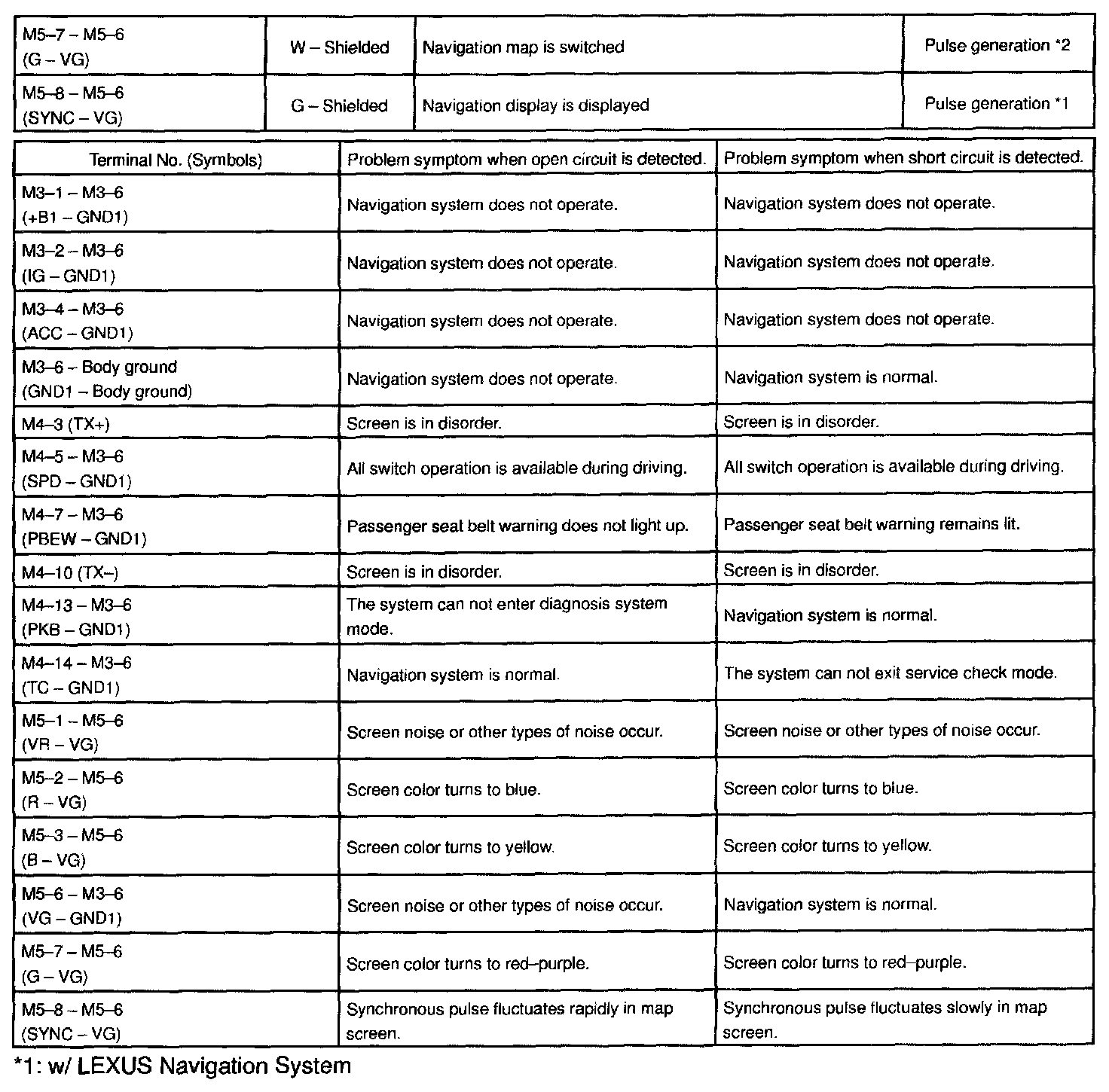

Terminals Of ECU/Pinouts Part 2:

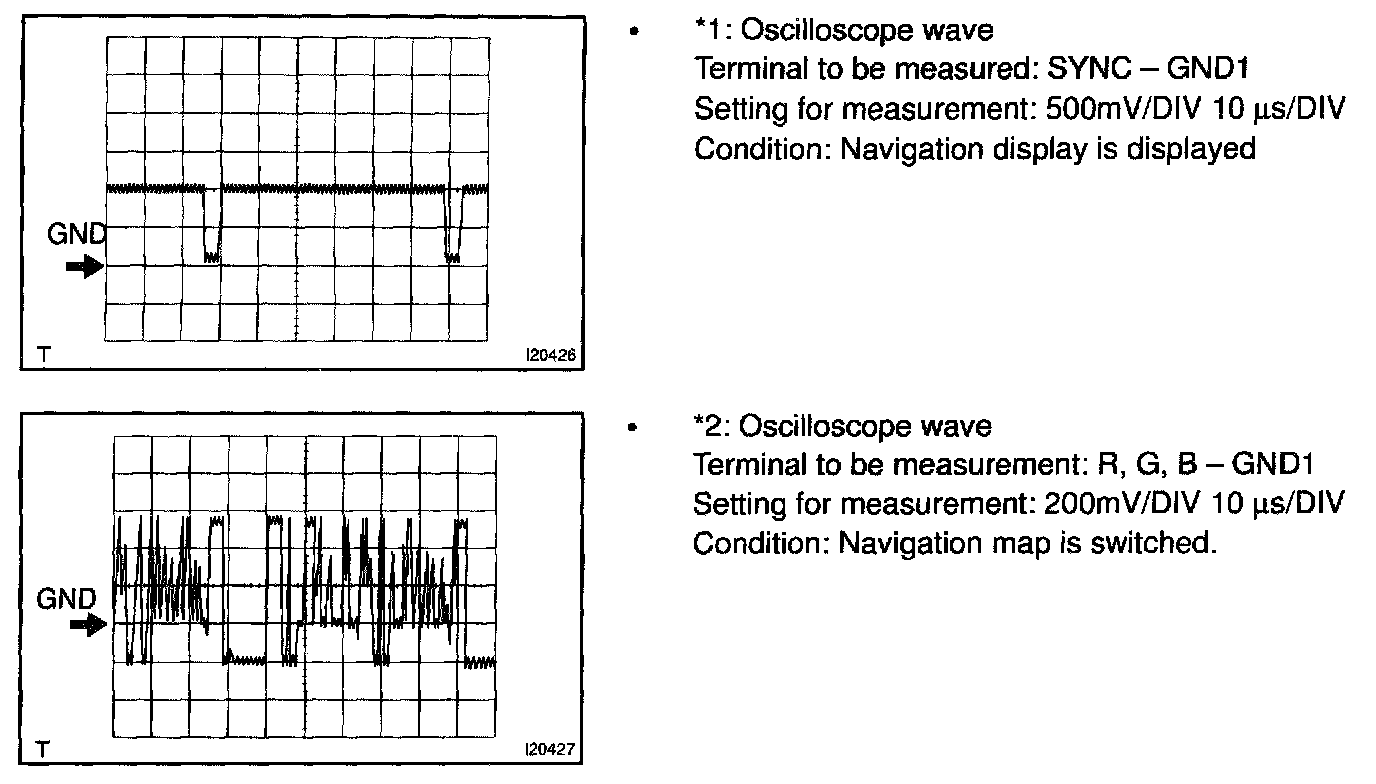

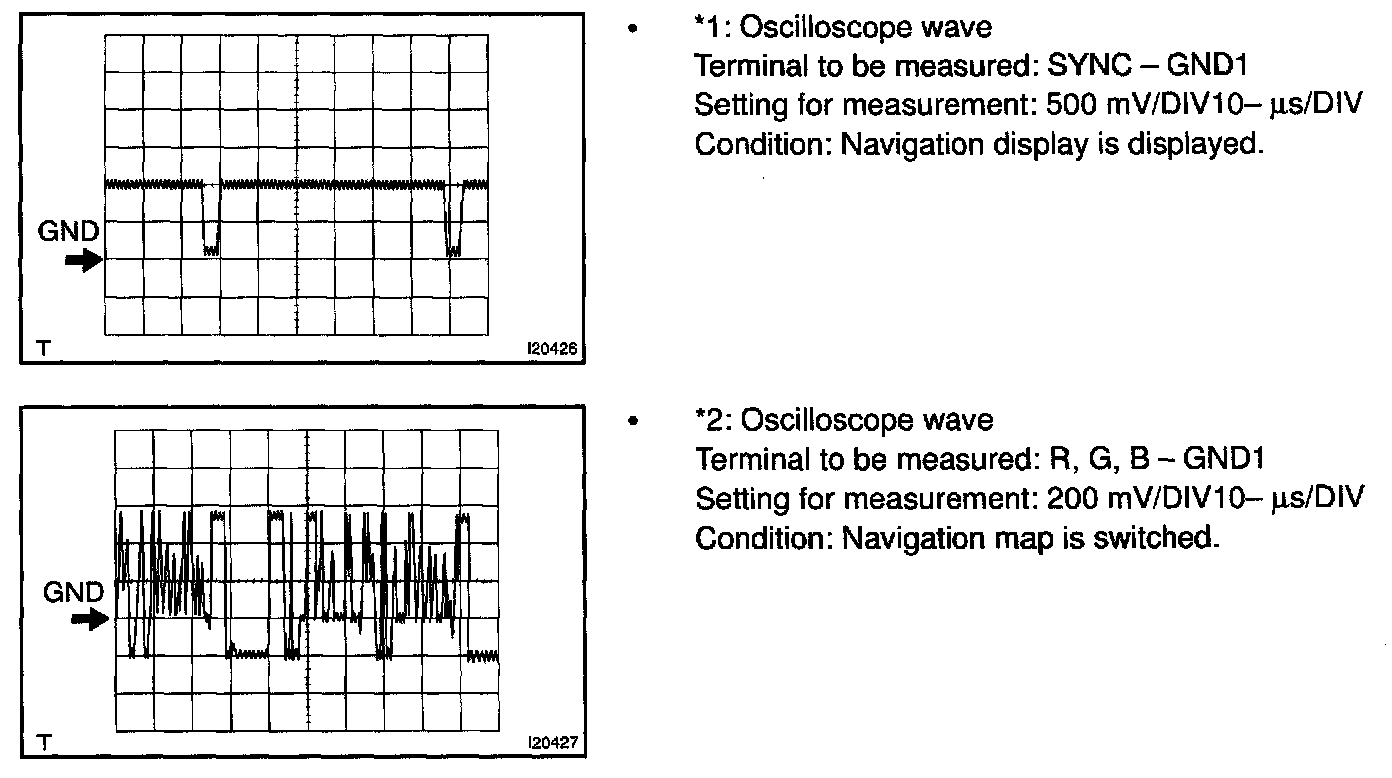

Oscilloscope Waveform:

2. NAVIGATION ECU

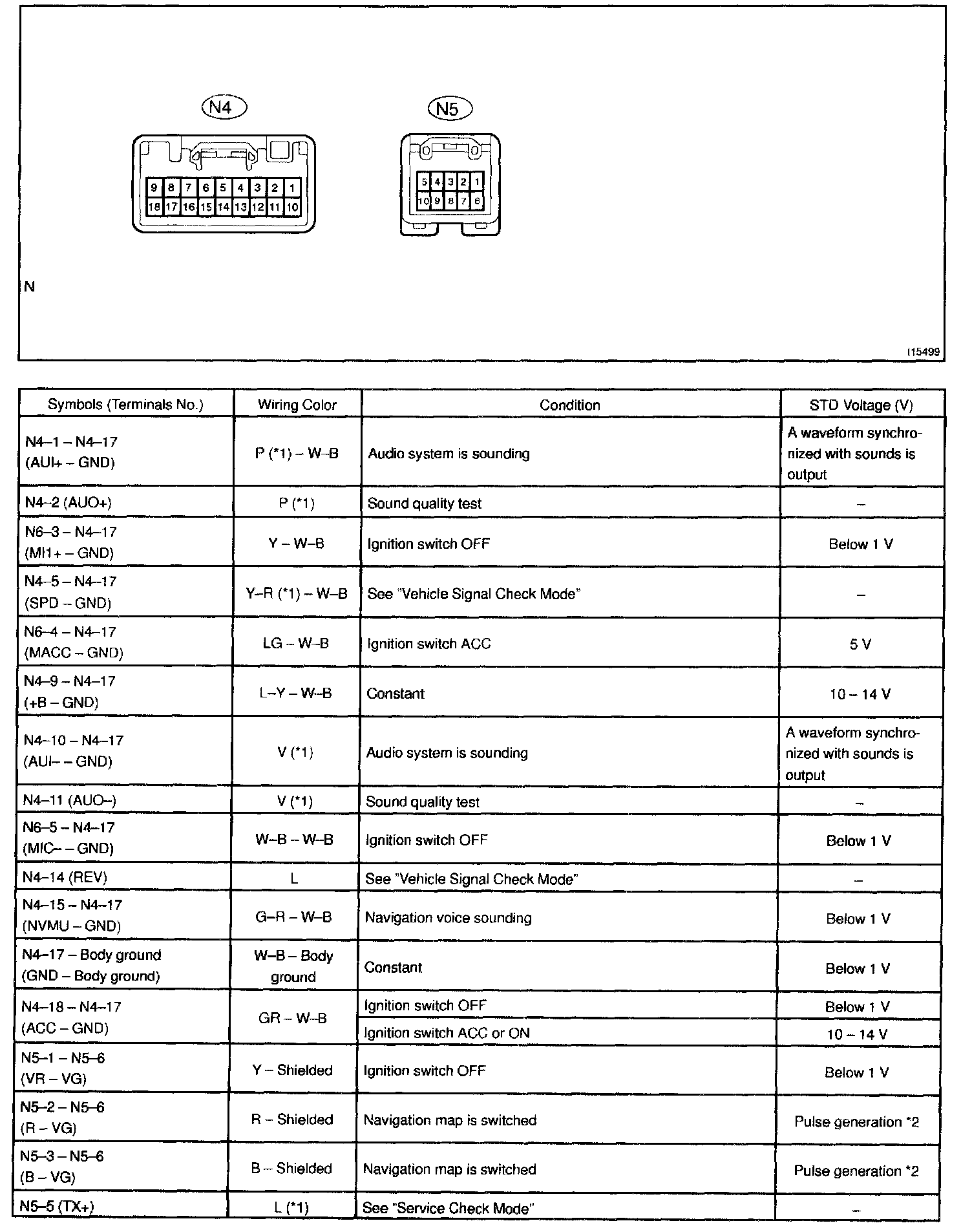

Terminals Of ECU/Pinouts Part 1:

Terminals Of ECU/Pinouts Part 2:

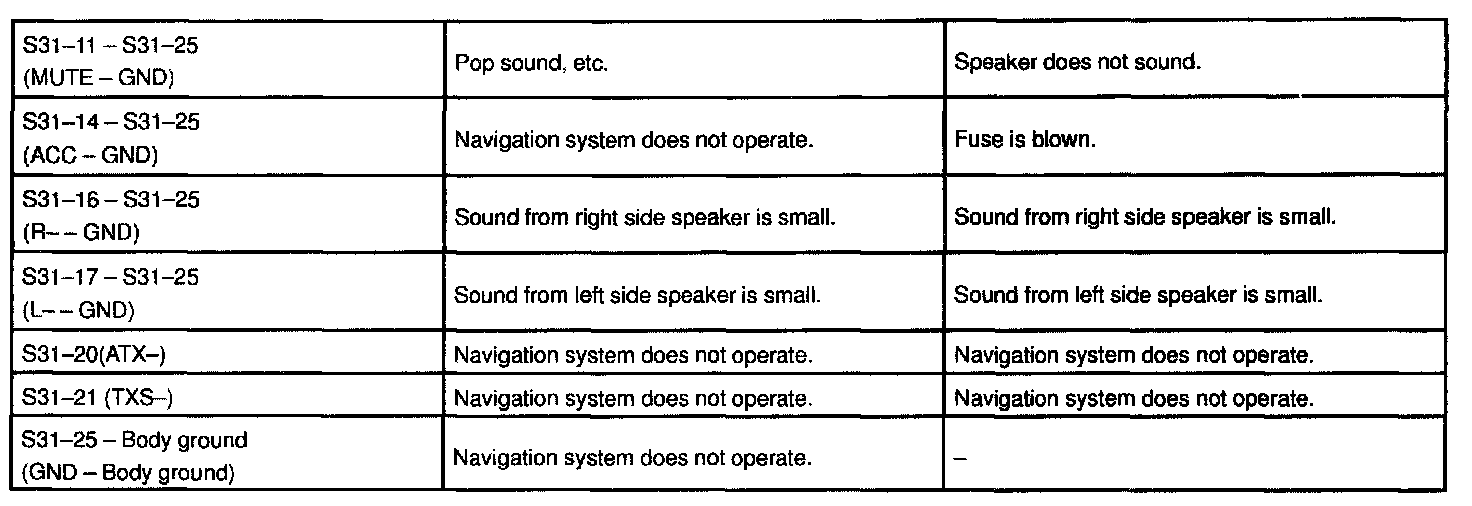

3. RADIO AND PLAYER

Terminals Of ECU/Pinouts Part 1:

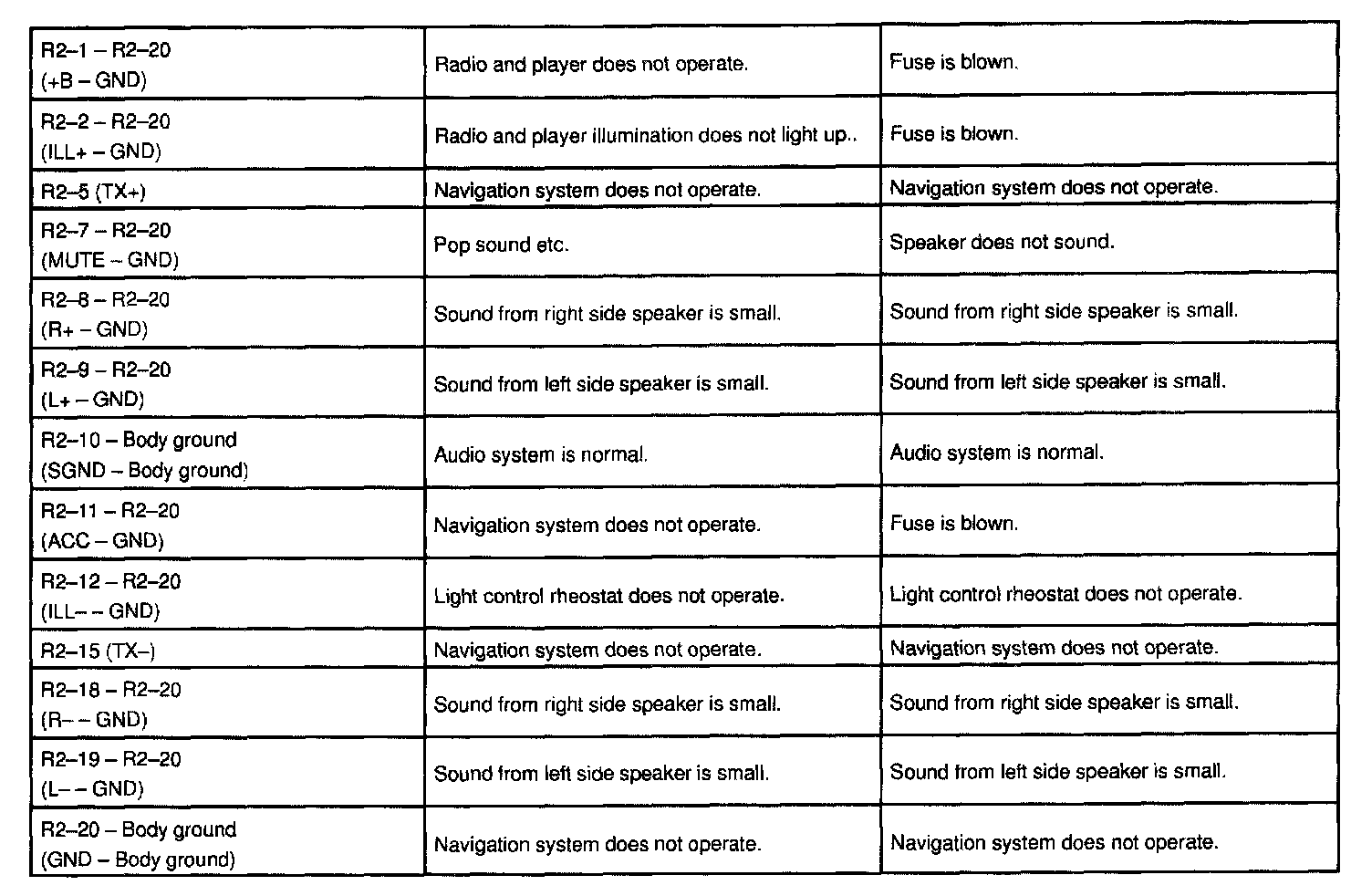

Terminals Of ECU/Pinouts Part 2:

Terminals Of ECU/Pinouts Part 3:

Terminals Of ECU/Pinouts Part 4:

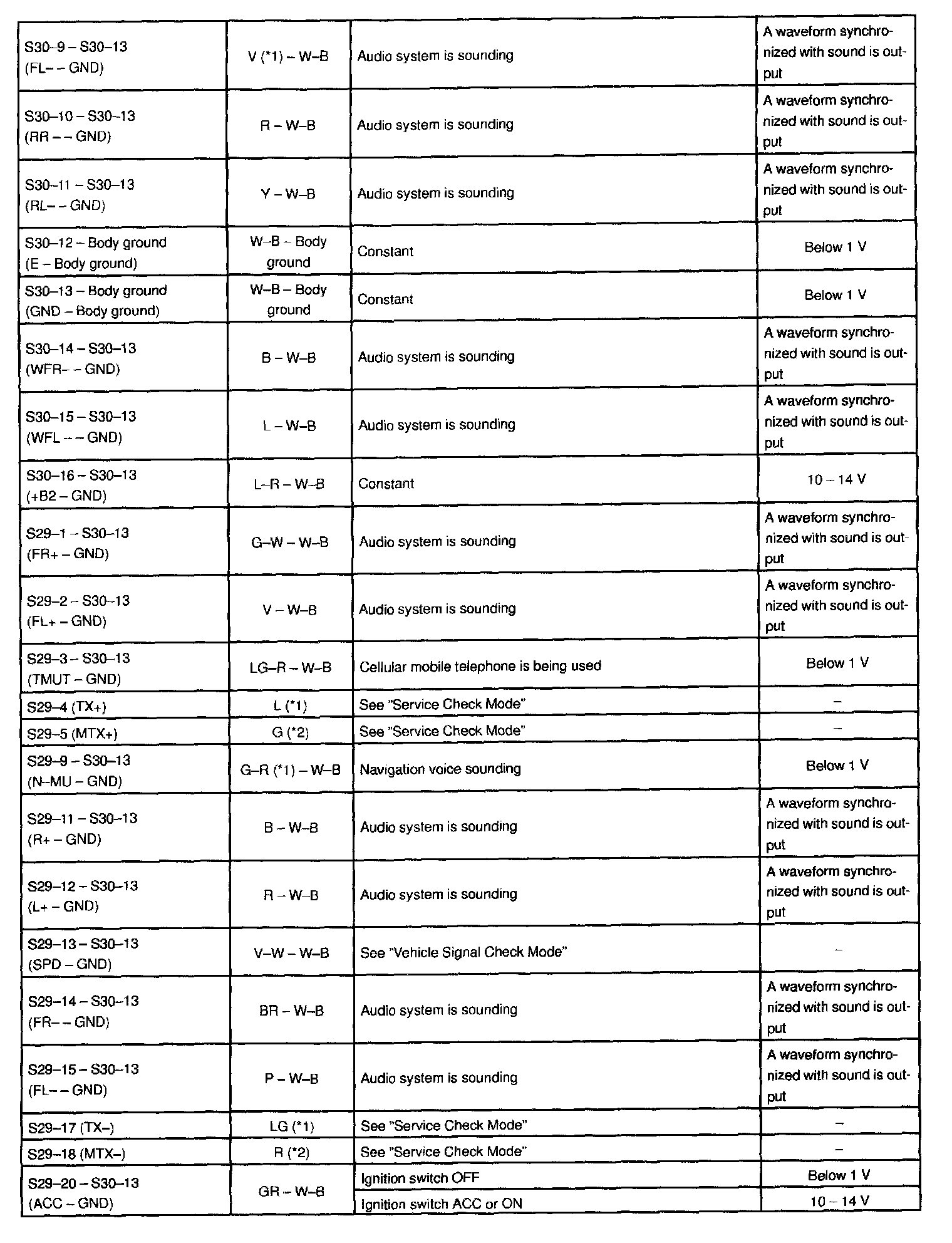

4. STEREO COMPONENT AMPLIFIER

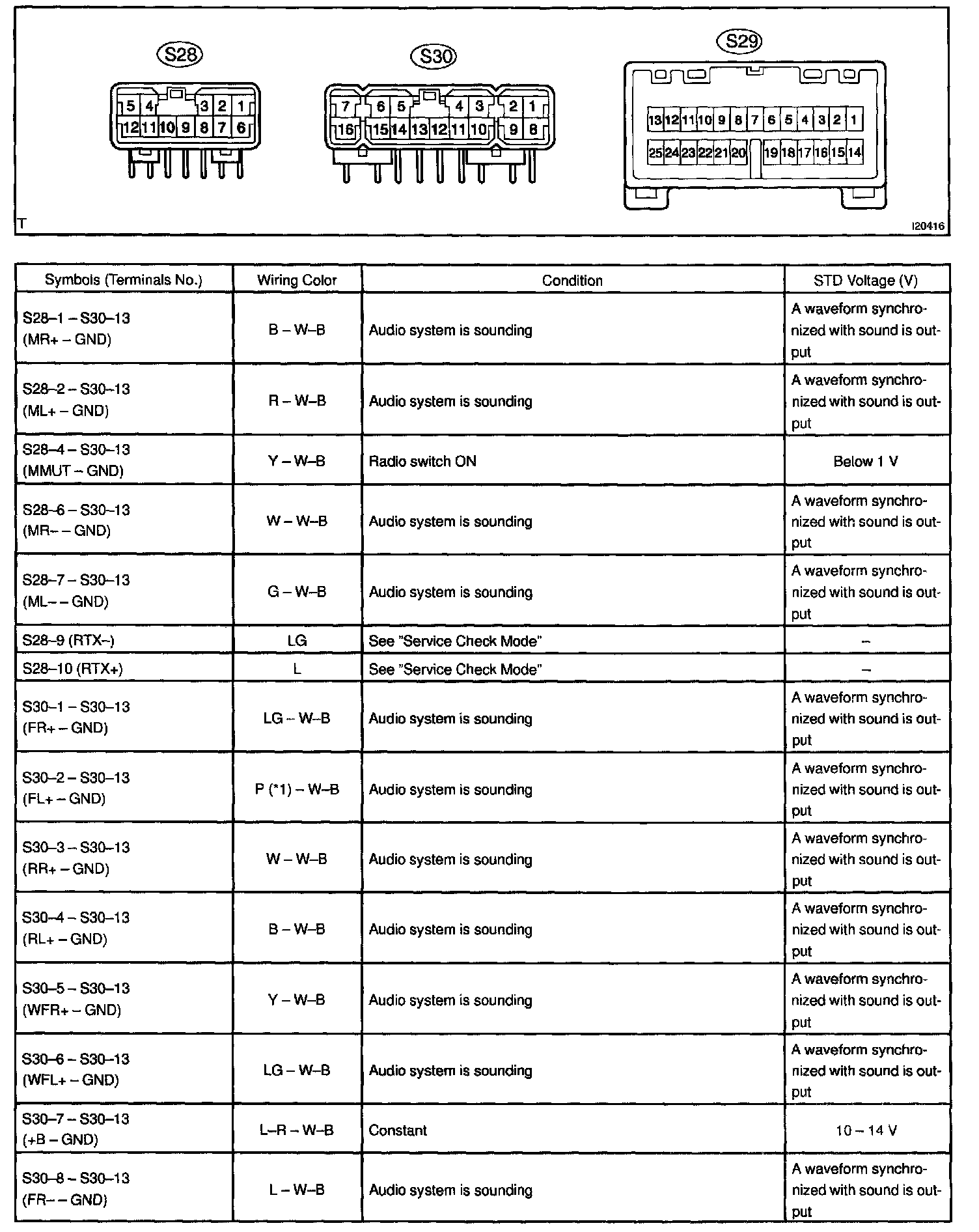

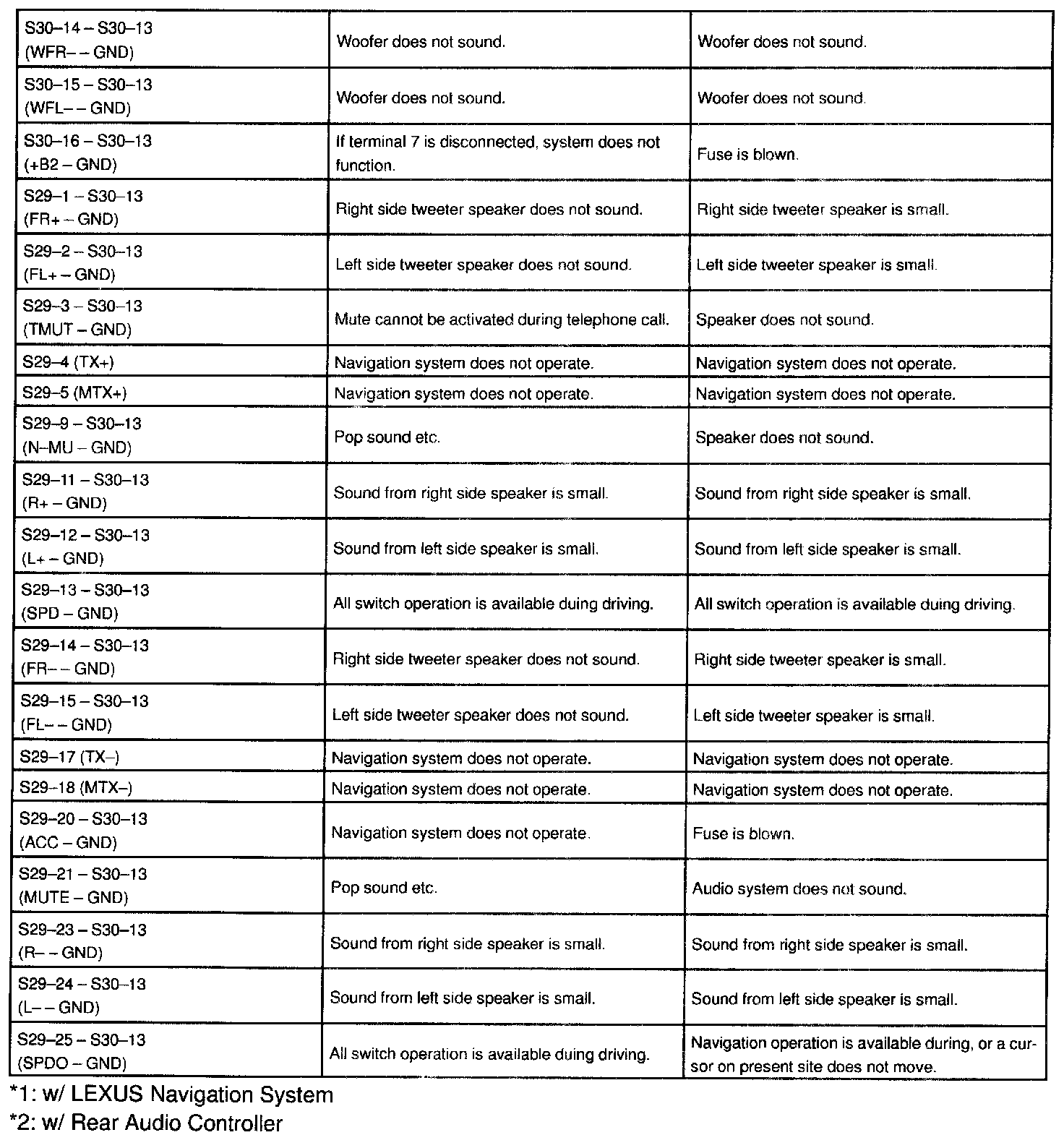

Terminals Of ECU/Pinouts Part 1:

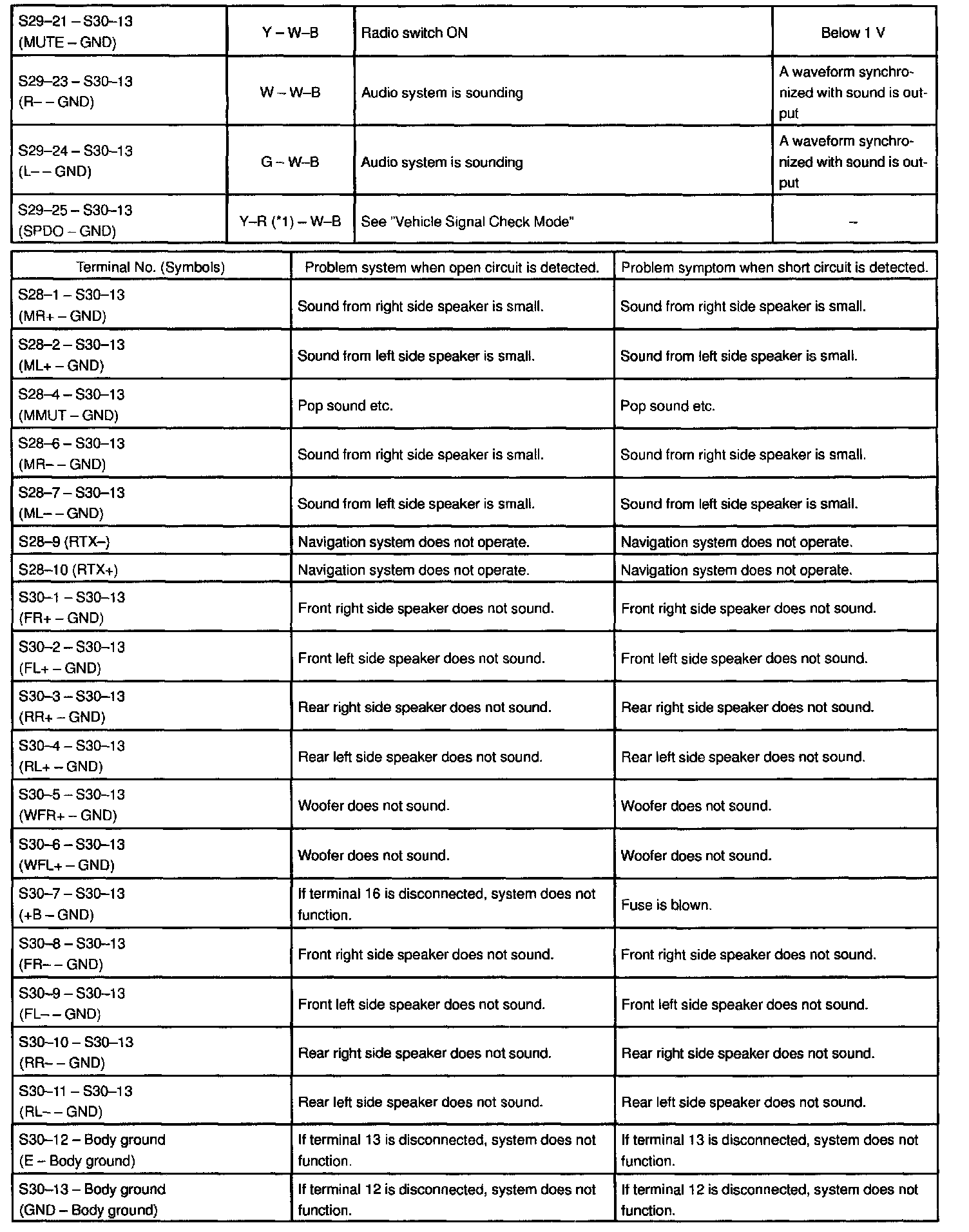

Terminals Of ECU/Pinouts Part 2:

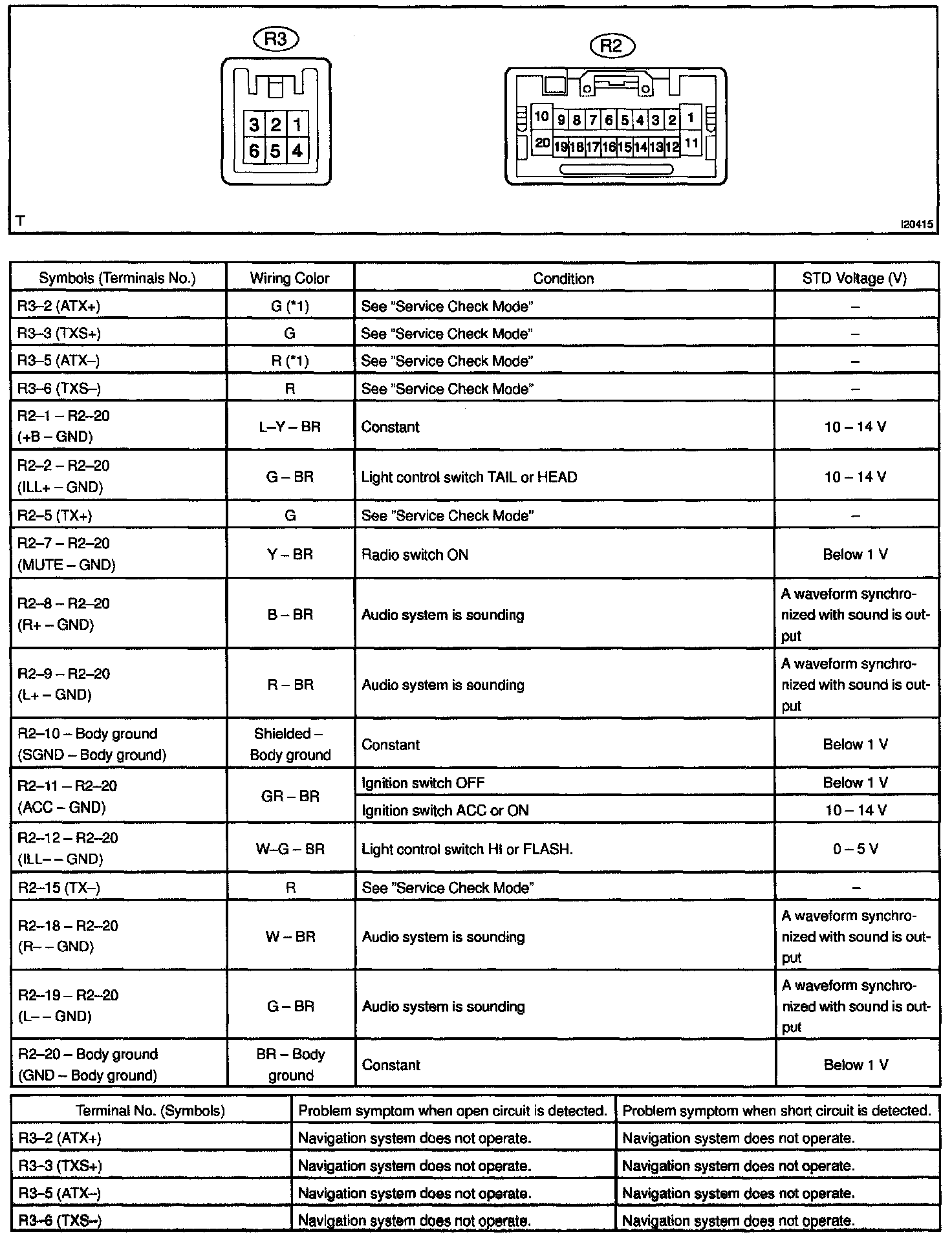

5. STEREO COMPONENT TUNER

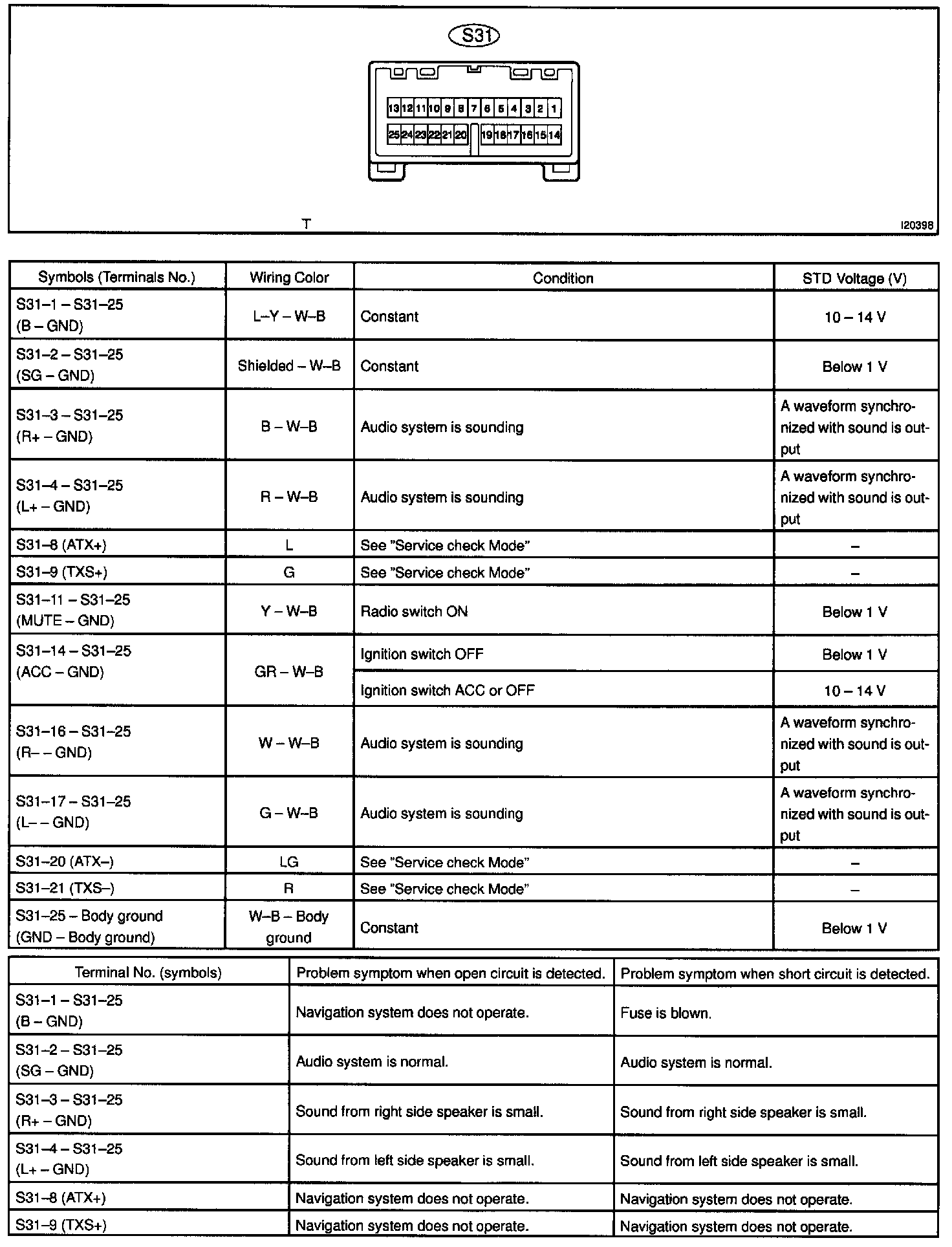

Terminals Of ECU/Pinouts:

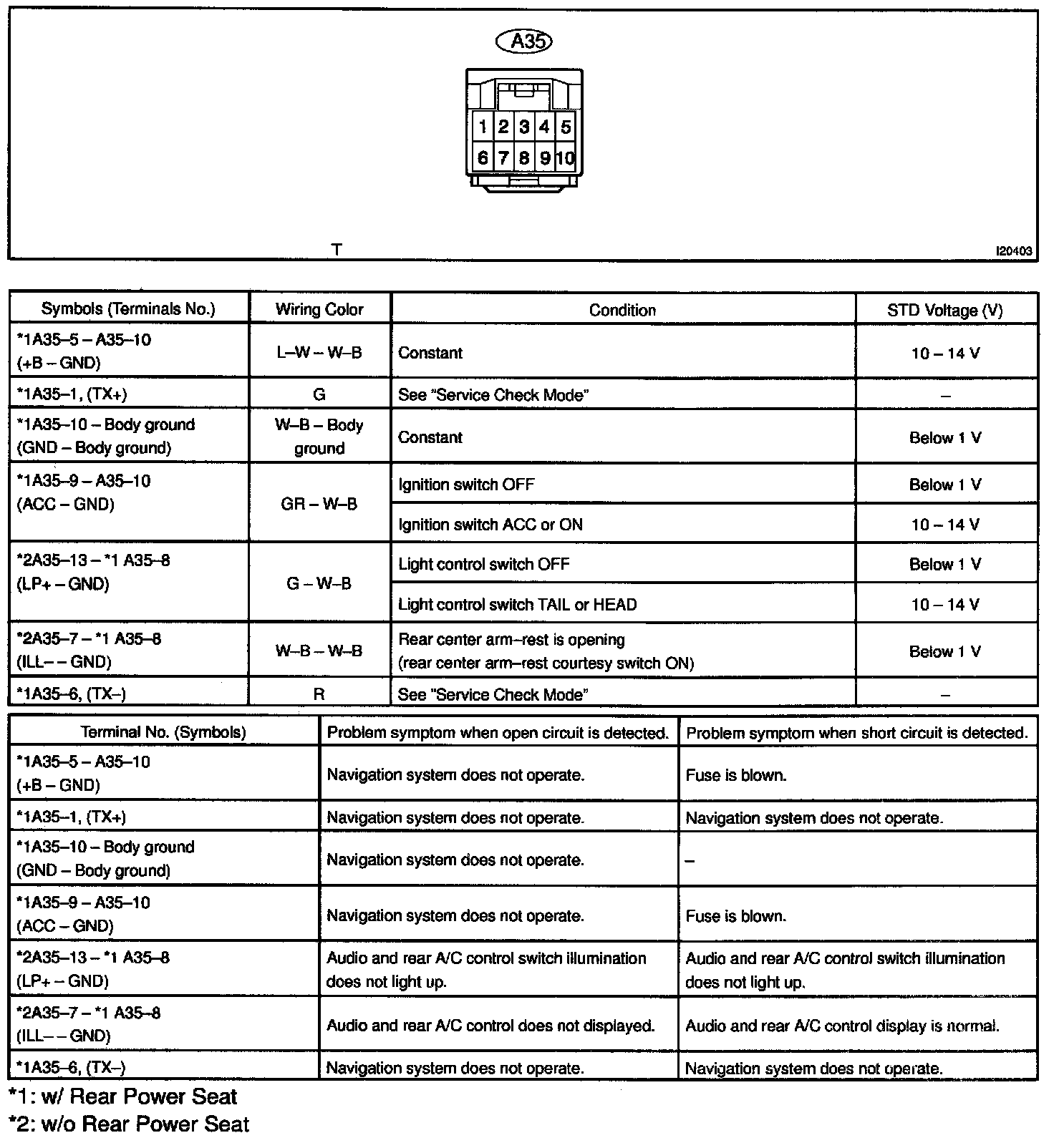

6. AUDIO AND REAR A/C CONTROL SWITCH

Terminals Of ECU/Pinouts Part 1:

Terminals Of ECU/Pinouts Part 2:

Terminals Of ECU/Pinouts Part 3:

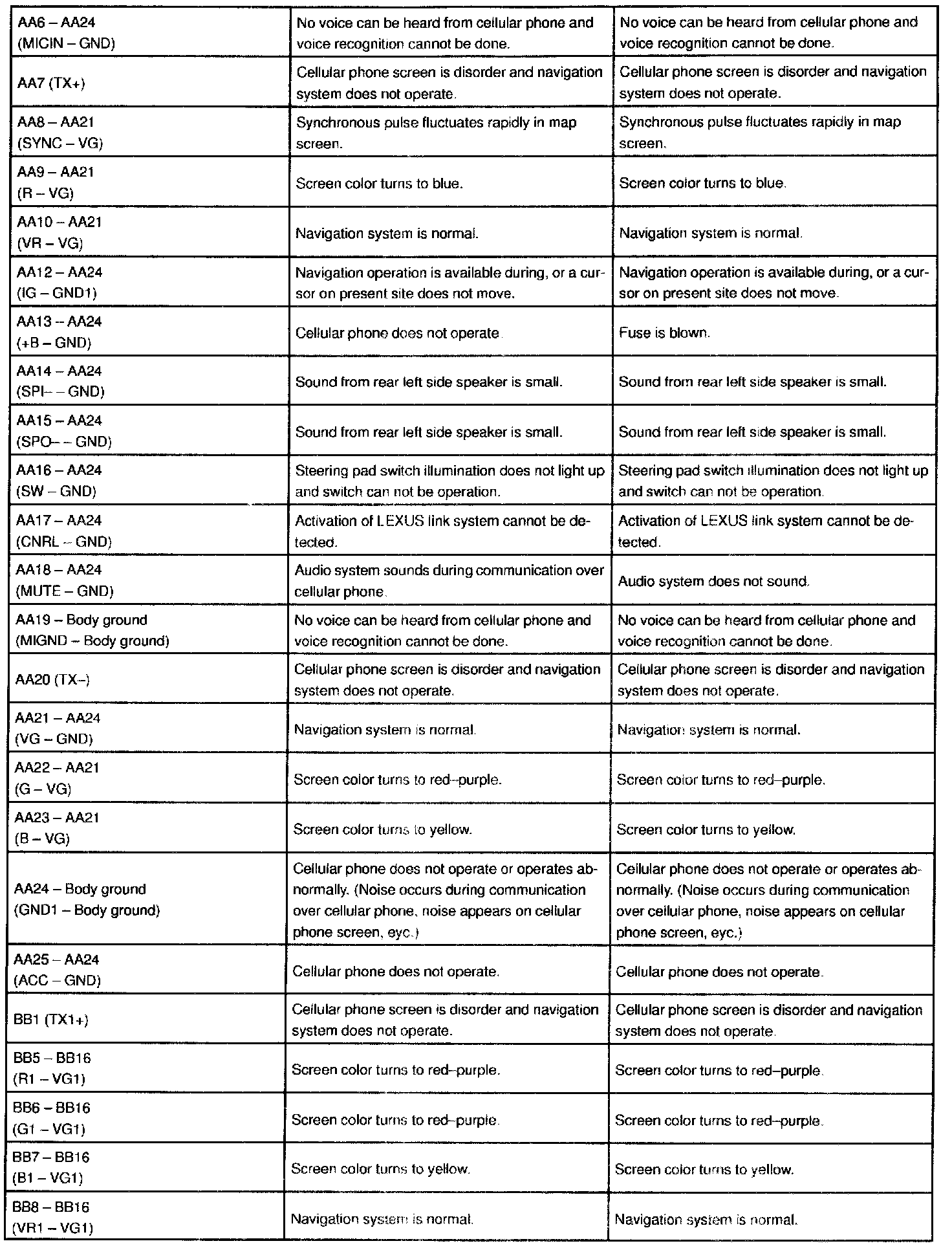

Terminals Of ECU/Pinouts Part 4:

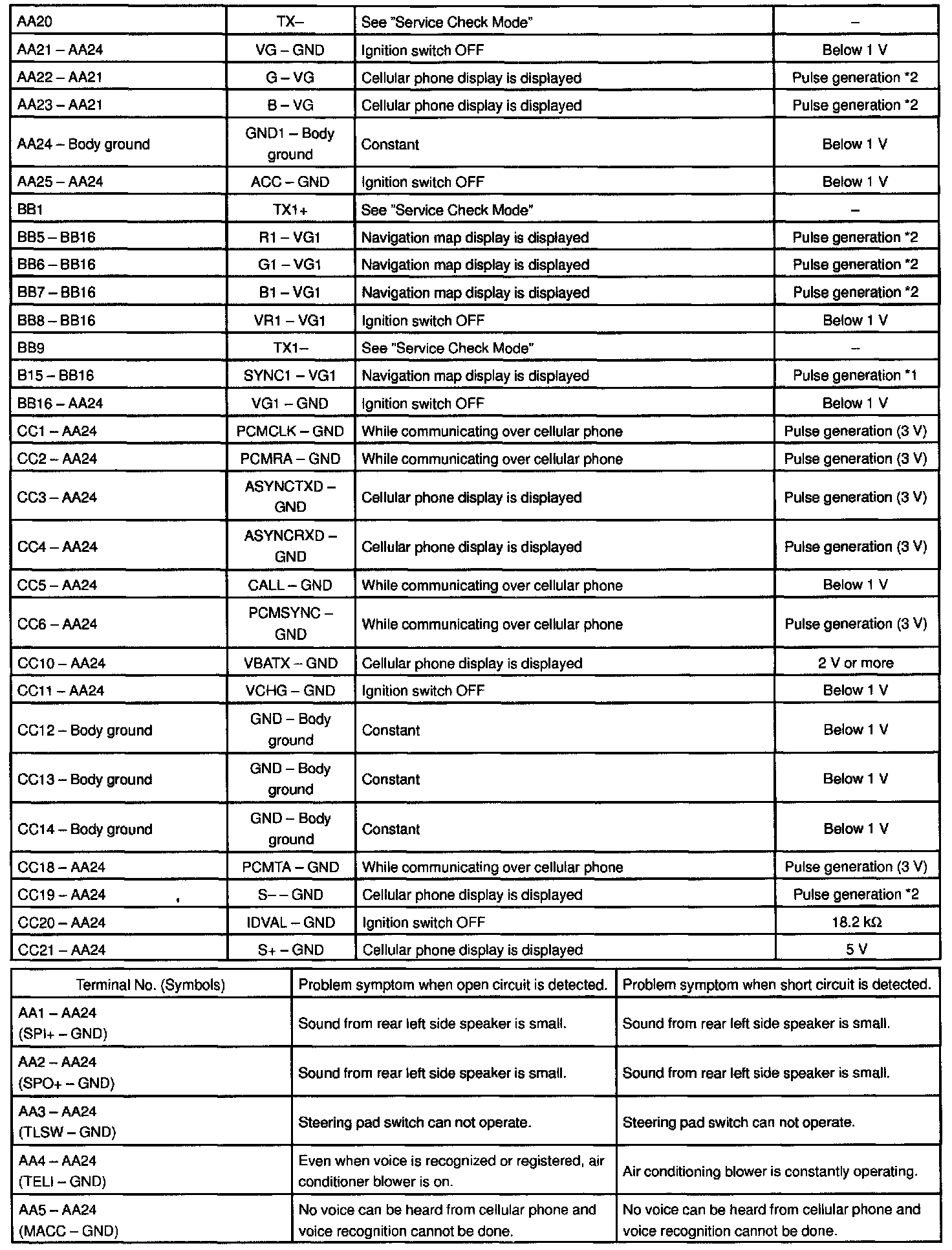

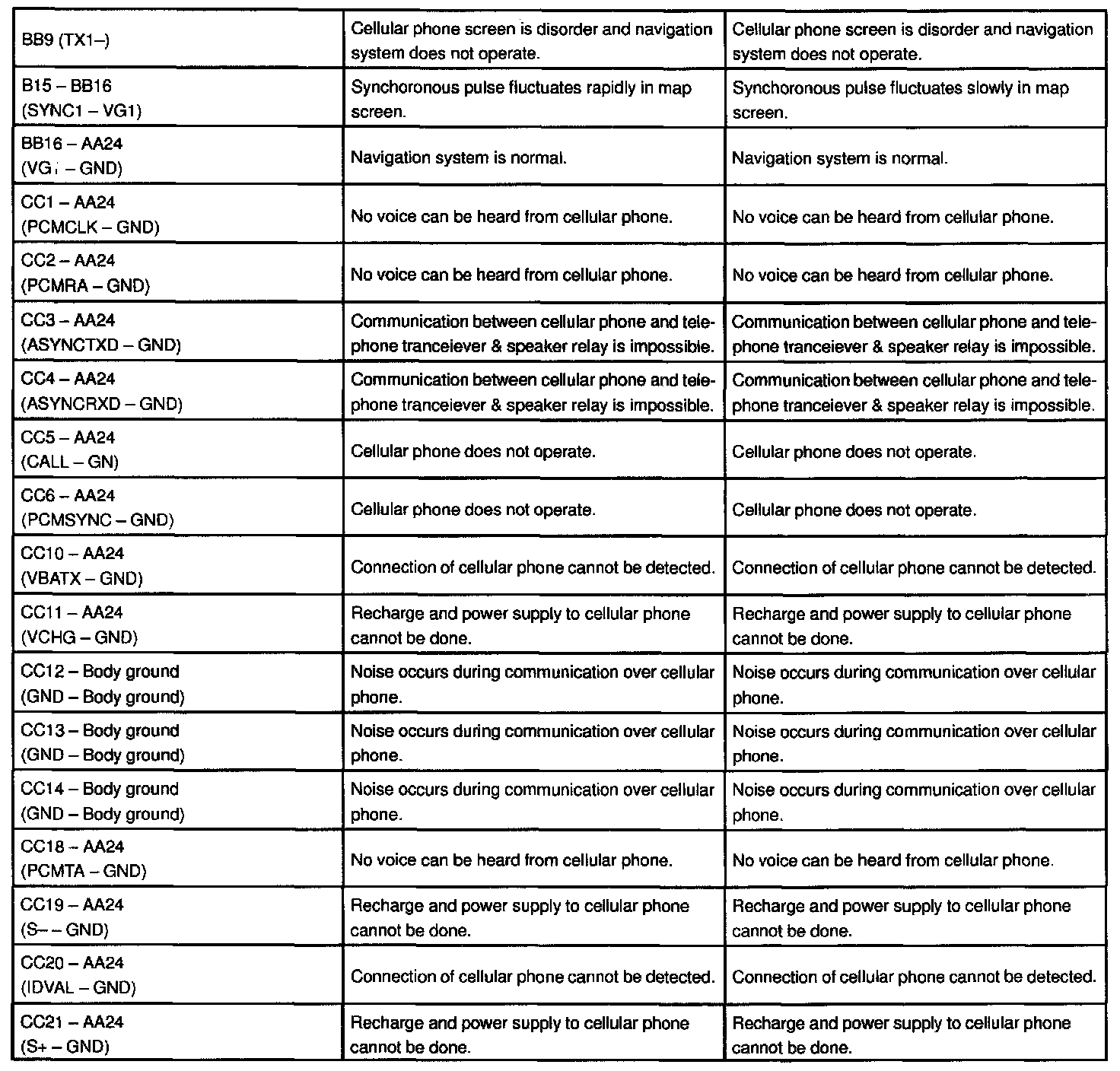

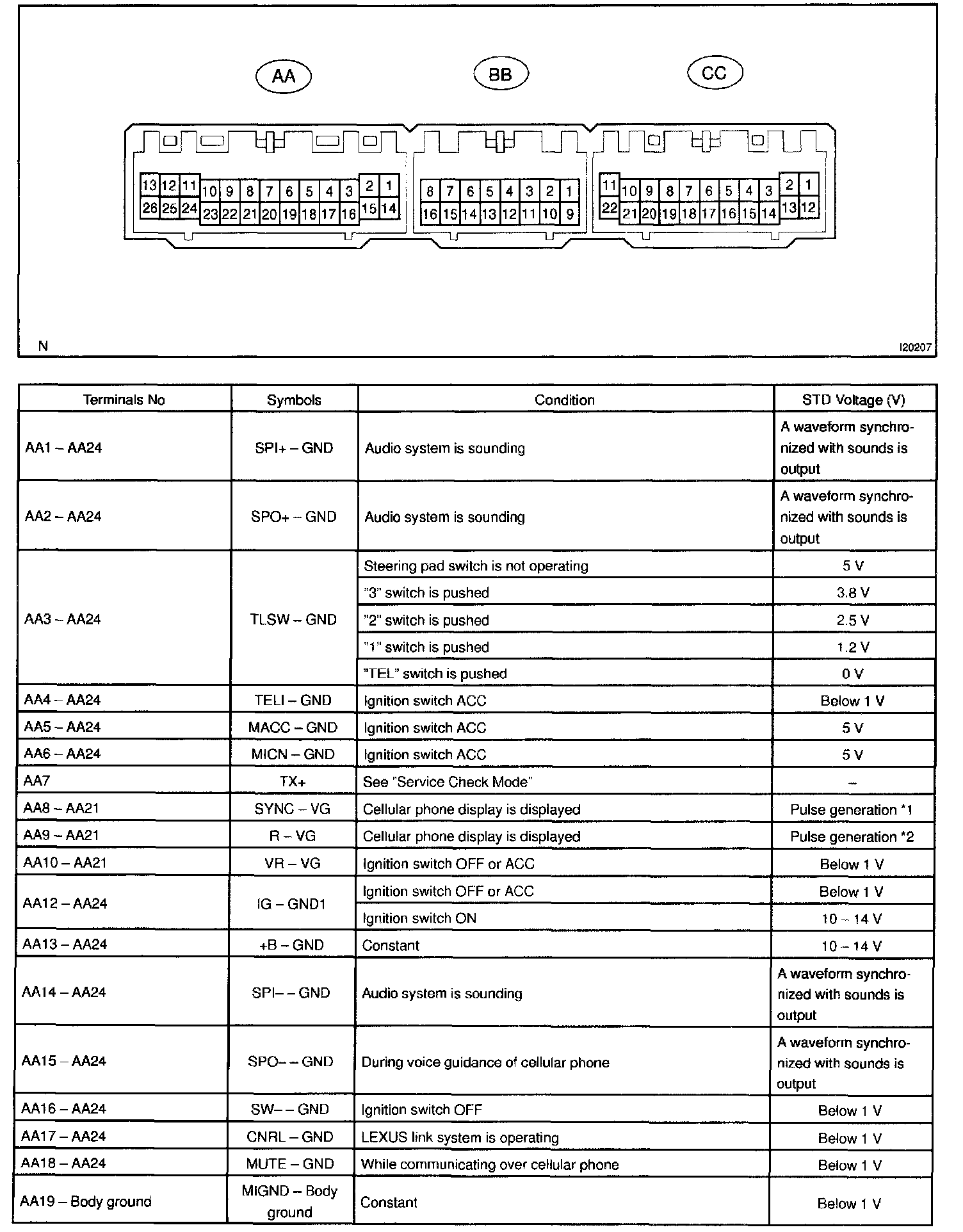

7. TELEPHONE TRANSCEIVER AND SPEAKER RELAY

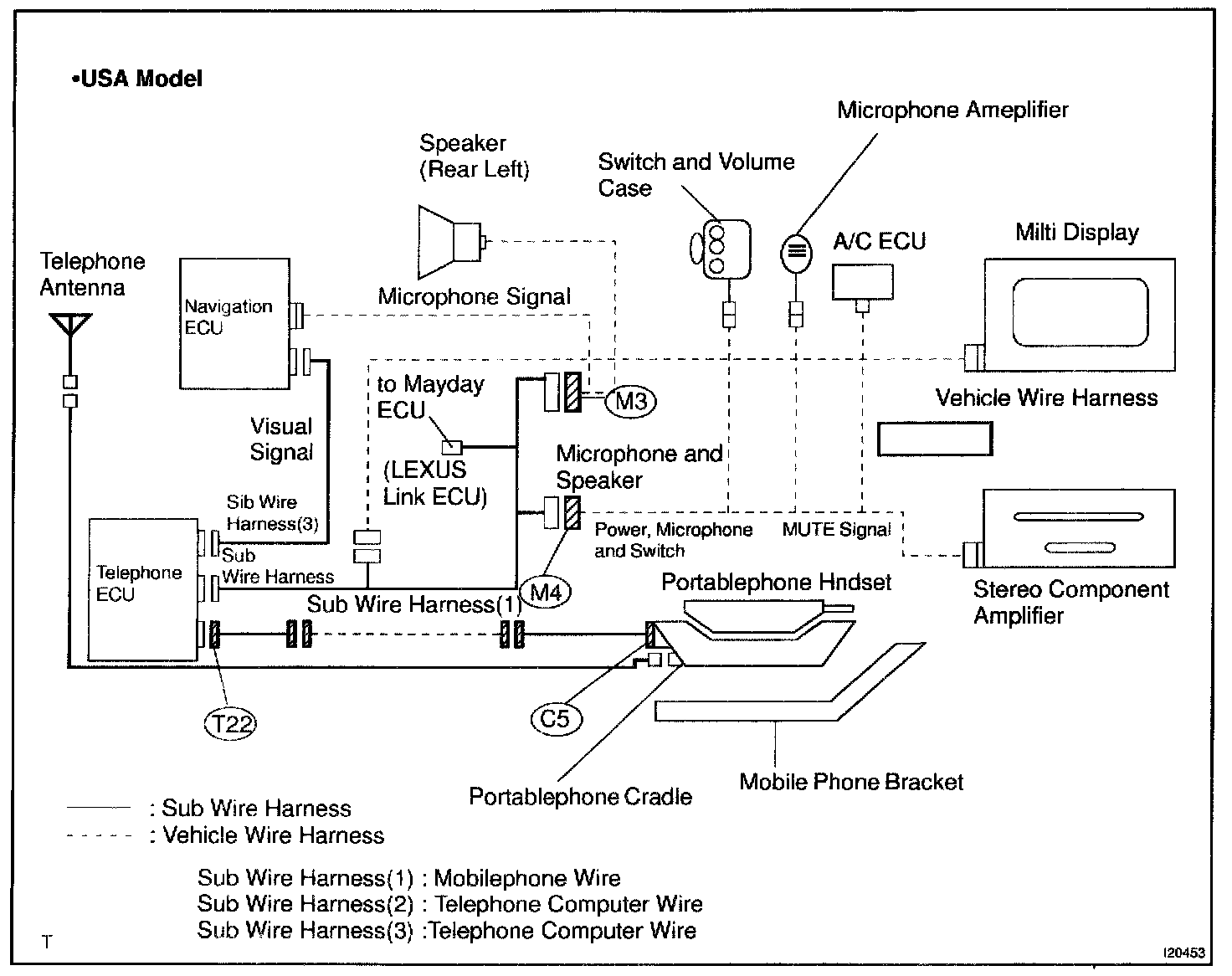

Terminals Of ECU/Pinouts - Cellular Mobile Telephone System Waring Diagram:

8. CELLULAR MOBILE TELEPHONE SYSTEM WIRING DIAGRAM
