Keyless Entry Receiver: Testing and Inspection

Connect Connected:
INSPECT WIRELESS DOOR LOCK CONTROL RECEIVER CIRCUIT

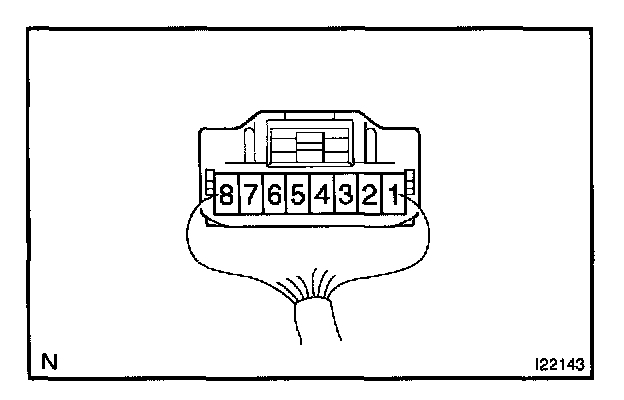

Connect the wire harness side connector to the receiver and inspect the wire harness side connector from the back shown.
