Power Seat Control Module: Locations

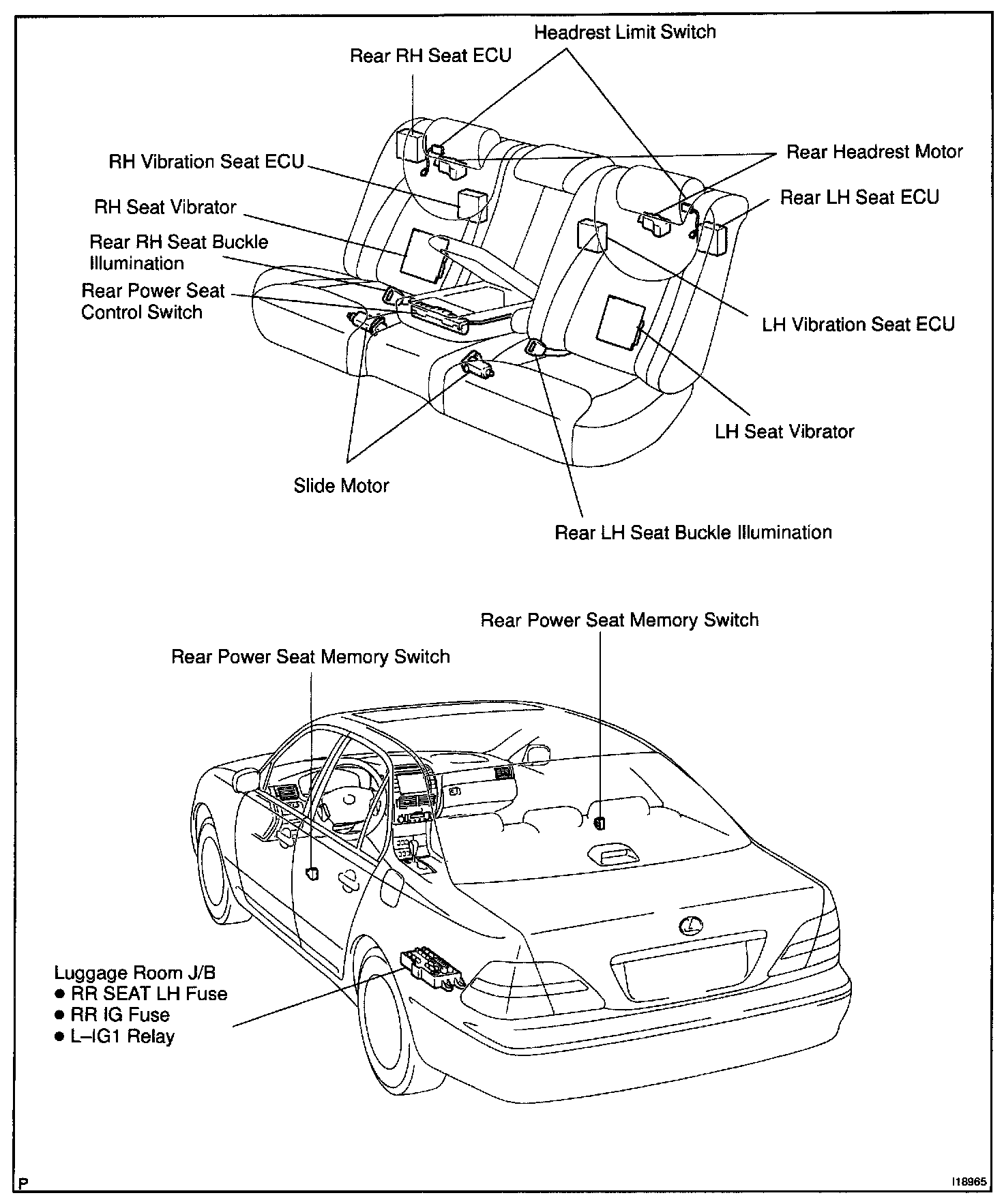

Rear Left Seat Control System:

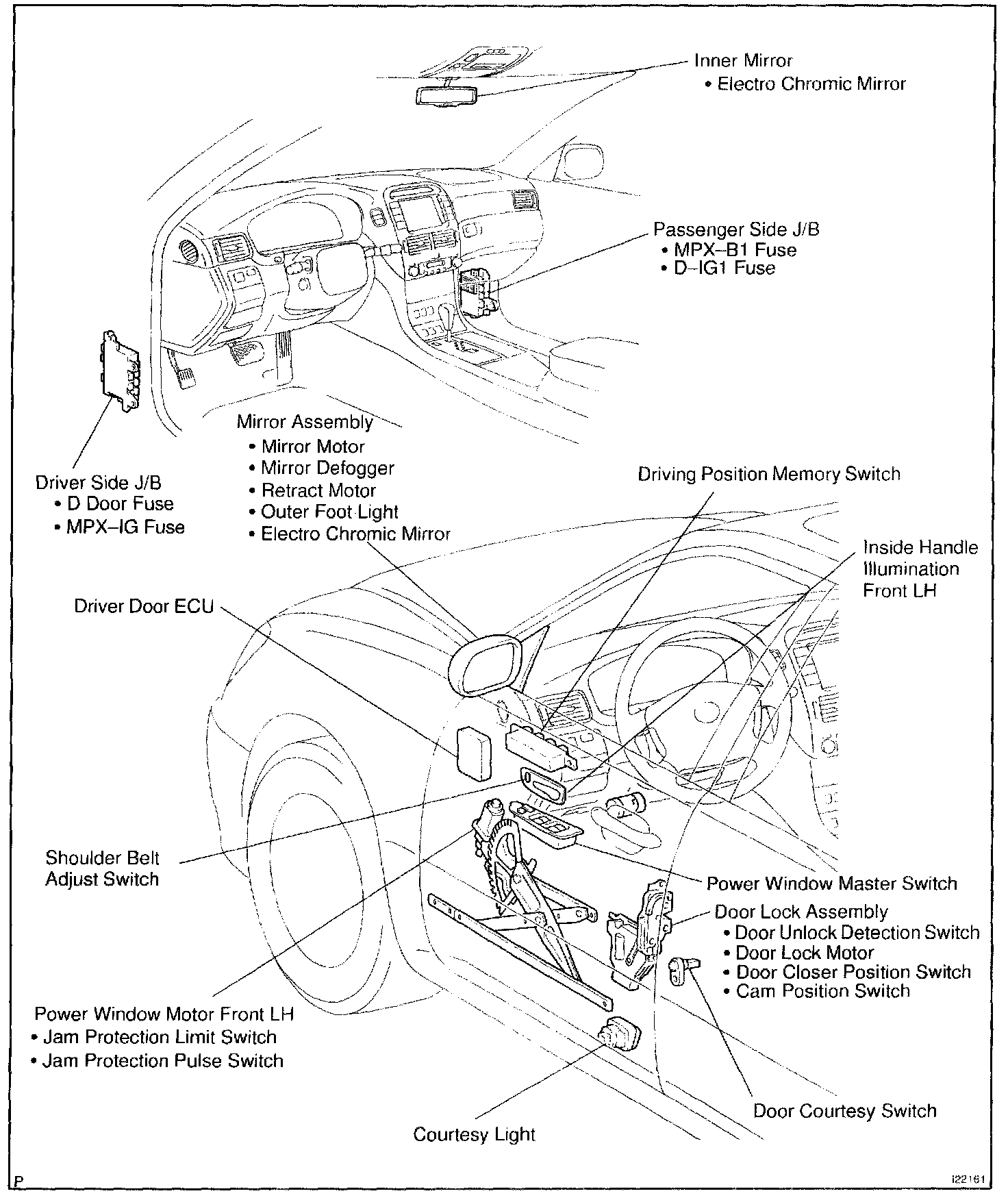

Driver Door Control System:

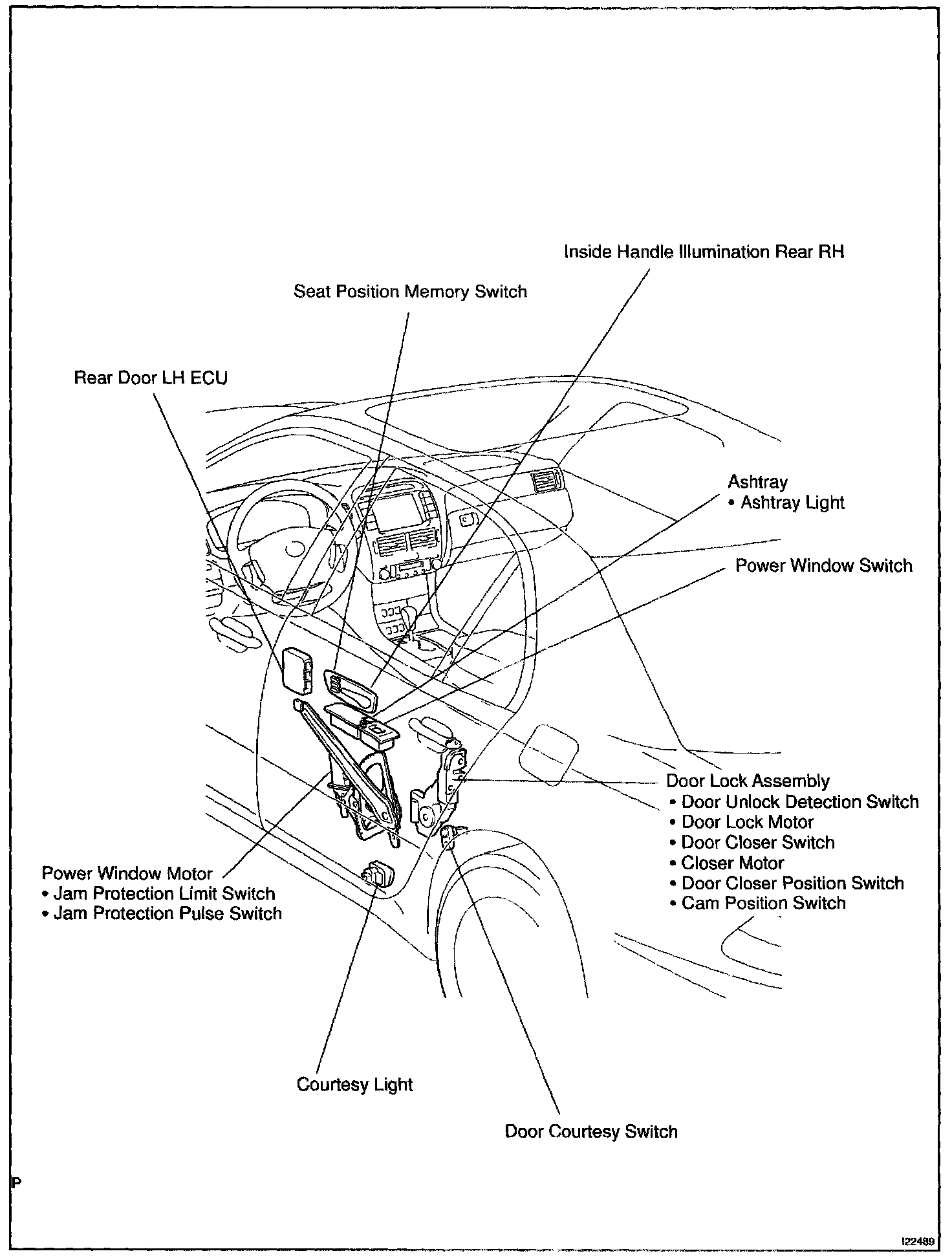

Rear Left Door Control System:

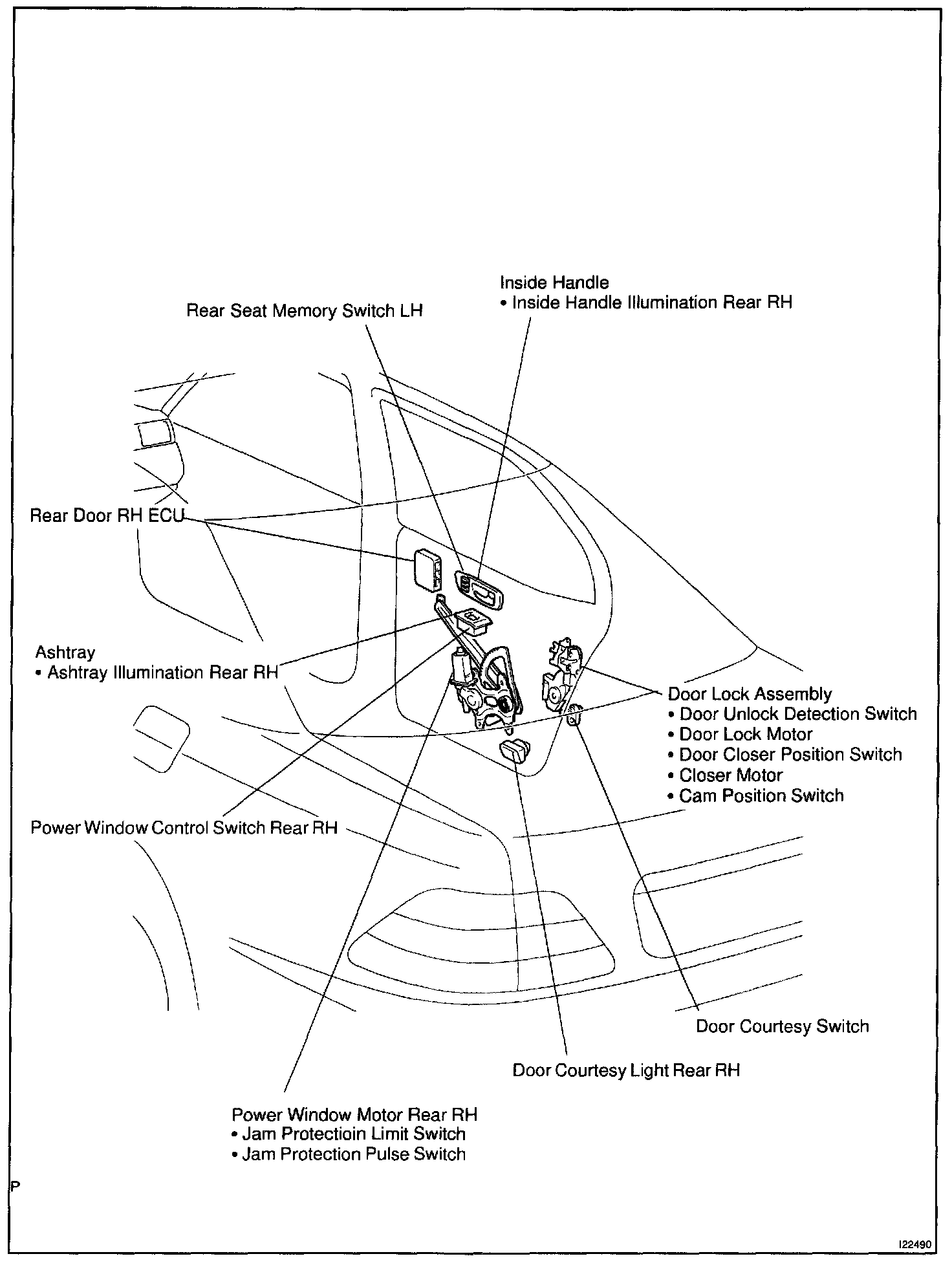

Rear Right Door Control System:



A/C - Fu:
