Shift Interlock, A/T
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:

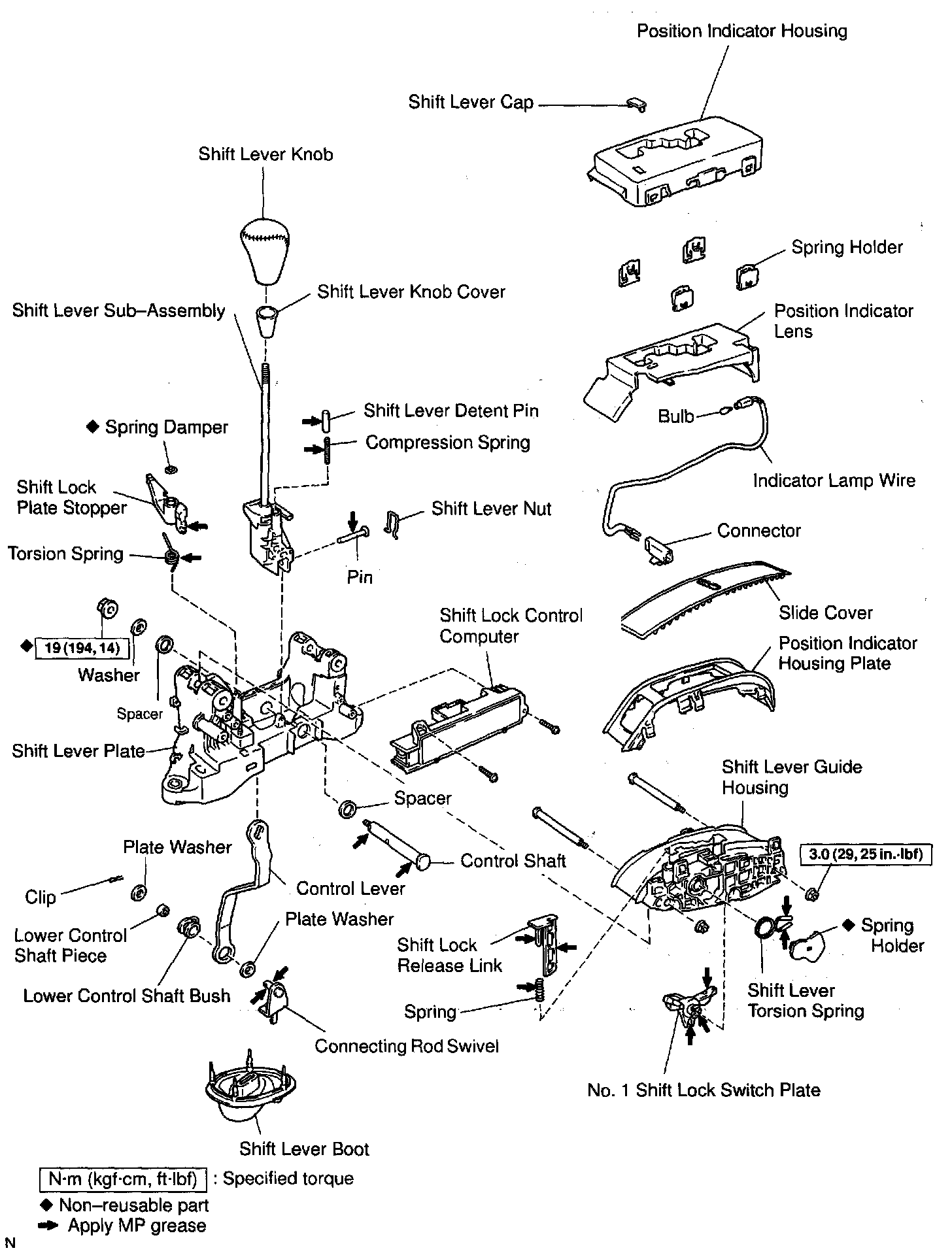

FLOOR SHIFT ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
