Without Multi Display

DISASSEMBLY

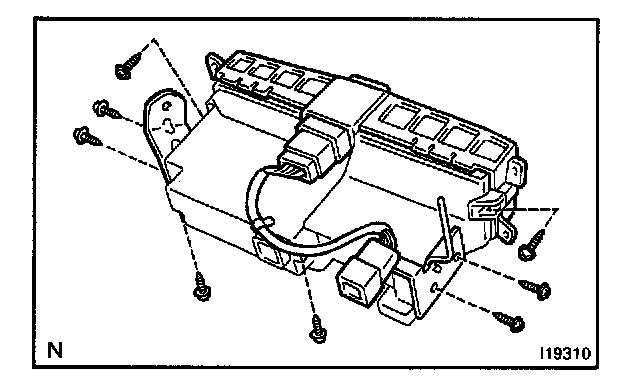

1. REMOVE A/C CONTROL PANEL ASSEMBLY
a. Remove the 4 screws and 2 brackets.
b. Disconnect the connector.
c. Remove the 4 screws.
d. Using a screwdriver, release the 4 claws and remove the A/C control panel assembly.

HINT: Tape the screwdriver tip before use.

e. Disconnect the connector from A/C panel.

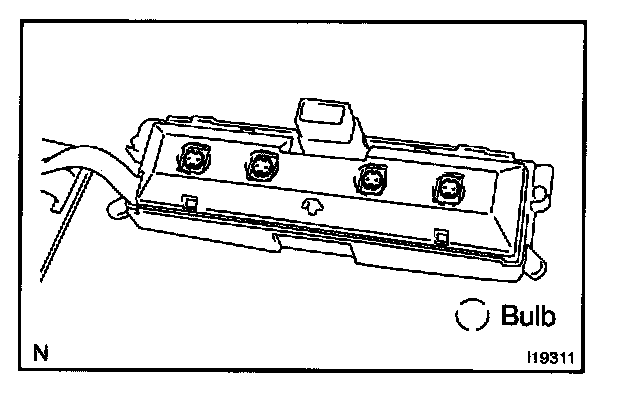

2. REMOVE LIGHTING VALVE
Using a screwdriver, turn the bulbs to the left and pull out the bulbs.

REASSEMBLY
Reassembly is in the reverse order of disassembly
