With Multi Display

Air Conditioning Control Assembly (Multi Display):

REMOVAL

1. REMOVE LOWER CENTER FINISH PANEL

2. REMOVE LOWER CENTER CLUSTER FINISH PANEL

3. REMOVE RADIO ASSEMBLY




4. REMOVE MULTI DISPLAY ASSEMBLY

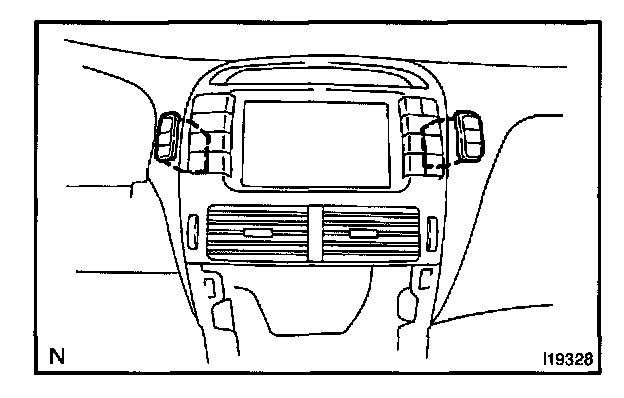

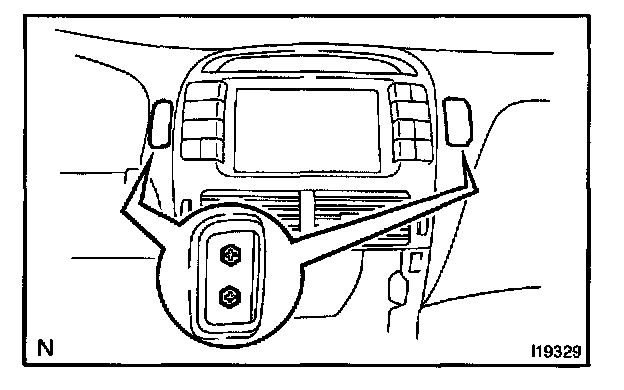

a. Using a screwdriver release the 4 claws and remove the temperature control switches.
b. Disconnect the connectors.

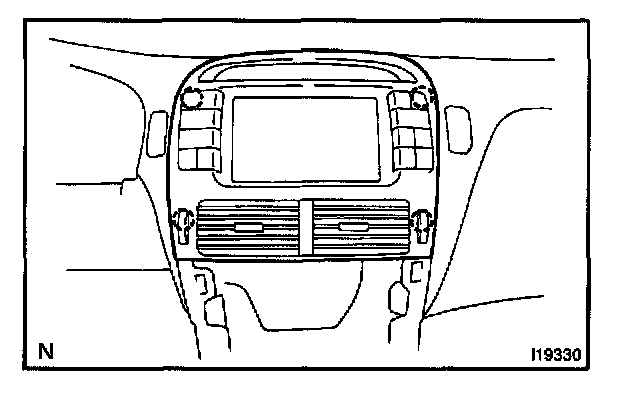

c. Remove the 4 bolts.




d. Release the 4 claws and remove the multi display assembly.

INSTALLATION
Installation is in the reverse order of removal
