Without Multi Display

Air Conditioning Control Assembly:

REMOVAL

1. REMOVE LOWER CENTER FINISH PANEL

2. REMOVE LOWER CENTER CLUSTER FINISH PANEL

3. REMOVE RADIO ASSEMBLY




4. REMOVE CENTER CLUSTER

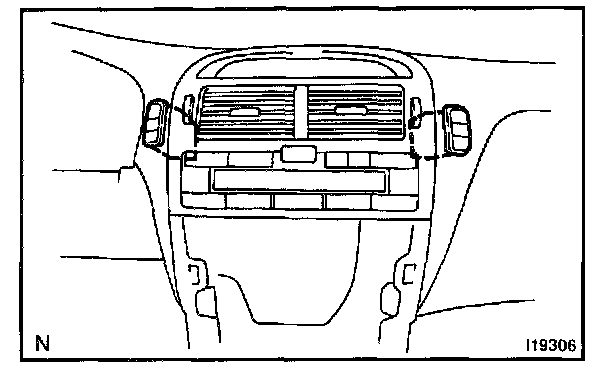

a. Using a screwdriver, release the 4 claws and remove the temperature control switches.
b. Disconnect the connectors.

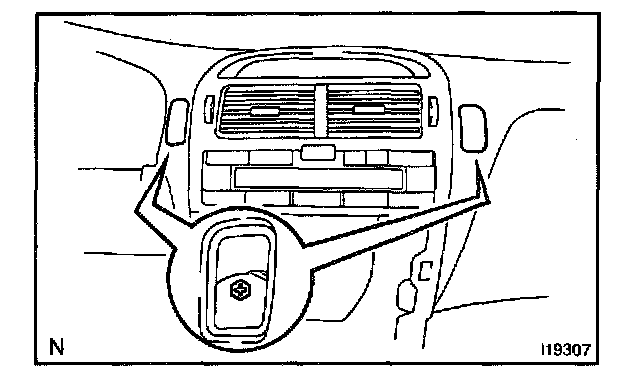

c. Remove the 2 bolts.

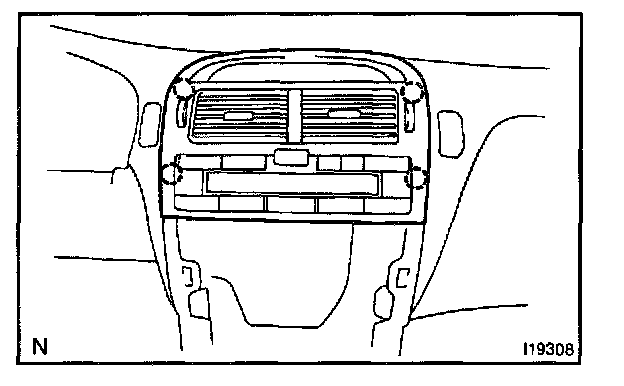

d. Release the 4 claws and remove the center cluster.




5. REMOVE A/C CONTROL ASSEMBLY

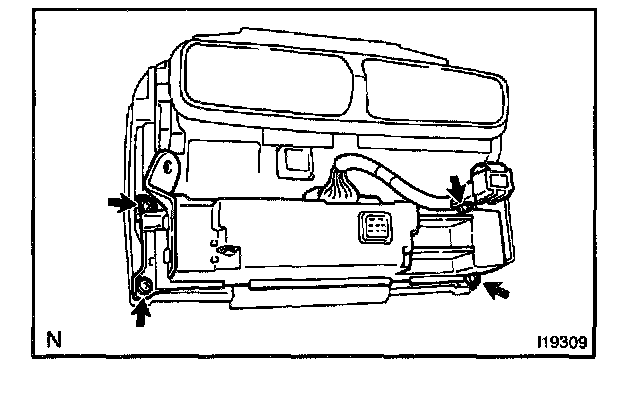

Remove the 4 screws and A/C control panel assembly.

INSTALLATION
Installation is in the reverse order of removal
