General

Drive Plate
1st Torque Pass 49 Nm (500 kgf-cm, 36 ft. lb)
2nd Torque Pass Turn an extra 90 degrees





Transmission Pan
Oil pan x Transmission case 7.4 Nm (75 kgf-cm, 65 inch lbs.)

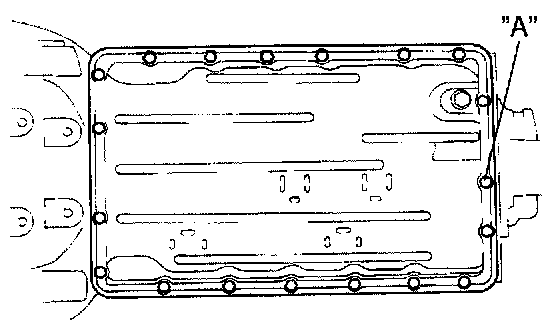

Note: Replace the only "A" bolt in image with a new one
