Instrument Panel: Components

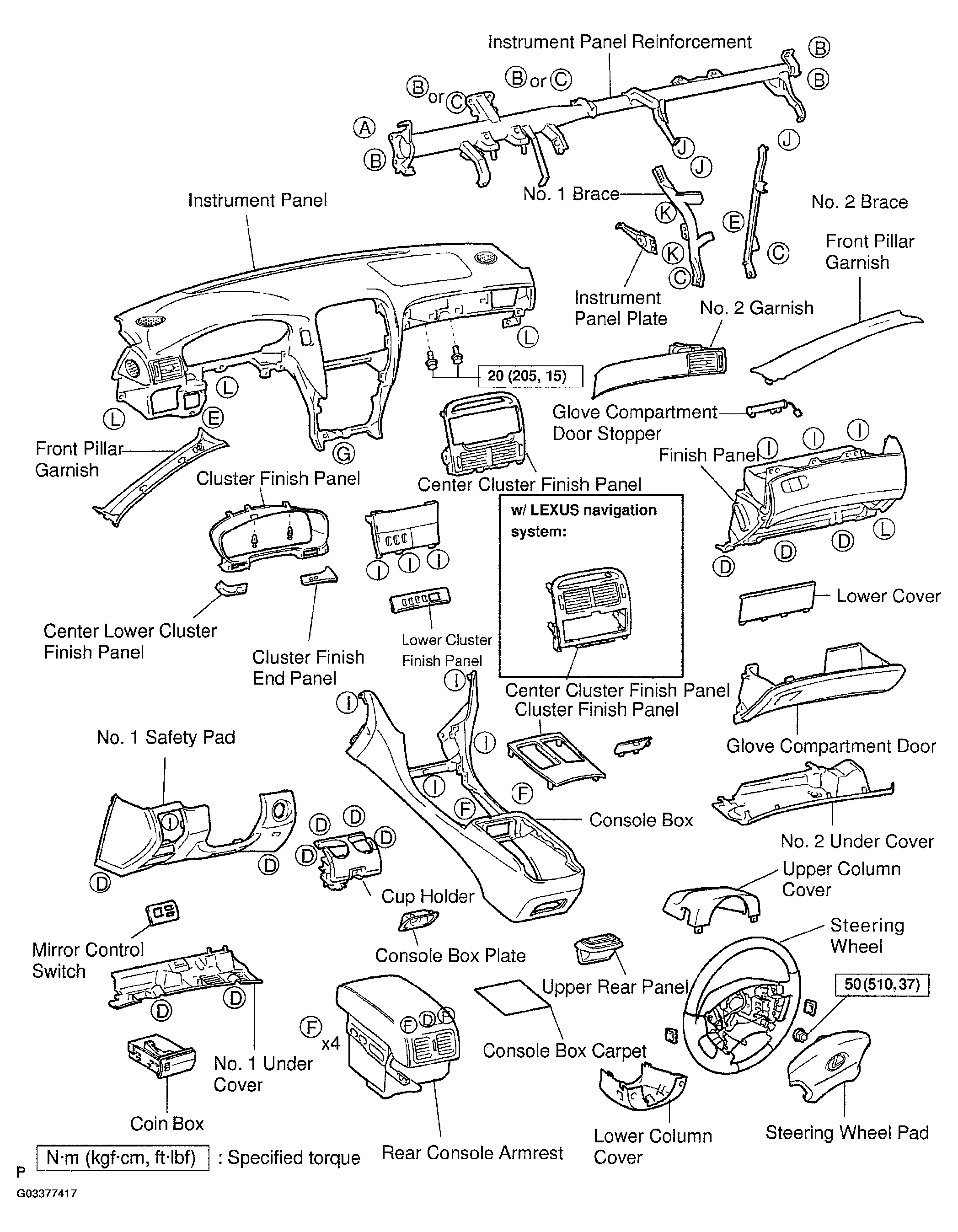

Fig 1: Identifying Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

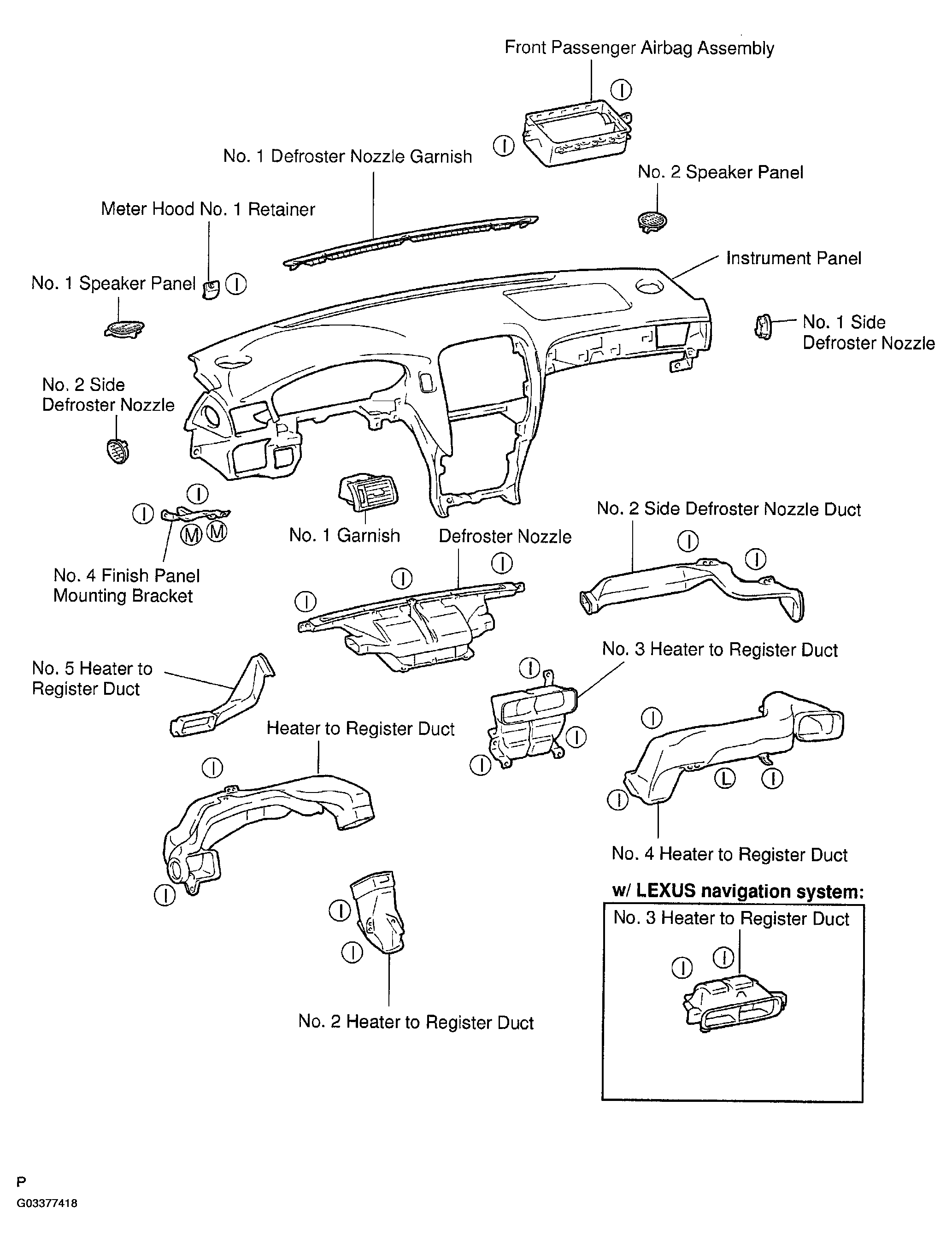

Fig 2: Identifying Instrument Panel Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and sizes are indicated in the graphic below. The codes ("A"-"M") correspond to those indicated in the previous graphics.

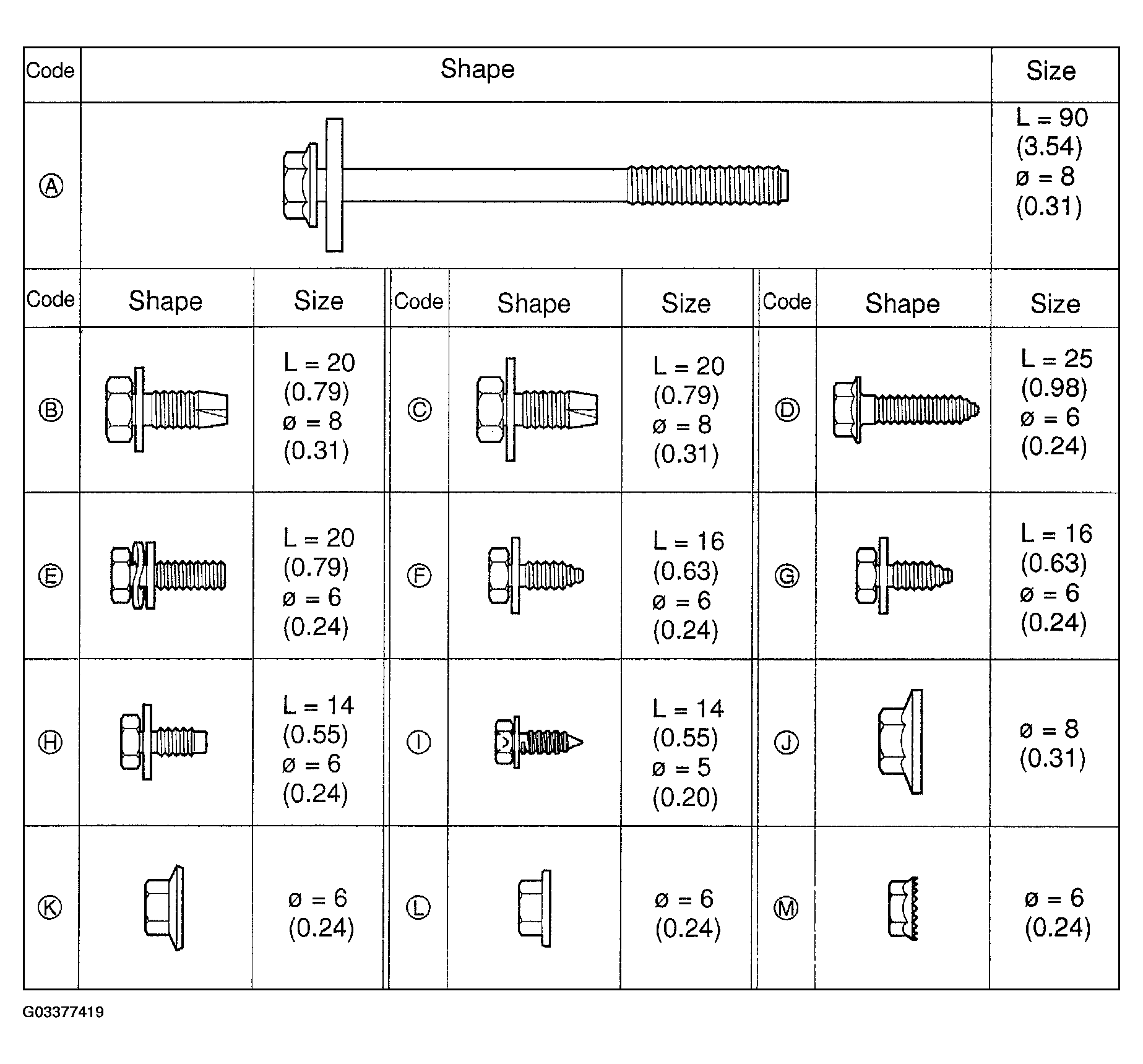

Fig 3: Screws Shape And Sizes Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
