Exhaust System: Components

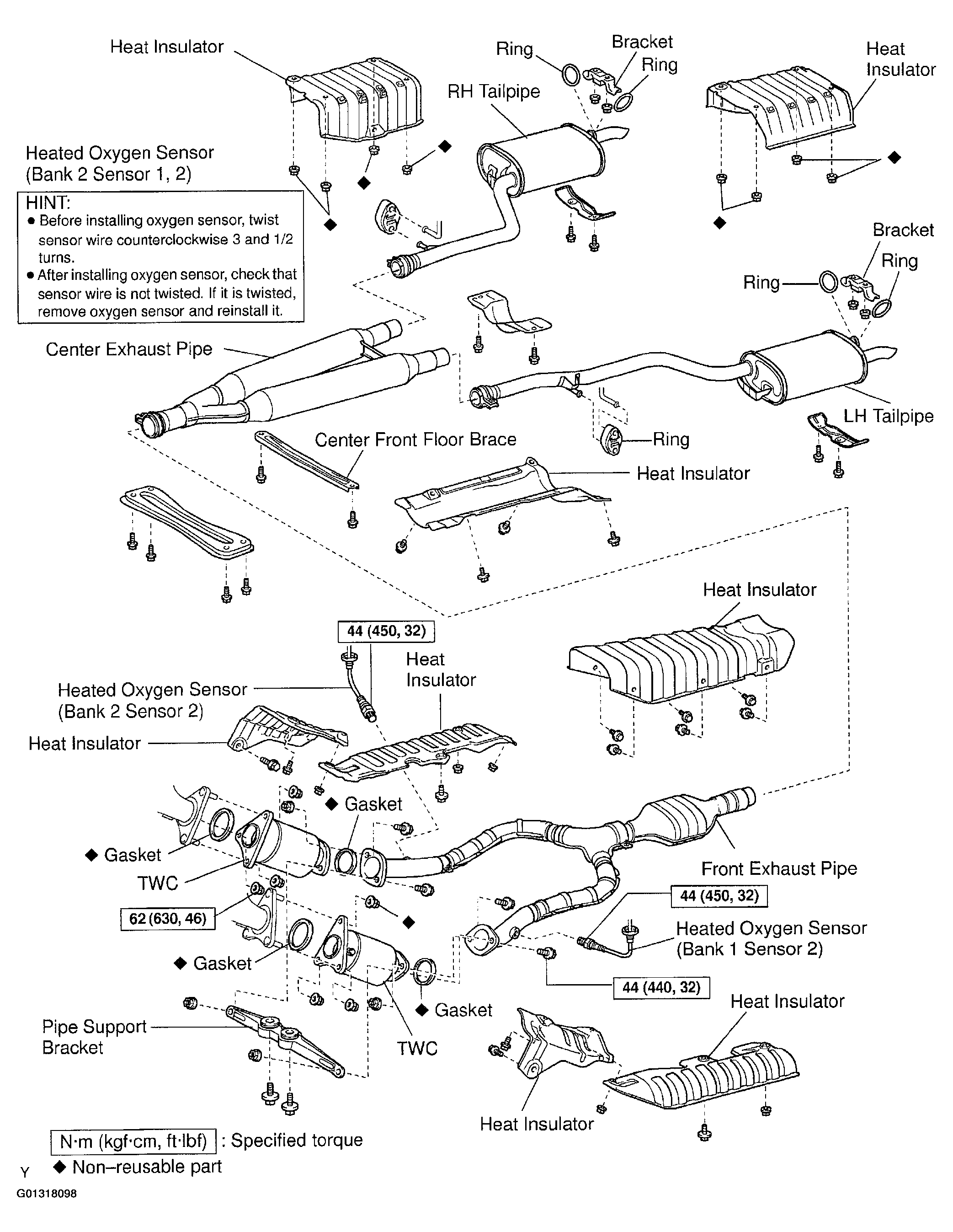

Fig 1: Identifying Exhaust System Components

G01318098

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
