Circuit Description

The passenger side junction block (body No. 3) ECU receives the brake pad sensor signal and sends it to the combination meter. For circuit diagram, see Fig 1.

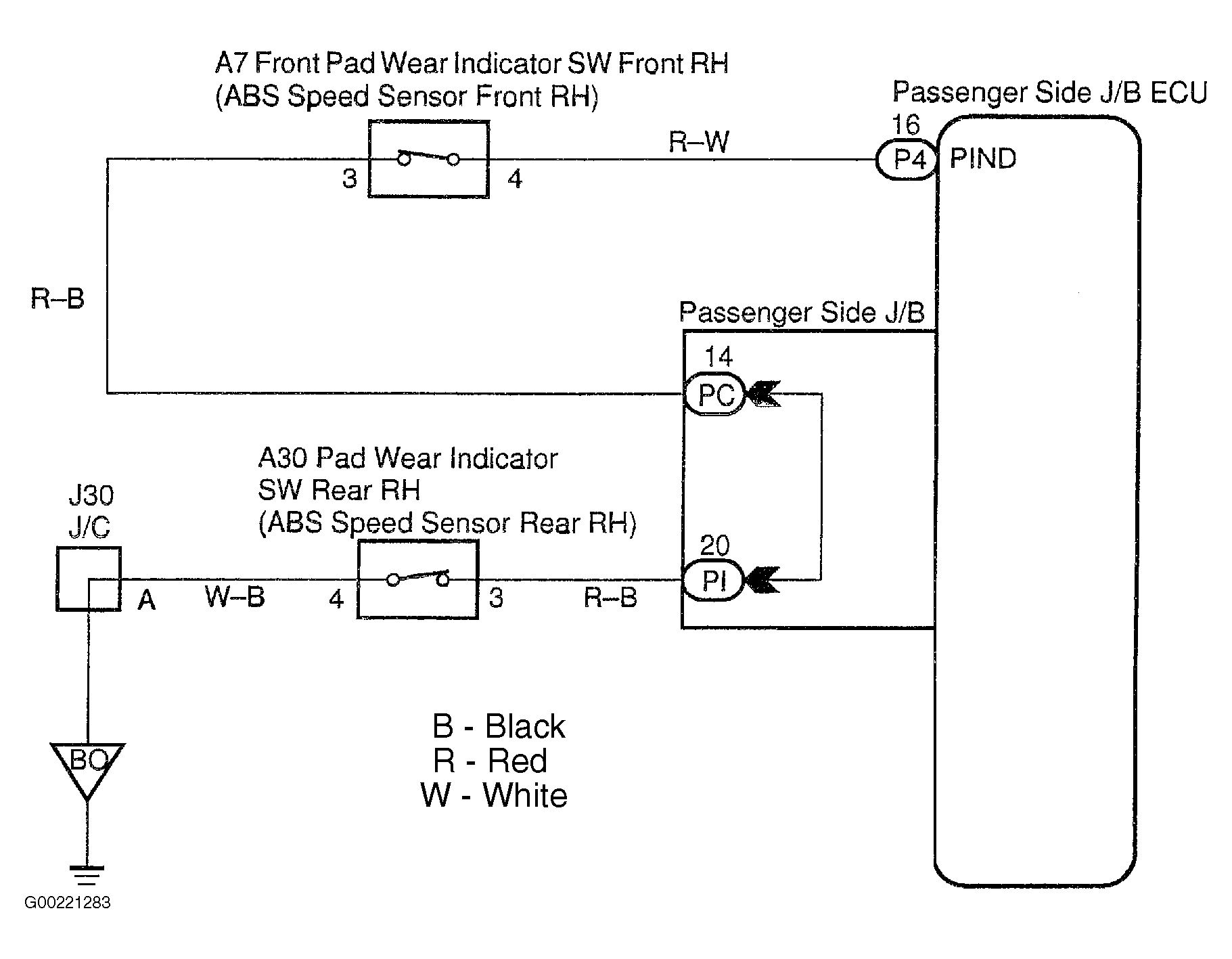

Fig 1: Identifying Brake Pad Sensor Circuit
