Circuit Description

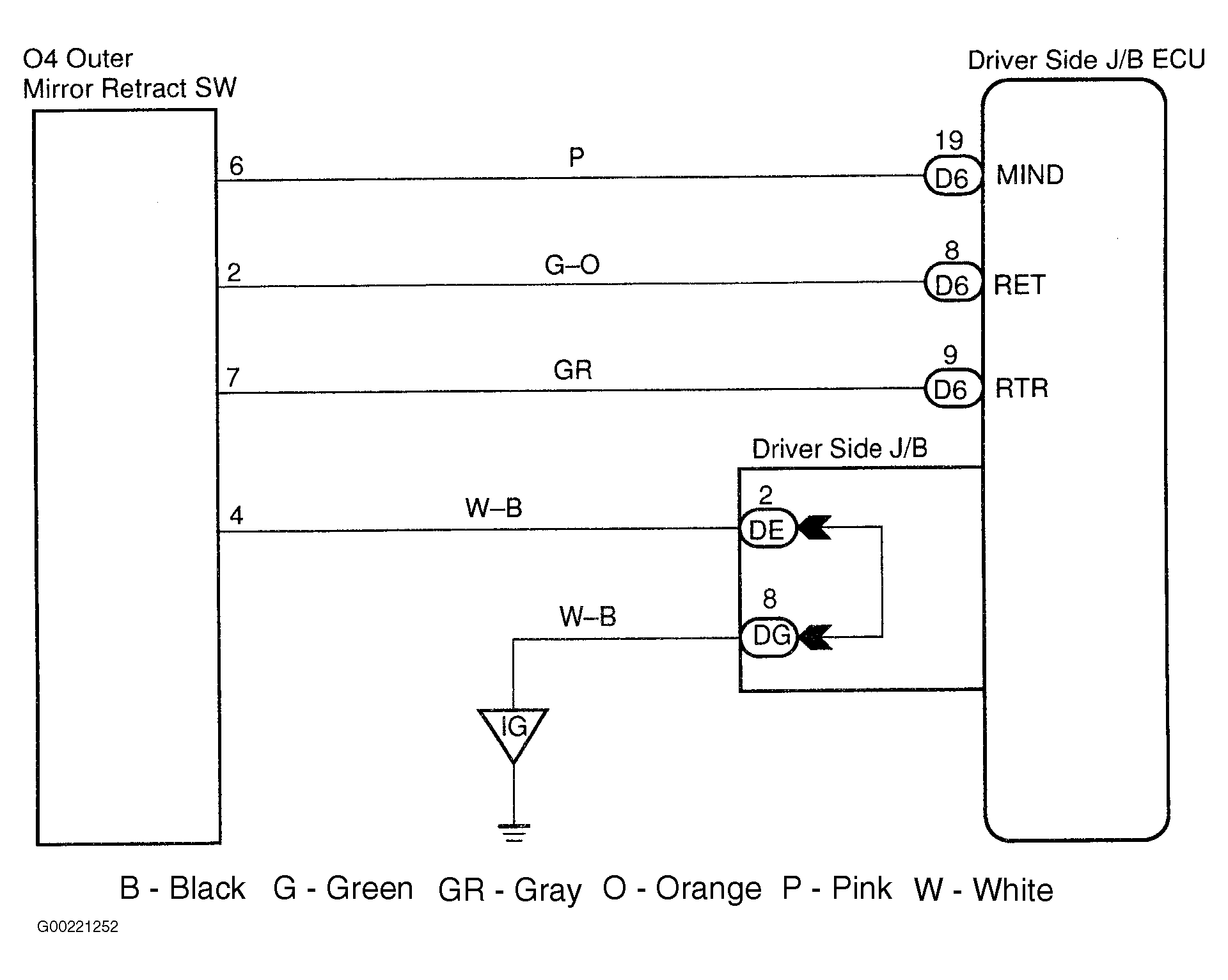

This circuit detects the conditions of the mirror retract switch. The operating condition of the mirror retract switch is input by the driver side junction block (body No. 2) ECU and the input signals are sent to the driver door ECU or the passenger door ECU. See Fig 1.
