Circuit Description

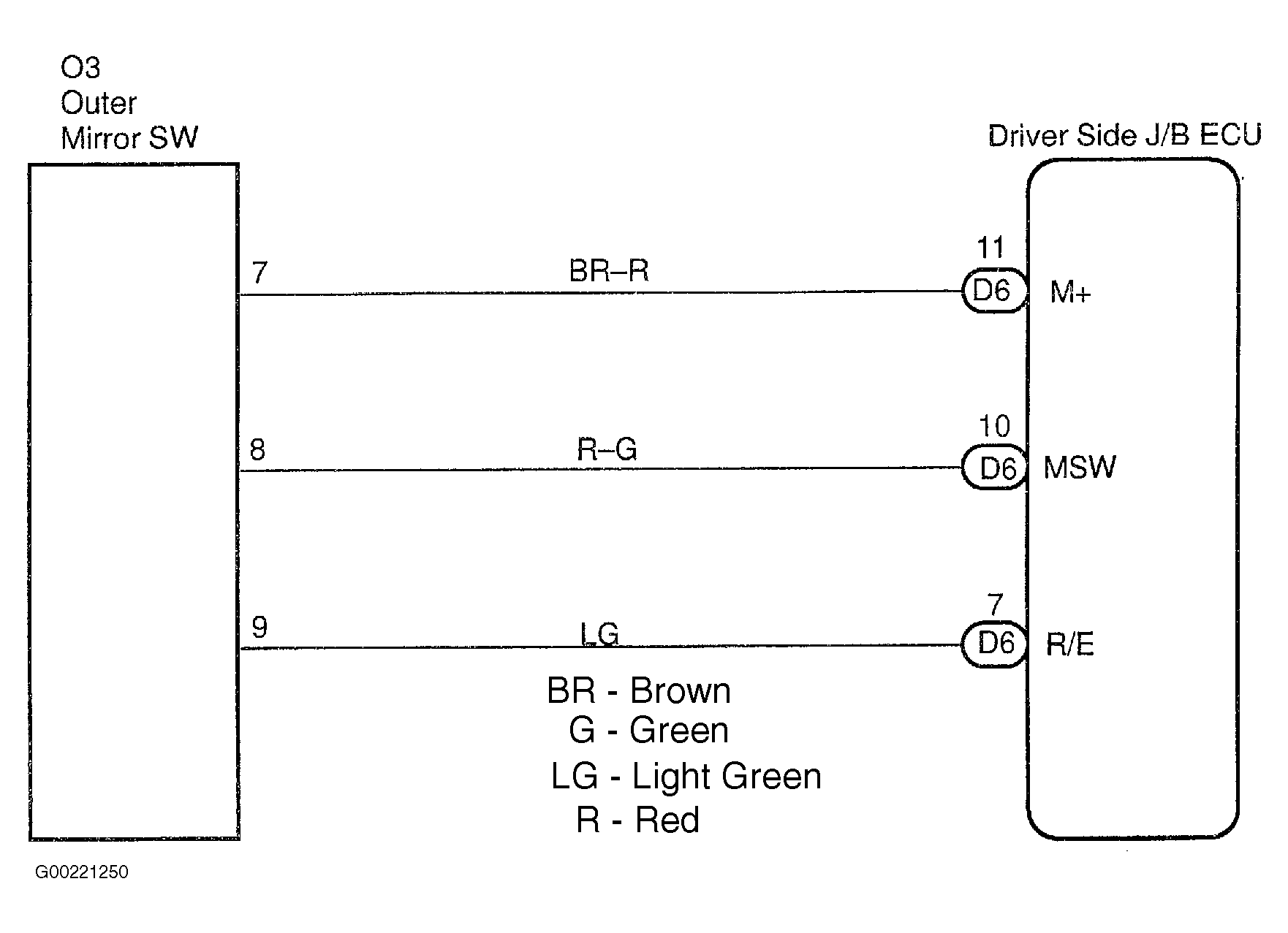

This circuit detects the conditions of the mirror selection switch and the mirror position switch. The operating condition of the mirror switch is input by the driver side junction block (body No. 2) ECU and the input signals are sent to the driver door ECU or the passenger door ECU. Mirror adjustment is controlled by the driver door ECU or the passenger door ECU. For circuit diagram, see Fig 1.
