Circuit Description

The passenger side junction block (body No. 3) ECU detects the state of the ECT (electronic control transmission) pattern select switch. For circuit diagram, see Fig 1.

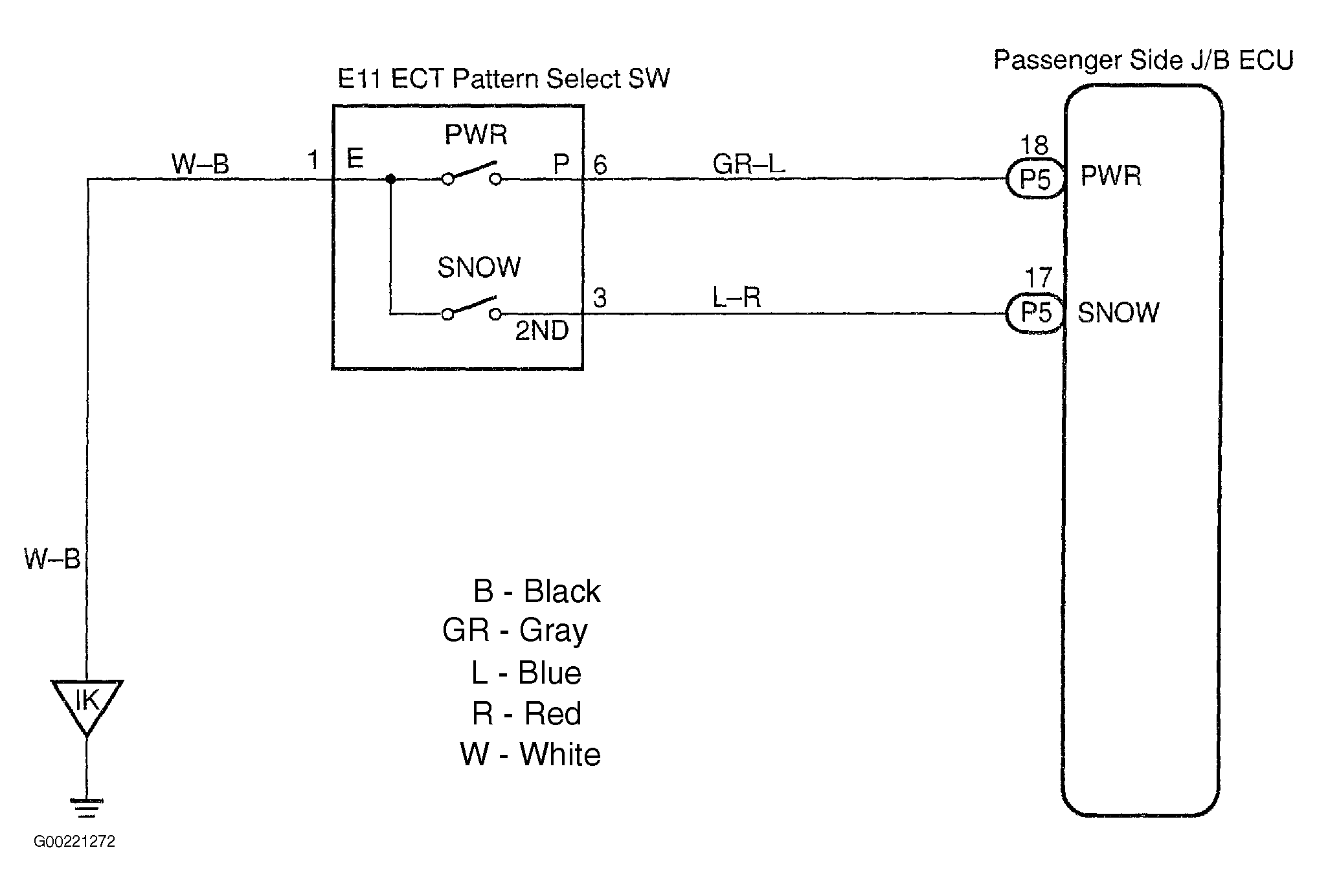

Fig 1: Identifying Pattern Select Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
