Circuit Inspection

This circuit detects the conditions of the stop light switch. See Fig 1.

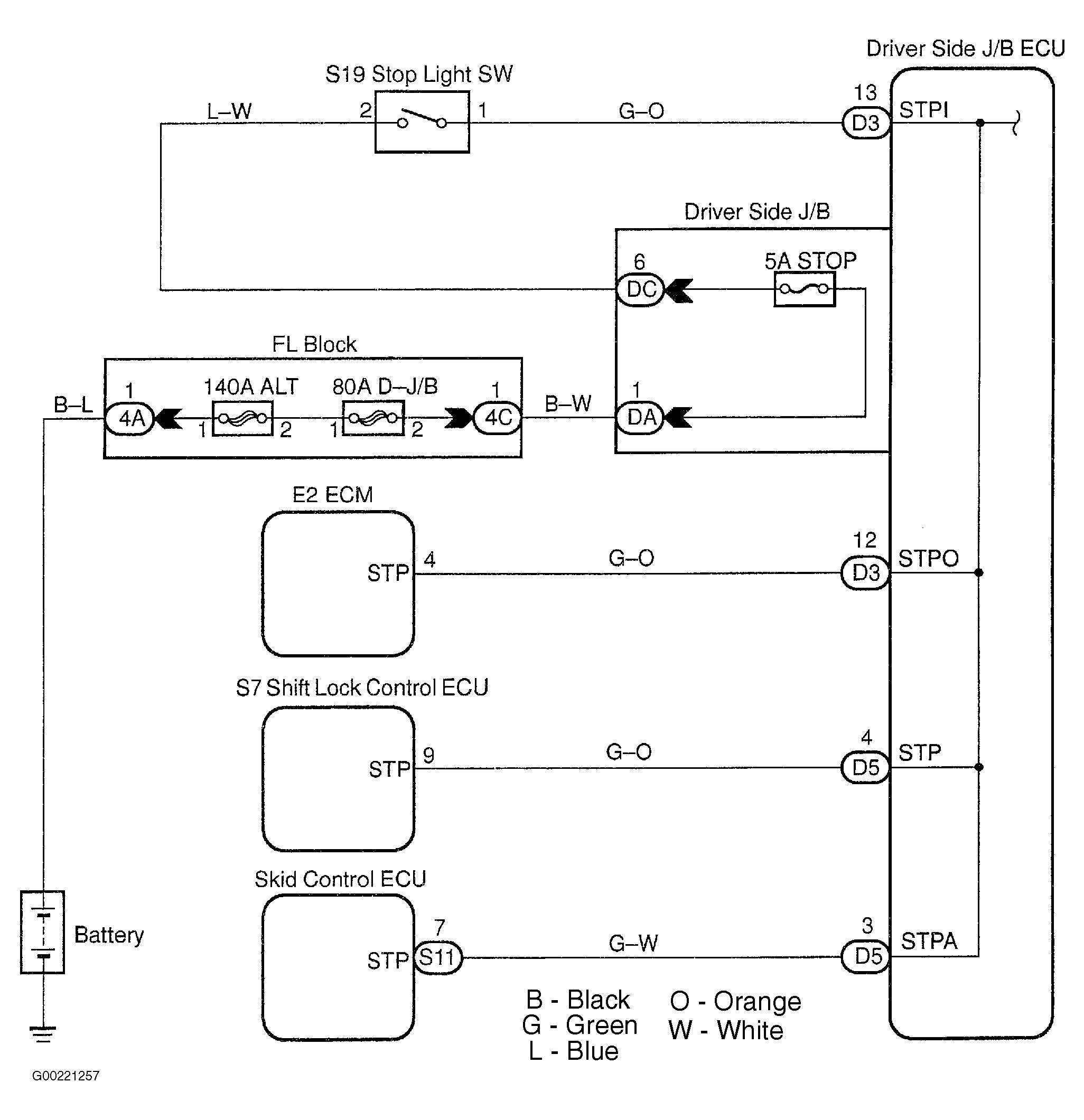

Fig 1: Identifying Stop Light Switch Circuit
G00221257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
