Hood Lock Control: Installation

BEFORE INSTALLING PARTS, COAT LOCK WITH MP GREASE
Apply MP grease to the sliding surface of the lock.

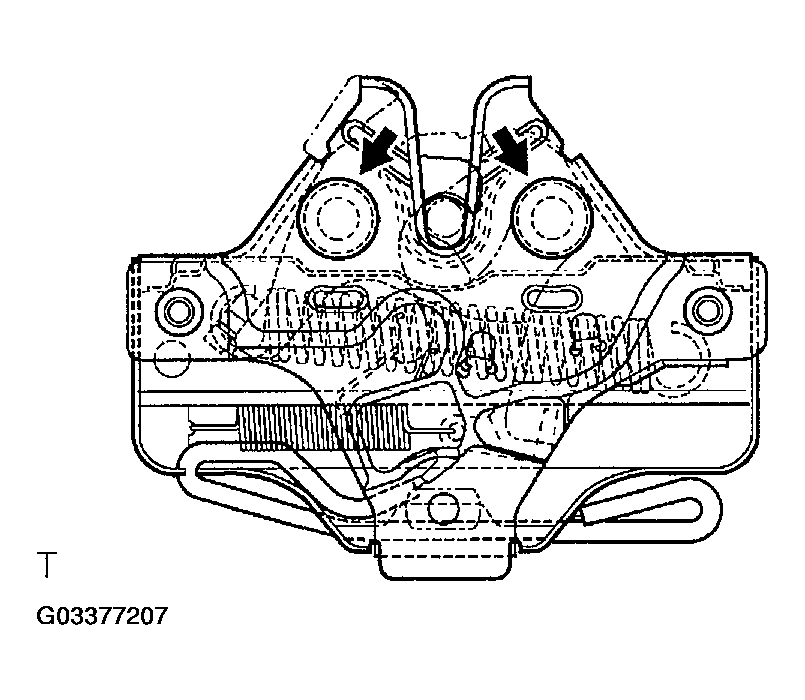

Fig 1: Applying MP Grease To Sliding Surface Of Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK CONTROL CABLE
1. Pass the cable to engine room.

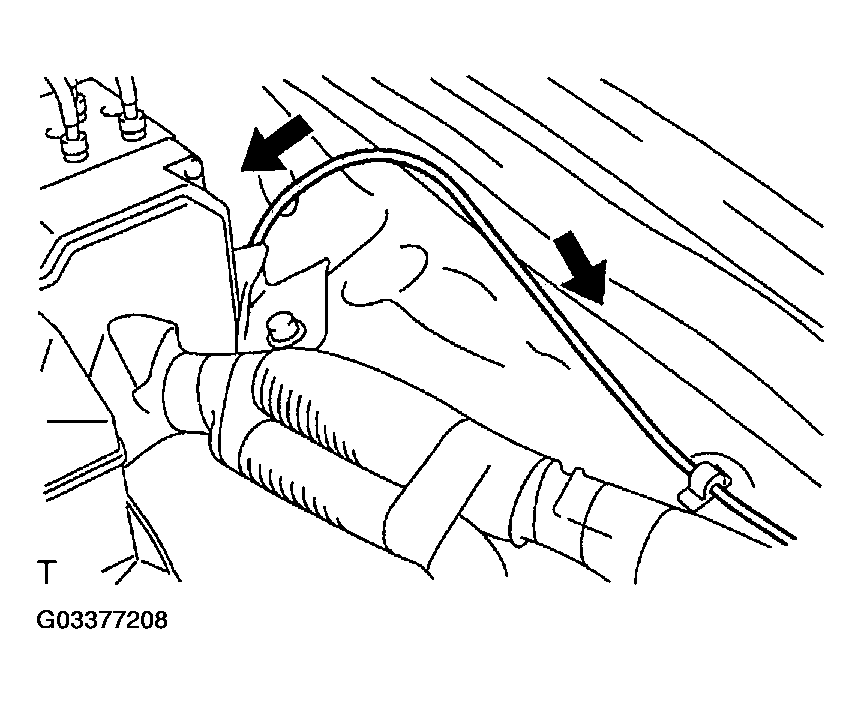

  Fig 2: Installing Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pass the cable rear side through the grommet until the cable stopper is attached to the grommet.
3. Pass the cable front side through the upper radiator support.

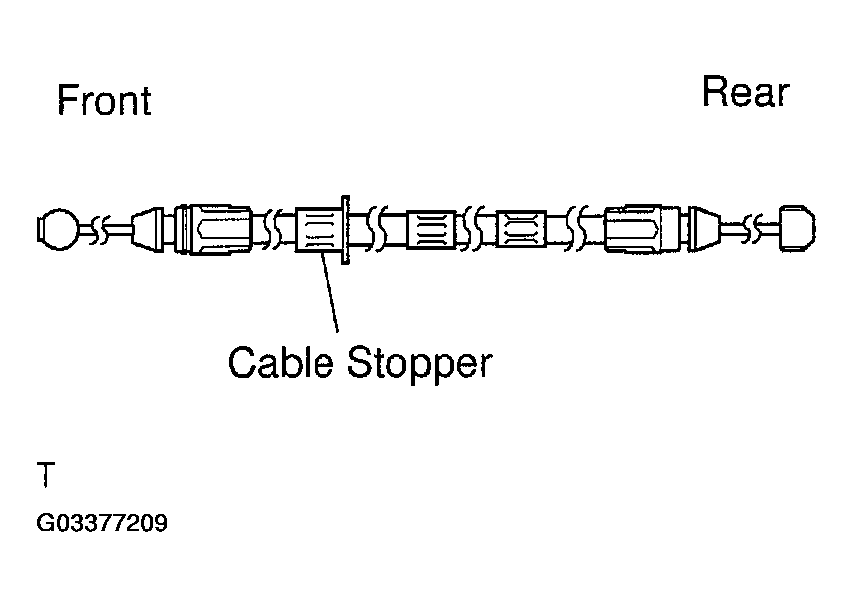

  Fig 3: Identifying Cable Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Pass the cable to the upper of the VSC ECU bracket as shown in the illustration.
4. Connect the cable clamps as shown in the illustration below.

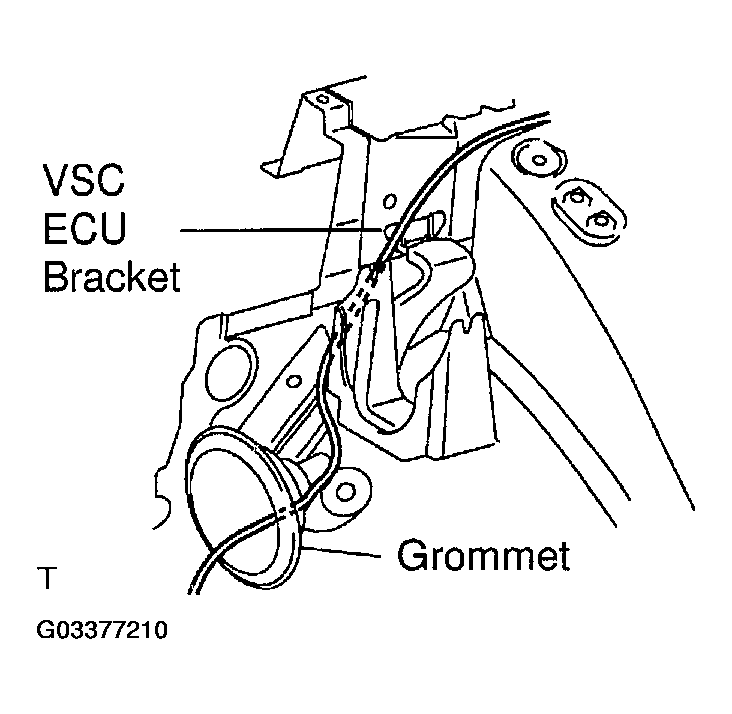

  Fig 4: Identifying VSC ECU Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

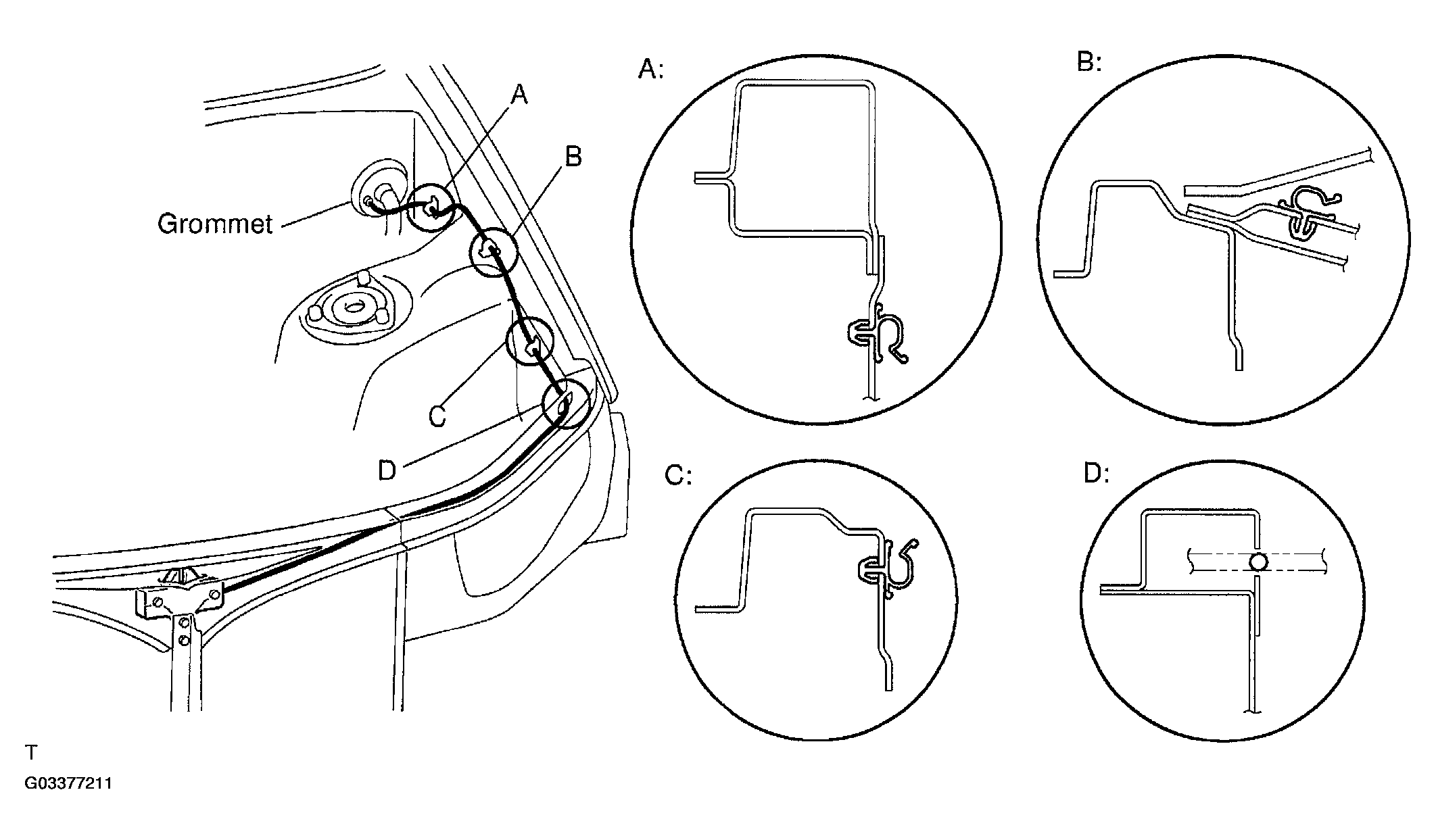

Fig 5: Connecting Cable Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK
1. Connect the hood lock control cable.
2. Install the hood lock with the 2 bolts and nut.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
3. Install the cap.

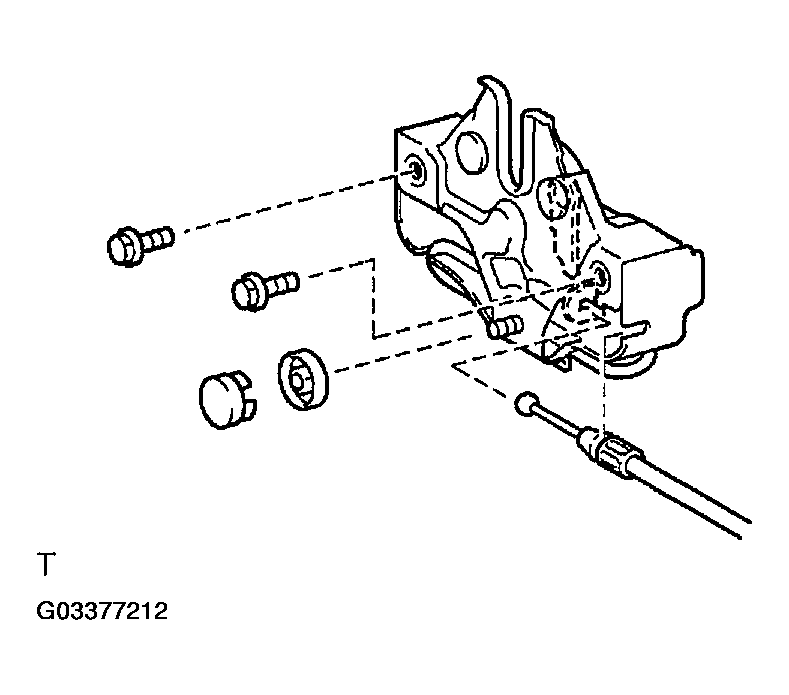

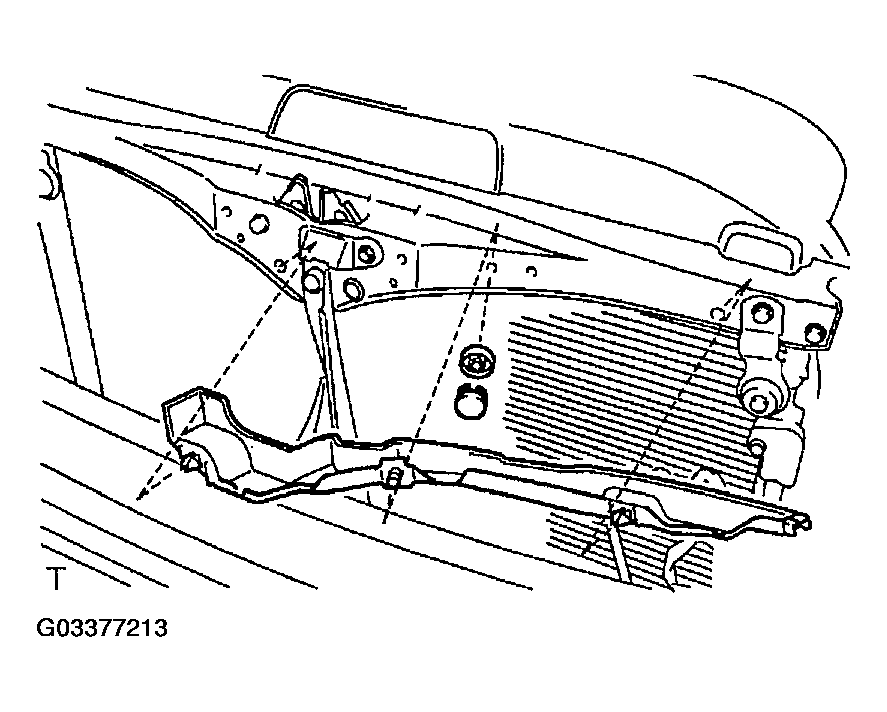

  Fig 6: Installing Hood Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK CONTROL CABLE COVER
1. Install the hood lock control cable cover with the nut.
2. Install the cap.

  Fig 7: Installing Hood Lock Control Cable Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK RELEASE LEVER
1. Connect the hood lock control cable as shown in the illustration.
2. Connect the hood lock release lever with the 2 screws.
CHECK HOOD LOCK CONTROL FOR PROPER OPERATION
After checking for proper operation, tighten the 2 bolts and nut to install the lock.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

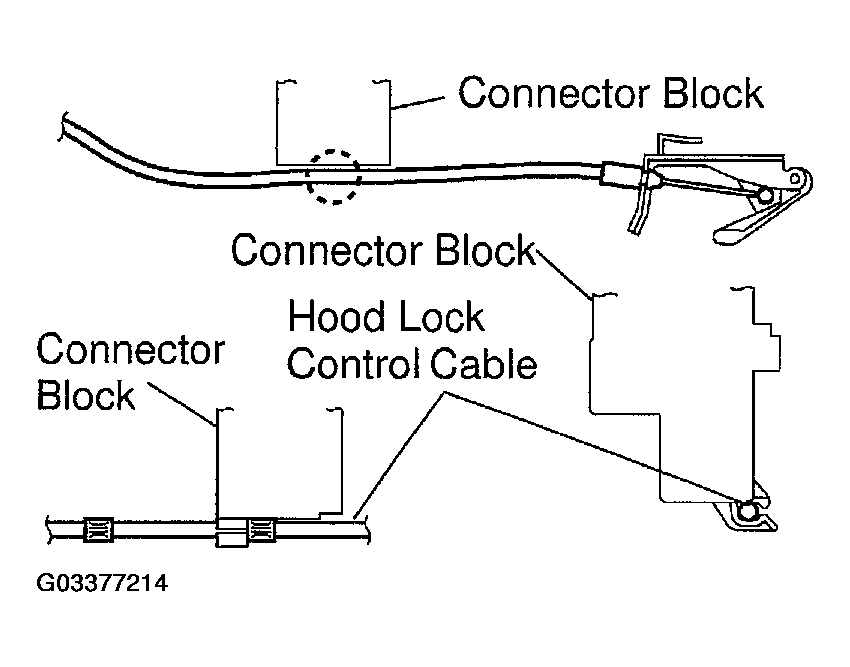

Fig 8: Connecting Hood Lock Control Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
