Hood Lock Control: Removal

REMOVE HOOD LOCK RELEASE LEVER
1. Remove the 2 screws and disconnect the hood lock release lever.
2. Disconnect the hood lock control cable.

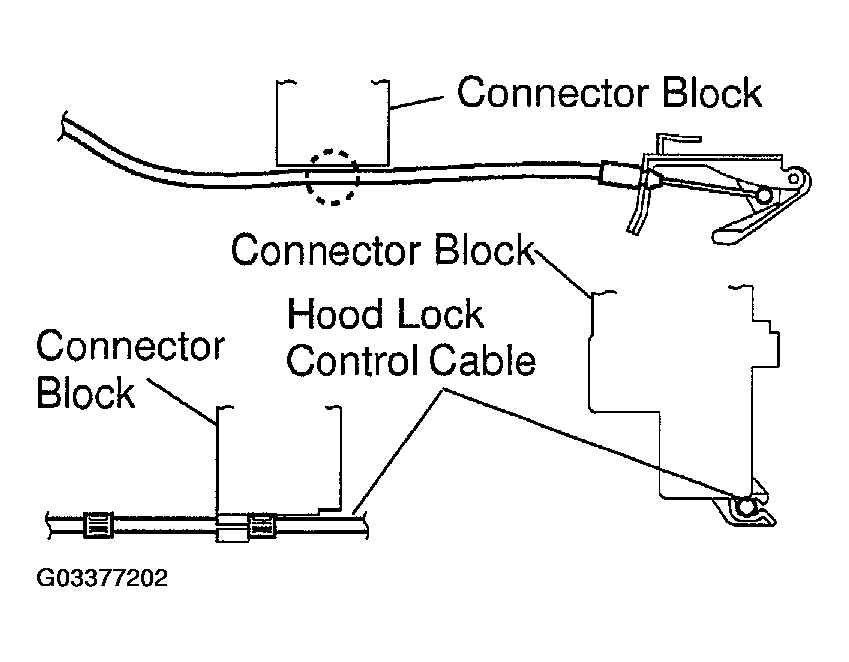

  Fig 1: Disconnecting Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD LOCK CONTROL CABLE COVER
1. Using a screwdriver, remove the cap.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the nut and hood lock control cable cover.
REMOVE HOOD LOCK
1. Using a screwdriver, remove the cap.
  HINT:

  Tape the screwdriver tip before use.

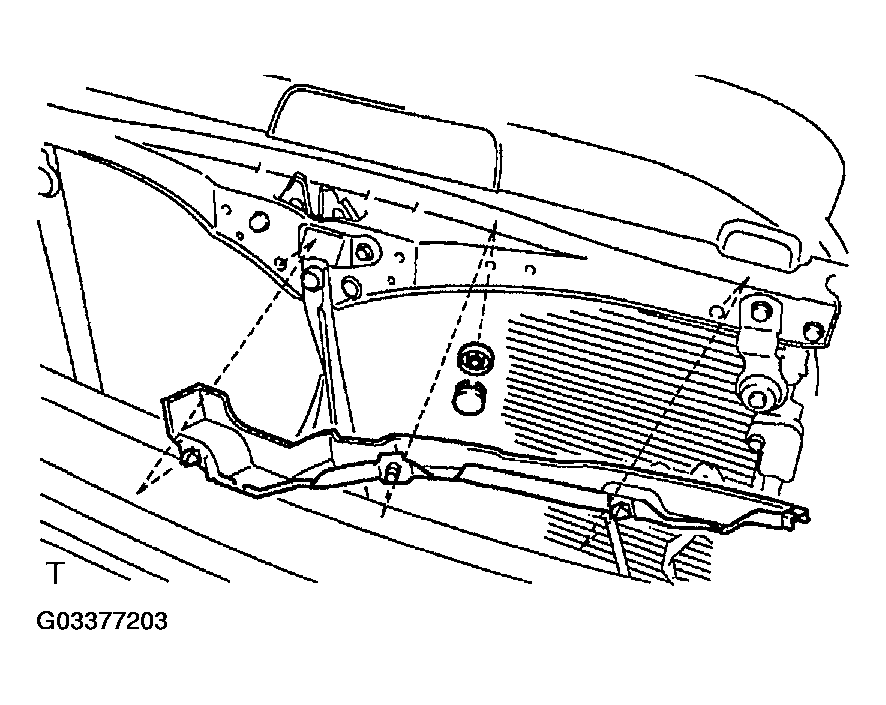

  Fig 2: Removing Hood Lock Control Cable Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

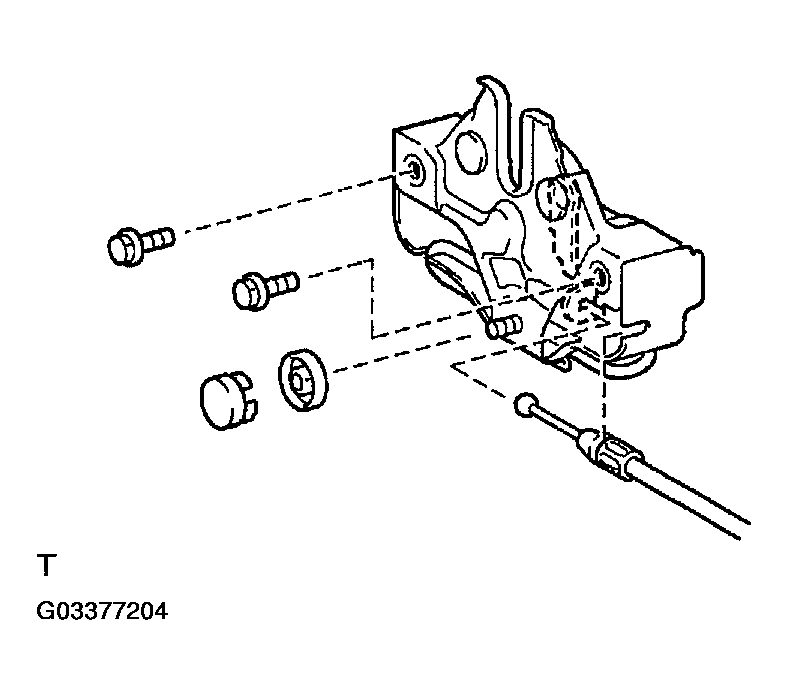

2. Remove the 2 bolts, nut and hood lock.
3. Disconnect the hood lock control cable.
REMOVE HOOD LOCK CONTROL CABLE
1. Using a screwdriver, disconnect the cable clamps as shown in the illustration below.
  HINT:

  Tape the screwdriver tip before use.

  Fig 3: Removing Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

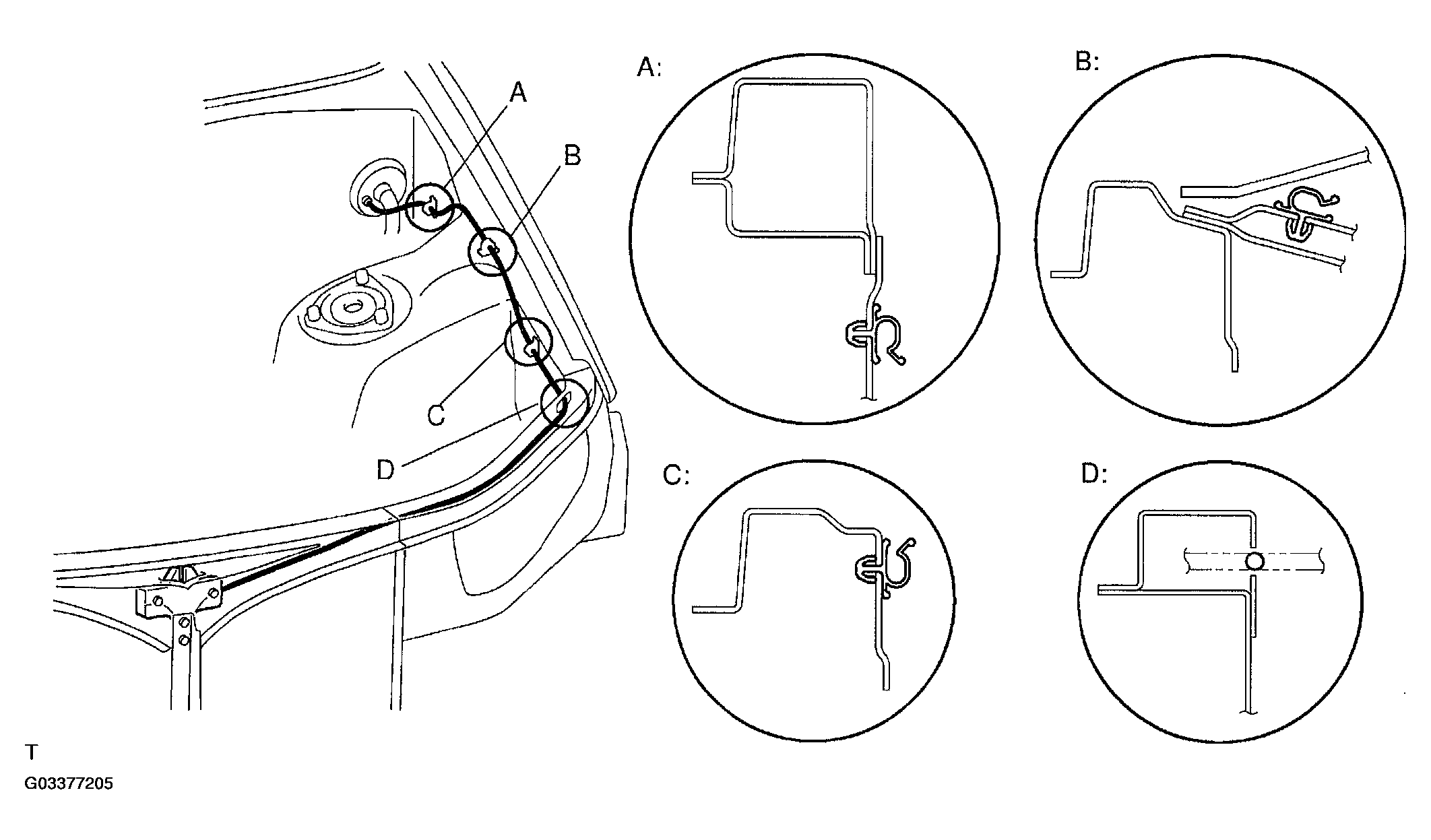

  Fig 4: Identifying Cable Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the cable from the engine room to remove it.

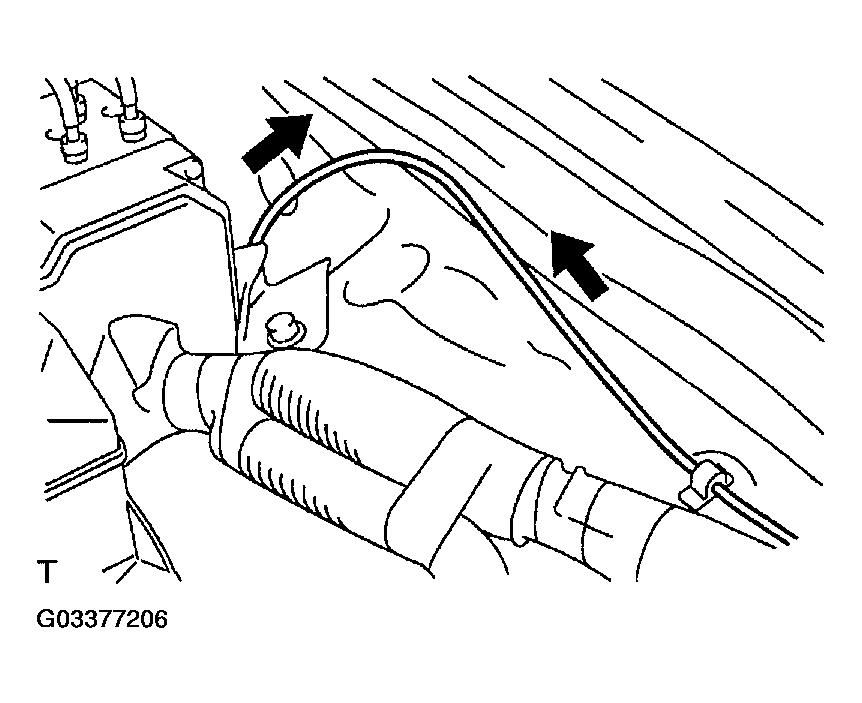

  Fig 5: Removing Cable From Engine Room
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
