Outside Rear View Mirror: Installation

INSTALL OUTSIDE REAR VIEW MIRROR
1. Install the outside rear view mirror with the 3 bolts.
  Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
2. Connect the connector.
INSTALL DOOR FRAME GARNISH
Install the door frame garnish with the 2 clips.
INSTALL DOOR TRIM
1. Connect the 2 cables to the inside handle of the door trim.
2. Connect the connectors.

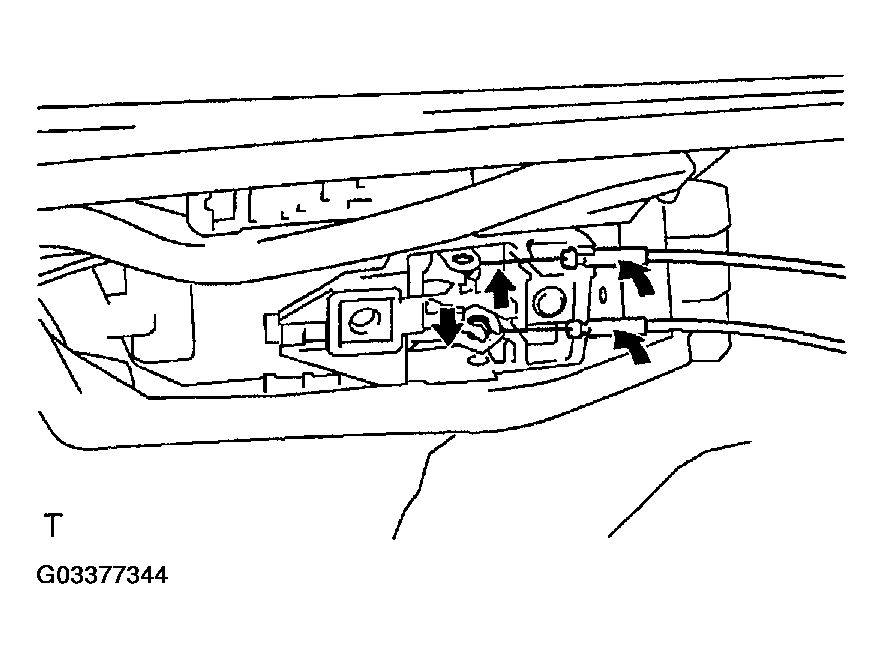

  Fig 1: Connecting Cables To Inside Handle Of Door Trim
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the door trim.

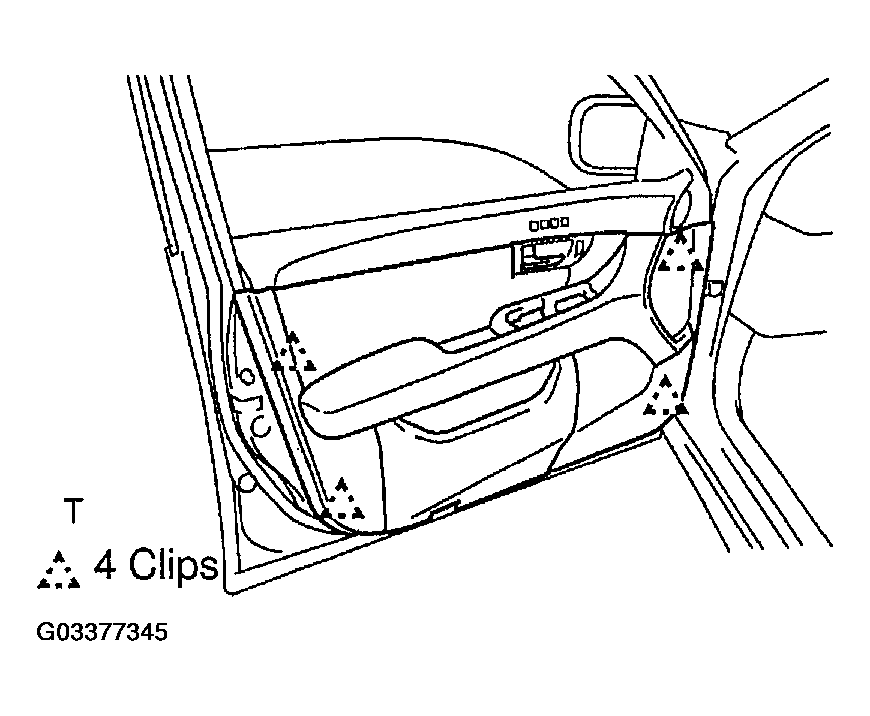

  Fig 2: Installing Door Trim Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 7 screws.
INSTALL COURTESY LIGHT ASSEMBLY

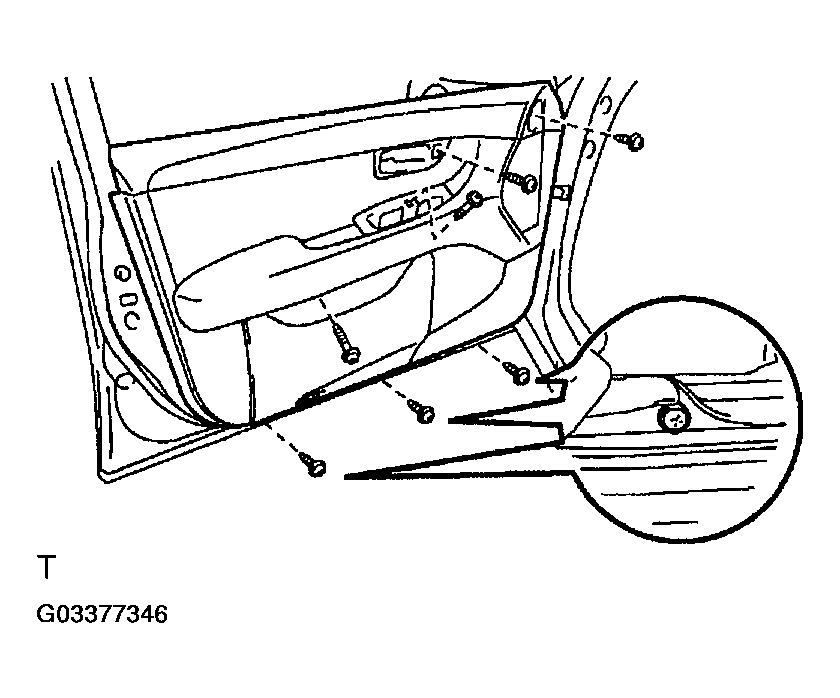

Fig 3: Installing Door Trim Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ARMREST BASE PANEL ASSEMBLY
Connect the connector and install the armrest base panel assembly.
INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL

Fig 4: Installing Armrest Base Panel Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
