Climate Control Seat System: Troubleshooting

  1. Climate control does not operate (Blinking pattern "1")

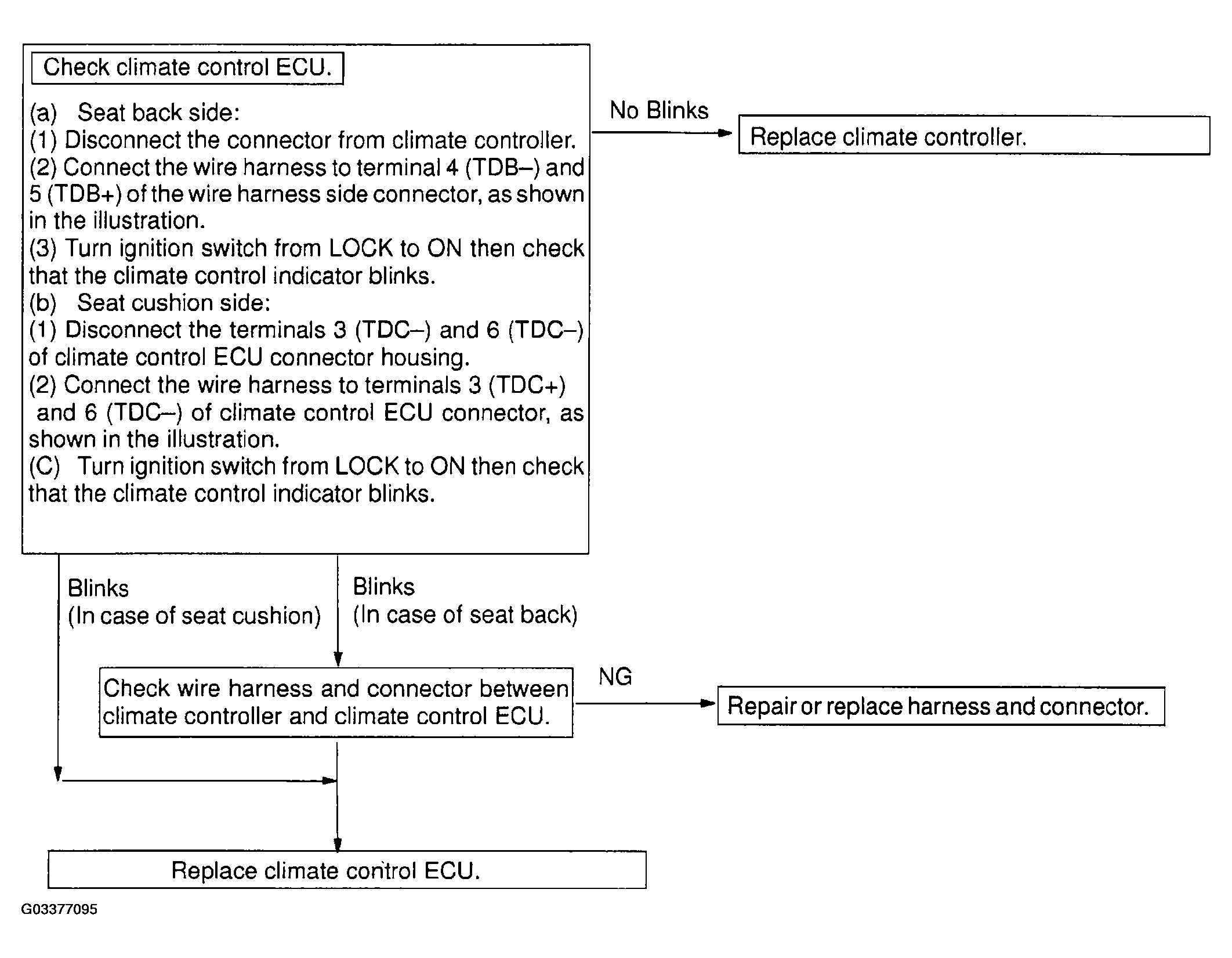

    Fig 1: Climate Control Does Not Operate (Blinking Pattern "1") Troubleshooting Flow Chart
    G03377095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

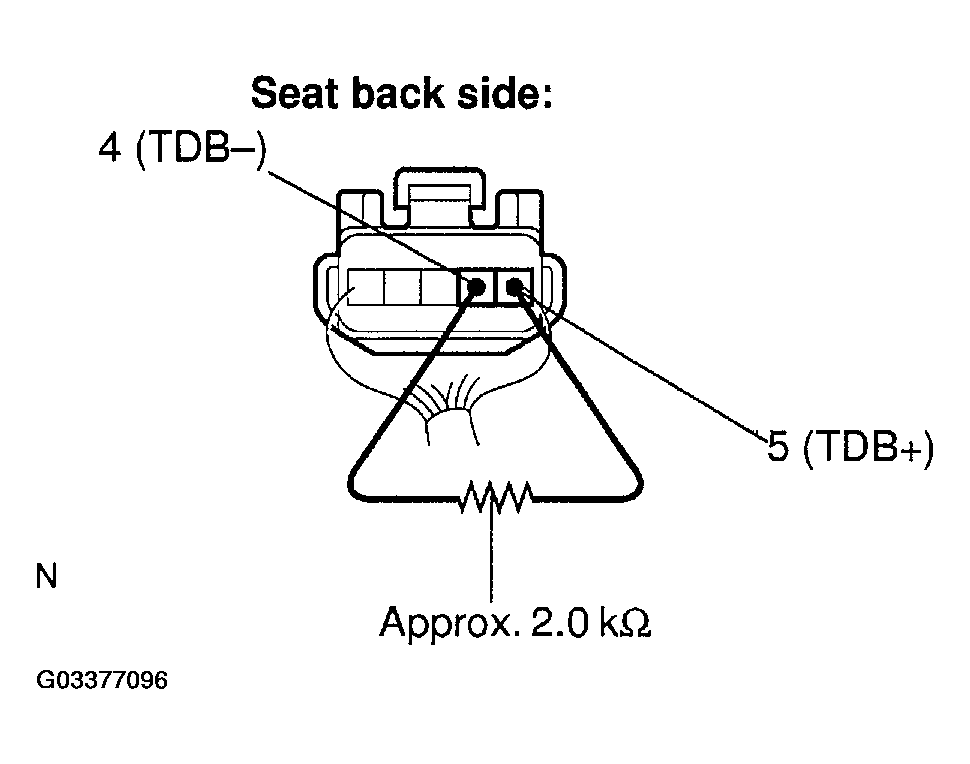

    Fig 2: Inspecting Climate Control ECU - Seat Back Side
    G03377096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

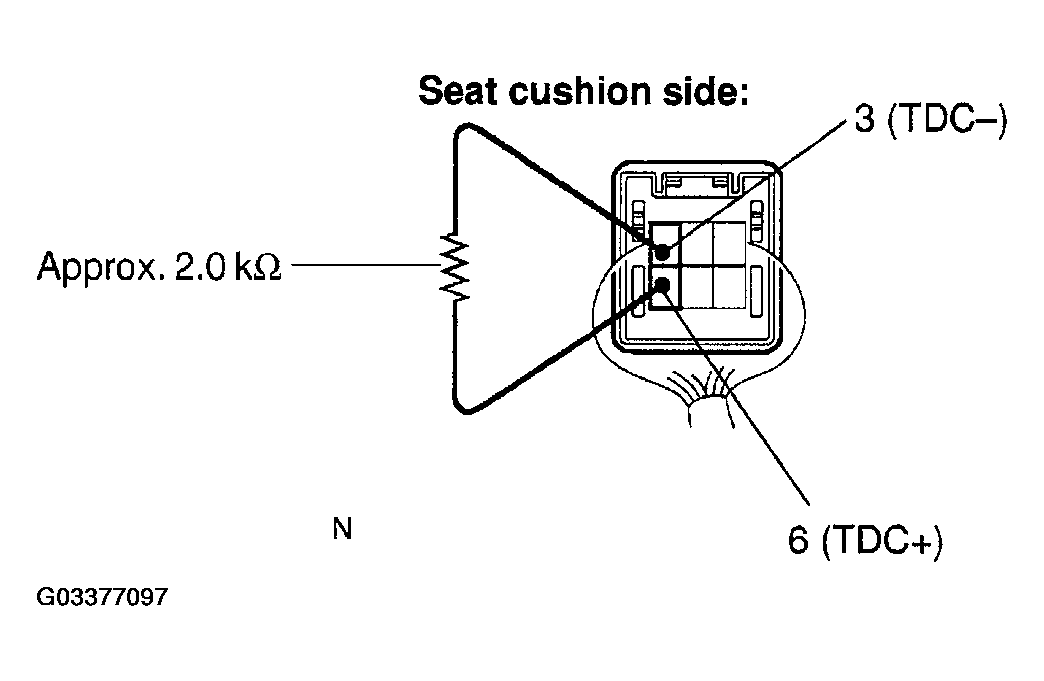

    Fig 3: Inspecting Climate Control ECU - Seat Cushion Side
    G03377097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Climate control does not operate (Blinking pattern "2")

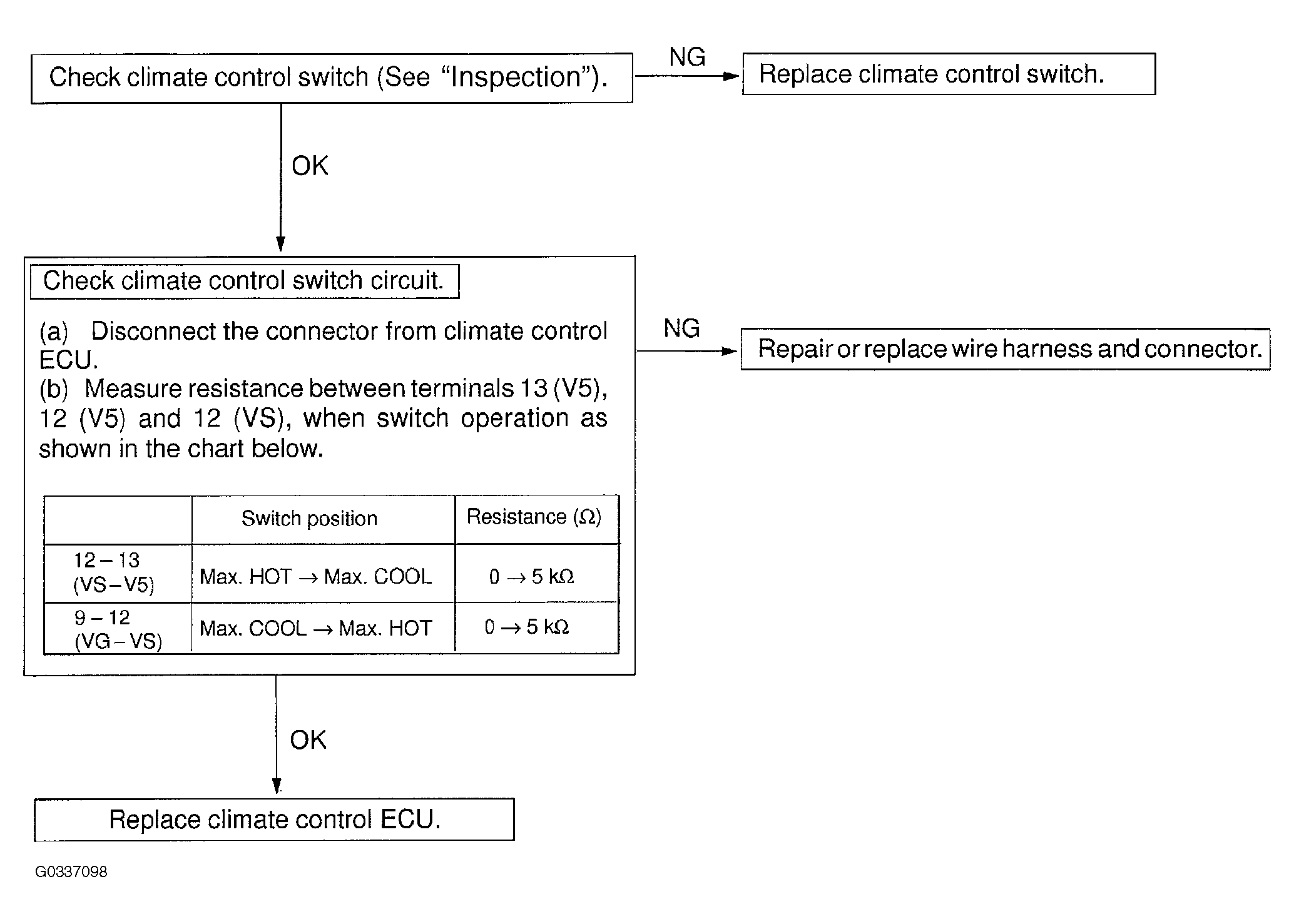

    Fig 4: Climate Control Does Not Operate (Blinking Pattern "2") Troubleshooting Flow Chart
    G03377098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Climate control does not operate (Blinking pattern "3")

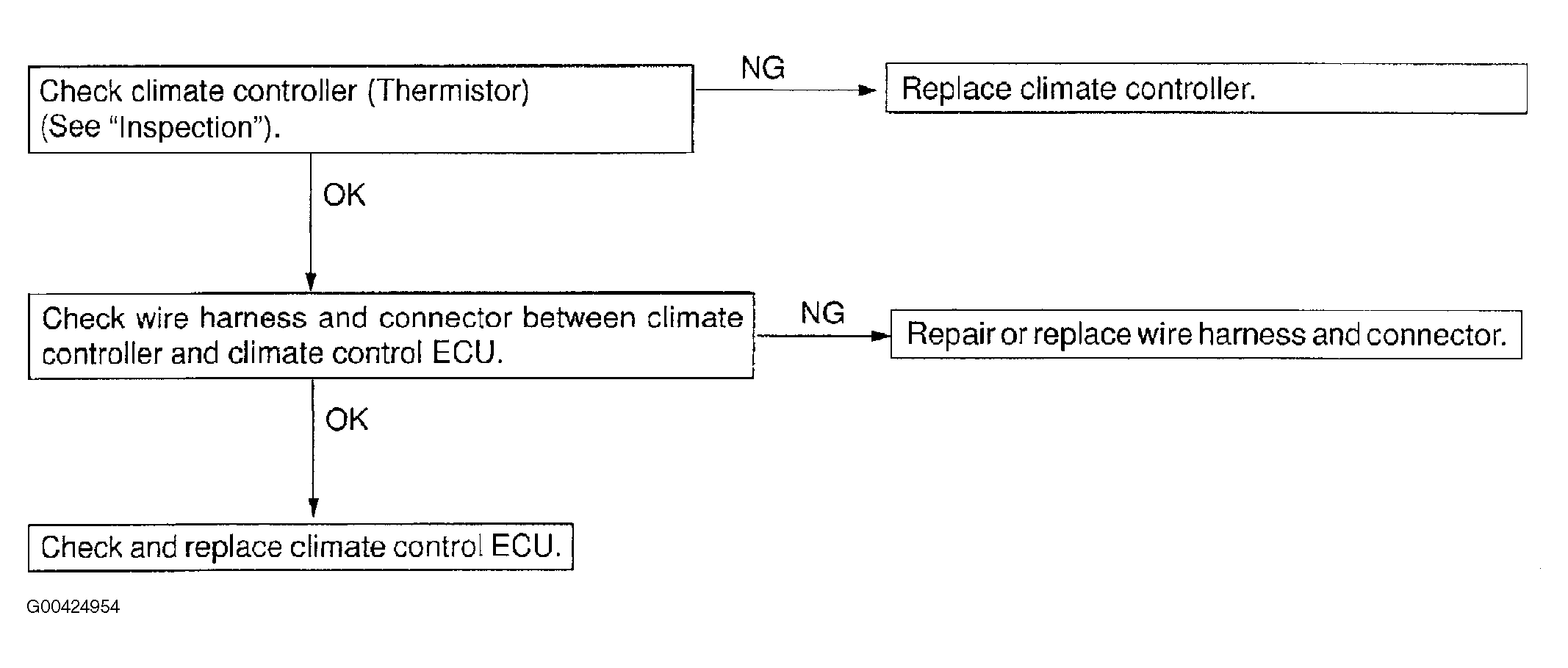

    4. Fig 5: Climate Control Does Not Operate (Blinking Pattern "3") Troubleshooting Flow Chart
    G00424954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Climate control does not operate (Blinking pattern "4")

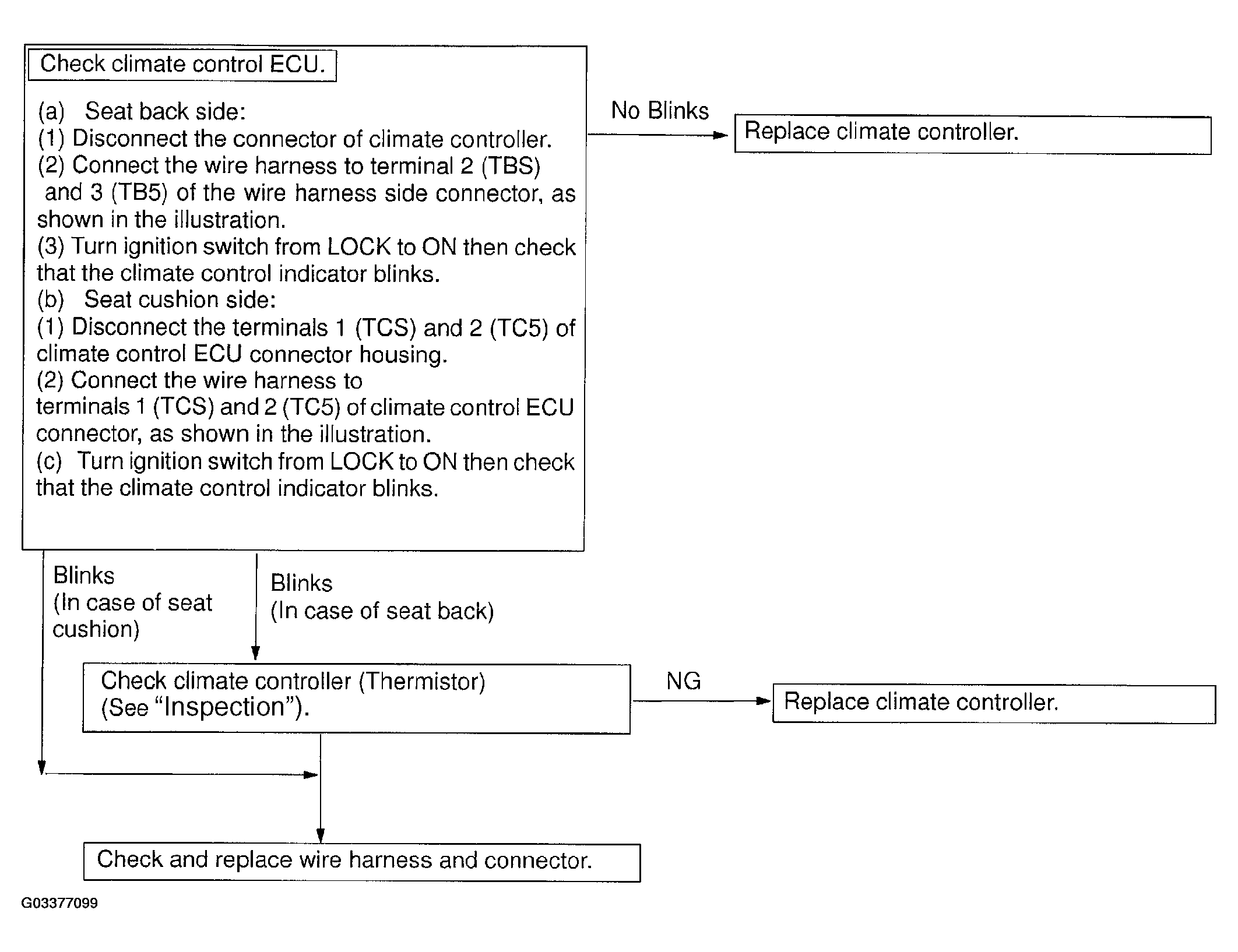

    Fig 6: Climate Control Does Not Operate (Blinking Pattern "4") Troubleshooting Flow Chart
    G03377099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

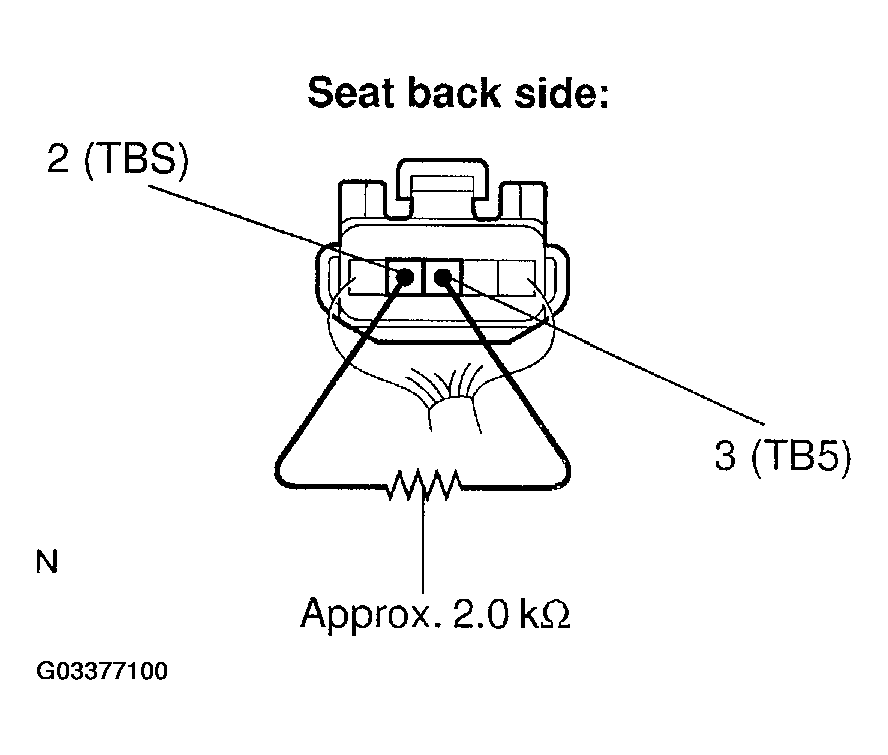

    Fig 7: Inspecting Climate Control ECU - Seat Back Side
    G03377100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

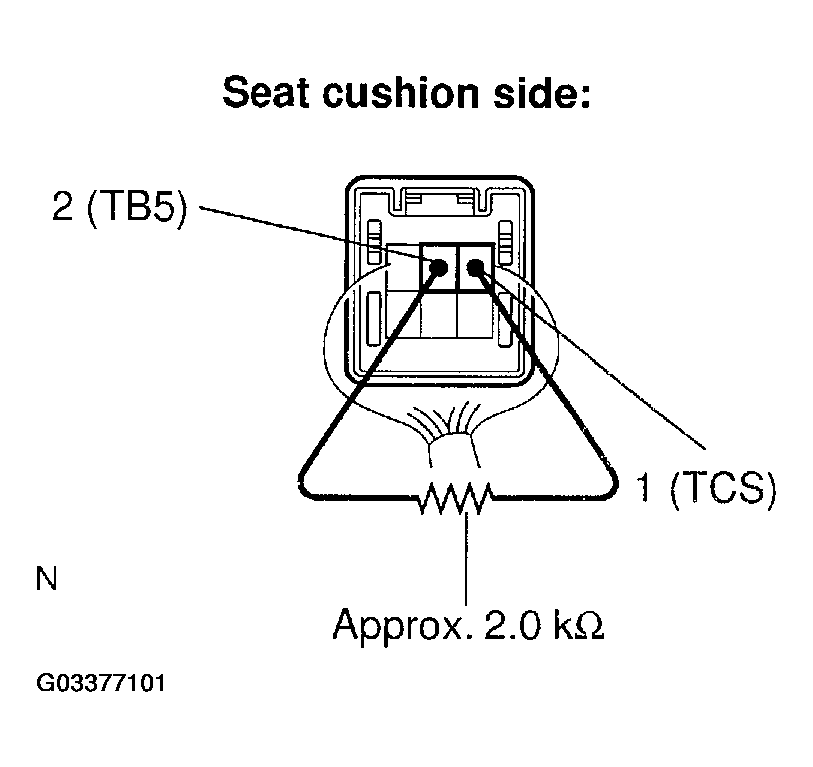

    Fig 8: Inspecting Climate Control ECU - Seat Cushion Side
    G03377101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. No cool air comes out, No warm air comes out

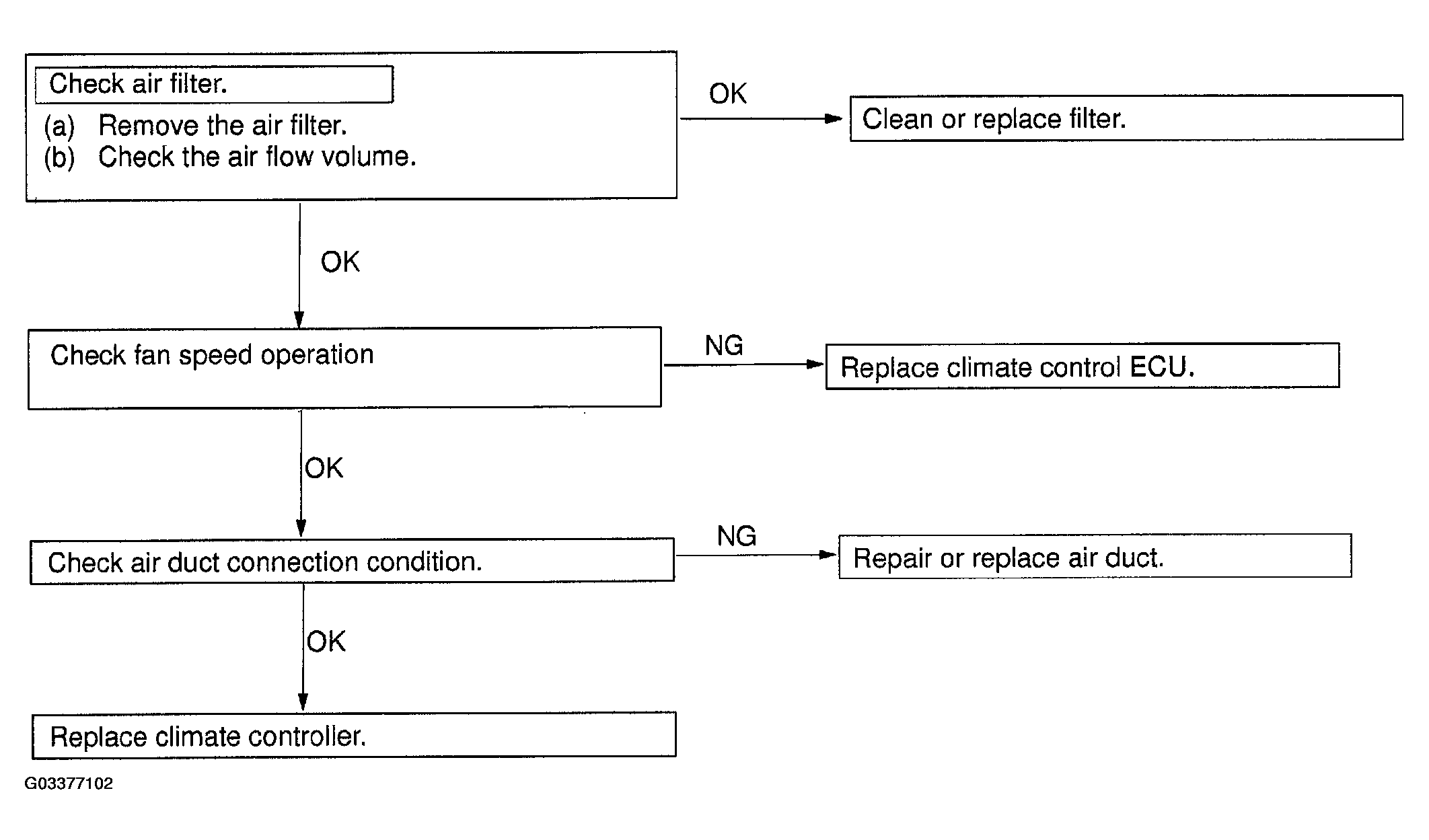

    Fig 9: Troubleshooting Flow Chart
    G03377102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
