Front Seat: Components

Fig 1: Identifying Front Seat Components (1 Of 2)
G03377455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

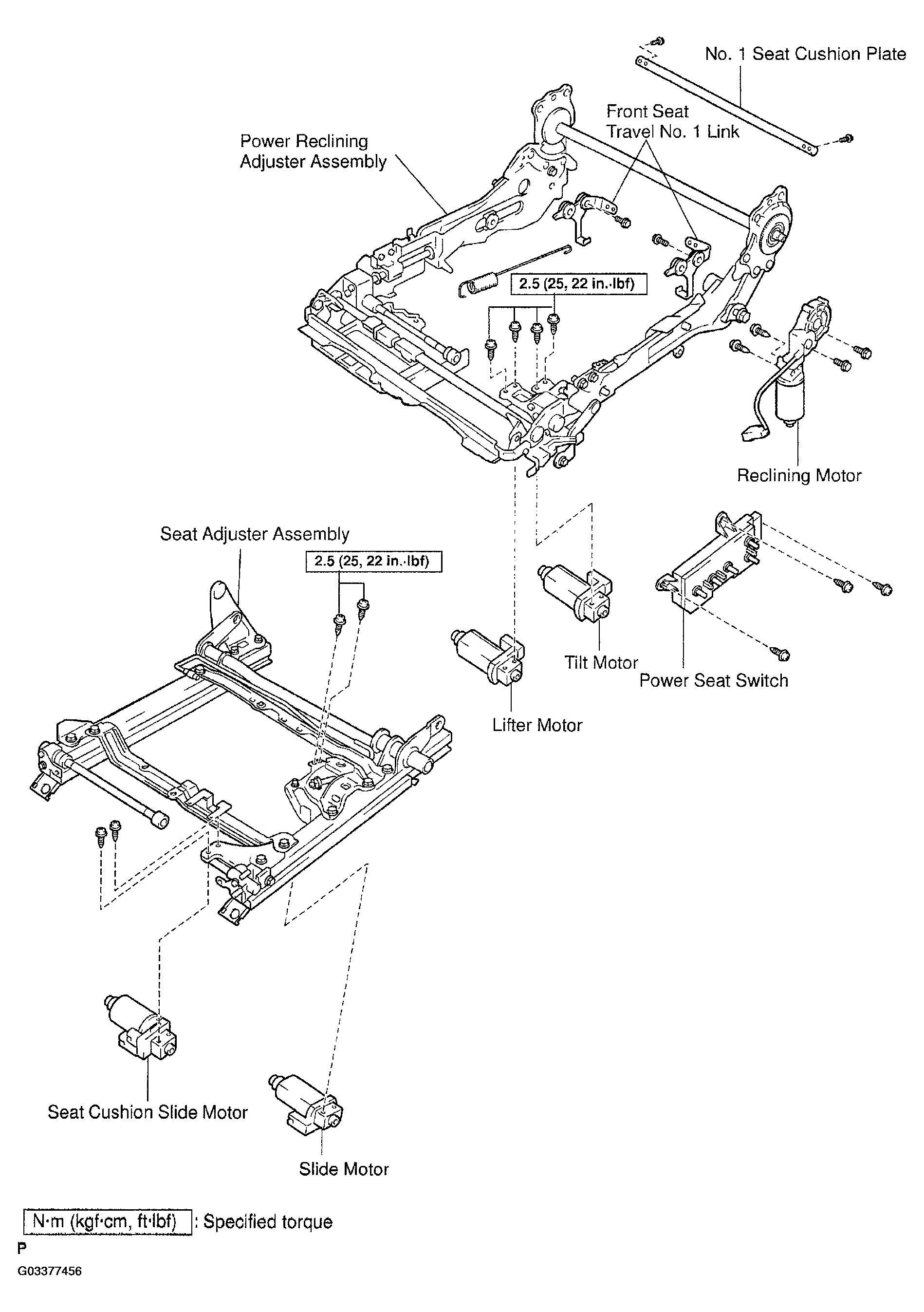

Fig 2: Identifying Front Seat Components (2 Of 2)
G03377456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
