Front Seat: Reassembly

  1. INSTALL SLIDE MOTOR

    Install the slide motor with the 2 screws.

    Torque: 2.5 N.m (25 kgf.cm, 22 in.lbf)

  2. INSTALL SEAT CUSHION SLIDE MOTOR

    Install the seat cushion slide motor with the 2 screws.

    Torque: 2.5 N.m (25 kgf.cm, 22 in.lbf)

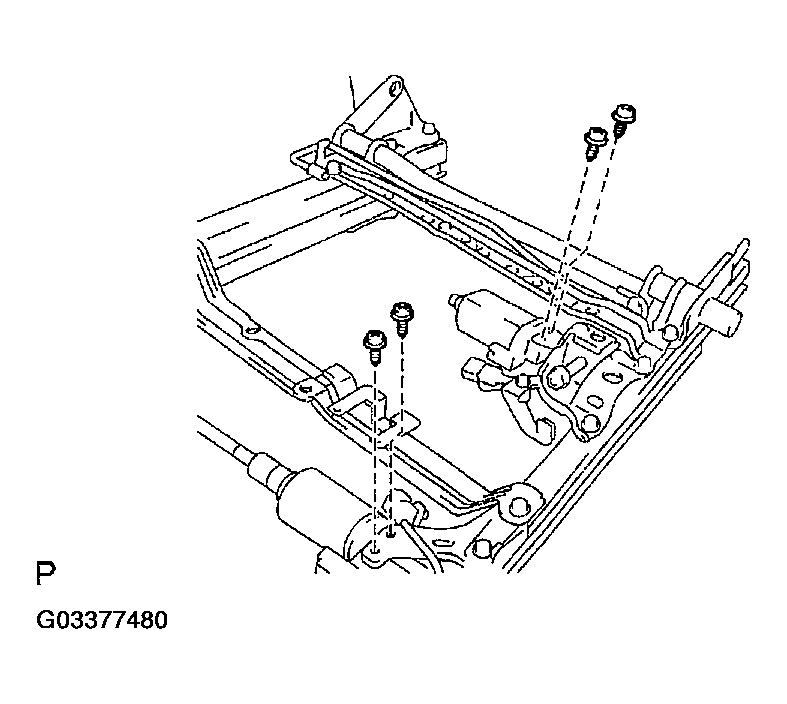

    Fig 1: Installing Slide Motor
    G03377480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT SEAT TRAVEL NO. 1 LINK
    1. Install the front seat travel No. 1 link with the bolt.
    2. Employ the same manner described above to the other side.
  4. INSTALL SEAT CUSHION SPRING

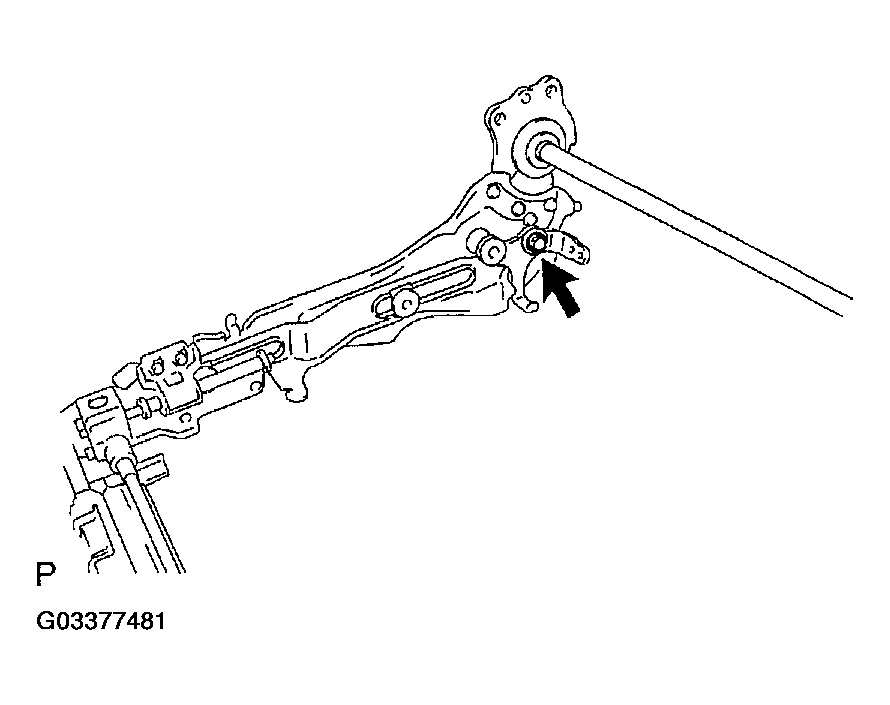

    Fig 2: Installing Front Seat Travel No. 1 Link
    G03377481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 SEAT CUSHION PLATE

    Install the No. 1 seat cushion plate with the 2 bolts.

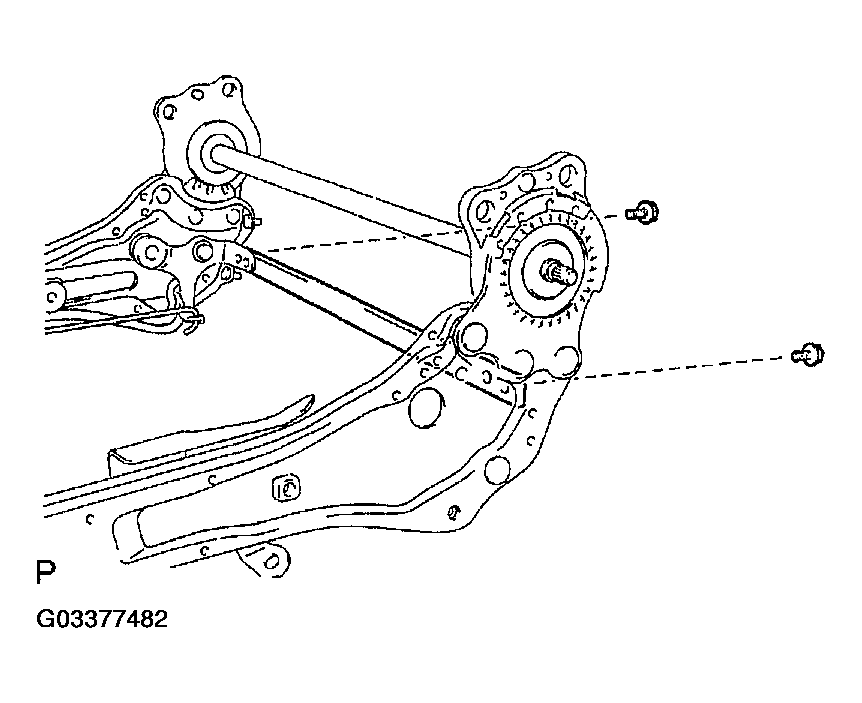

    Fig 3: Installing No. 1 Seat Cushion Plate
    G03377482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL TILT MOTOR

    Install the tilt motor with the 2 screws.

    Torque: 2.5 N.m (25 kgf.cm, 22 in.lbf)

  7. INSTALL LIFTER MOTOR

    Install the lifter motor with the 2 screws.

    Torque: 2.5 N.m (25 kgf.cm, 22 in.lbf)

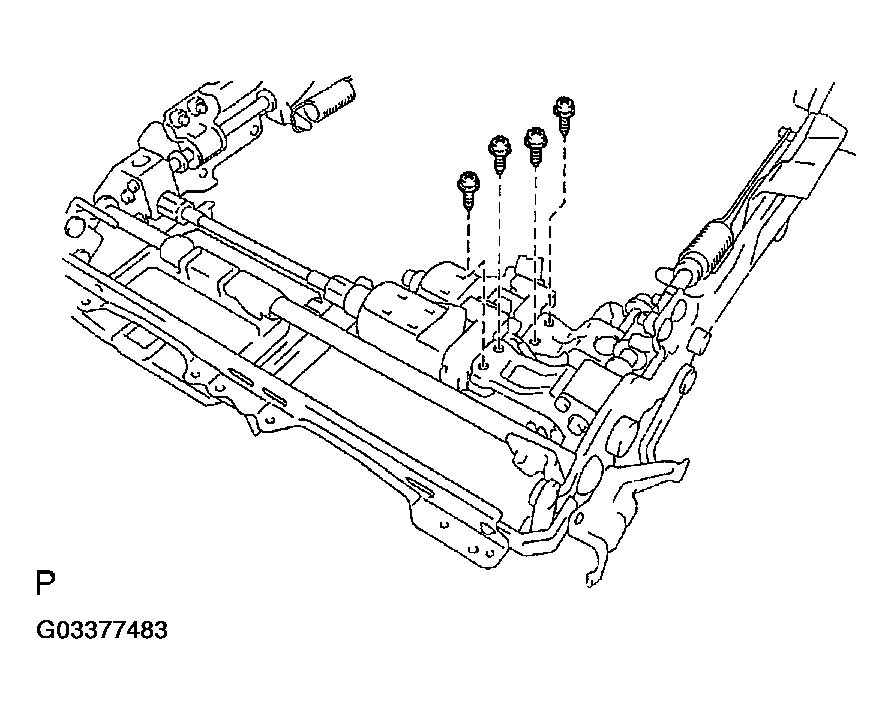

    Fig 4: Installing Tilt Motor
    G03377483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL RECLINING MOTOR
    1. Install the reclining motor with the 2 screws to the bracket.
    2. Install the reclining motor assembly with the 2 bolts.

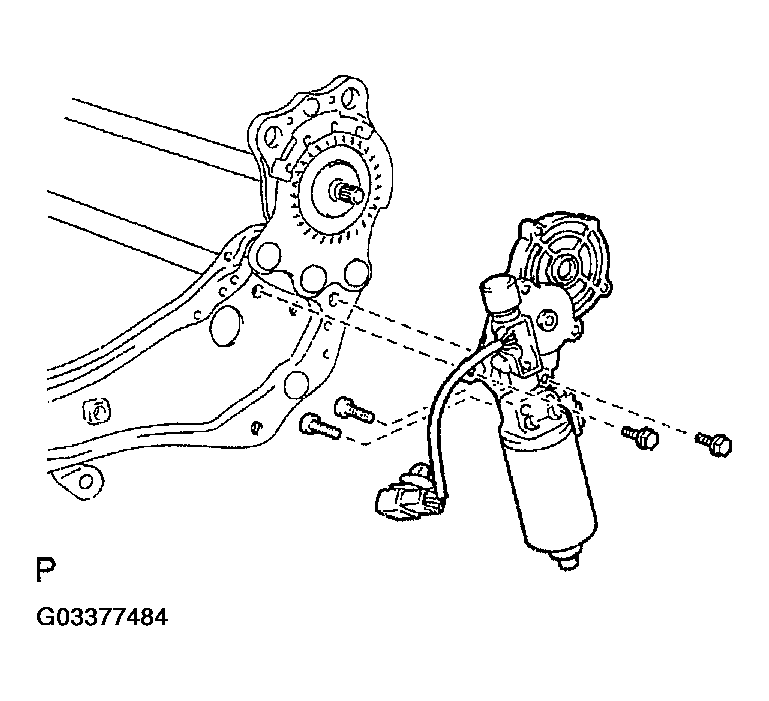

      Fig 5: Installing Reclining Motor
      G03377484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL POWER RECLINING ADJUSTER ASSEMBLY

    Using a torx socket wrench, install the power reclining adjuster assembly with the 4 torx screws.

    Torx socket wrench: T40 (Part No. 09042-00020 or locally manufactured tool)

    Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

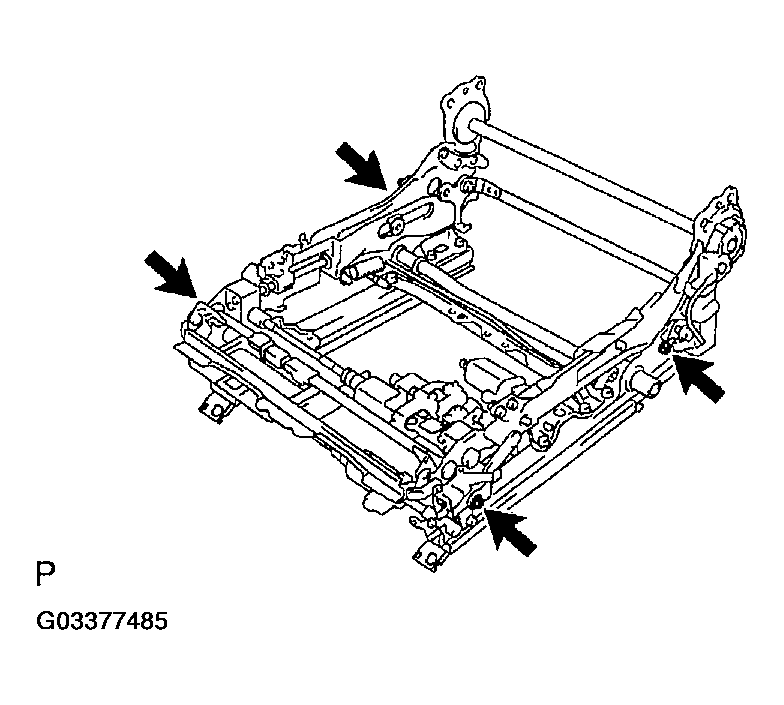

    Fig 6: Installing Power Reclining Adjuster Assembly
    G03377485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL RECLINING ADJUSTER INSIDE COVER
    1. Install the reclining adjuster inside cover with the screw.
    2. Employ the same manner described above to the other side.
  11. INSTALL SEAT CUSHION COVER

    Install the seat cushion cover with new hog rings to the seat cushion pad.

    HINT:

    When installing hog ring, take care to prevent wrinkles as much as possible.

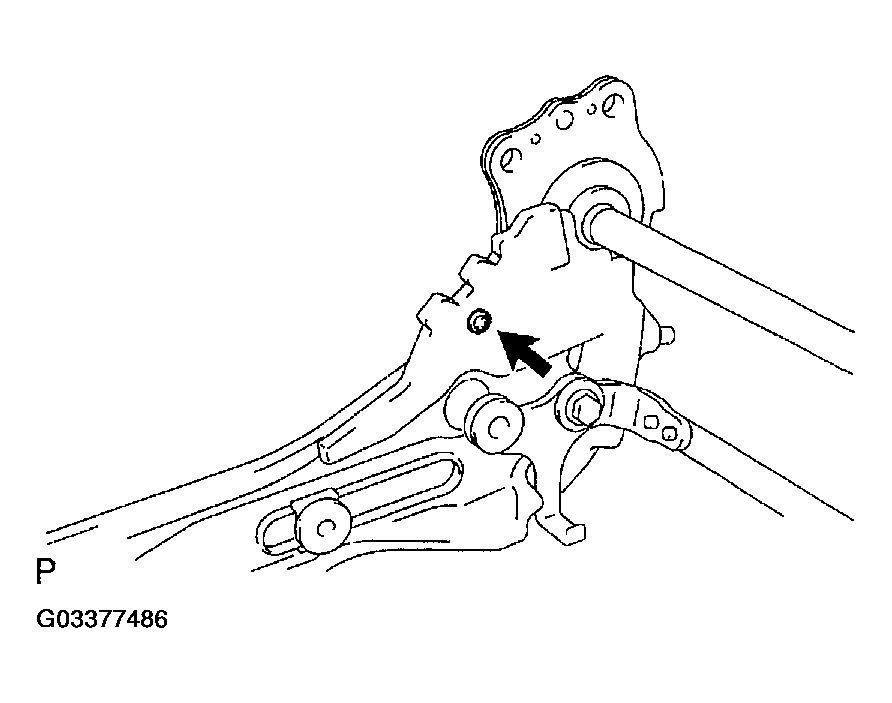

    Fig 7: Installing Reclining Adjuster Inside Cover
    G03377486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL SEAT CUSHION FRAME

    Set the seat cushion frame to the seat cushion cover with pad, then engage the seat cushion cover hooks.

  13. INSTALL SEAT CUSHION ASSEMBLY

    Install the seat cushion assembly with the 4 bolts.

    Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

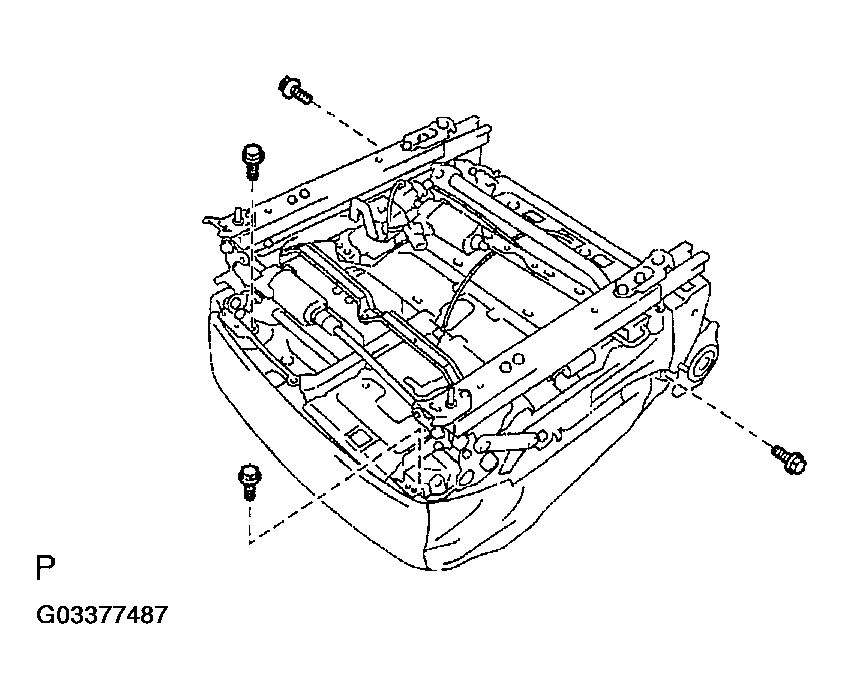

    Fig 8: Installing Seat Cushion Assembly
    G03377487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL LOWER SEAT CUSHION SHIELD

    Install the lower seat cushion shield with the 4 nuts.

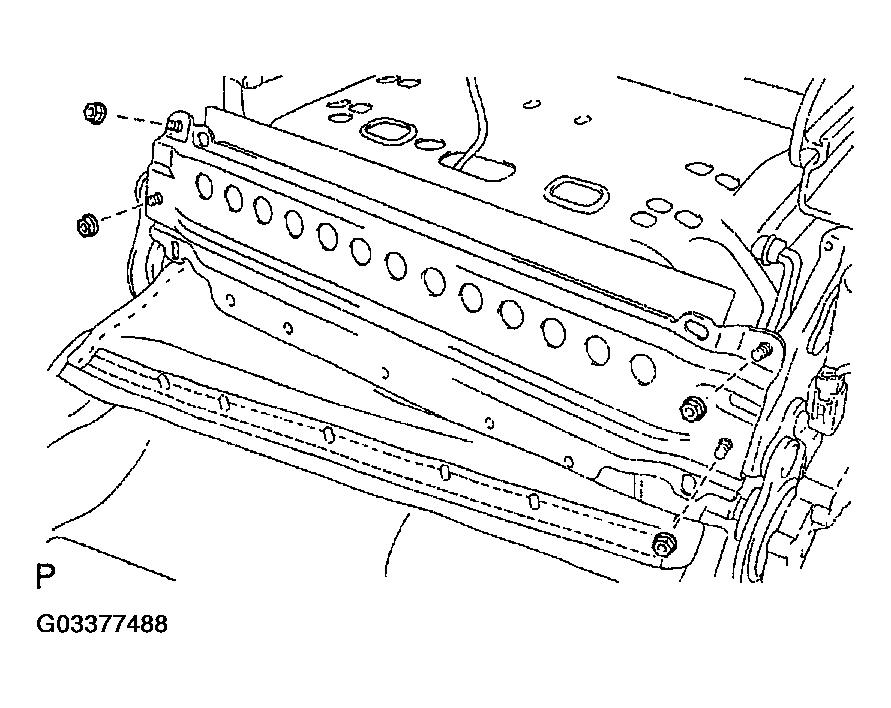

    Fig 9: Installing Lower Seat Cushion Shield
    G03377488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. Climate control seat: INSTALL AIR RESERVOIR ASSEMBLY
    1. Install the air reservoir assembly with the bolt.
    2. Connect the connectors and engage the connector clamps.
    3. Engage the seat cushion cover hook.

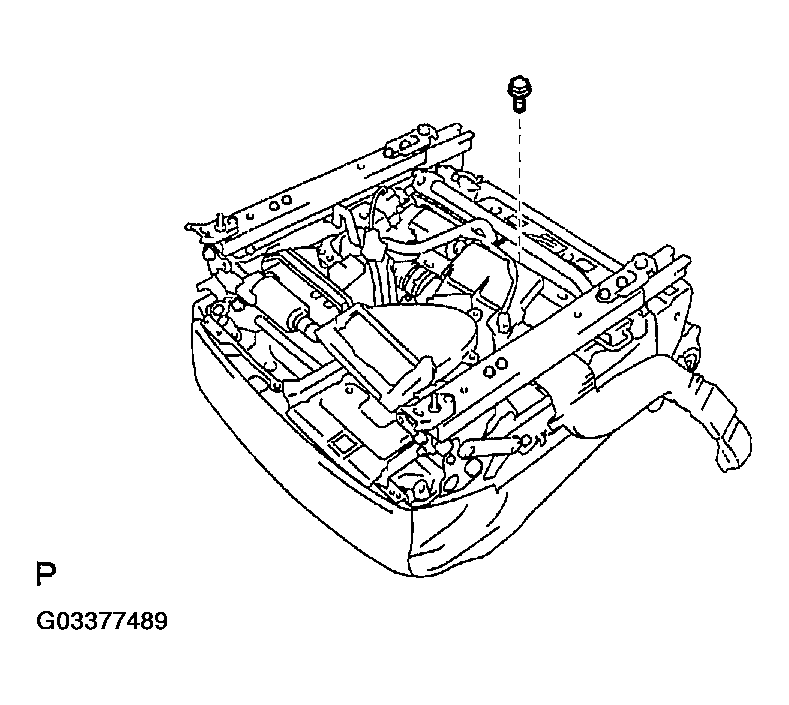

      Fig 10: Installing Climate Control Seat Air Reservoir Assembly
      G03377489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL LUMBER SUPPORT ADJUSTER
    1. Install the lumber support adjuster and spacer with the 2 bolts.

      Torque: 5.2 N.m (54 kgf.cm, 47 in.lbf)

    2. Employ the same manner described above to the other side.

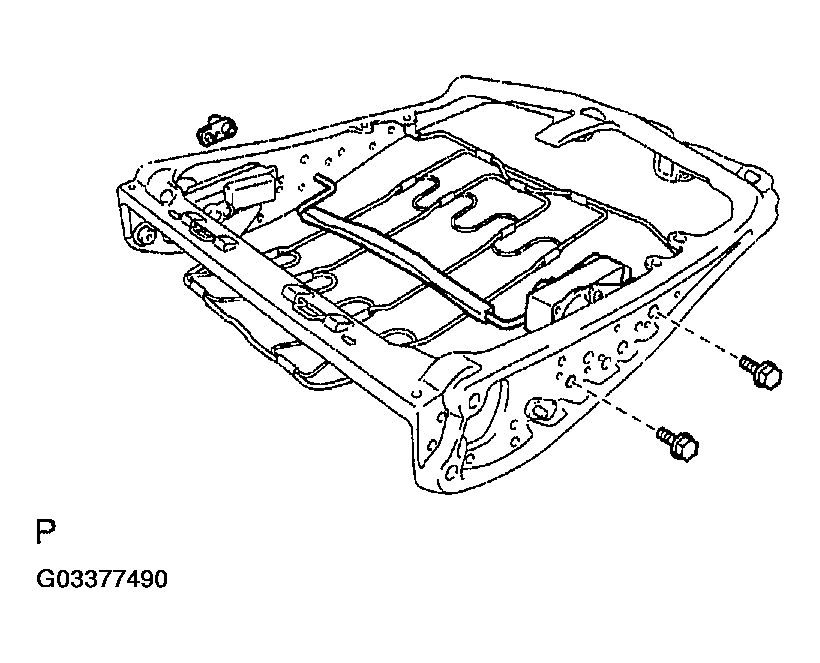

      Fig 11: Installing Lumber Support Adjuster
      G03377490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. Climate control seat: INSTALL AIR DUCT

    Install the air duct and bracket with the 2 screws to the seatback frame.

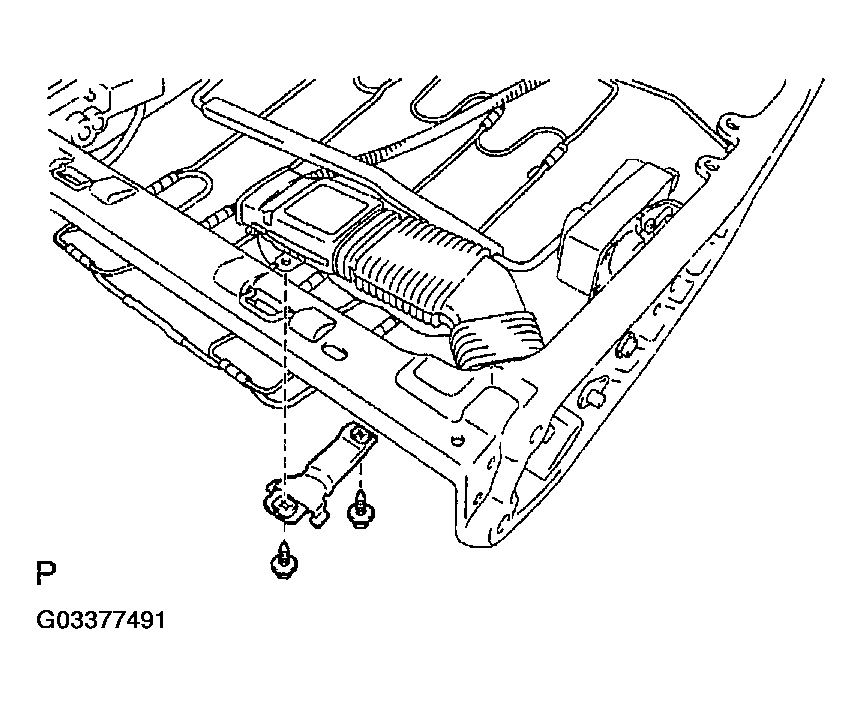

    Fig 12: Installing Climate Control Seat Air Duct
    G03377491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL HEADREST ADJUSTER
    1. Install the headrest adjuster with the 3 bolts to the seat-back frame.

      Torque: 5.2 N.m (54 kgf.cm, 47 in.lbf)

    2. Engage the connector clamps.
  19. INSTALL SEATBACK COVER

    Install the seatback cover with now hog rings to the seatback pad.

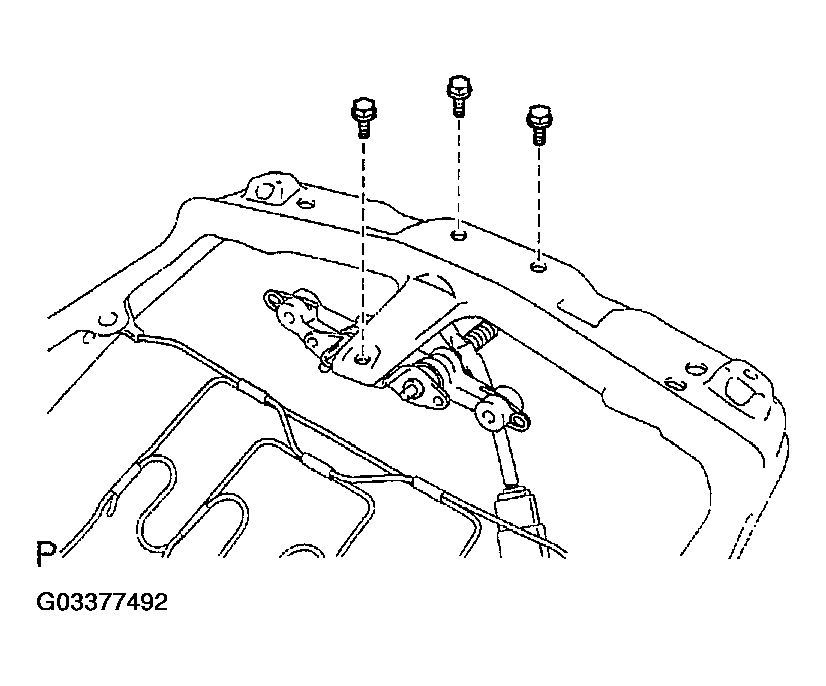

    Fig 13: Installing Headrest Adjuster
    G03377492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SEATBACK FRAME
    1. Install the seatback frame to the seatback cover with pad.
    2. Install the seatback cover hook with the bolt.

      Torque: 5.2 N.m (54 kgf.cm, 47 in.lbf)

      NOTE: Do not damage the side airbag assembly.
  21. INSTALL HEADREST SUPPORTS
  22. INSTALL HEADREST

    Install the headrest to the seatback assembly.

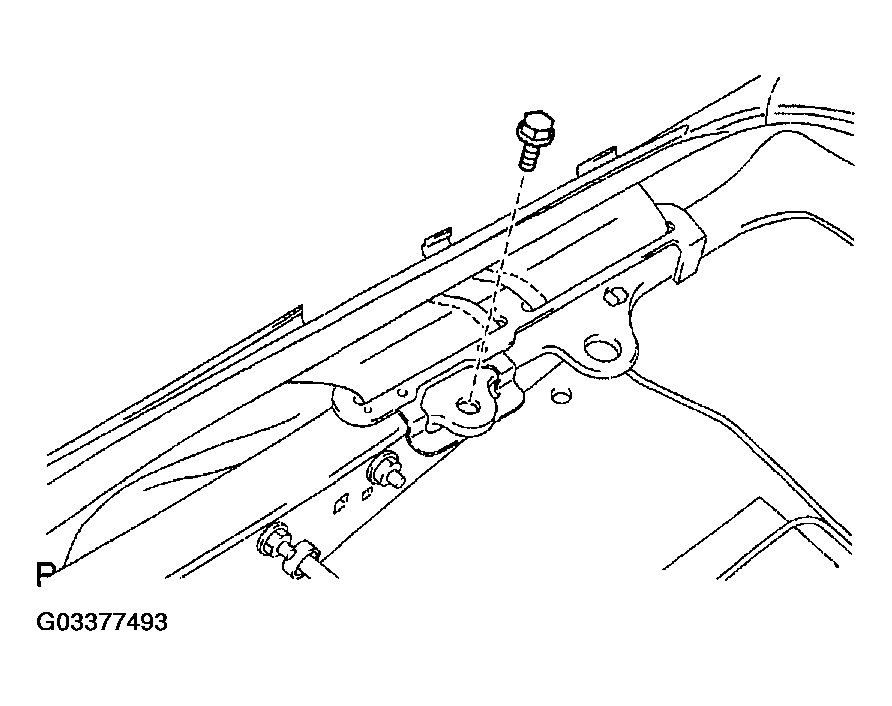

    Fig 14: Installing Seatback Frame
    G03377493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL SEATBACK ASSEMBLY
    1. Install the seatback assembly with the 4 bolts.

      Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

    2. Connect the connectors and engage the clamps.
    3. Climate control seat: Connect the air duct and install it with the 3 screws.

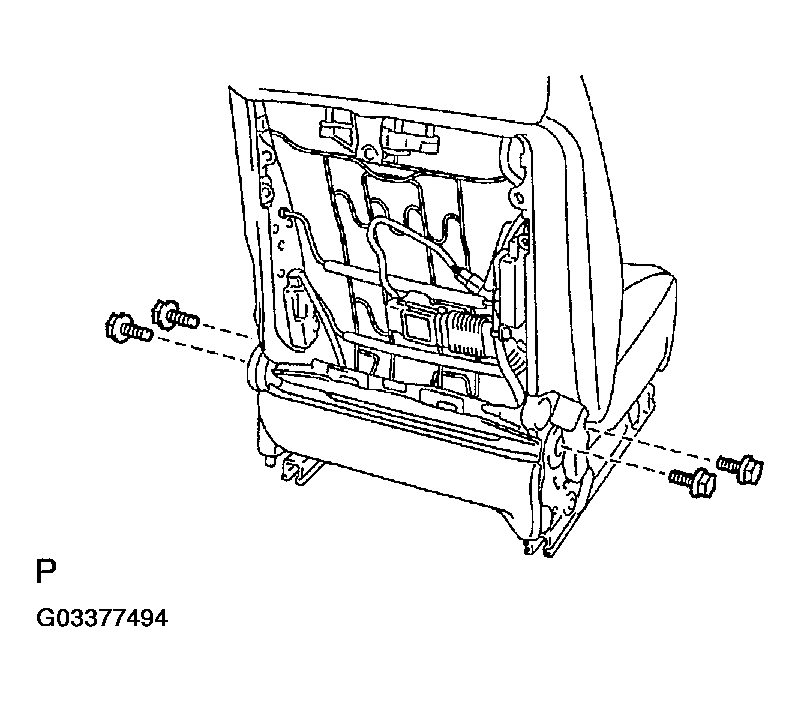

      Fig 15: Installing Seatback Assembly
      G03377494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL SEATBACK BOARD

    Install the seatback board as shown in the illustration, then install the 2 screws.

  25. INSTALL POWER SEAT SWITCH

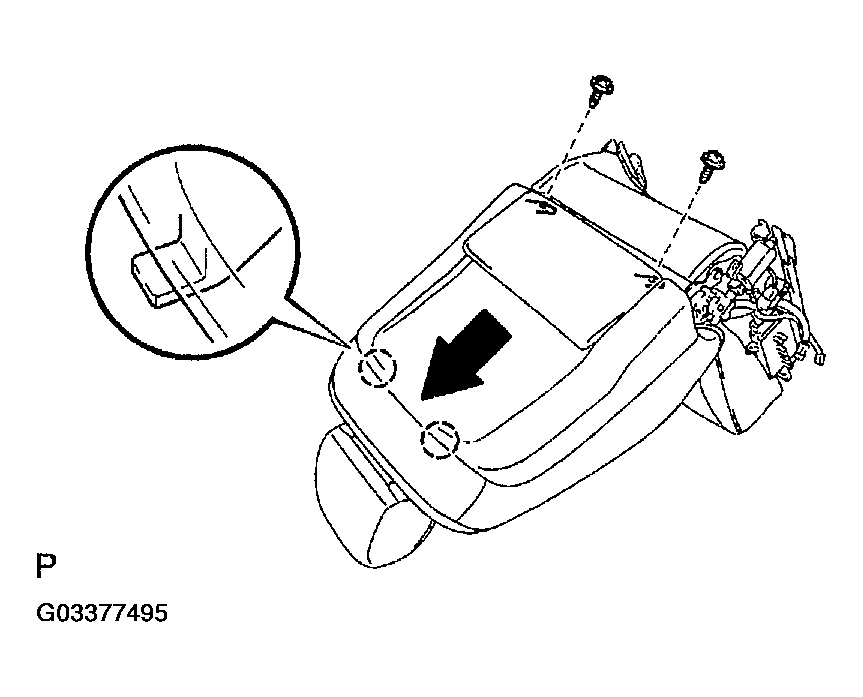

    Fig 16: Installing Seatback Board
    G03377495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT SEAT CUSHION FRONT SHIELD

    Slide the front seat cushion front shield rearward, then install it with the 4 screws.

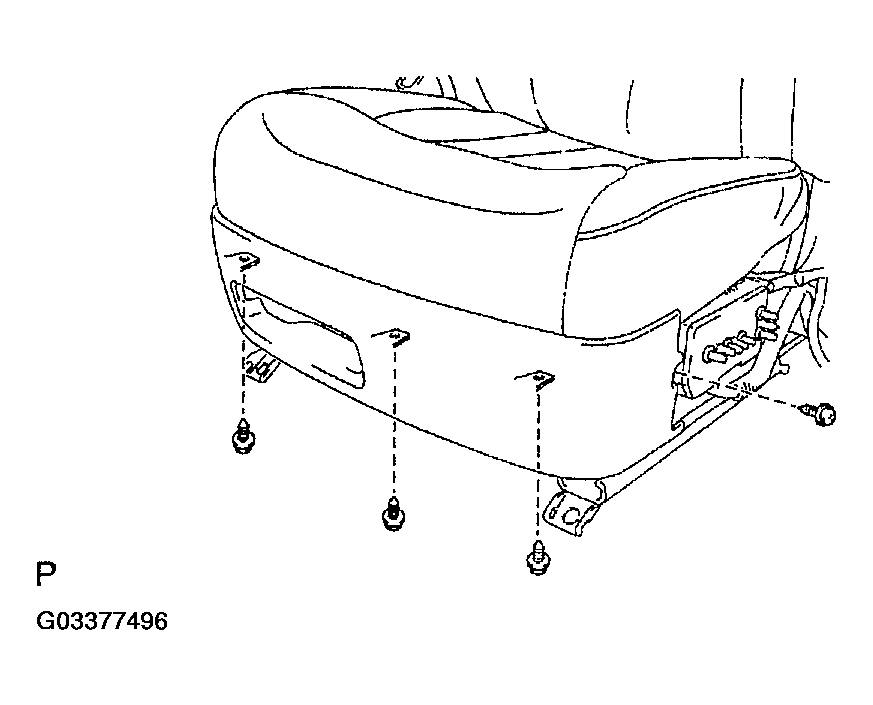

    Fig 17: Installing Front Seat Cushion Front Shield
    G03377496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FRONT SEAT CUSHION INNER SHIELD

    Install the front seat cushion inner shield with the 3 screws.

  28. INSTALL FRONT SEAT INNER BELT

    Install the front seat inner belt with the nut.

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

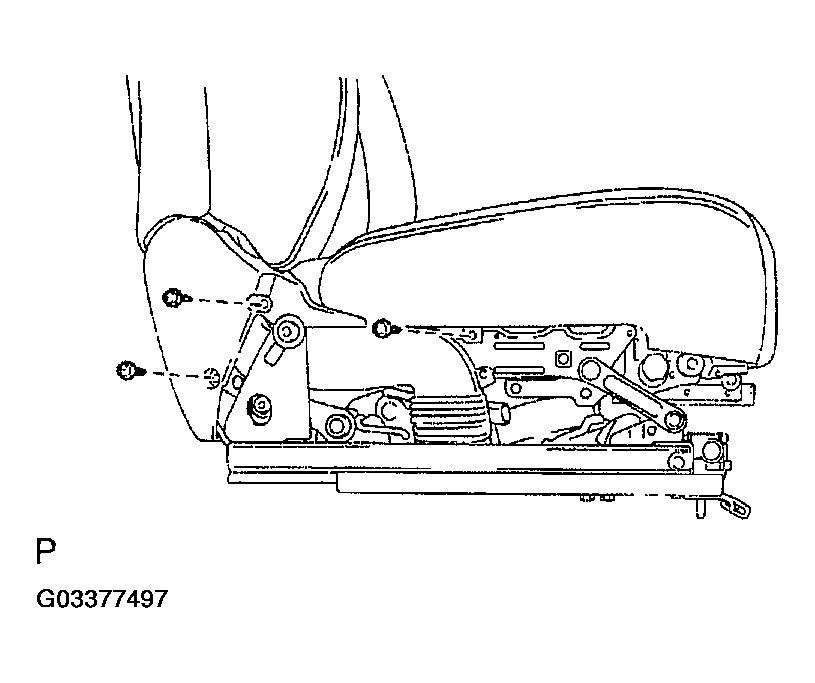

    Fig 18: Installing Front Seat Cushion Inner Shield
    G03377497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL FRONT SEAT HINGE COVER

    Install the front seat hinge cover with the 2 screws to the front seat cushion shield.

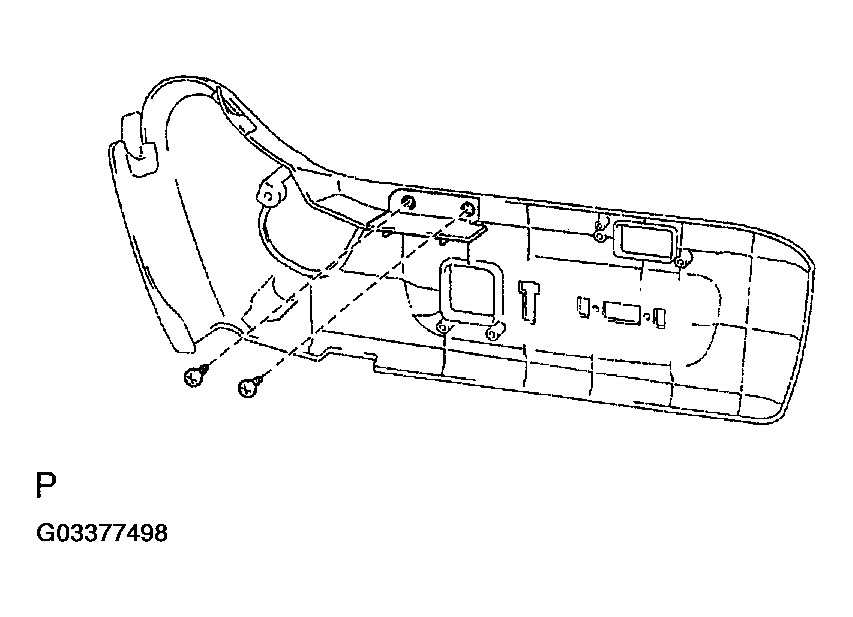

    Fig 19: Installing Front Seat Hinge Cover
    G03377498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL SEAT CUSHION SWITCH AND POWER LUMBER SUPPORT SWITCH
    1. Install the seat cushion switch with the 2 screws.
    2. Install the power lumber support switch with the 3 screws.
    3. Connect the connectors.

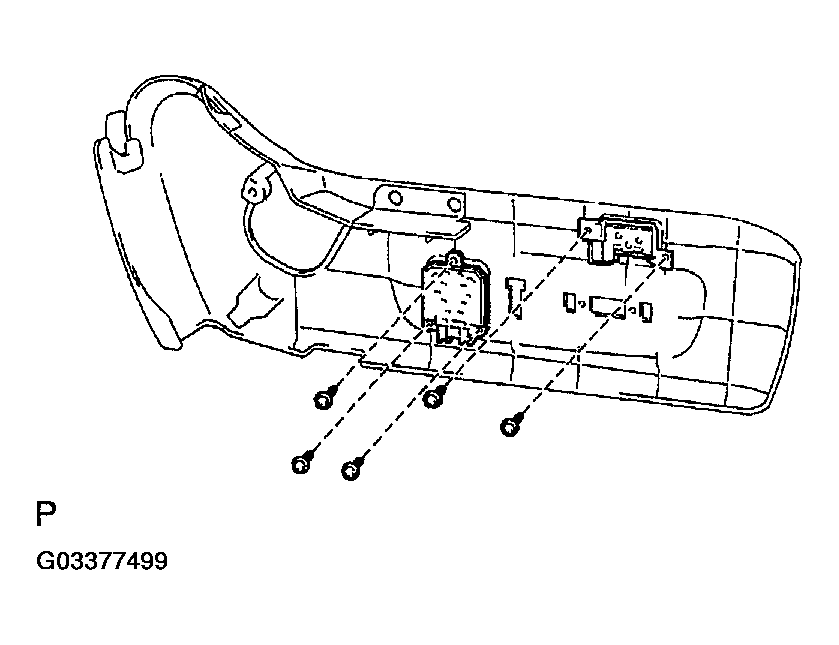

      Fig 20: Installing Seat Cushion Switch And Power Lumber Support Switch
      G03377499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT SEAT CUSHION SHIELD

    Install the front seat cushion shield with the 4 screws.

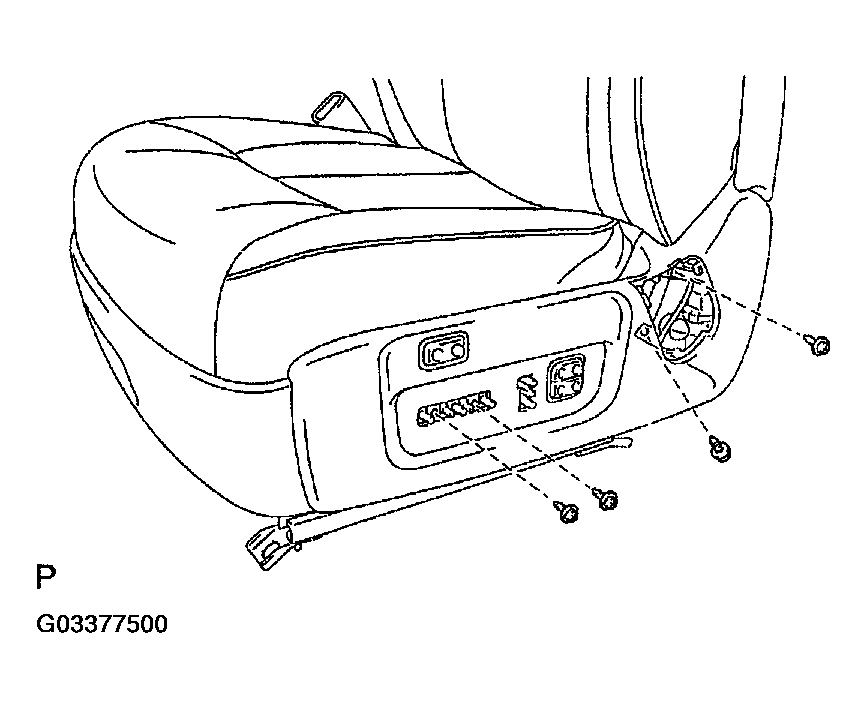

    Fig 21: Installing Front Seat Cushion Shield
    G03377500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL SEAT POSITION SENSOR ASSEMBLY

    Install the seat position sensor assembly with a new bolt.

    Part No. : 90119-06871

    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

    NOTE:
    • Make sure the sensor assembly is installed with the specified torque.
    • If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
    • When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
    • After installation, shake the sensor assembly to check that there is no looseness.

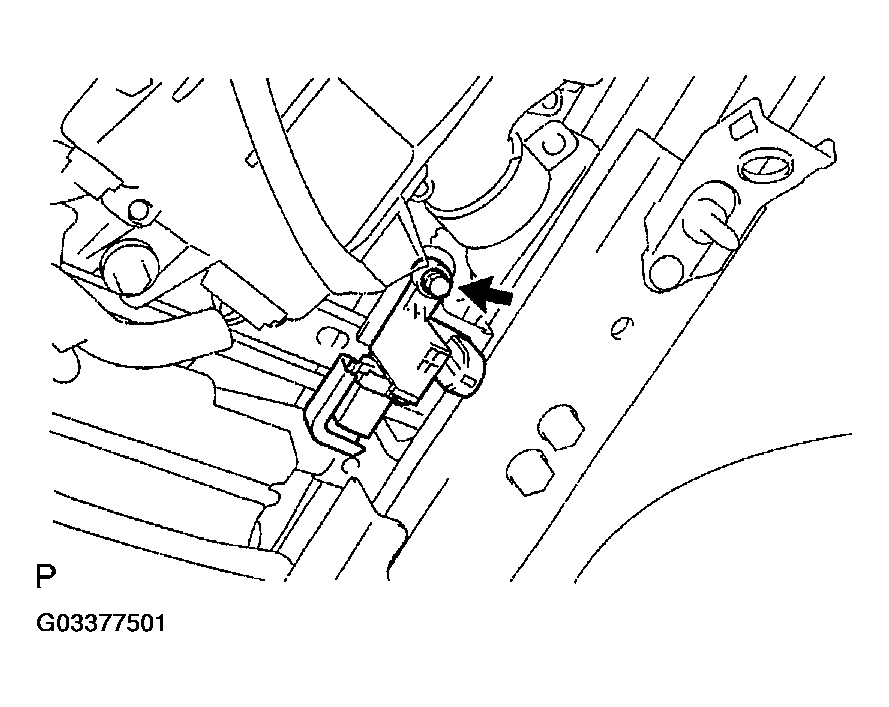

      Fig 22: Installing Seat Position Sensor Assembly
      G03377501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL POWER SEAT SWITCH KNOBS
  34. INSTALL FRONT SEAT UNDER TRAY RAIL
  35. INSTALL FRONT SEAT UNDER TRAY

    Install the front seat under tray with the 4 screws.
