Engine Exhaust Assembly: Components

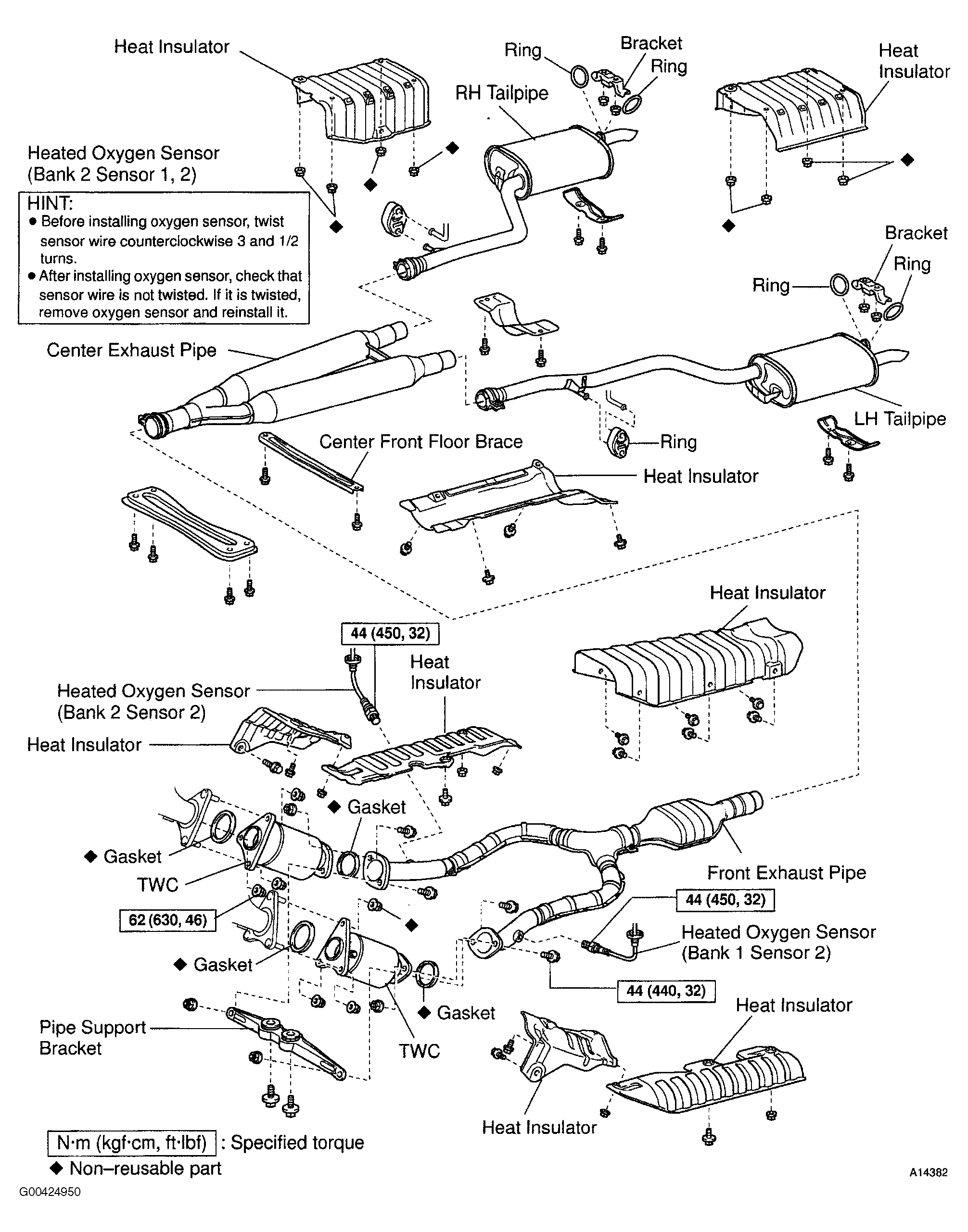

Fig 1: Exhaust System Components
G00424950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
