Engine Control Module Location

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Engine Control Module (ECM) is located behind passenger's side kick panel, just below instrument panel. See Fig 1.

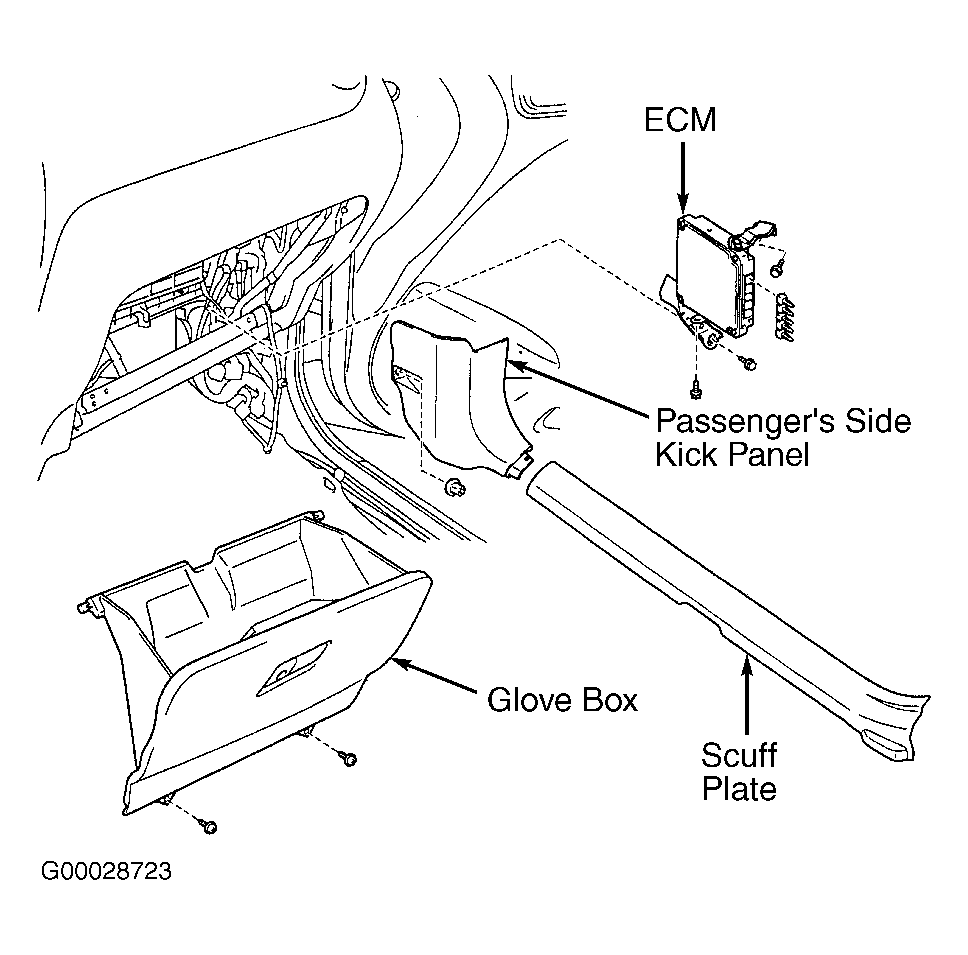

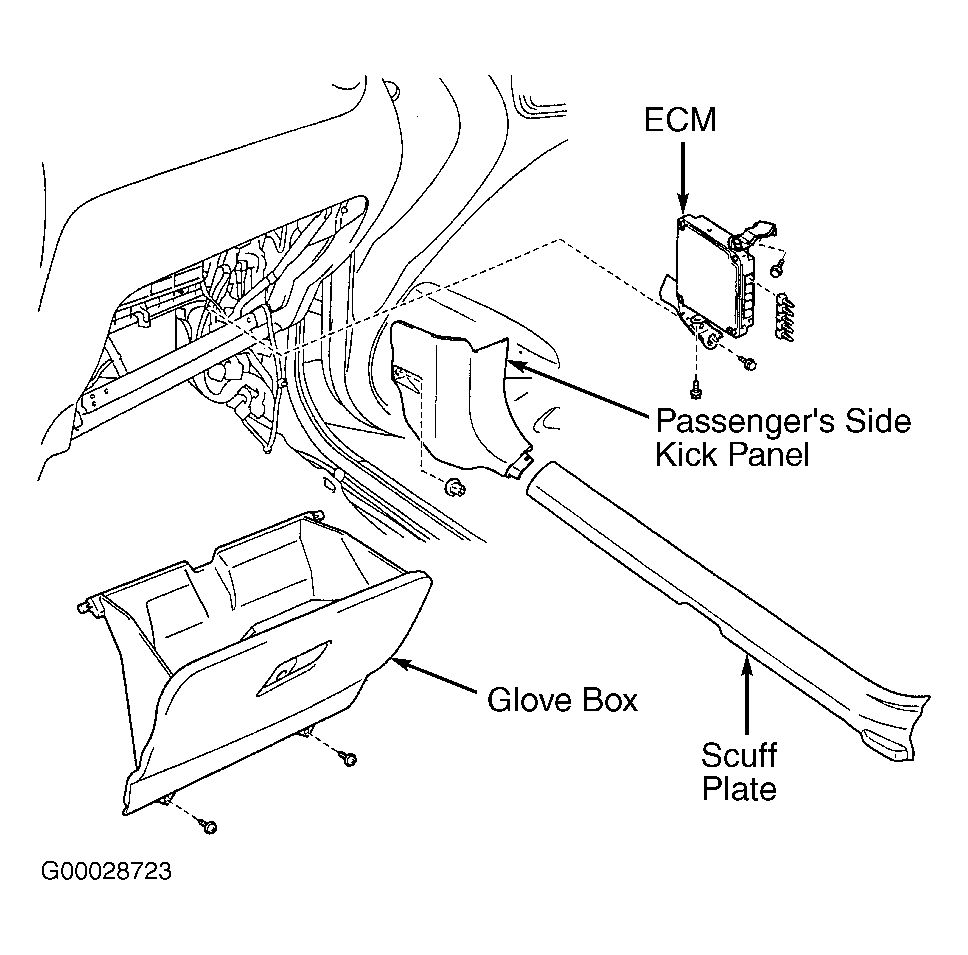

Fig 1: Locating Engine Control Module
G00028723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
