Catalyst Monitor & Drive Cycle Pattern

WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1.

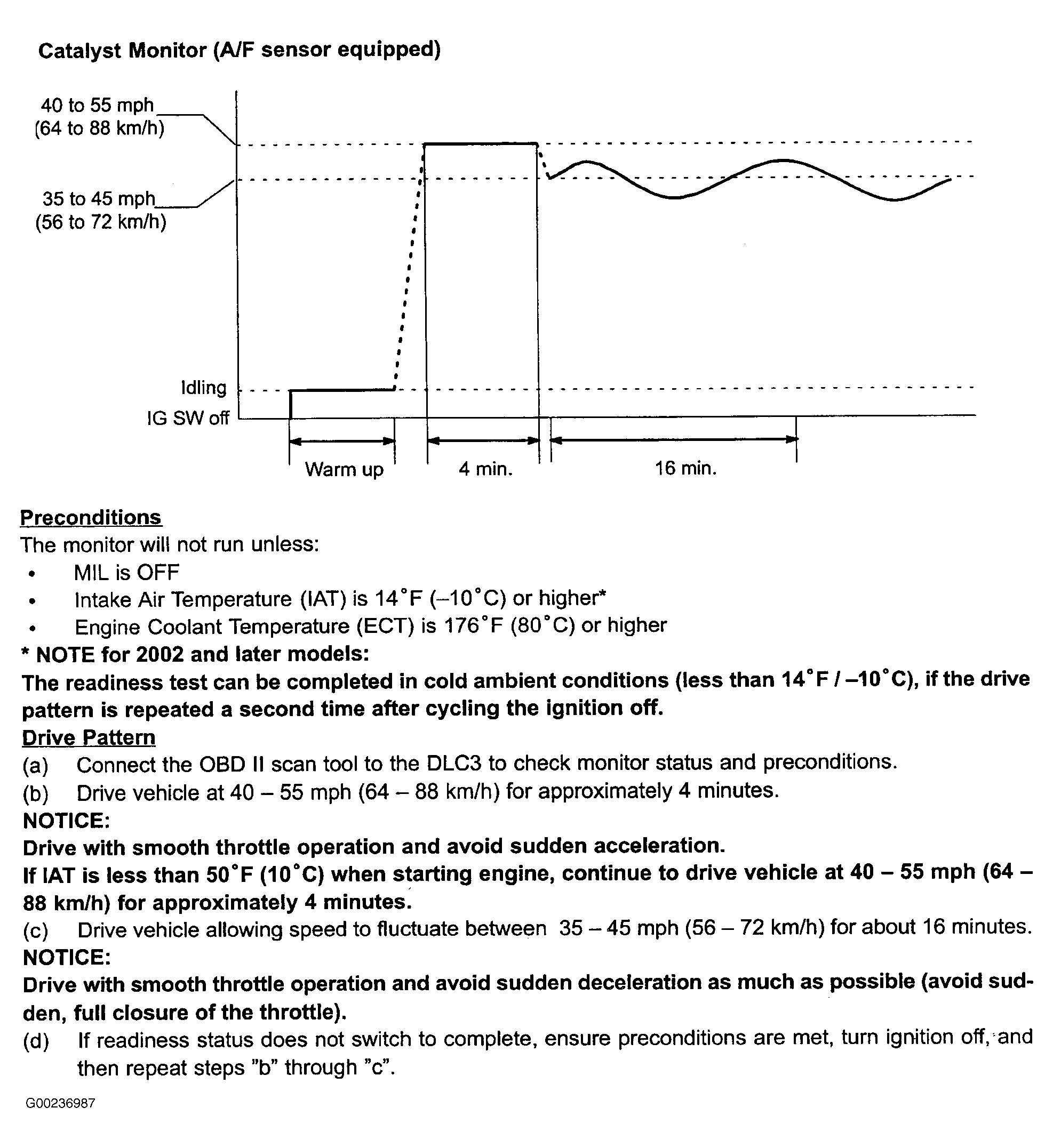

Fig 1: Catalyst Monitor & Drive Cycle Pattern
G00236987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
