Horn Relay
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition off. Remove horn relay. Horn relay is located in engine compartment junction block at left side of engine compartment, in front of shock tower.

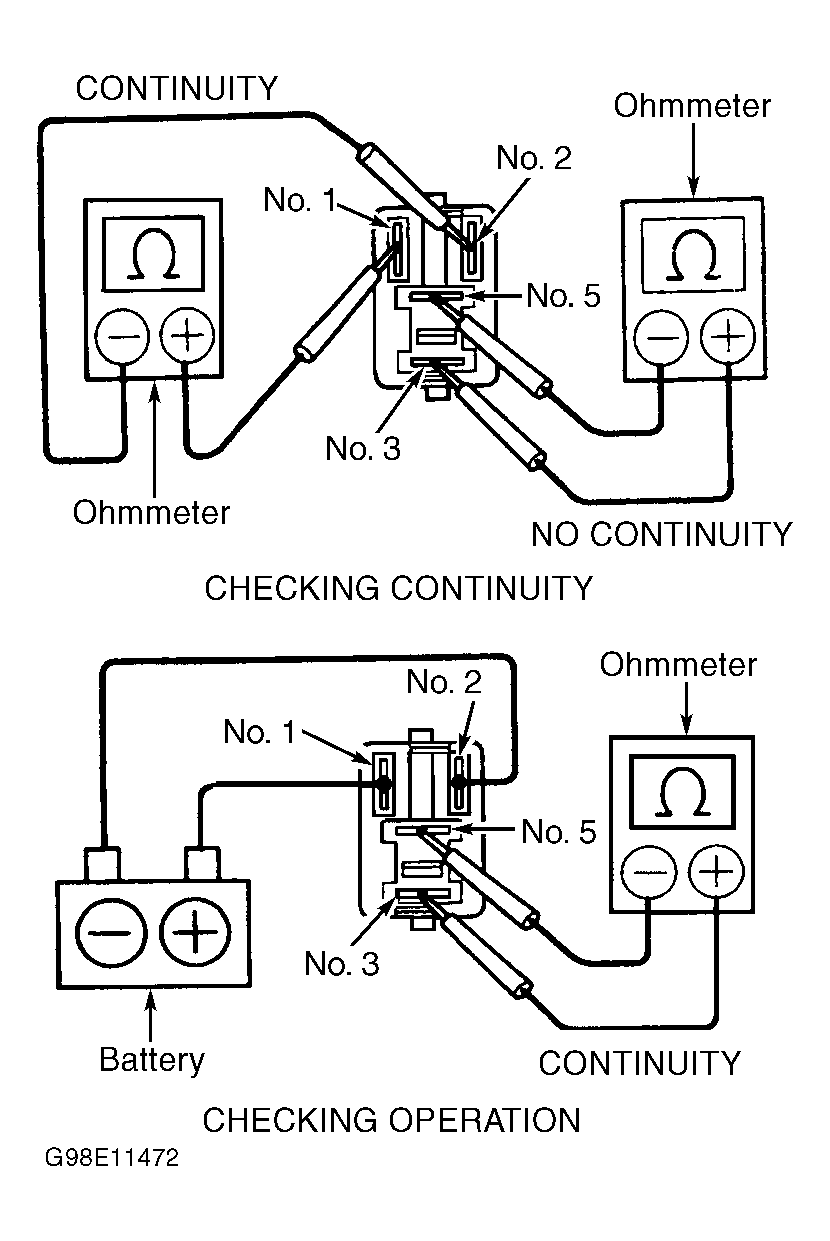

- Note identification of electrical terminals on horn relay. See Fig 1. Using ohmmeter, check that continuity exists between terminals No. 1 and 2 on horn relay and that no continuity exists between terminals No. 3 and 5 on horn relay.
- Using jumper wires, apply battery voltage and ground to terminals No. 1 and 2 on horn relay. Check that continuity now exists between terminals No. 3 and 5 on horn relay. See Fig 1. If continuity is not as specified, replace horn relay.
