Data Link Connector

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

OBD-II regulations (SAE J-1962) standardizes configuration of Data Link Connector (DLC) No. 3. DLC No. 3 is located at driver's side of instrument panel. See Fig 1.

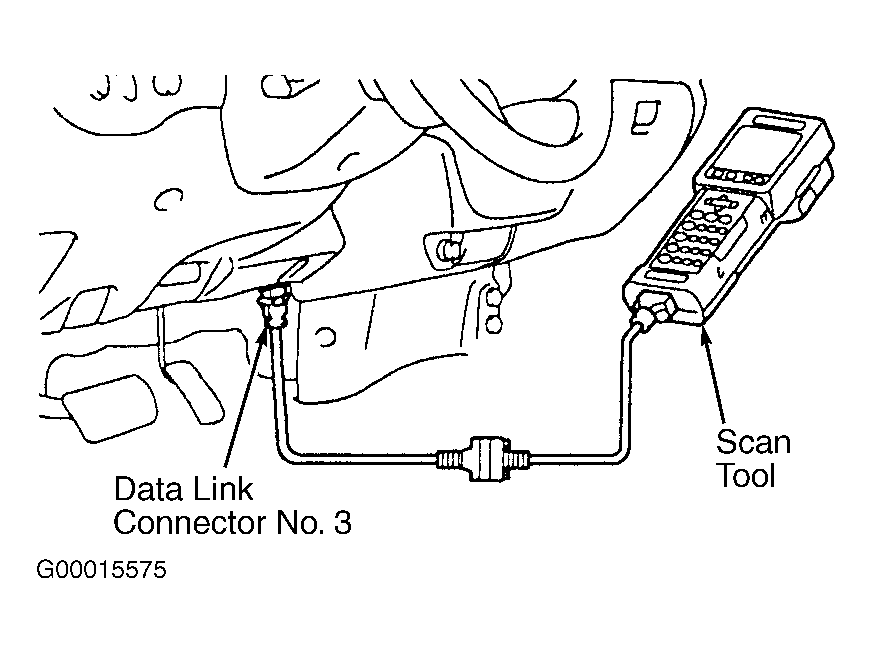

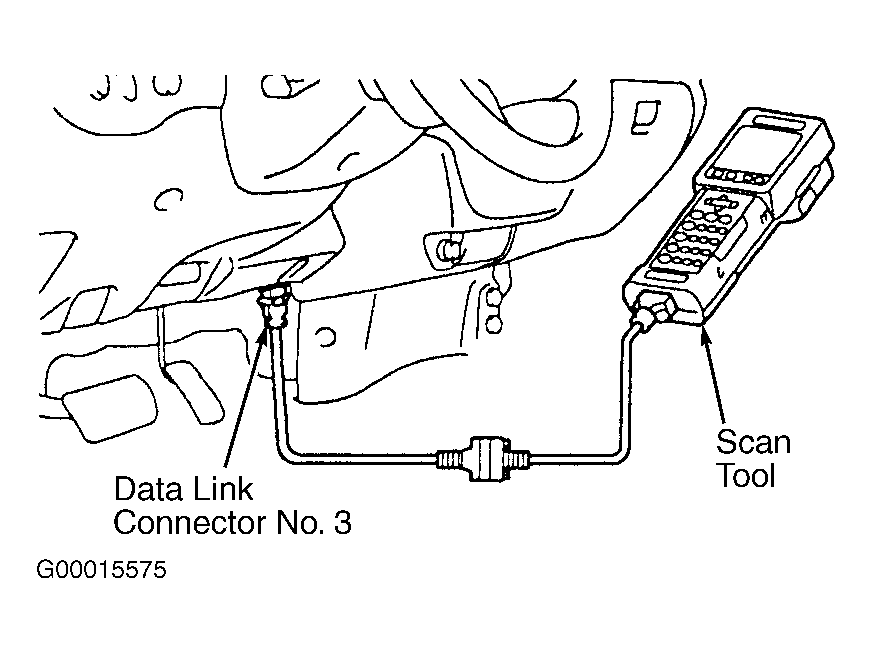

Fig 1: Locating Data Link Connector No. 3
G00015575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
