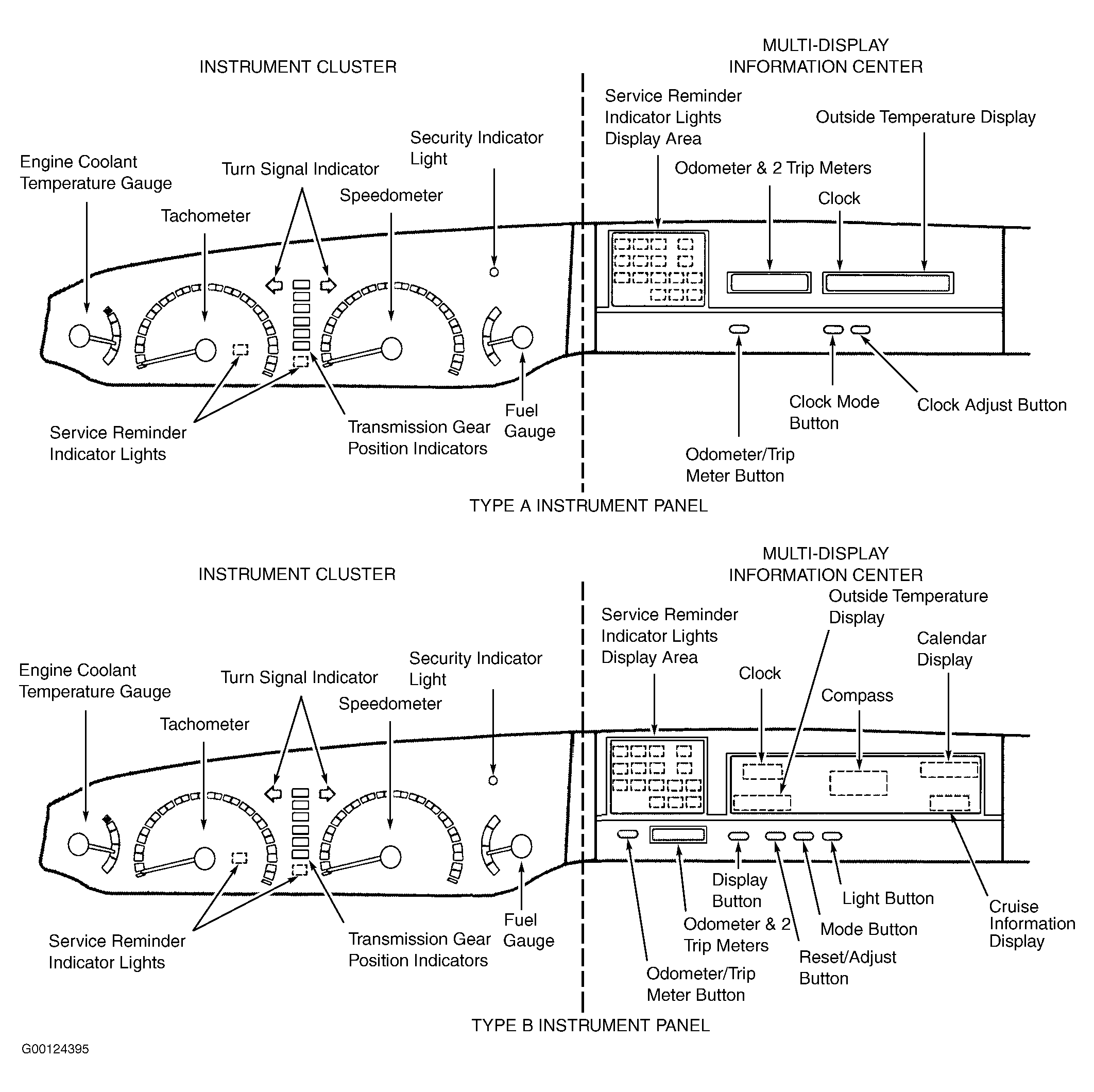

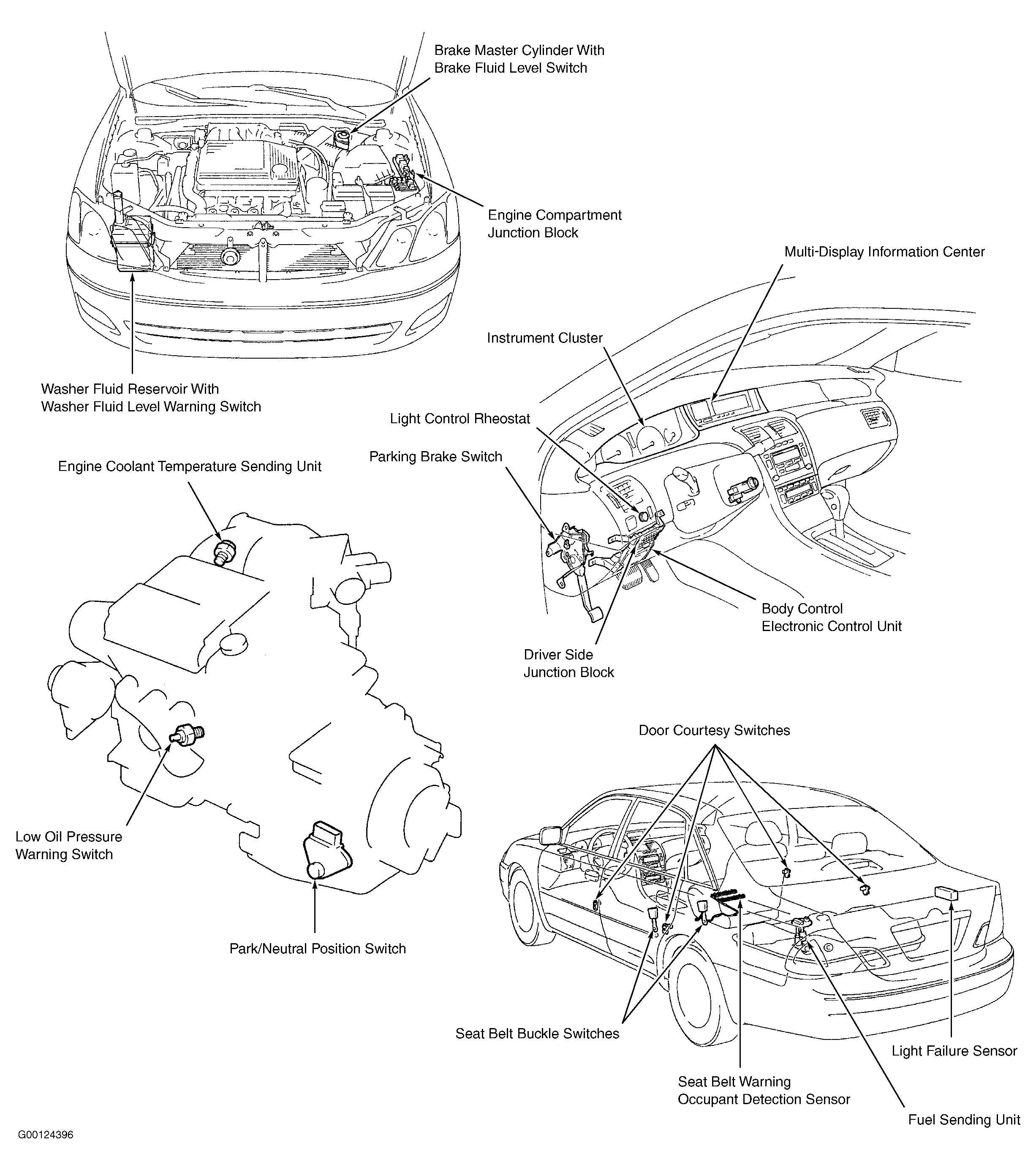

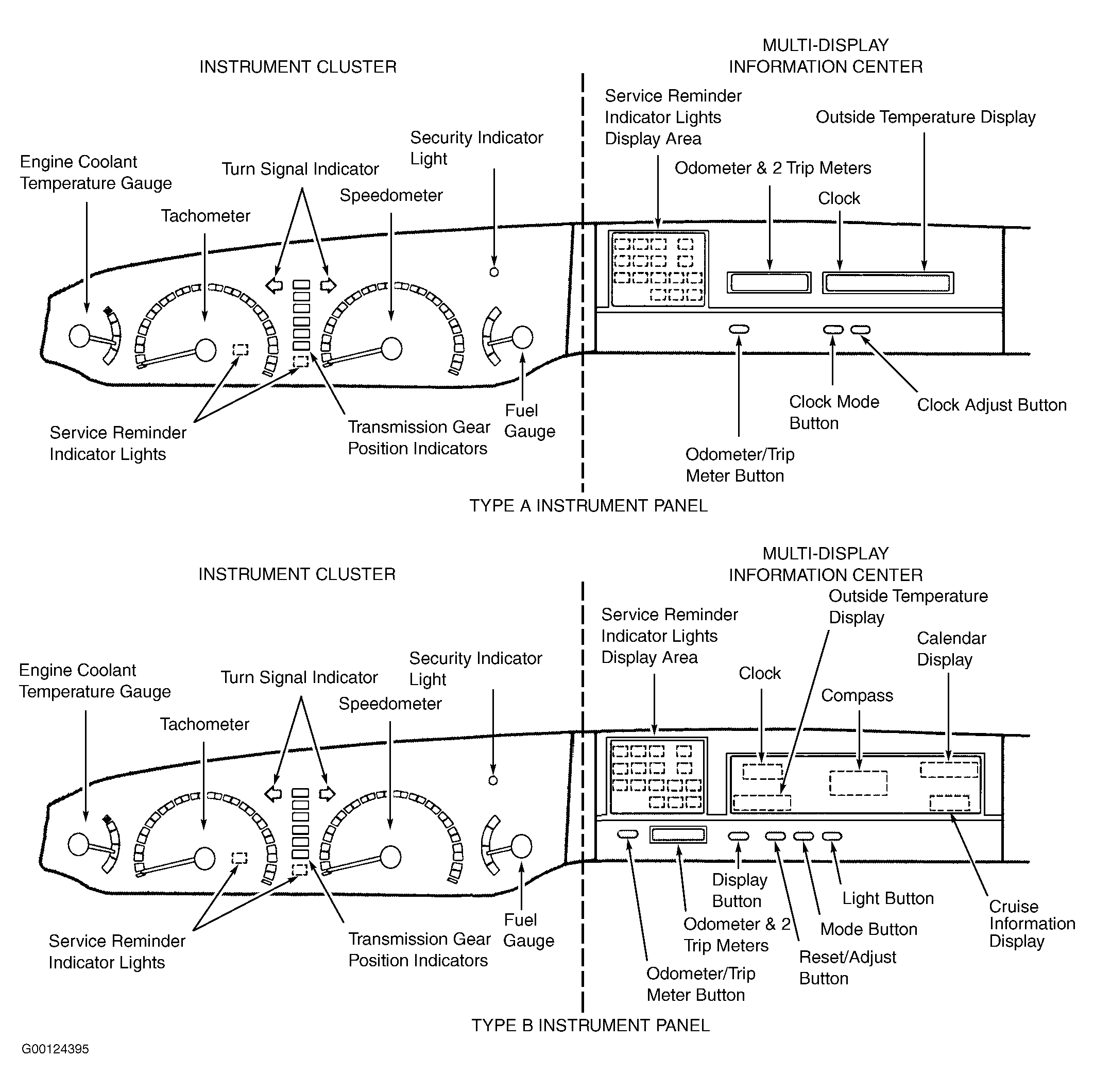

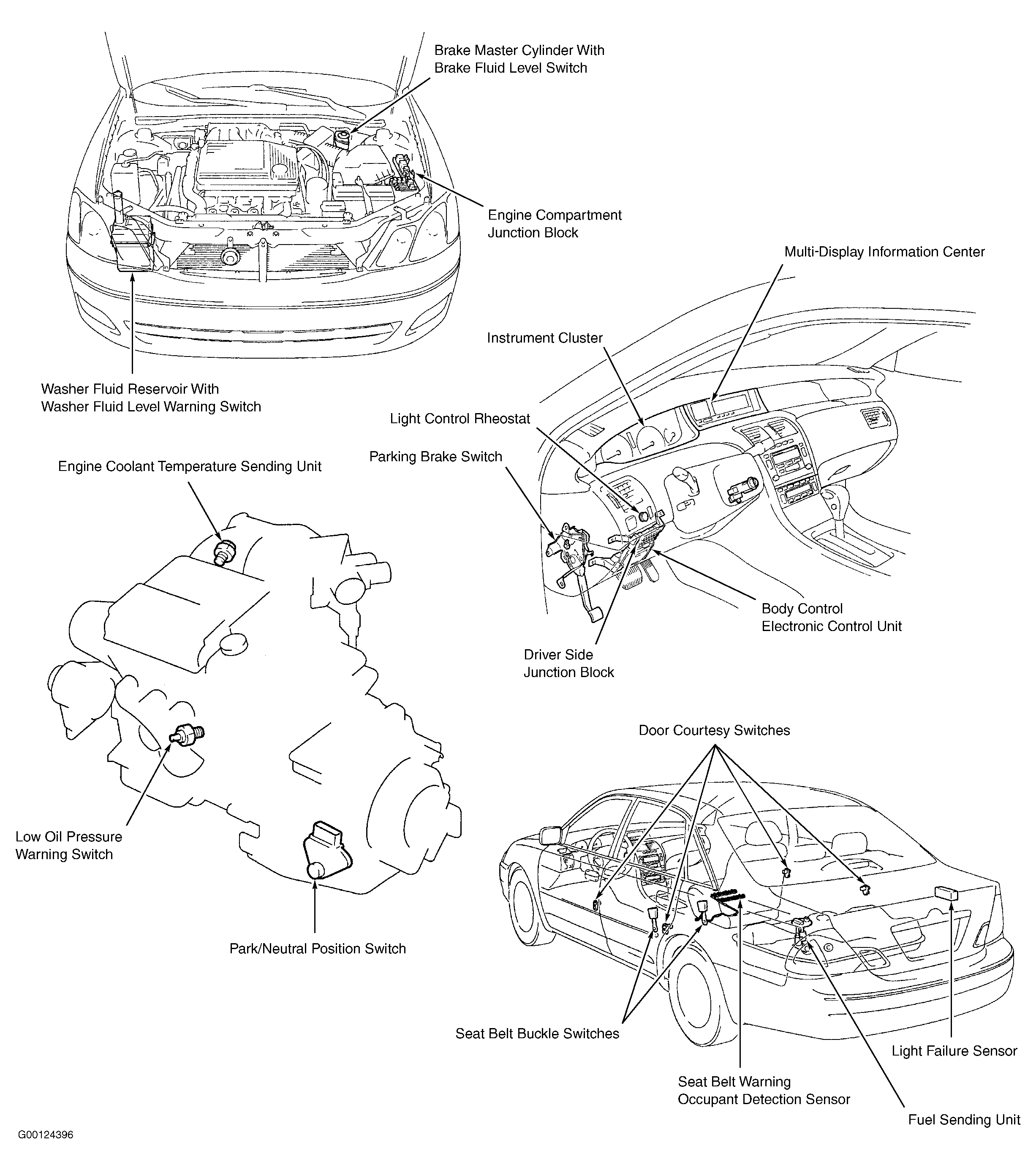

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Active Light Relay | Behind Left Side Of Instrument Panel |
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block |
| Brake Fluid Level Switch | On Brake Master Cylinder Reservoir |
| Door Courtesy Switch | In Door Pillar Post |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| ECU-ACC Fuse | Driver Side Junction Block |
| ECU-B Fuse | Driver Side Junction Block |
| ECU-IG No. 2 Fuse | Driver Side Junction Block |
| Engine Compartment Junction Block | Left Side Of Engine Compartment, In Front Of Shock Tower |
| Engine Control Module | Under Right Side Of Instrument Panel, Behind Kick Panel |
| Engine Coolant Temperature Sending Unit | On Top Of Engine Assembly |
| Fuel Sending Unit | Incorporated With Fuel Pump Assembly In Fuel Tank |
| Gauge No. 1 Fuse | Driver Side Junction Block |
| IG-2 Relay | Engine Compartment Junction Block |
| Light Control Rheostat | Incorporated Into Heating & Ventilation Register On Left Side Of Instrument Panel |
| Light Failure Sensor | Right Rear Corner Of Luggage Compartment |
| Low Oil Pressure Warning Switch | On Left Side Of Engine Assembly |
| Overdrive Switch | On Gearshift Lever |
| Panel Fuse | Driver Side Junction Block |
| Parking Brake Switch | Near Top Of Parking Brake Pedal |
| Park/Neutral Position Switch | On Left Side Of Transaxle |
| Radio Fuse | Driver Side Junction Block |
| Seat Belt Buckle Switch | In Buckle Of Each Front Seat Belt Assembly |
| Seat Belt Warning Occupant Detection Sensor | Under Passenger Seat |
