Instrument Panel: Notes

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

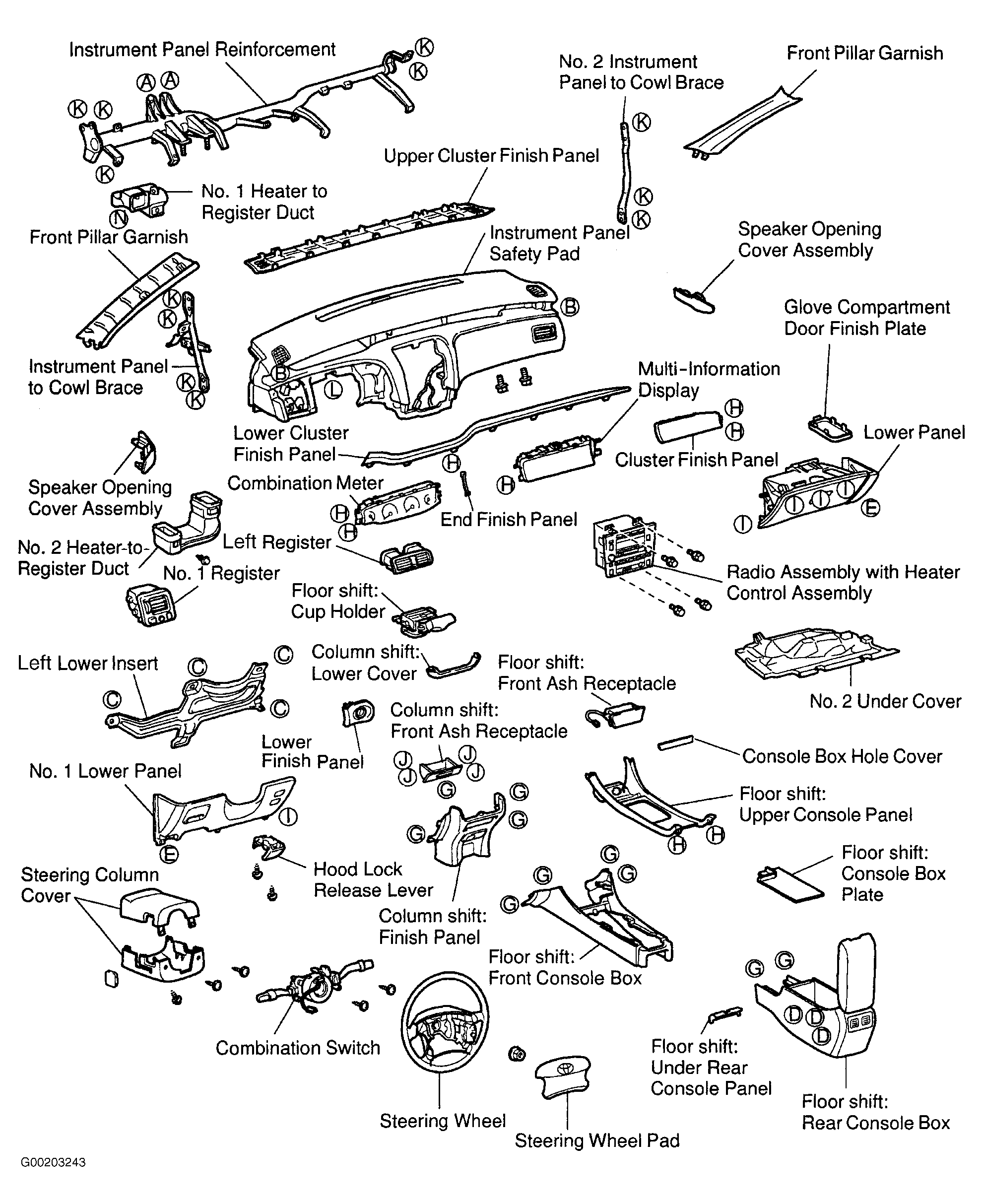

Fig 1: Exploded View Of Instrument Panel Components
G00203243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

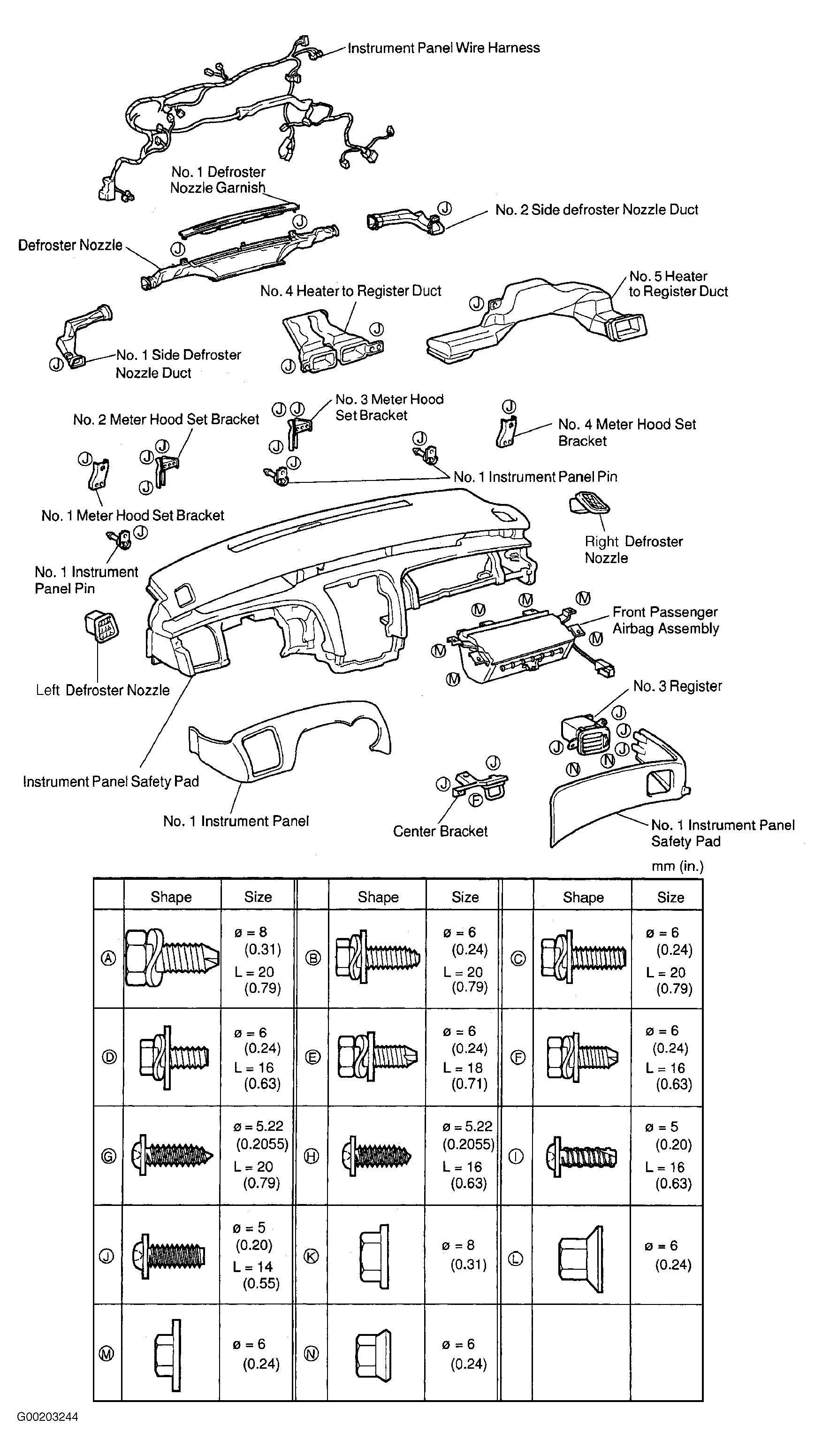

Fig 2: Disassembled View Of Instrument Panel
G00203244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
