Component Locations
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

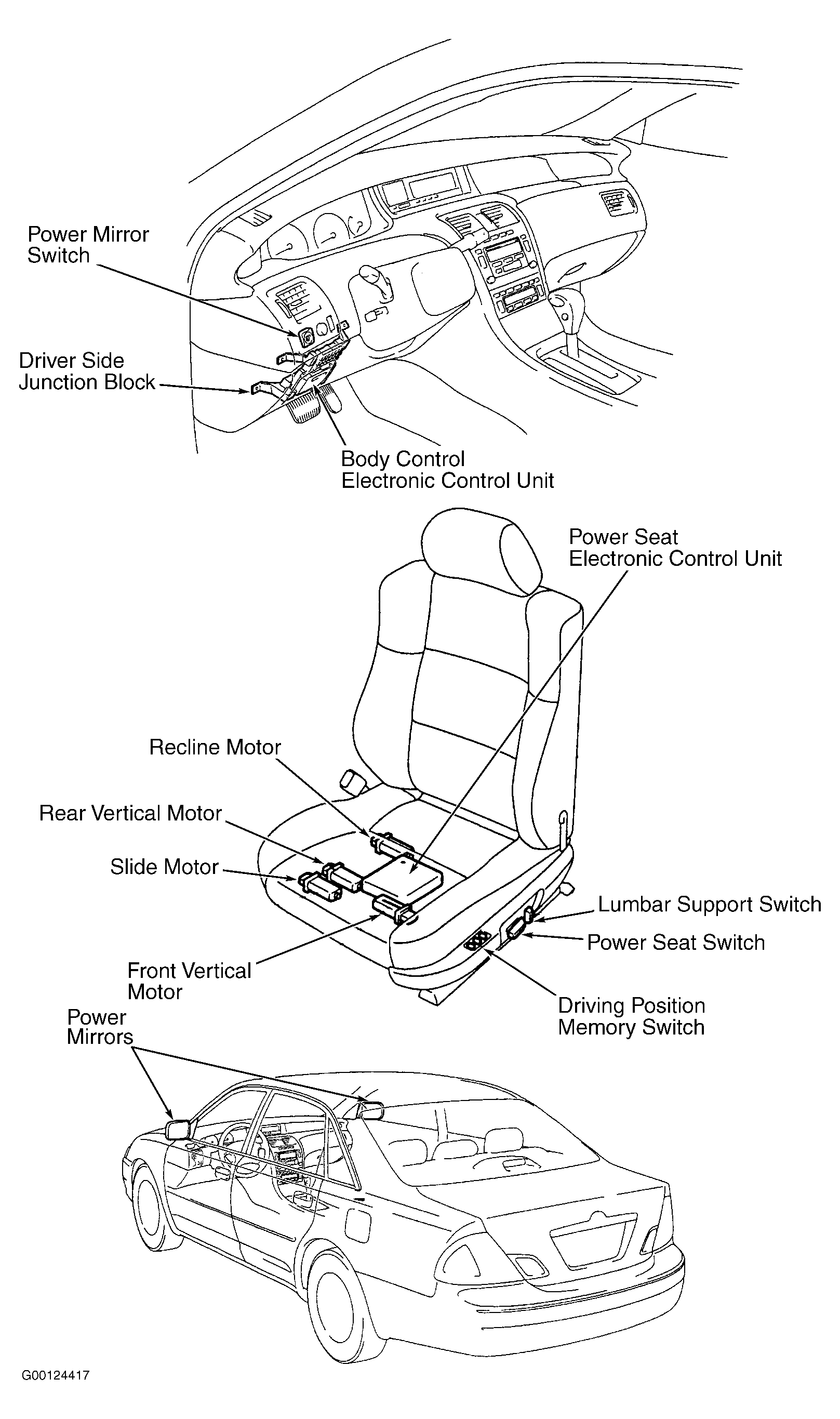

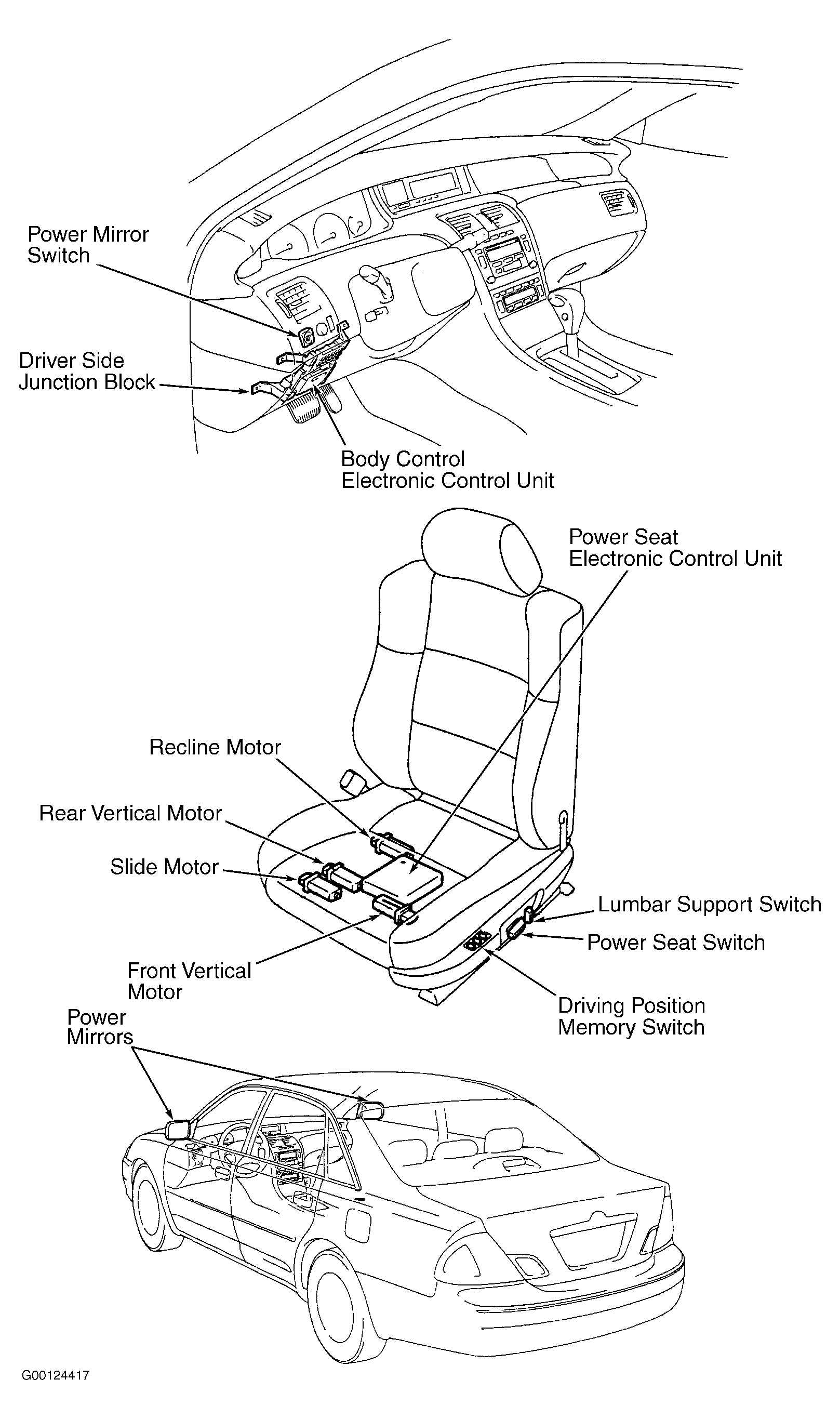

For power mirror component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block | ||
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column | ||
| Driving Position Memory Switch (1) | Front Left Side Of Driver Seat | ||
| Power Mirror Assembly | On Outside Of Each Front Door | ||
| Power Mirror Switch | Incorporated Into Heating & Ventilation Register On Left Side Of Instrument Panel | ||
| Power Seat Electronic Control Unit (1) | Under Center Of Driver Seat | ||
|
|||
