Power Mirror Switch
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

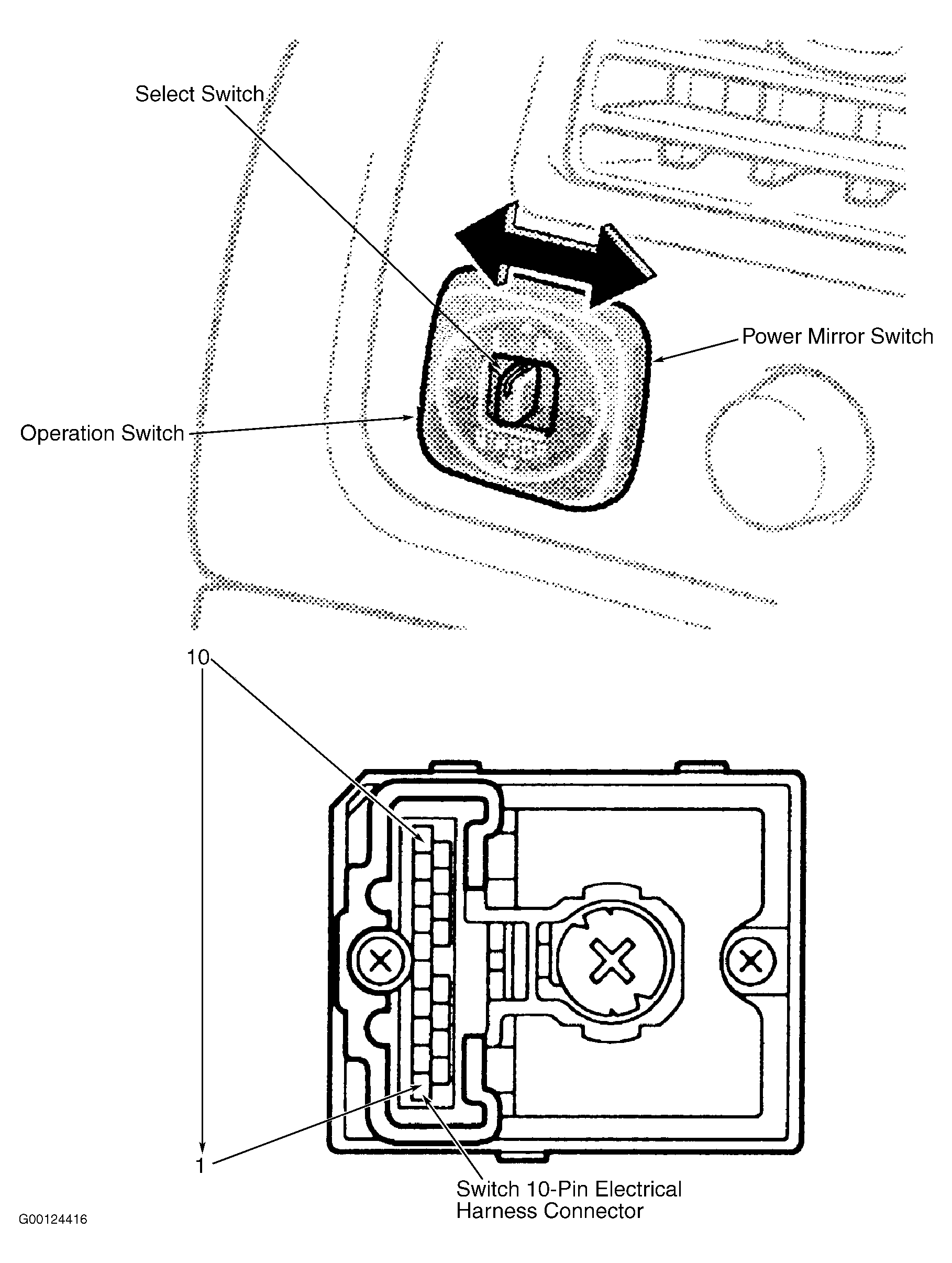

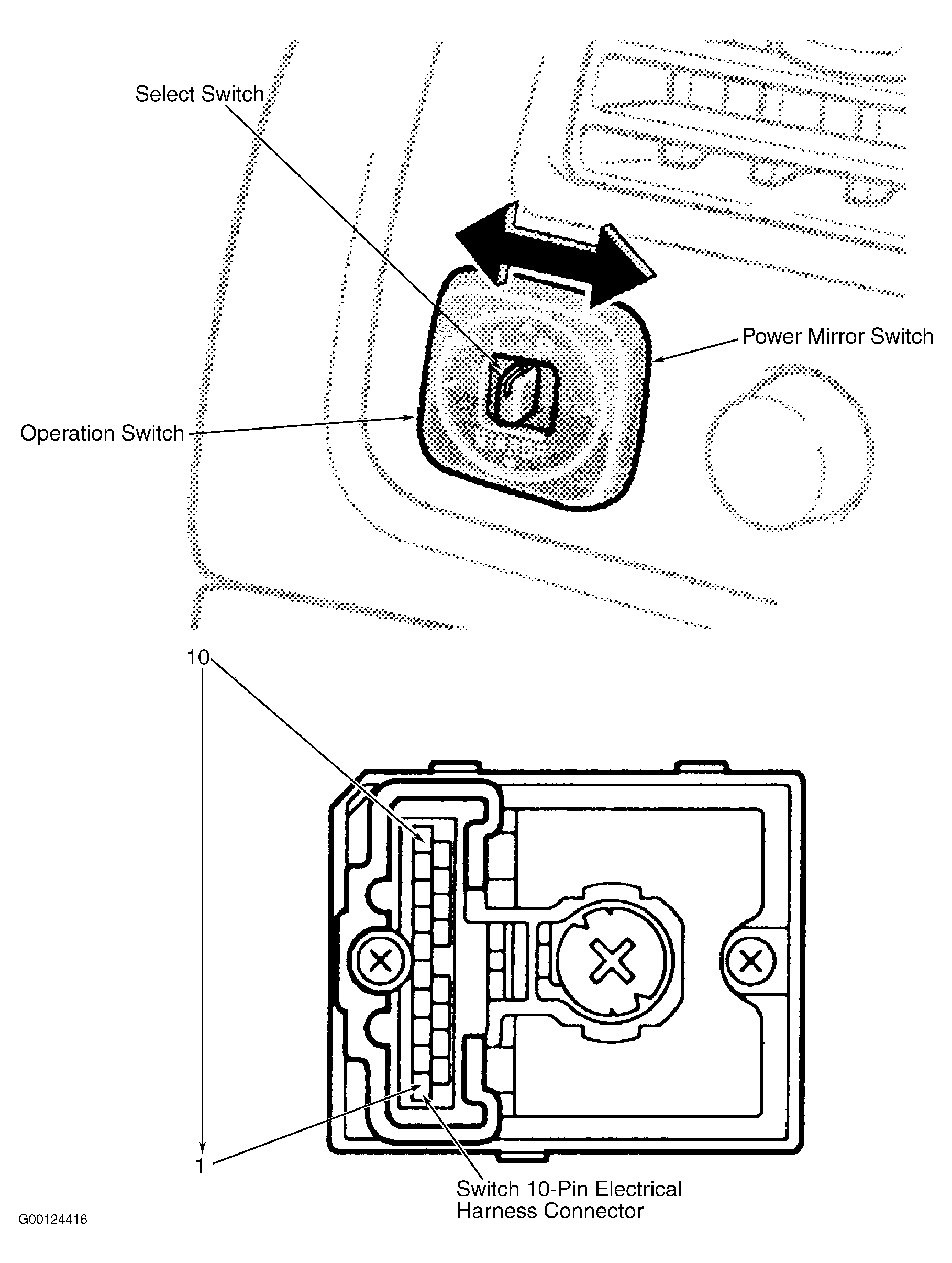

Turn ignition off. Disconnect Black 10-pin power mirror switch electrical harness connector and remove power mirror switch. Using an ohmmeter, check continuity between appropriate mirror switch terminals. See Fig 1. See appropriate POWER MIRROR SWITCH CONTINUITY TEST table. If continuity or resistance is not as specified, replace power mirror switch. If continuity or resistance is as specified, inspect switch circuit for defects or damage. See MEMORY SYSTEMS and POWER MIRRORS in SYSTEM WIRING DIAGRAMS article.
POWER MIRROR SWITCH CONTINUITY TEST (WITHOUT DRIVING POSITION MEMORY)
| Power Mirror Switch Position | Power Mirror Switch Terminal Nos. | Specification | |
|---|---|---|---|
| Select Switch Set To Left | |||
| Off | Any | No Continuity | |
| Up | 3 & 4; 7 & 8 | Continuity | |
| Down | 3 & 8; 4 & 7 | Continuity | |
| Left | 4 & 9; 7 & 8 | Continuity | |
| Right | 4 & 7; 8 & 9 | Continuity | |
| Select Switch Set To Right | |||
| Off | Any | No Continuity | |
| Up | 2 & 4; 7 & 8 | Continuity | |
| Down | 2 & 8; 4 & 7 | Continuity | |
| Left | 4 & 10; 7 & 8 | Continuity | |
| Right | 4 & 7; 8 & 10 | Continuity | |
SELECT SWITCH CONTINUITY TEST (WITH DRIVING POSITION MEMORY)
| Power Mirror Select Switch Position | Power Mirror Switch Terminal Nos. | Specification |
|---|---|---|
| Left | 8 & 9 | 100 Ohms |
| Right | 8 & 9 | 0 Ohms |
| N/A | 5 & 6 | Continuity |
OPERATION SWITCH RESISTANCE TEST (WITH DRIVING POSITION MEMORY)
| Power Mirror Operation Switch Position | Power Mirror Switch Terminal Nos. | Resistance (Ohms) | |
|---|---|---|---|
| Select Switch In Left Or Right Position | |||
| Up | 7 & 9 | About 100 | |
| Right | 7 & 9 | 250 | |
| Down | 7 & 9 | 470 | |
| Left | 7 & 9 | 800 | |
