Testing Procedures

WARNING: This page is about a different car, the 2003 Toyota Prius, 2002 Toyota Prius, and 2001 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram and testing procedures, see Fig 1

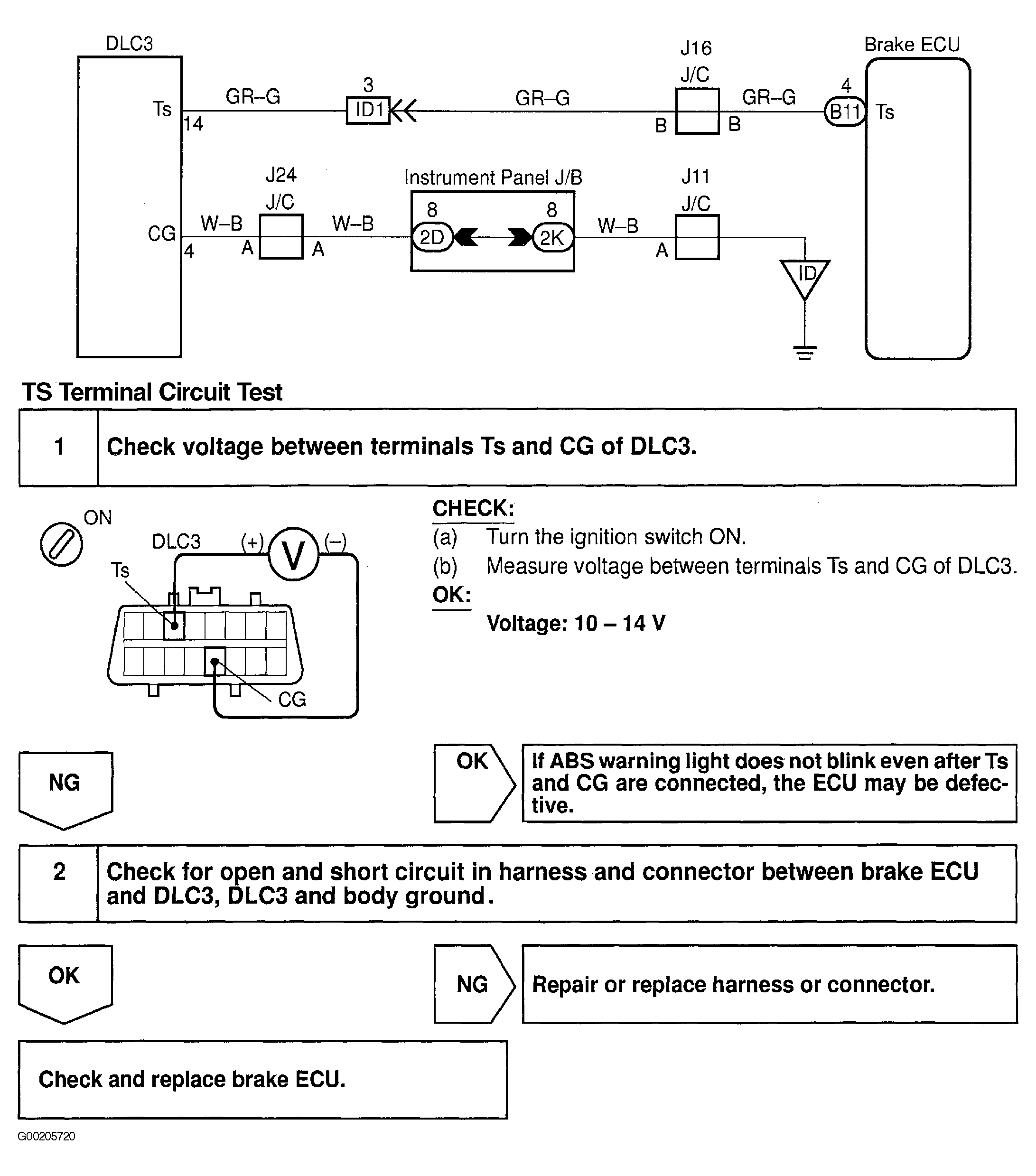

Fig 1: Ts Terminal Circuit Wiring Diagram & Testing Procedures
G00205720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
