Test No. 2: Down Function Does Not Work When Objects Are Caught In Window Glass

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: See Fig 1.

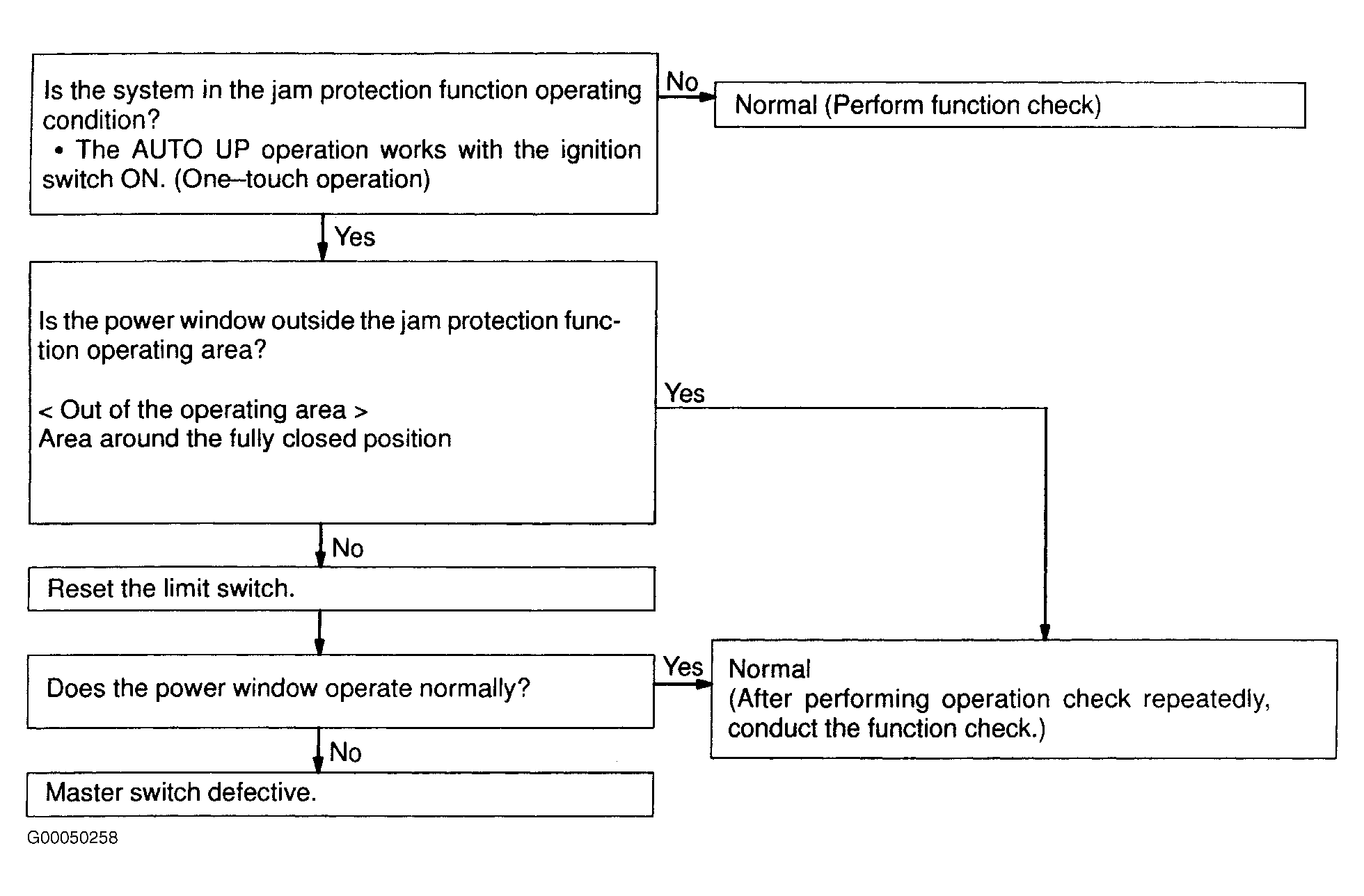

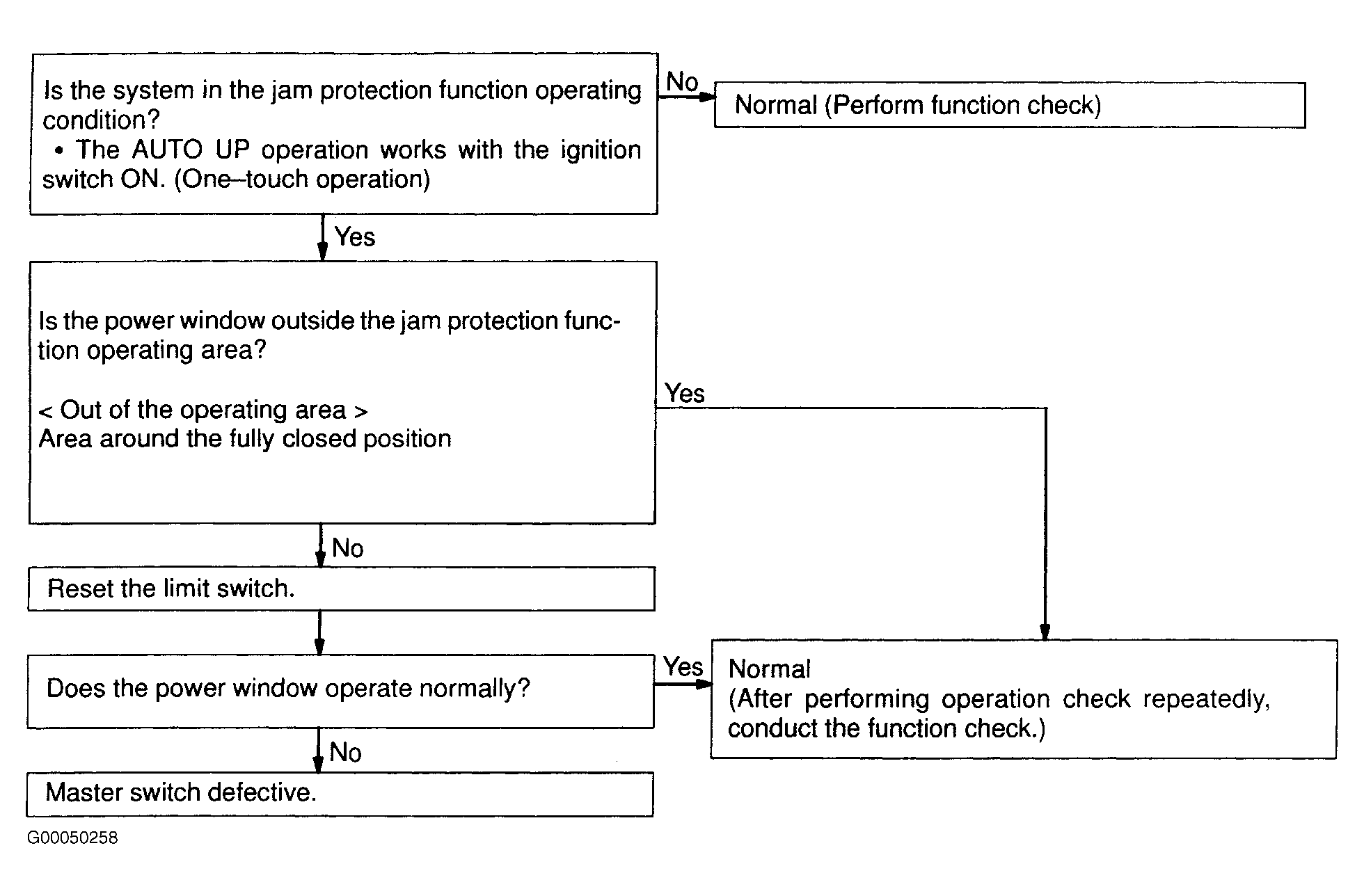

Fig 1: DOWN Function Does Not Work When Objects Are Caught In Window Glass
G00050258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
